Sungold Power 5000W Solar Kit: Build Your DIY Solar System with Ease

The Sungold Power 5000W Solar Kit is a complete solar power solution designed for homeowners looking to build their own DIY solar system at an affordable cost. This kit includes a 5000W 48V DC 120V pure sine wave inverter with Wi-Fi monitoring, 6 x 450W monocrystalline solar panels, and 1 x 12V 200AH LiFePO4 battery with Bluetooth. Perfect for powering air conditioners, washers, refrigerators, TVs, and other home appliances, this system is ideal for off-grid homes, solar systems, or emergency backup power. Its expandable design allows you to add more batteries and solar panels in the future, ensuring it grows with your energy needs. Monitor your systems performance and energy data in real-time through the app.

Whats Included in the Sungold Power 5000W Solar Kit?

• 1 x 5000 Watt 48V DC 120V Inverter (with Wi-Fi Monitoring)

• 6 x 450 Watt Monocrystalline Solar Panels

• 1 x 12V 200AH LiFePO4 Battery (with Bluetooth)

• 6 x Sets of Mounting Z-Brackets

• 1 x 50-Foot Solar Extension Cable (Inverter PV Input)

Key Features of the Sungold Power 5000W Solar Kit

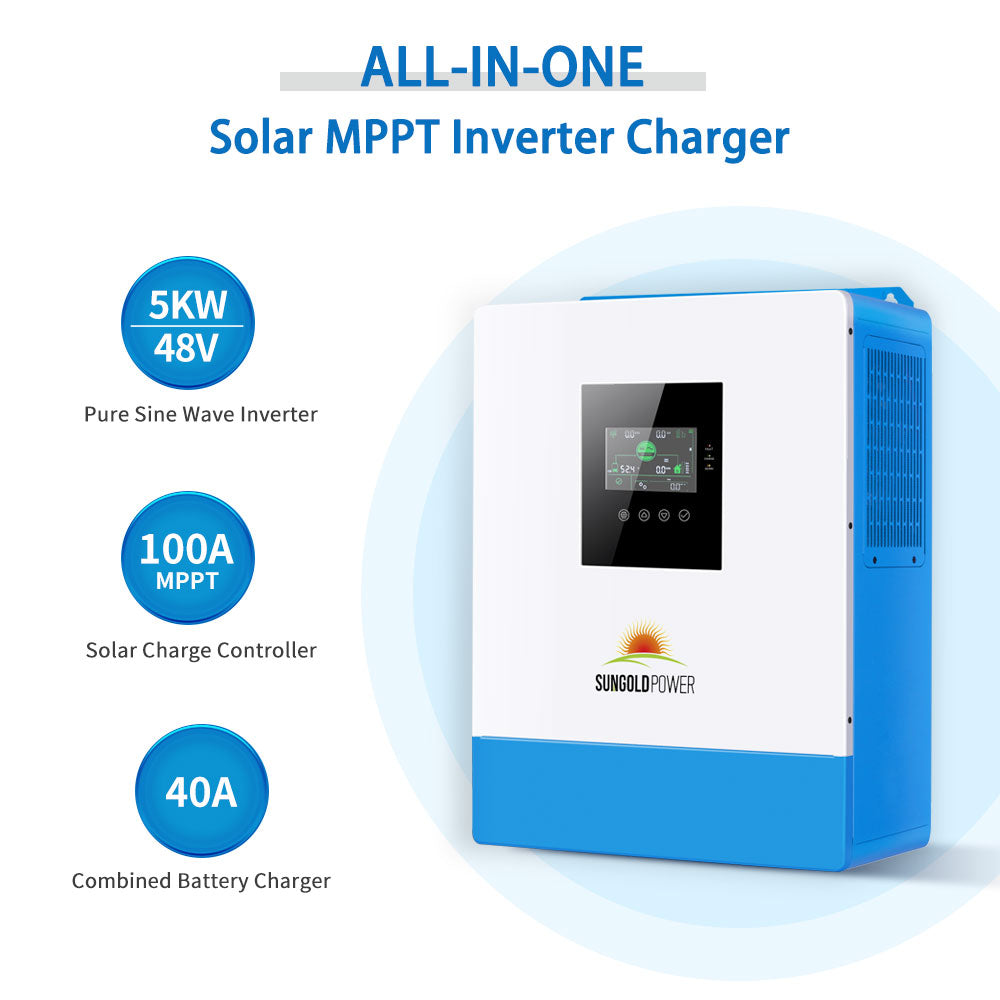

5000 Watt Solar Inverter Specifications

• AC Output: 5000W

• Output Waveform: Pure Sine Wave

• AC Output Voltage: 120V, 50Hz/60Hz

• Max PV Input: 500VDC

• Efficiency: >95%

• Max Charging Current: 100A

• Maximum PV Array Power: 5500W

• Dimensions: 17.3 x 12.8 x 5.1 inches

• Weight: 28 lbs

• Warranty: 3 Years

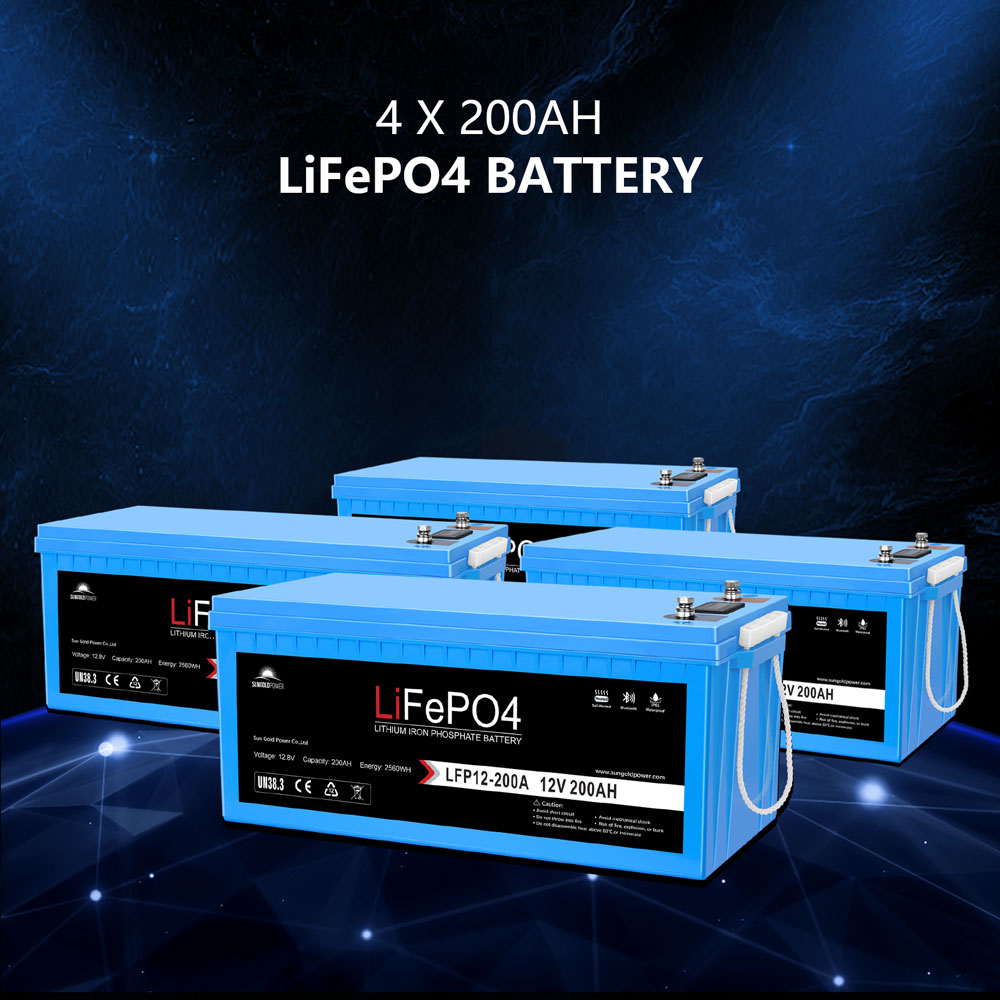

LiFePO4 Battery Specifications

• Nominal Voltage: 12.8V

• Nominal Capacity: 200AH

• Energy: 2560WH

• Voltage Window: 10.8V€“14.6V

• Max Continuous Charge Current: 150A

• Peak Discharge Current: 245A

• Cycle Life: >4000 Cycles

• Main Features: Self-Heating, IP65 Rating

• Monitoring Function: LCD/Bluetooth

• Dimensions: 19.7 x 9.4 x 9.1 inches

• Weight: 48.5 lbs

• Warranty: 5 Years

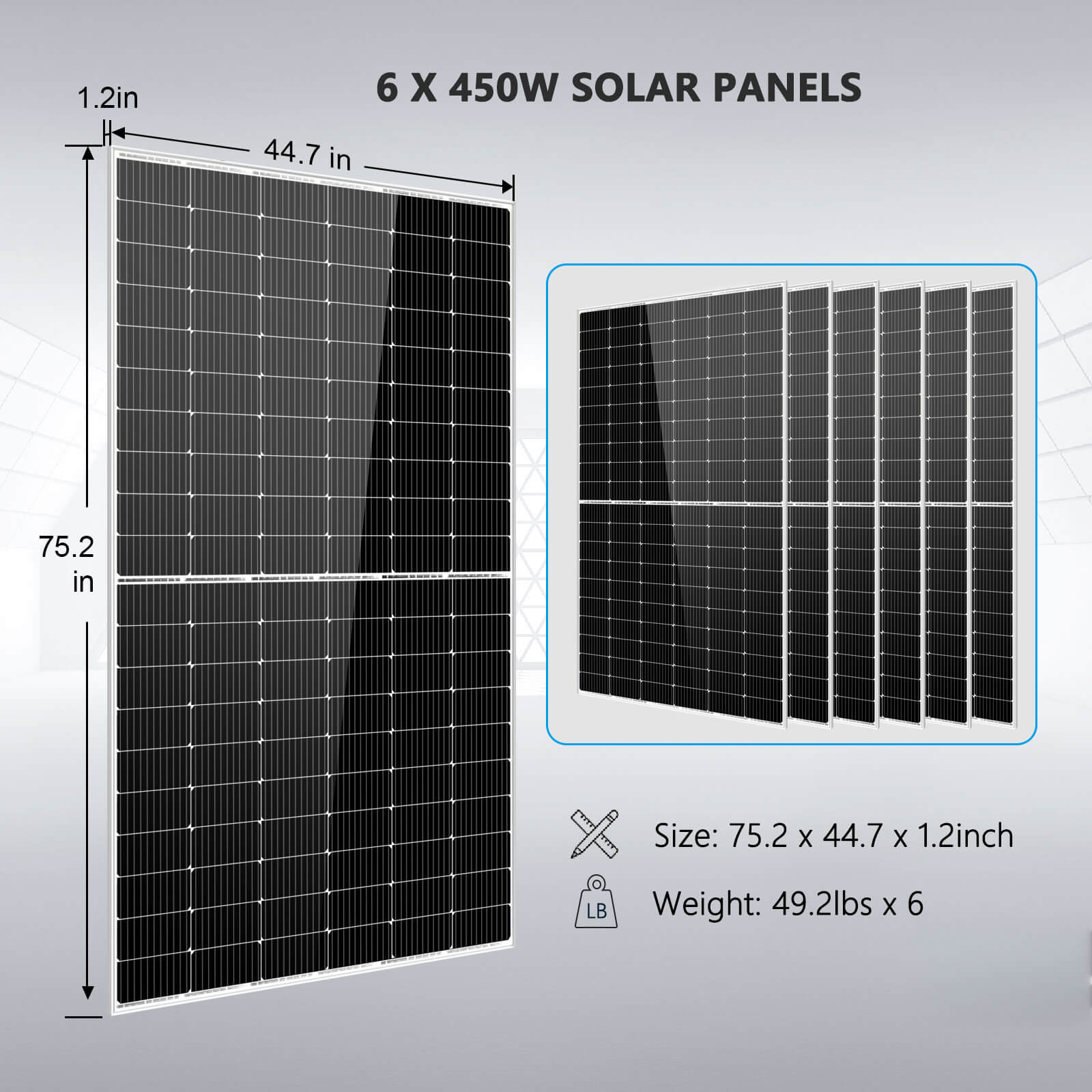

450 Watt Monocrystalline Solar Panel Specifications

• Peak Power: 450W

• Solar Cell Type: Monocrystalline

• Product Tolerance: ±3%

• Maximum Power Current (IMP): 13.16A

• Maximum Power Voltage (VMP): 34.2V

• Short Circuit Current (ISC): 13.82A

• Open Circuit Voltage (VOC): 41.72V

• Dimensions: 75.2 x 44.7 x 1.4 inches

• Weight: 53.9 lbs

• Warranty: 25 Years

Solar Kit Specifications at a Glance

• Max Continuous Output: 5000W

• AC Output: 120V

• DC Voltage: 48V

• Max Solar Input: 5000W

• Total Watt of Panels: 2700W

• Per Panel Wattage: 450W

• Number of Panels: 6

• Total Battery Capacity: 10.24KWH

• Battery Chemistry: Lithium (LiFePO4)

• Number of Batteries: 4

• Battery Specifications: 12V 200AH

Why Choose the Sungold Power 5000W Solar Kit?

• High Power Output: Generates up to 2700W of solar power, ideal for powering heavy-duty appliances like air conditioners and refrigerators.

• Expandable Design: Easily add more batteries and solar panels to meet growing energy needs.

• Wi-Fi Monitoring: Track system performance and energy data in real-time through the app.

• Durable Components: Built to last with a 25-year warranty on solar panels, a 5-year warranty on batteries, and a 3-year warranty on the inverter.

• Versatile Applications: Perfect for off-grid homes, solar systems, and emergency backup power.

Ideal for Off-Grid Living and Energy Independence

Whether youre building a DIY solar system for your home or preparing for emergencies, the Sungold Power 5000W Solar Kit provides a reliable and efficient energy solution. Enjoy the freedom of off-grid living with a system designed for performance, durability, and scalability.

User Manual

Sungold Power 5000W Pure Sine Wave Inverter User Manual

Sungold Power 200Ah LiFePo4 Battery With Bluetooth User Manual

Sungold Power 450 Watt Monocrystalline Solar Panels
