Sungold Power 8000W Off-Grid Solar Kit: Power Your Mid-Sized Home or Cabin

The Sungold Power 8000W Off-Grid Solar Kit is a complete solar power solution designed to provide reliable, sustainable energy for mid-sized off-grid homes, cabins, and remote locations. This kit includes an 8000W 48V DC 120V/240V split-phase inverter/charger, 8 x 415W monocrystalline solar panels, and 2 x 51.2V 100AH LiFePO4 batteries. With the ability to generate approximately 3.32KW of solar power, this system is perfect for powering essential appliances and devices. Its expandable design allows you to add more batteries and solar panels in the future, ensuring it grows with your energy needs. Enjoy clean, quiet, and reliable off-grid power with this comprehensive kit.

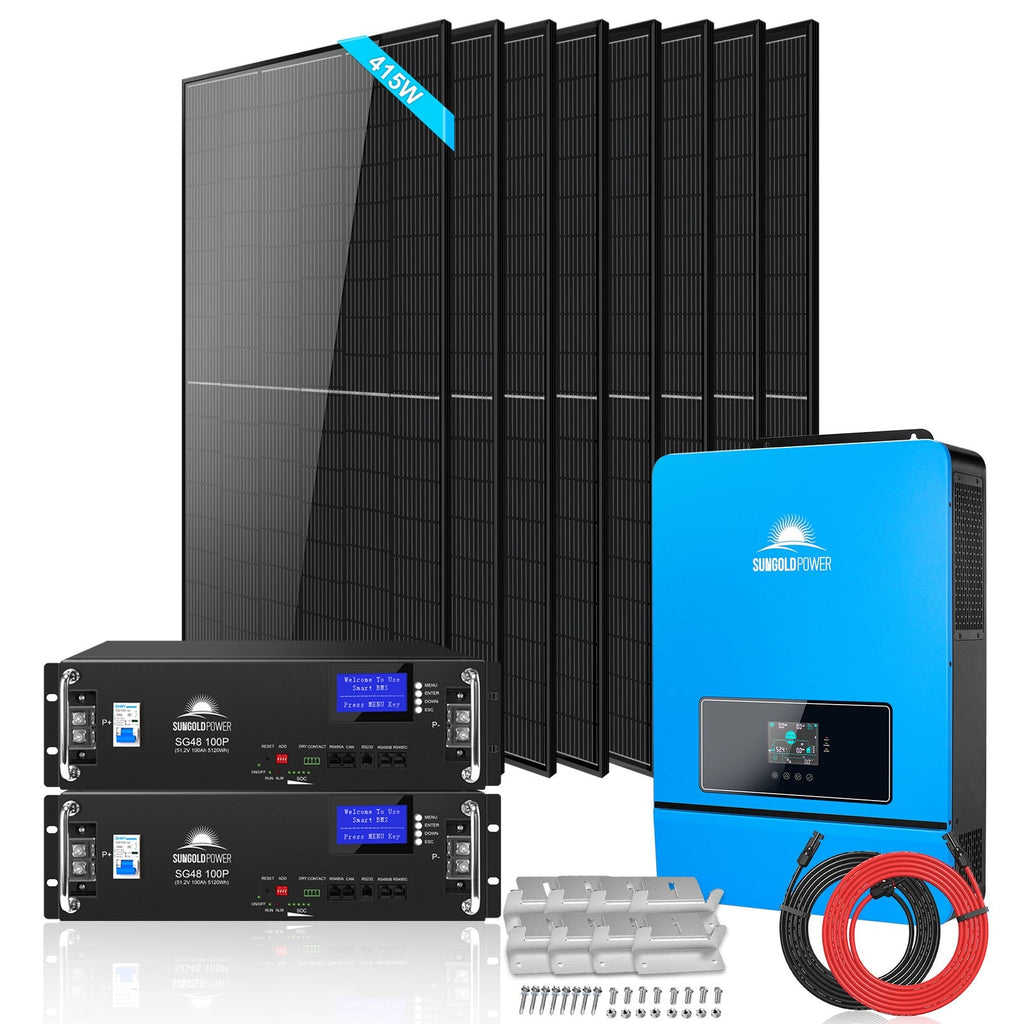

Whats Included in the Sungold Power 8000W Solar Kit?

• 1 x 8000 Watt 48V DC 120V/240V Inverter/Charger

• 8 x 415 Watt Monocrystalline Solar Panels

• 2 x 100AH 51.2V LiFePO4 Batteries

• 1 x 50-Foot Solar Extension Cable (Inverter PV Input)

• 8 x Sets of Mounting Z-Brackets

Key Features of the Sungold Power 8000W Solar Kit

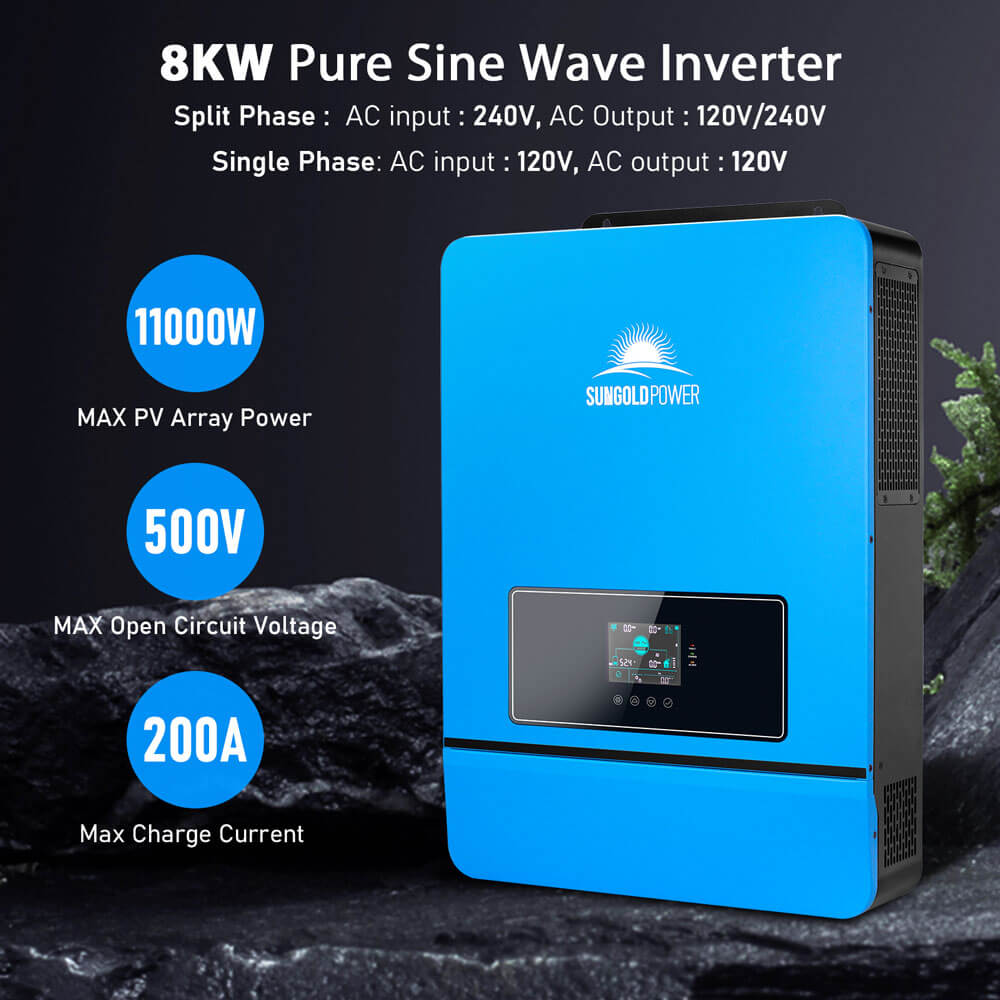

8000 Watt Solar Inverter Specifications

• AC Output: 8000W

• Output Waveform: Pure Sine Wave

• AC Output Voltage: 120V/240V (Split Phase/Single Phase)

• Max PV Input: 500VDC

• Efficiency: 92%

• Max Charging Current: 200A

• Maximum PV Array Power: 11,000W

• Dimensions: 620 x 445 x 130mm

• Weight: 59 lbs

• Warranty: 3 Years

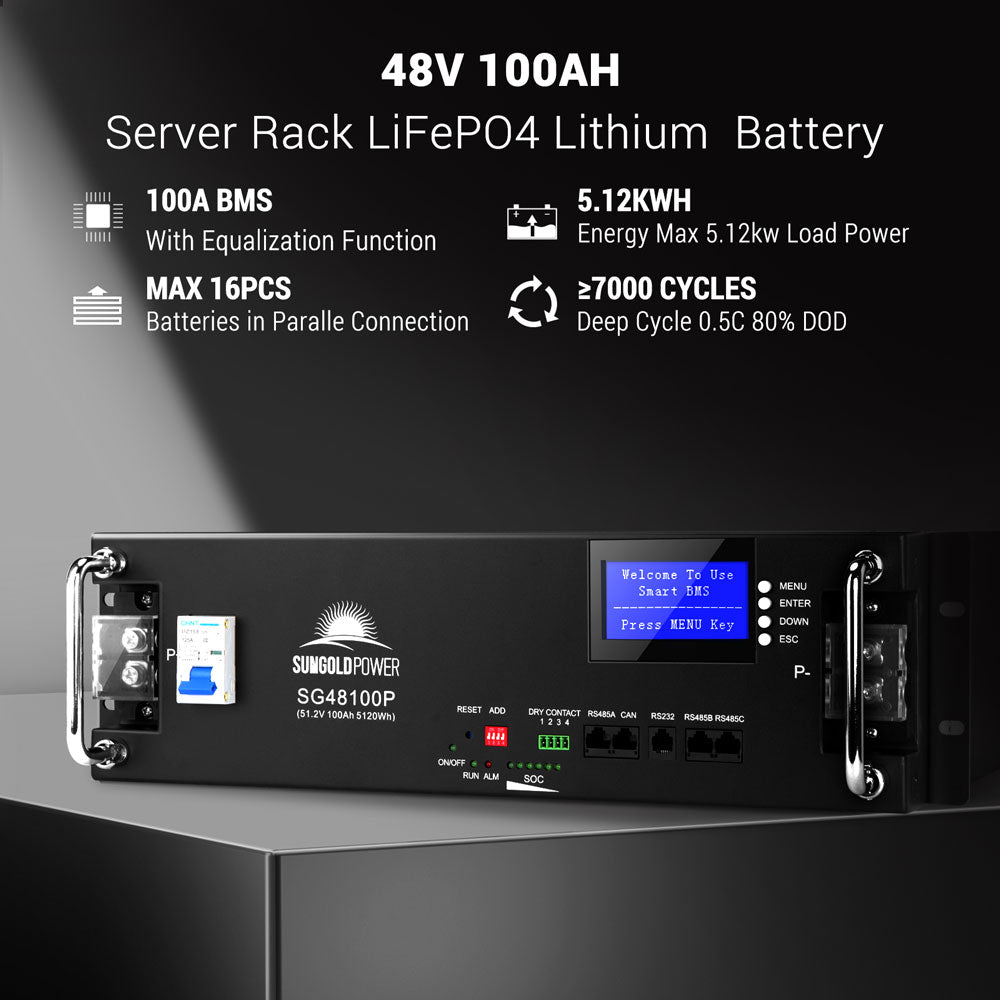

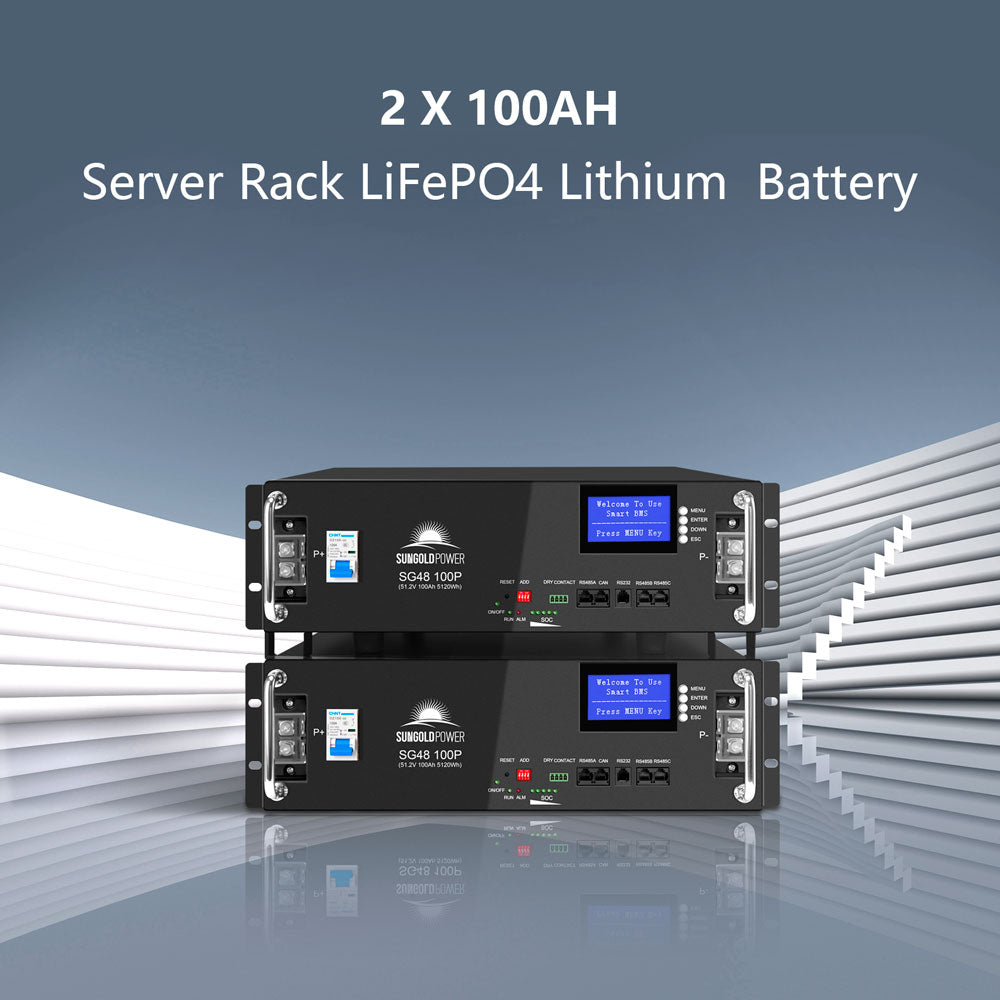

LiFePO4 Battery Specifications

• Nominal Voltage: 51.2V

• Nominal Capacity: 100AH

• Energy: 5.12KWH

• Charge Cut-Off Current: 5A

• Max Continuous Charge Current: 100A

• Discharge Cut-Off Voltage: 43.2V

• Cycle Life: >7000 Cycles

• Communication Protocol: RS232/RS485/CAN (Supports Multiple Protocols)

• Storage Temperature: -10°C to +45°C

• Dimensions: 19.3 x 18.9 x 5.5 inches

• Weight: 93 lbs

• Warranty: 10 Years

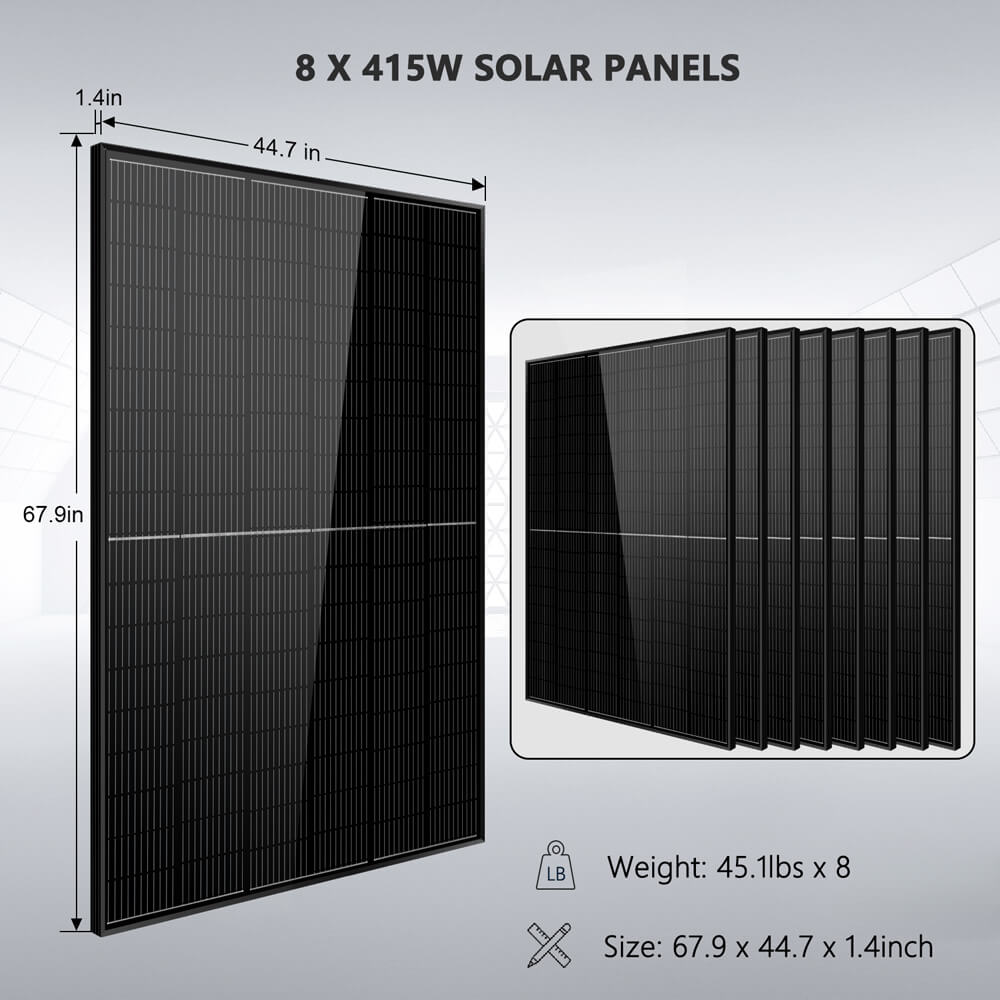

415 Watt Monocrystalline Solar Panel Specifications

• Peak Power: 415W

• Solar Cell Type: Monocrystalline

• Product Tolerance: ±3%

• Maximum Power Current (IMP): 13.13A

• Maximum Power Voltage (VMP): 31.61V

• Short Circuit Current (ISC): 13.79A

• Open Circuit Voltage (VOC): 38.82V

• Dimensions: 67.9 x 44.7 x 1.4 inches

• Weight: 45.1 lbs

• Warranty: 25 Years

Solar Kit Specifications at a Glance

• Max Continuous Output: 8000W

• AC Output: 120V/240V

• DC Voltage: 48V

• Max Solar Input: 11,000W

• Total Watt of Panels: 3320W

• Per Panel Wattage: 415W

• Number of Panels: 8

• Total Battery Capacity: 10.24KWH

• Battery Chemistry: Lithium (LiFePO4)

• Number of Batteries: 2

• Battery Specifications: 48V 100AH

Why Choose the Sungold Power 8000W Off-Grid Solar Kit?

• High Power Output: Generates up to 3.32KW of solar power, ideal for mid-sized homes and cabins.

• Expandable Design: Easily add more batteries and solar panels to meet growing energy needs.

• Advanced Monitoring: Track system performance in real-time with Wi-Fi remote monitoring.

• Durable Components: Built to last with a 25-year warranty on solar panels, a 10-year warranty on batteries, and a 3-year warranty on the inverter.

• Versatile Applications: Perfect for off-grid homes, cabins, and remote locations.

Ideal for Off-Grid Living and Energy Independence

Whether youre powering a mid-sized home, a remote cabin, or a small workshop, the Sungold Power 8000W Off-Grid Solar Kit provides a reliable and efficient energy solution. Enjoy the freedom of off-grid living with a system designed for performance, durability, and scalability.

User Manual

Sungold Power 8000 Watt Inverter User Manual

Sungold Power LifePo4 5.12KWH Lithium Battery User Manual

Sungold Power 415 Watt Monocrystalline Solar Panels
