Sungold Power 5000W Off-Grid Solar Kit: Power Your Mid-Sized Home or Cabin

The Sungold Power 5000W Off-Grid Solar Kit is a comprehensive solar power solution designed to bring reliable, sustainable energy to mid-sized off-grid homes, cabins, and remote locations. This kit includes a 5000W 48V 120V pure sine wave inverter with Wi-Fi monitoring, 6 x 370W monocrystalline solar panels, and 2 x 51.2V 100AH PowerWall lithium batteries. With the ability to power most home appliances, this system is ready for expansion€”up to 6 identical inverters can be paralleled for single-phase (120VAC), split-phase (240VAC), or three-phase (208VAC) configurations. Monitor your systems performance and energy data in real-time through the app, and enjoy the freedom of off-grid living with this scalable and efficient solar kit.

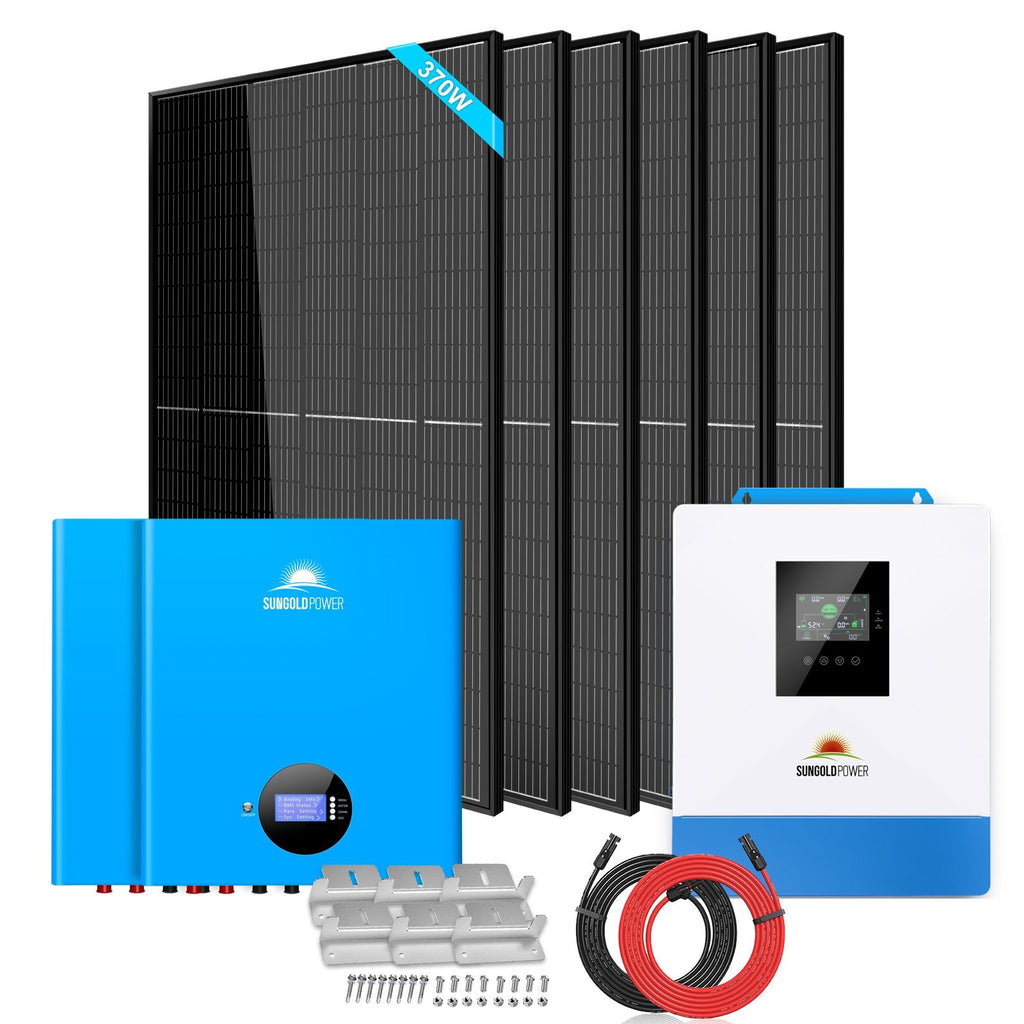

Whats Included in the Sungold Power 5000W Solar Kit?

• 1 x 5000 Watt 48V DC 120V Pure Sine Wave Inverter (with Wi-Fi Monitoring)

• 6 x 370 Watt Monocrystalline Solar Panels

• 2 x 100AH 51.2V PowerWall Lithium Batteries

• 1 x 50-Foot Solar Extension Cable (Inverter PV Input)

• 6 x Sets of Mounting Z-Brackets

Key Features of the Sungold Power 5000W Solar Kit

5000 Watt Solar Inverter Specifications

• AC Output: 5000W

• Output Waveform: Pure Sine Wave

• AC Output Voltage: 120V 50Hz/60Hz

• Max PV Input: 500VDC

• Efficiency: >95%

• Max Charging Current: 100A

• Maximum PV Array Power: 5500W

• Dimensions: 17.3 x 12.8 x 5.1 inches

• Weight: 28 lbs

• Warranty: 3 Years

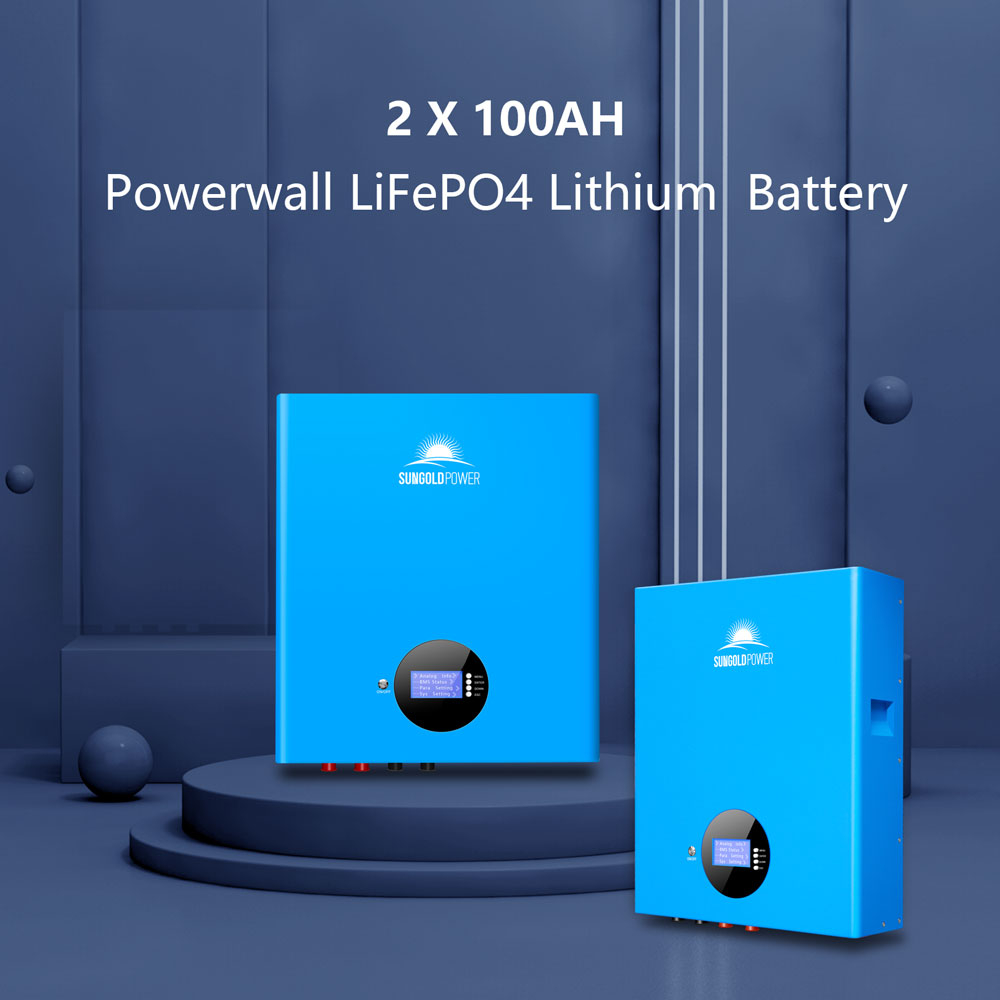

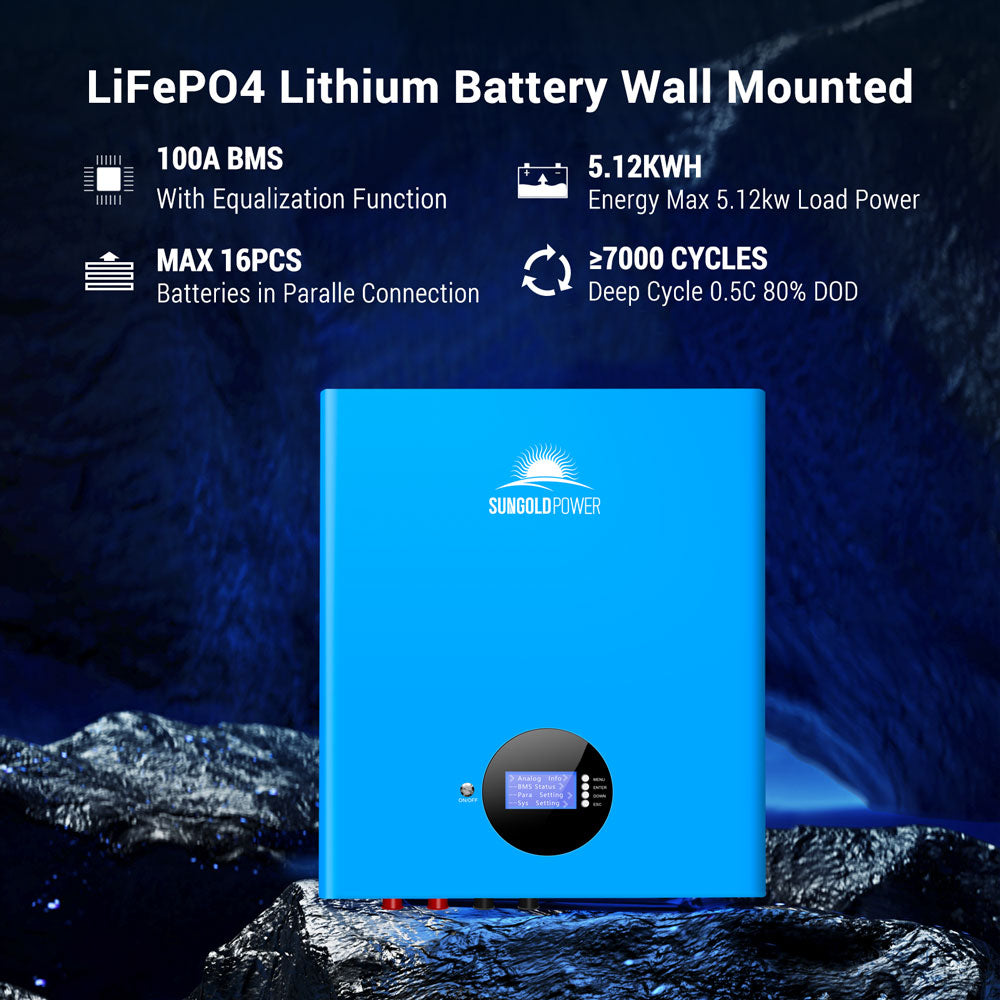

LiFePO4 Battery Specifications

• Nominal Voltage: 51.2V

• Nominal Capacity: 100AH

• Energy: 5.12KWH

• Charge Cut-Off Current: 5A

• Max Continuous Charge Current: 100A

• Discharge Cut-Off Voltage: 43.2V

• Cycle Life: >7000 Cycles

• Communication Protocol: RS232/RS485/CAN (Supports Multiple Protocols)

• Storage Temperature: -10°C to +45°C

• Dimensions: 23 x 16.5 x 6 inches

• Weight: 113.4 lbs

• Warranty: 10 Years

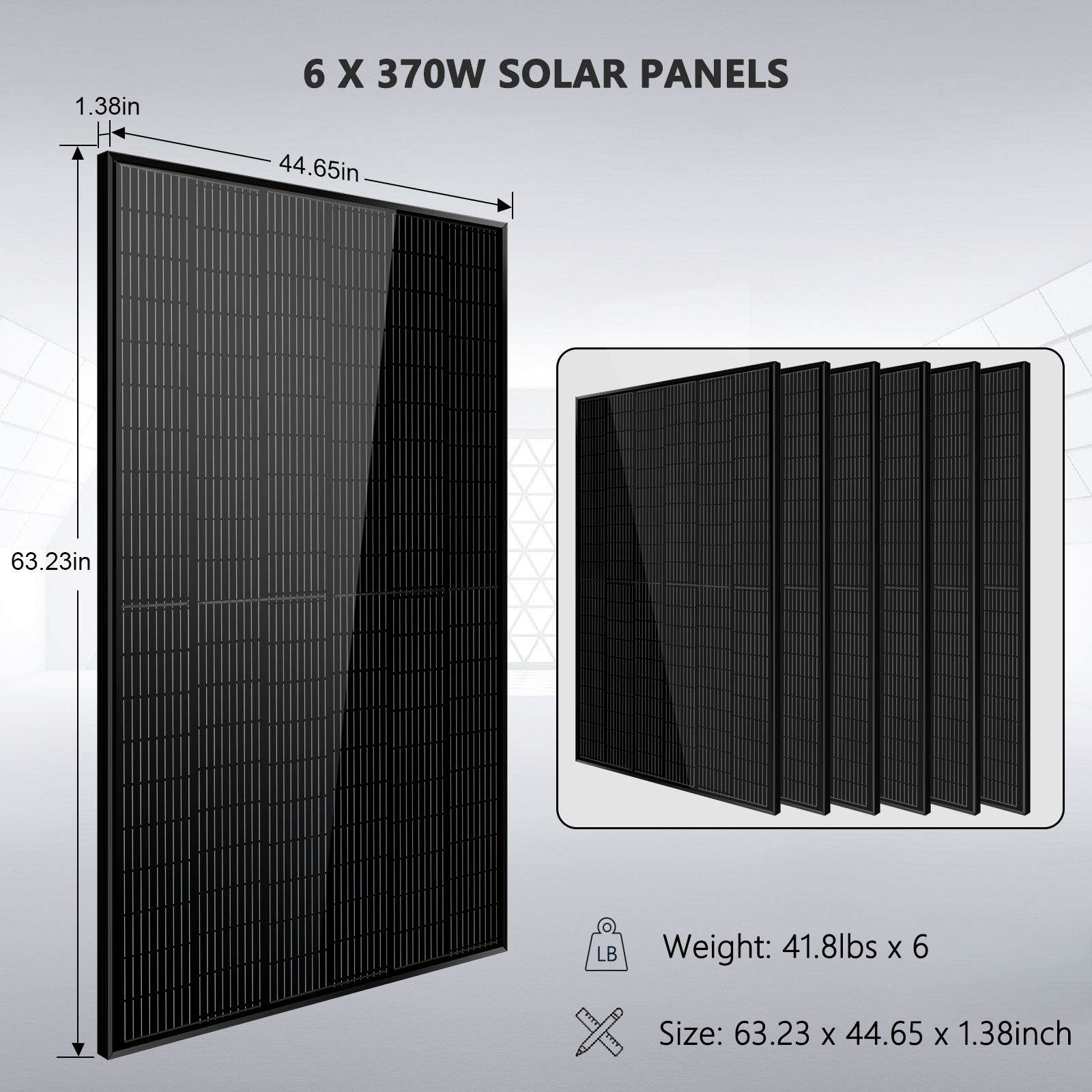

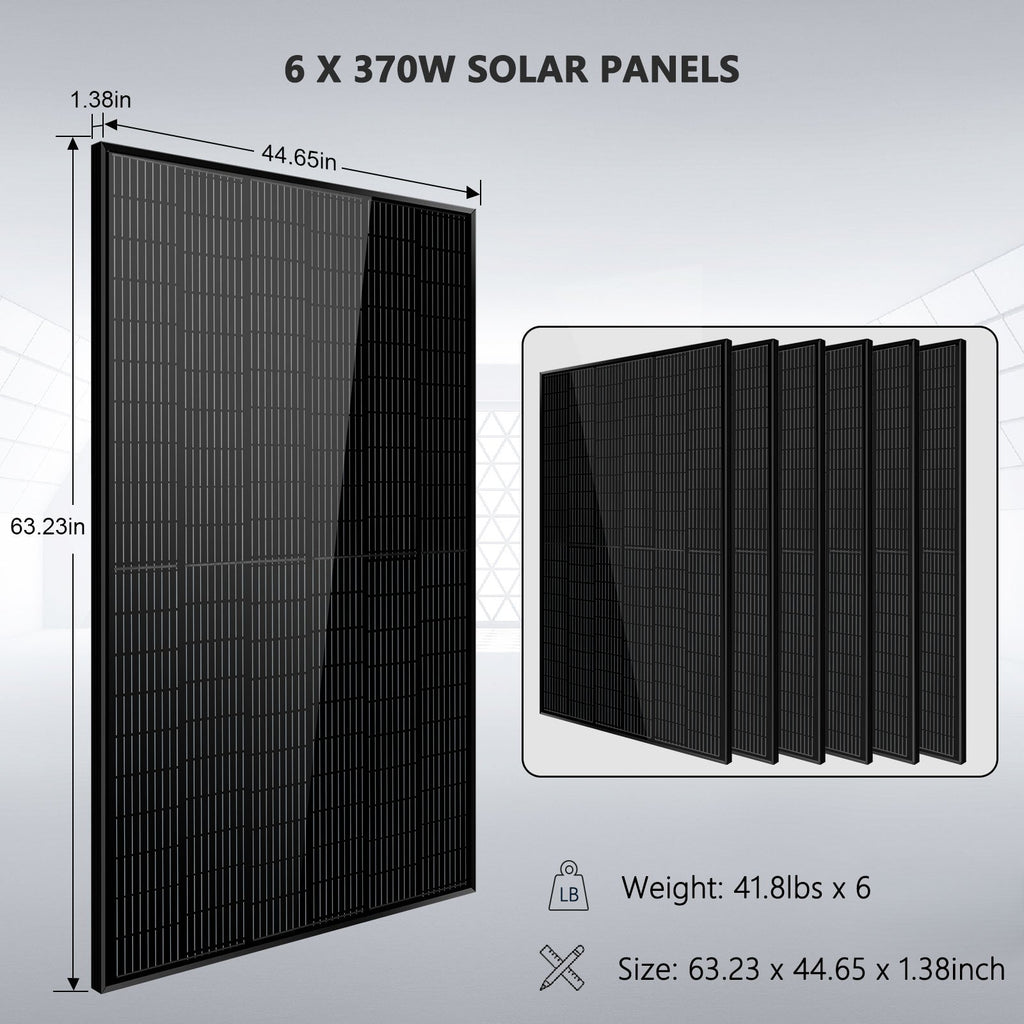

370 Watt Monocrystalline Solar Panel Specifications

• Peak Power: 370W

• Solar Cell Type: Monocrystalline

• Product Tolerance: ±3%

• Maximum Power Current (IMP): 11.15A

• Maximum Power Voltage (VMP): 33.2V

• Short Circuit Current (ISC): 11.81A

• Open Circuit Voltage (VOC): 40.17V

• Dimensions: 63.23 x 44.65 x 1.38 inches

• Weight: 41.8 lbs

• Warranty: 25 Years

Solar Kit Specifications at a Glance

• Max Continuous Output: 5000W

• AC Output: 120V

• DC Voltage: 48V

• Max Solar Input: 5000W

• Total Watt of Panels: 2220W

• Per Panel Wattage: 370W

• Number of Panels: 6

• Total Battery Capacity: 10.24KWH

• Battery Chemistry: Lithium (LiFePO4)

• Number of Batteries: 2

• Battery Specifications: 48V 100AH

Why Choose the Sungold Power 5000W Off-Grid Solar Kit?

• High Power Output: Generates up to 2.22KW of solar power, ideal for mid-sized homes and cabins.

• Expandable Design: Easily add more batteries and solar panels to meet growing energy needs.

• Wi-Fi Monitoring: Track system performance and energy data in real-time through the app.

• Durable Components: Built to last with a 25-year warranty on solar panels, a 10-year warranty on batteries, and a 3-year warranty on the inverter.

• Versatile Applications: Perfect for off-grid homes, cabins, and remote locations.

Ideal for Off-Grid Living and Energy Independence

Whether youre powering a mid-sized home, a remote cabin, or a small workshop, the Sungold Power 5000W Off-Grid Solar Kit provides a reliable and efficient energy solution. Enjoy the freedom of off-grid living with a system designed for performance, durability, and scalability.

User Manual

Sungold Power 5000W Pure Sine Wave Inverter User Manual

Sungold Power 5.12KWH Powerwall LifePo4 Battery User Manual

Sungold Power 370 Watt Monocrystalline Solar Panel User Manual
