Sungold Power 4000W Off-Grid Solar Kit: Power Your RV or Cabin with Solar Energy

The Sungold Power 4000W Off-Grid Solar Kit is the perfect solution for campers, RV enthusiasts, and off-grid cabin owners looking for a cost-effective, eco-friendly, and reliable energy source. This complete solar kit includes a 4000W split-phase inverter, 6 x 200W monocrystalline solar panels, 2 x 12V 200AH LiFePO4 batteries with Bluetooth, and a 100A MPPT solar charge controller. Designed for versatility and efficiency, this kit can generate approximately 5400 watts per day (based on 4.5 sun hours), making it ideal for powering appliances in RVs, cabins, and small workshops. Its scalable design allows you to add more solar panels or batteries in the future, ensuring it grows with your energy needs.

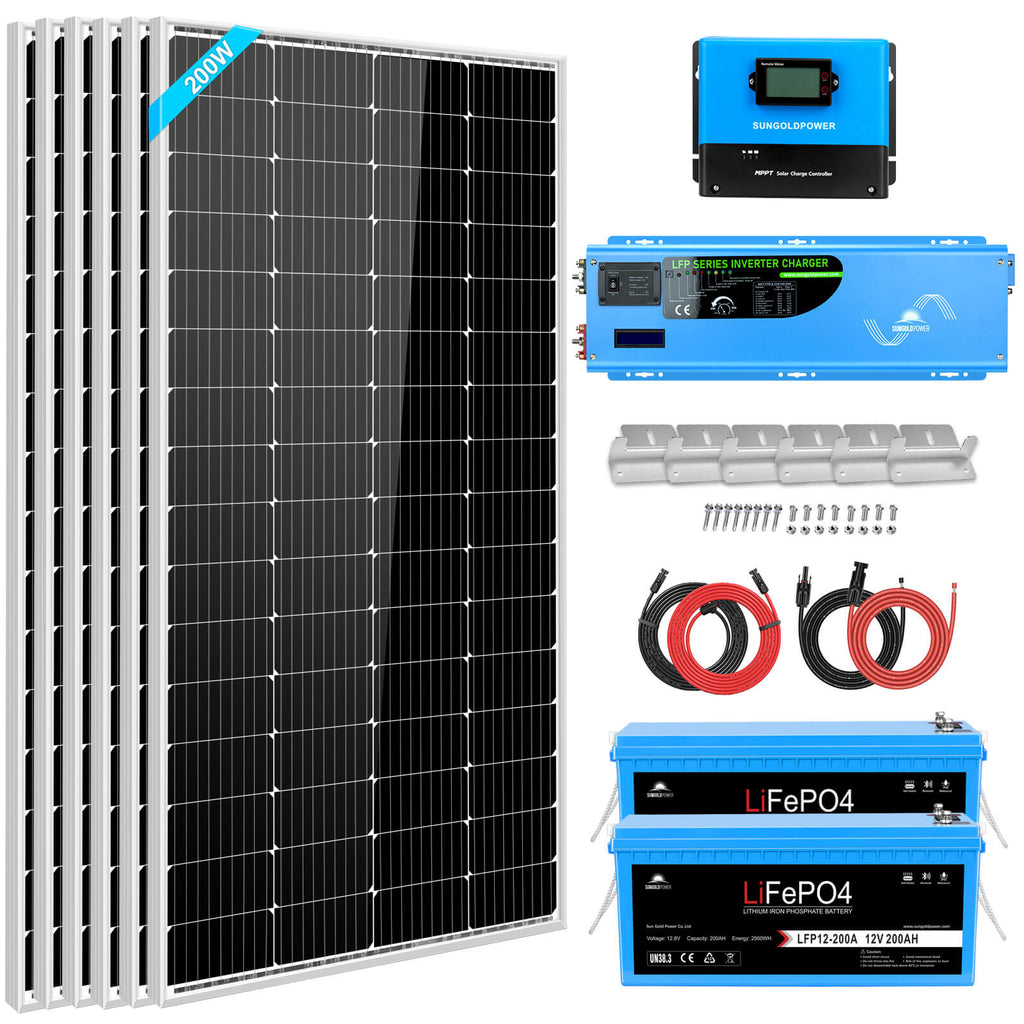

Whats Included in the Sungold Power 4000W Solar Kit?

• 1 x 4000 Watt 12V DC 120V/240V Split Phase Inverter

• 6 x 200 Watt Monocrystalline Solar Panels

• 2 x 12V 200AH LiFePO4 Batteries (with Bluetooth)

• 1 x 100A MPPT Solar Charge Controller

• 6 x Sets of Mounting Z-Brackets

• 1 x 50-Foot Solar Extension Cable (Inverter PV Input)

• 1 x Set of Solar Cables (Between Solar Panels and MPPT Controller)

Key Features of the Sungold Power 4000W Solar Kit

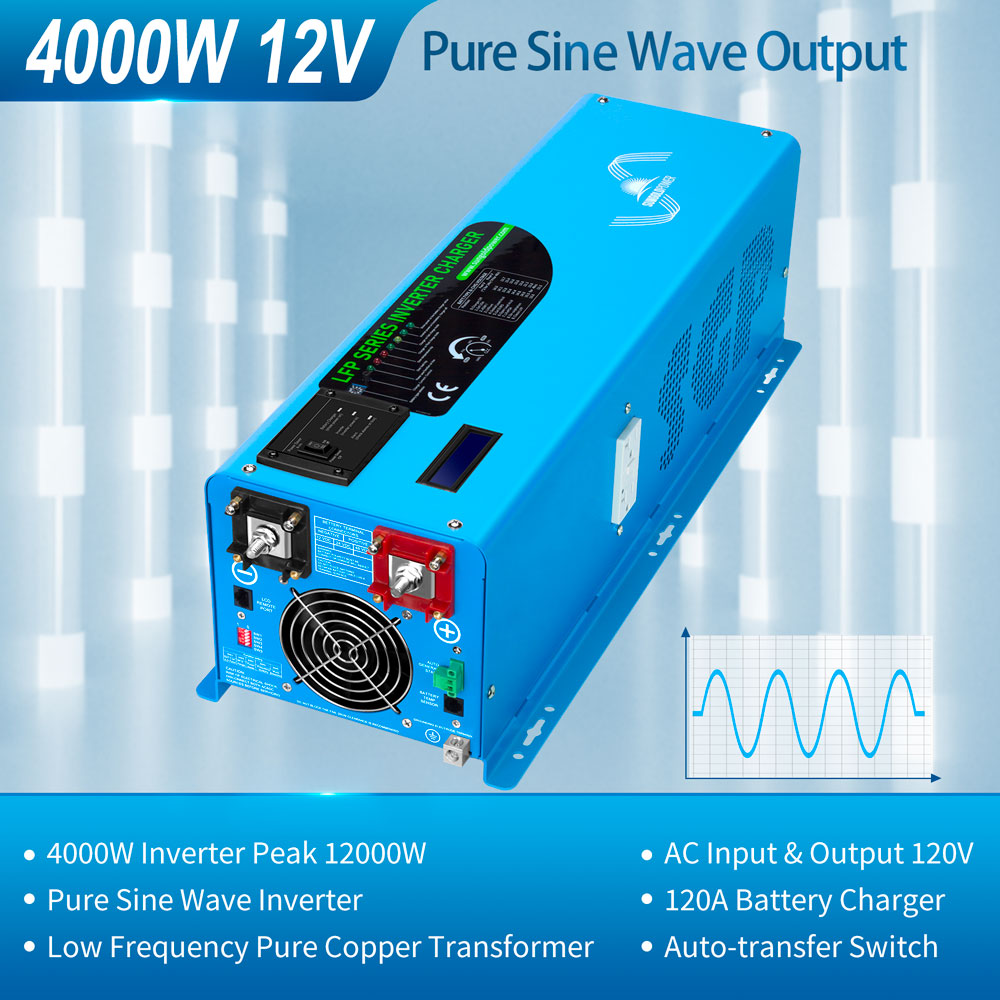

4000 Watt Inverter Specifications

• AC Output: 4000W

• Output Waveform: Pure Sine Wave

• AC Output Voltage: 120V/240V, 50Hz/60Hz

• Efficiency: >88%

• Nominal Input Voltage: 12VDC

• Max Charging Current: 120A ±5A

• Dimensions: 25.6 x 9.1 x 7.5 inches

• Weight: 58.9 lbs

• Warranty: 3 Years

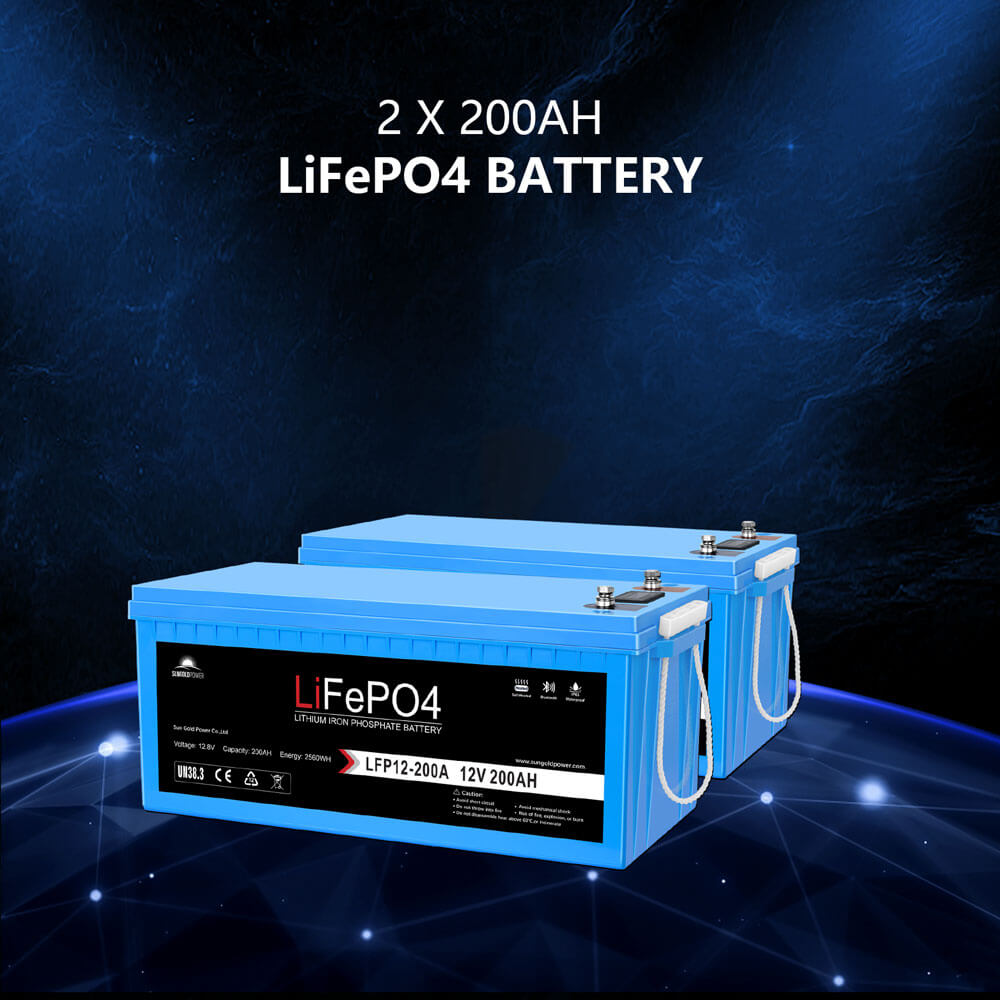

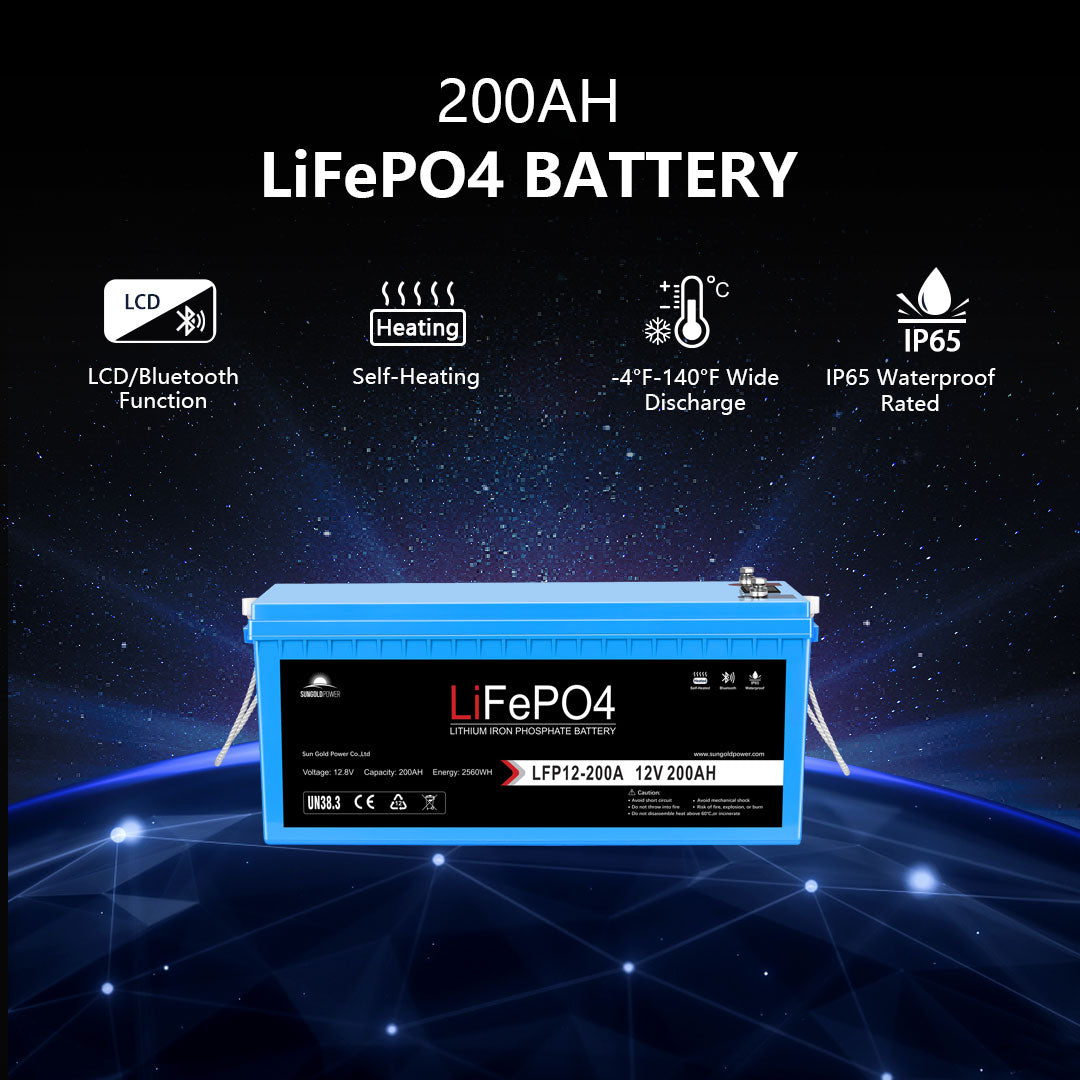

LiFePO4 Battery Specifications

• Nominal Voltage: 12.8V

• Nominal Capacity: 200AH

• Energy: 2560WH

• Voltage Window: 10.8V€“14.6V

• Max Continuous Charge Current: 150A

• Peak Discharge Current: 245A

• Cycle Life: >4000 Cycles

• Main Features: Self-Heating, IP65 Rating

• Monitoring Function: LCD/Bluetooth

• Dimensions: 19.7 x 9.4 x 9.1 inches

• Weight: 48.5 lbs

• Warranty: 5 Years

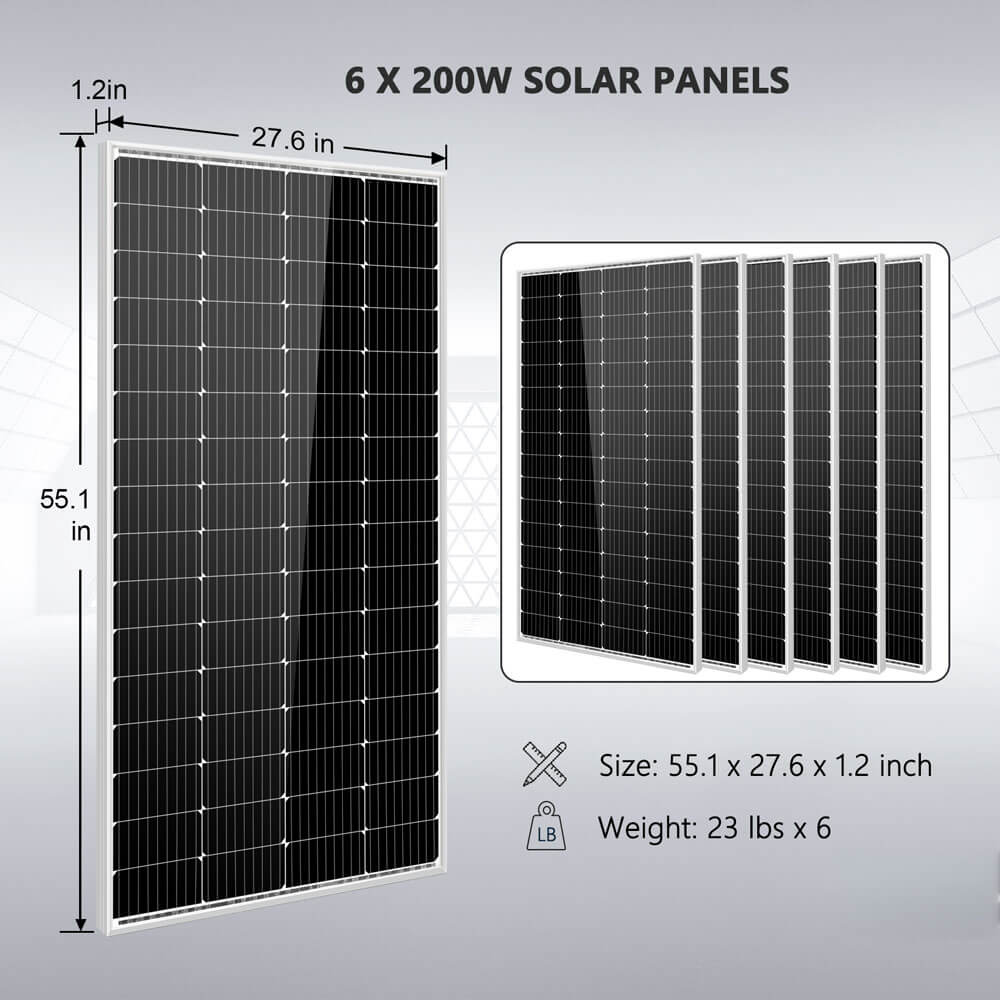

200 Watt Monocrystalline Solar Panel Specifications

• Peak Power: 200W

• Solar Cell Type: Monocrystalline

• Product Tolerance: ±3%

• Maximum Power Current (IMP): 5.28A

• Maximum Power Voltage (VMP): 37.9V

• Short Circuit Current (ISC): 5.57A

• Open Circuit Voltage (VOC): 43.5V

• Dimensions: 55.1 x 27.6 x 1.2 inches

• Weight: 23 lbs

• Warranty: 25 Years

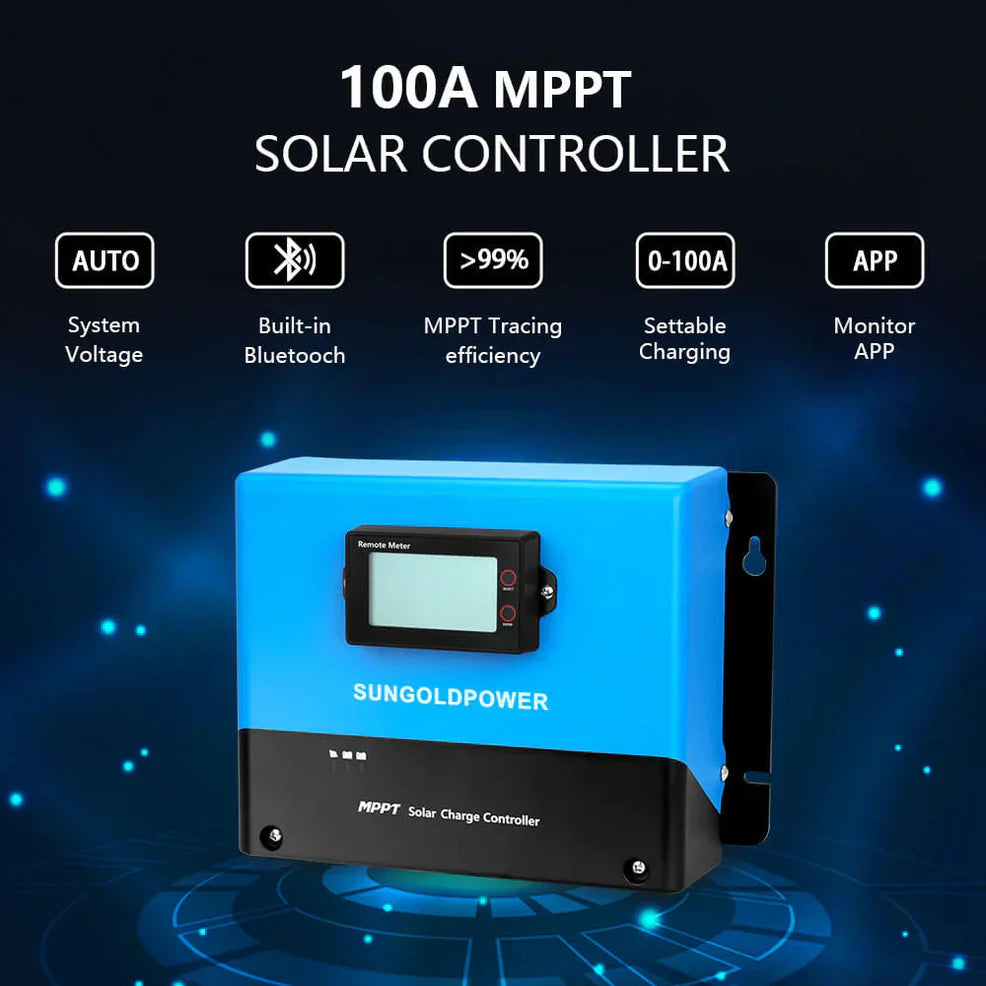

100A MPPT Solar Charge Controller Specifications

• System Voltage: 12V/24V/36V/48V (Auto-Sensing)

• Bluetooth & App Monitoring: Yes

• Maximum PV Open-Circuit Voltage: 250V

• Maximum PV Short-Circuit Current: 70A

• Rated Charging Current: 100A

• Settable Charging Current: 0-100A

• Solar Panel Power Support:

  • 12V: 1320W

  • 24V: 2640W

  • 36V: 3960W

  • 48V: 5280W

• MPPT Tracing Efficiency: >99%

• Dimensions: 12.4 x 8.9 x 4.8 inches

• Weight: 12.5 lbs

• Warranty: 3 Years

Solar Kit Specifications at a Glance

• Max Continuous Output: 4000W

• AC Output: 120V/240V

• DC Voltage: 12V

• Max Solar Input: 4000W

• Total Watt of Panels: 1200W

• Per Panel Wattage: 200W

• Number of Panels: 6

• Total Battery Capacity: 5.12KWH

• Battery Chemistry: Lithium (LiFePO4)

• Number of Batteries: 2

• Battery Specifications: 12V 200AH

Why Choose the Sungold Power 4000W Off-Grid Solar Kit?

• High Power Output: Generates up to 5400 watts per day, ideal for powering appliances in RVs, cabins, and small workshops.

• Expandable Design: Easily add more solar panels or batteries to meet growing energy needs.

• Advanced Monitoring: Track system performance in real-time with Bluetooth-enabled batteries and MPPT charge controllers.

• Durable Components: Built to last with a 25-year warranty on solar panels, a 5-year warranty on batteries, and a 3-year warranty on the inverter and charge controllers.

• Eco-Friendly Energy: Reduce your carbon footprint and energy bills with clean, renewable solar power.

Ideal for RV Living and Off-Grid Adventures

Whether youre camping, traveling in an RV, or living off-grid in a cabin, the Sungold Power 4000W Off-Grid Solar Kit provides a reliable and efficient energy solution. Enjoy the freedom of off-grid living with a system designed for performance, durability, and scalability.

User Manual

Sungold Power 4000W Pure Sine Wave Inverter User Manual

Sungold Power 200Ah LiFePo4 Battery With Bluetooth User Manual

Sungold Power 200 Watt Monocrystalline Solar Panel User Manual

Sungold Power 100A MPPT Solar Charge Controller User Manual
