Sungold Power 10000 Watt Off-Grid Solar Kit: Power Your Home with Clean Energy

The Sungold Power 10000 Watt Off-Grid Solar Kit is the ultimate solution for powering your home, office, or workshop with reliable, sustainable energy. This comprehensive solar kit includes 12 x 550W solar panels, 5 x 5.12KWH server rack batteries, a 10KW solar inverter (120V/240V), and essential accessories like cables, brackets, and a free server rack. With the ability to generate up to 26kWh/day (based on 4 full sun hours), this system is powerful enough to run air conditioners, well pumps, refrigerators, TVs, workshops, and more. Plus, its scalable design allows you to add more batteries and panels as needed. Enjoy off-grid living and energy independence with this high-performance solar kit!

Whats Included in the Sungold Power 10000W Solar Kit?

• 1 x 10000 Watt 48V DC 120V/240V Inverter

• 12 x 550 Watt Monocrystalline Solar Panels

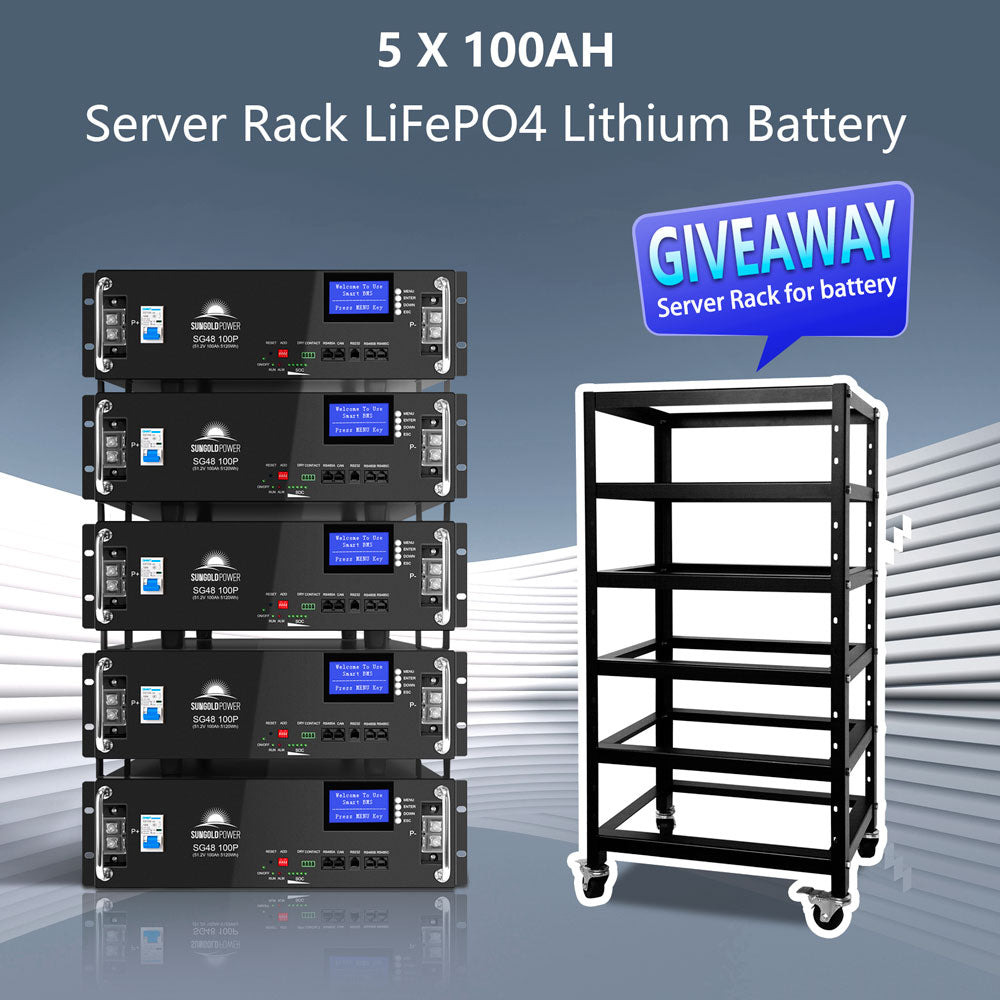

• 5 x 100AH 51.2V LiFePO4 Batteries

• 1 x Server Rack for 5 x 100AH 51.2V LiFePO4 Batteries

• 2 x 50-Foot Solar Extension Cables (Inverter PV Input)

• 12 x Sets of Mounting Z-Brackets

Key Features of the Sungold Power 10000W Solar Kit

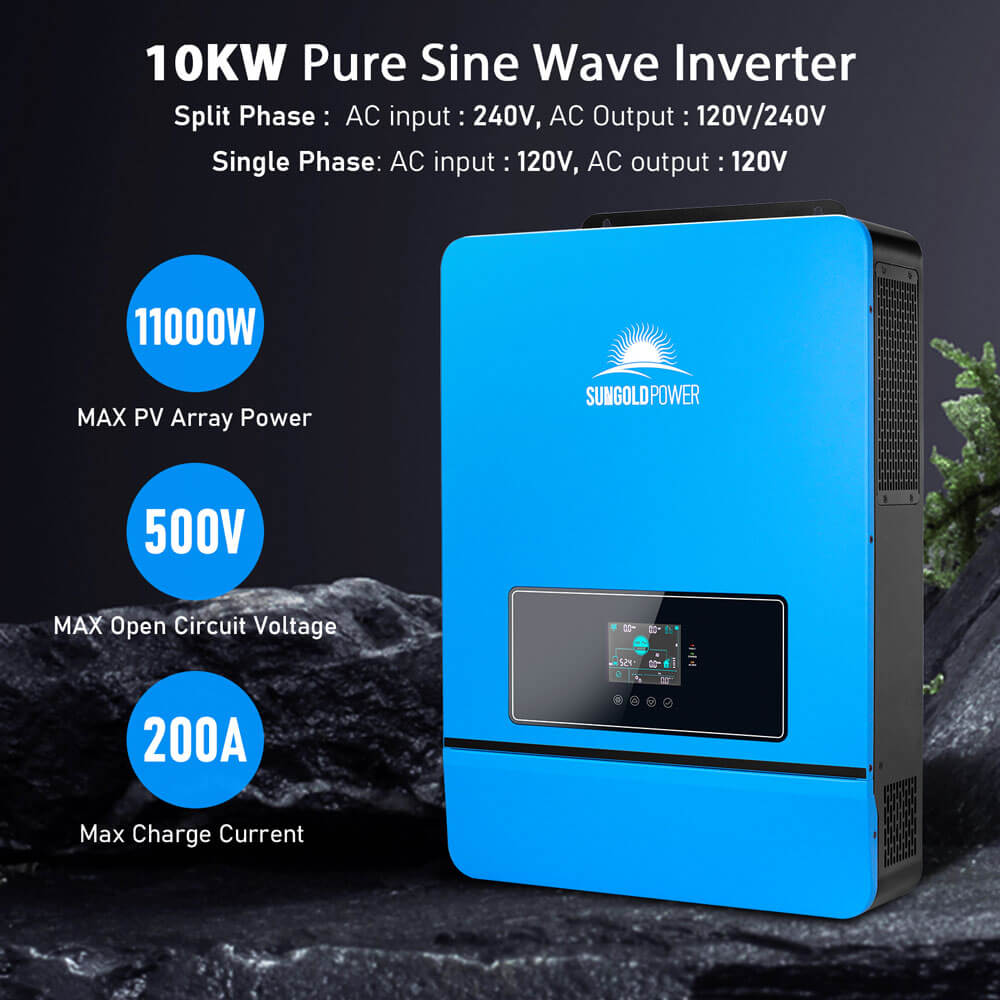

10000 Watt Solar Inverter Specifications

• AC Output: 10,000W

• Output Waveform: Pure Sine Wave

• AC Output Voltage: 120V/240V (Split Phase/Single Phase)

• Max PV Input: 500VDC

• Efficiency: 92%

• Max Charging Current: 200A

• Maximum PV Array Power: 11,000W

• Dimensions: 25.6 x 17.7 x 5.1 inches

• Weight: 53.5 lbs

• Warranty: 3 Years

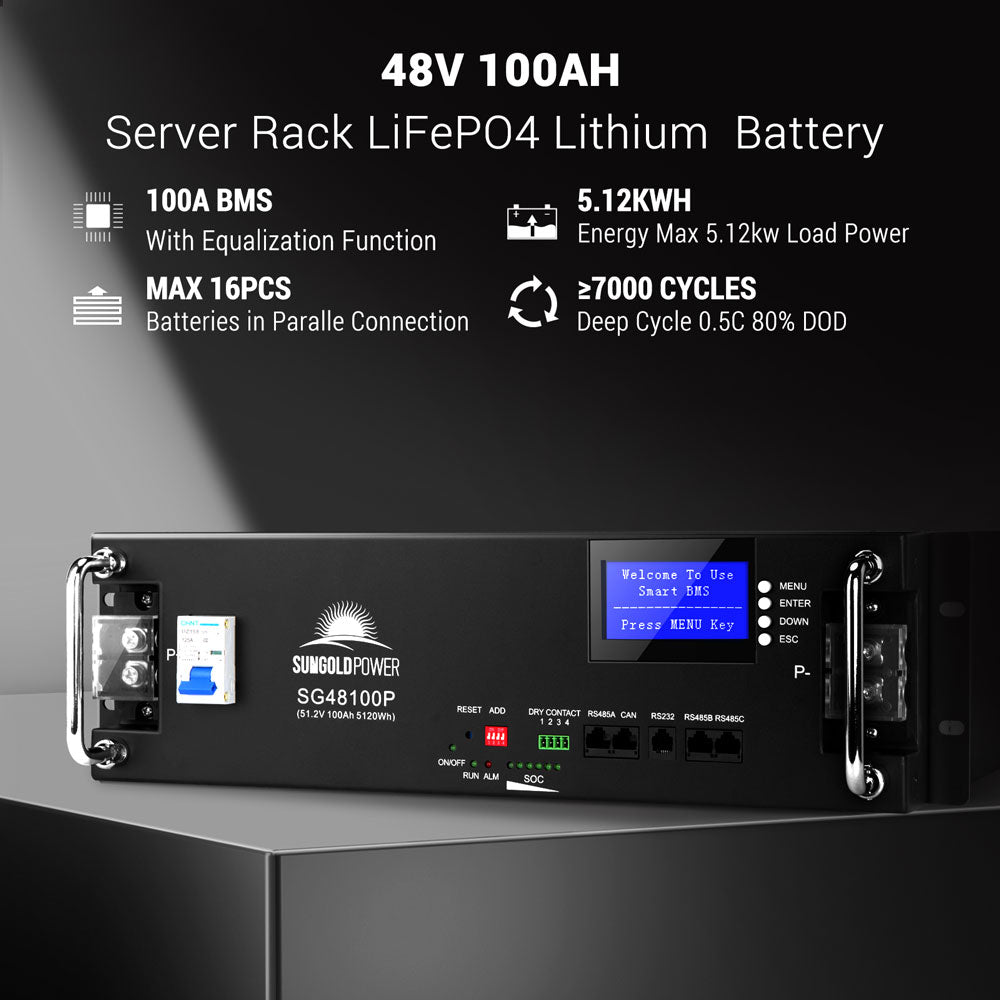

LiFePO4 Battery Specifications

• Nominal Voltage: 51.2V

• Nominal Capacity: 100AH

• Energy: 5.12KWH

• Charge Cut-Off Current: 5A

• Max Continuous Charge Current: 100A

• Discharge Cut-Off Voltage: 43.2V

• Cycle Life: >7000 Cycles

• Communication Protocol: RS232/RS485/CAN (Supports Multiple Protocols)

• Storage Temperature: -10°C to +45°C

• Dimensions: 19.3 x 18.9 x 5.5 inches

• Weight: 93 lbs

• Warranty: 10 Years

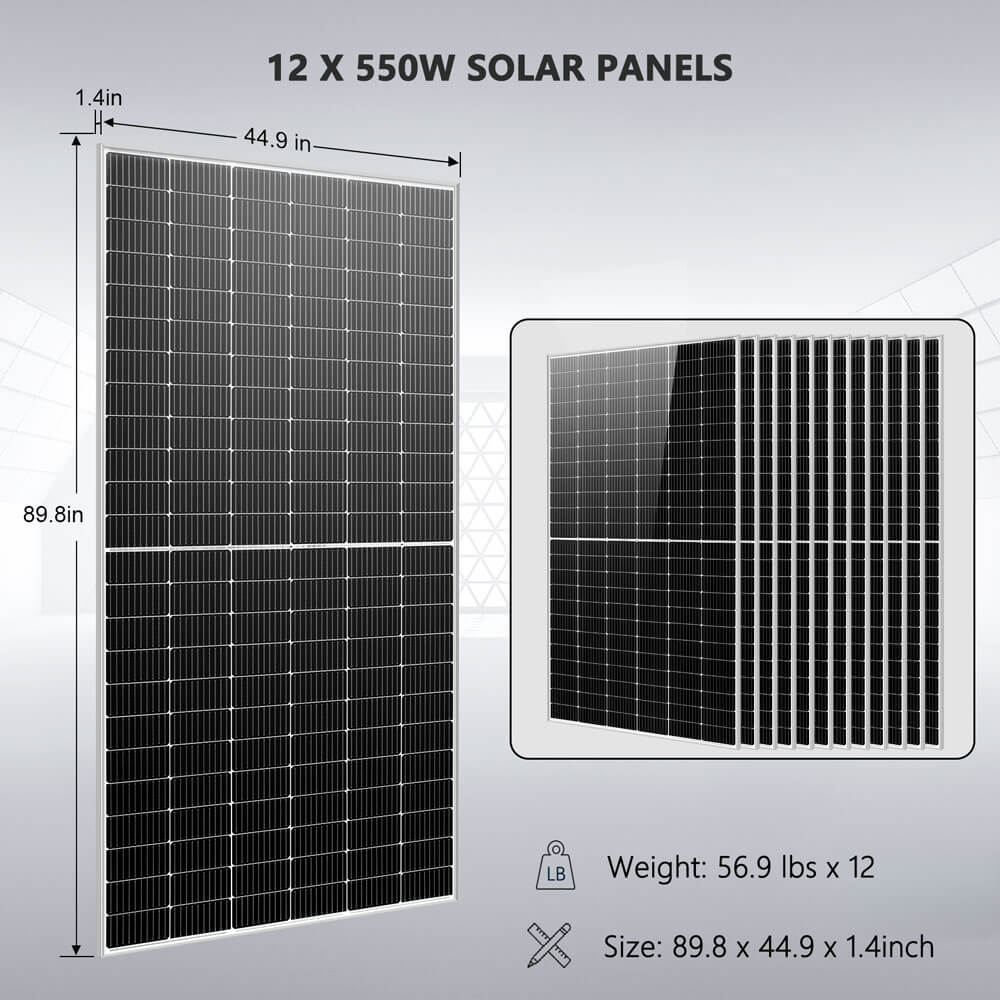

550 Watt Monocrystalline Solar Panel Specifications

• Peak Power: 550W

• Solar Cell Type: Monocrystalline

• Product Tolerance: ±3%

• Maximum Power Current (IMP): 13.11A

• Maximum Power Voltage (VMP): 41.96V

• Short Circuit Current (ISC): 14.01A

• Open Circuit Voltage (VOC): 49.9V

• Dimensions: 89.8 x 44.9 x 1.4 inches

• Weight: 56.9 lbs

• Warranty: 25 Years

Solar Kit Specifications at a Glance

• Max Continuous Output: 10,000W

• AC Output: 120V/240V

• DC Voltage: 48V

• Max Solar Input: 11,000W

• Total Watt of Panels: 6,600W

• Per Panel Wattage: 550W

• Number of Panels: 12

• Total Battery Capacity: 25.6KWH

• Battery Chemistry: Lithium (LiFePO4)

• Number of Batteries: 5

• Battery Specifications: 48V 100AH

User Manual

Sungold Power 10000 Watt Inverter User Manual

Sungold Power LifePo4 5.12KWH Lithium Battery User Manual

Sungold Power 550 Watts Solar Panels User Manual
