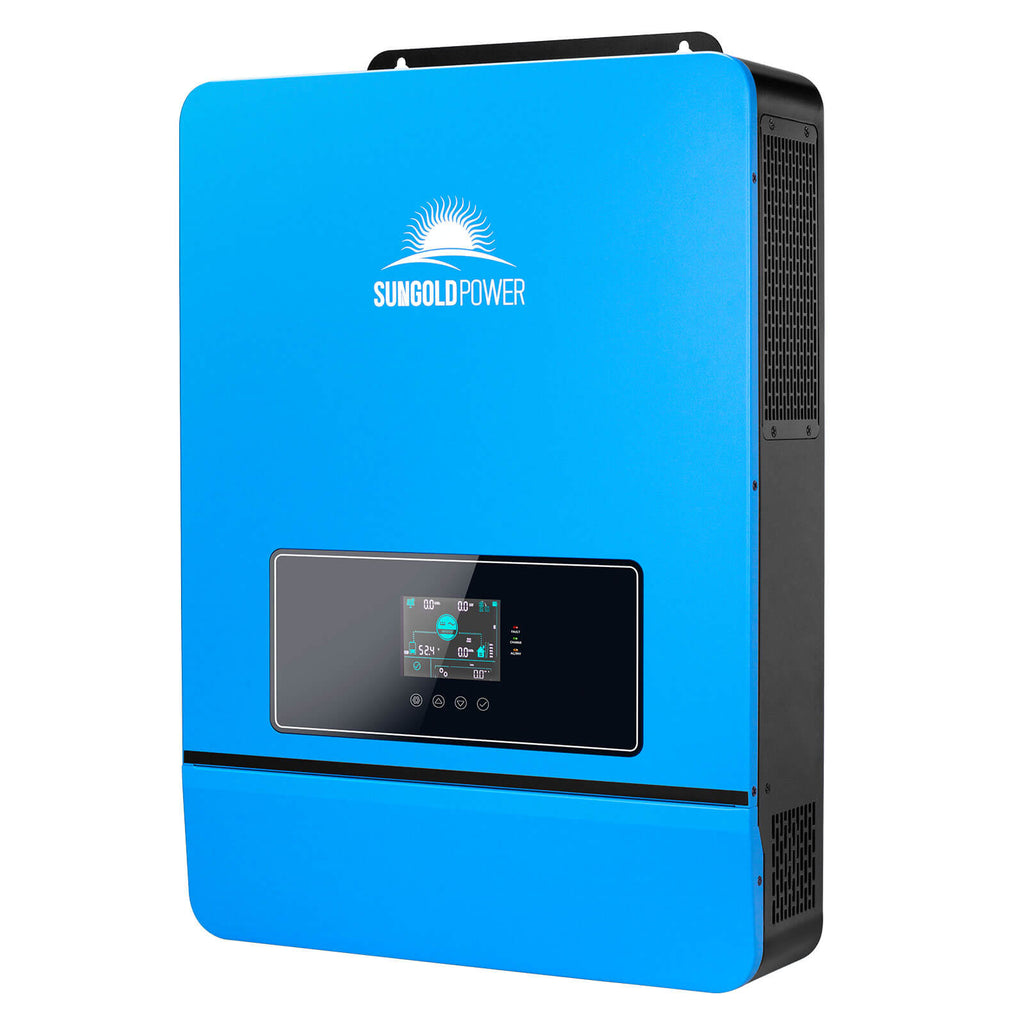

Sungold Power 8KW 48V Solar Inverter Charger

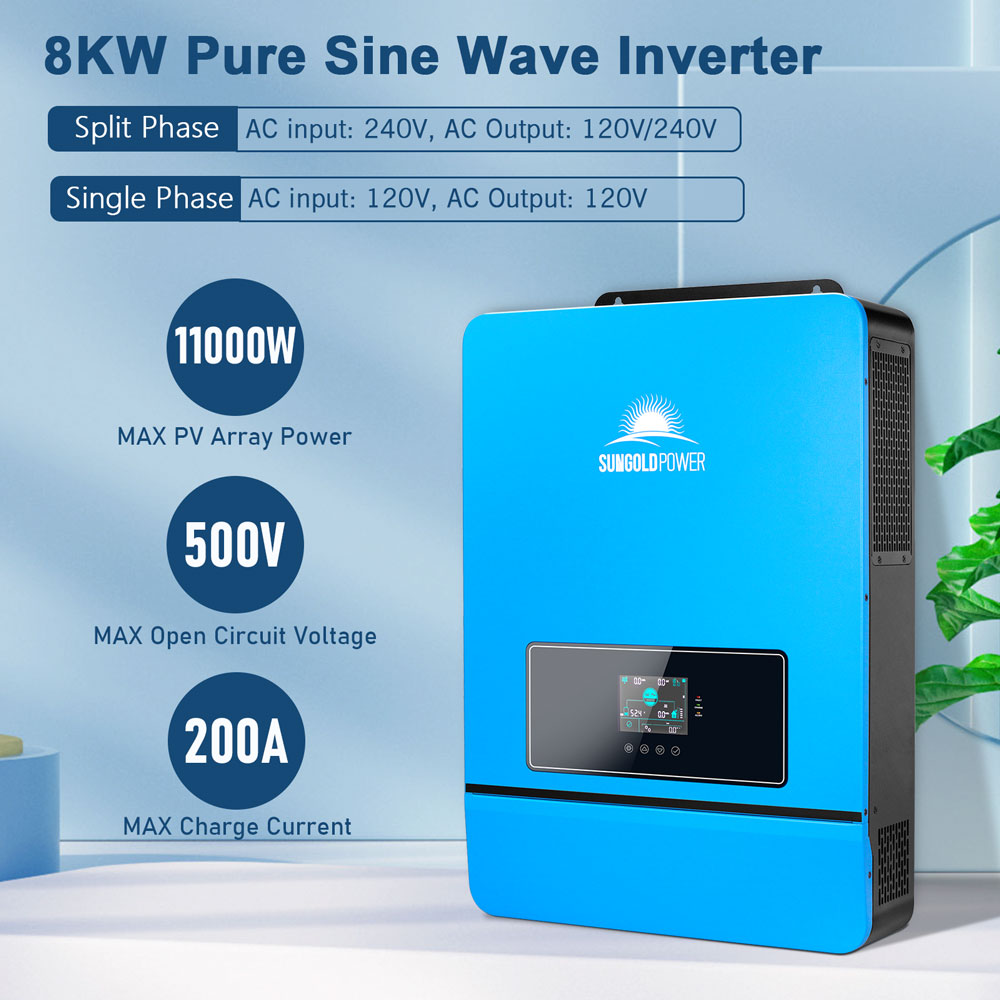

The Sungold Power 8KW 48V Solar Inverter Charger is a versatile, all-in-one solution designed for on-grid, off-grid, and hybrid solar power systems. Combining an 8000W pure sine wave inverter, a 200A battery charger, and dual MPPT solar charge controllers, this hybrid inverter delivers exceptional performance, flexibility, and reliability. With split-phase (120V/240V) or single-phase (120V) output, and an included Wi-Fi module for remote monitoring, its the ultimate solution for modern energy needs.

Key Features of Sungold Power 8KW 48V Solar Inverter Charger

1. All-in-One Design

• 8000W pure sine wave inverter with 200A battery charging capability.

• Dual MPPT solar controllers with a maximum open-circuit voltage of 500VDC.

• Supports split-phase (120V/240V) or single-phase (120V) output.

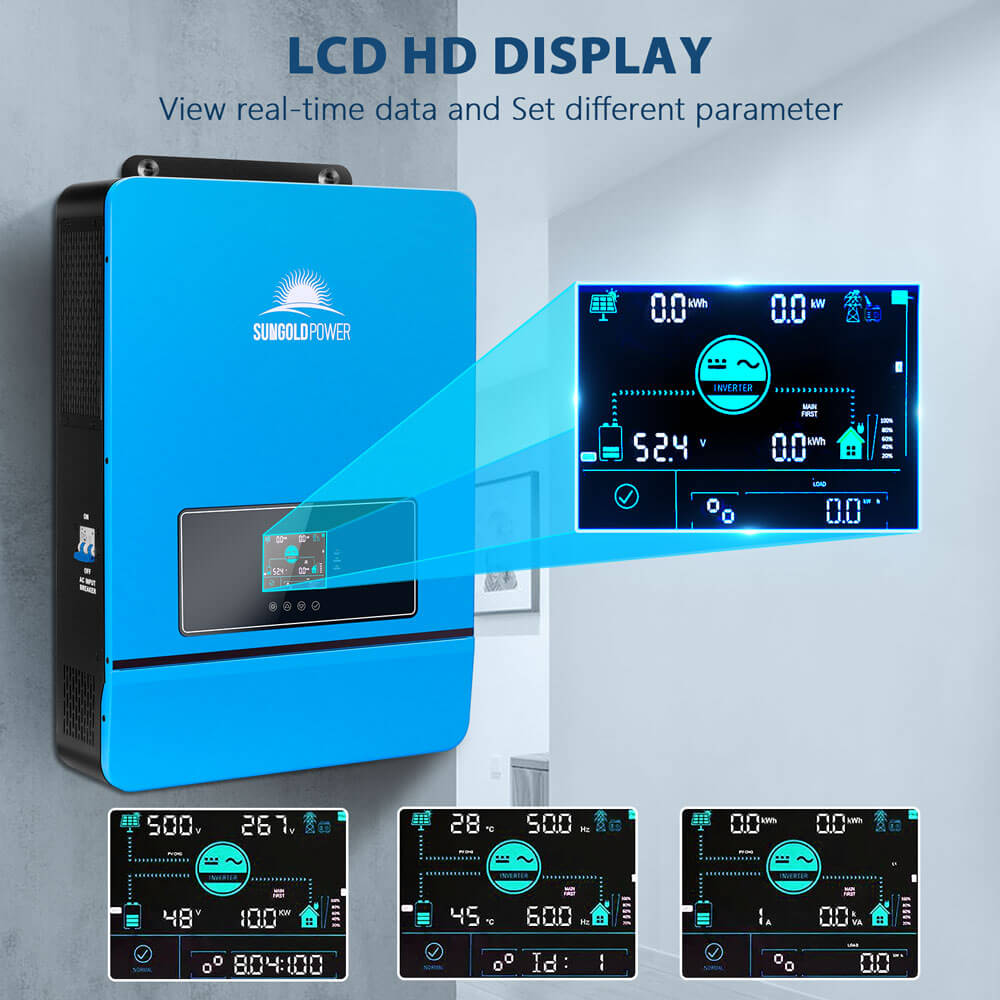

• Includes a Wi-Fi module for real-time monitoring via a mobile app.

• UL1741 Listed by ETL for safety and reliability.

2. Stable AC Output and Smart Protection

• Rated Output Power: 8000W, with a maximum peak power of 16,000W.

• Loaded Motor Capacity: 6HP.

• Advanced protection features include:

  • PV input over-voltage/current protection.

  • AC input over-voltage protection.

  • Battery over-voltage protection.

  • Overload protection.

3. Flexible Charging and Output Modes

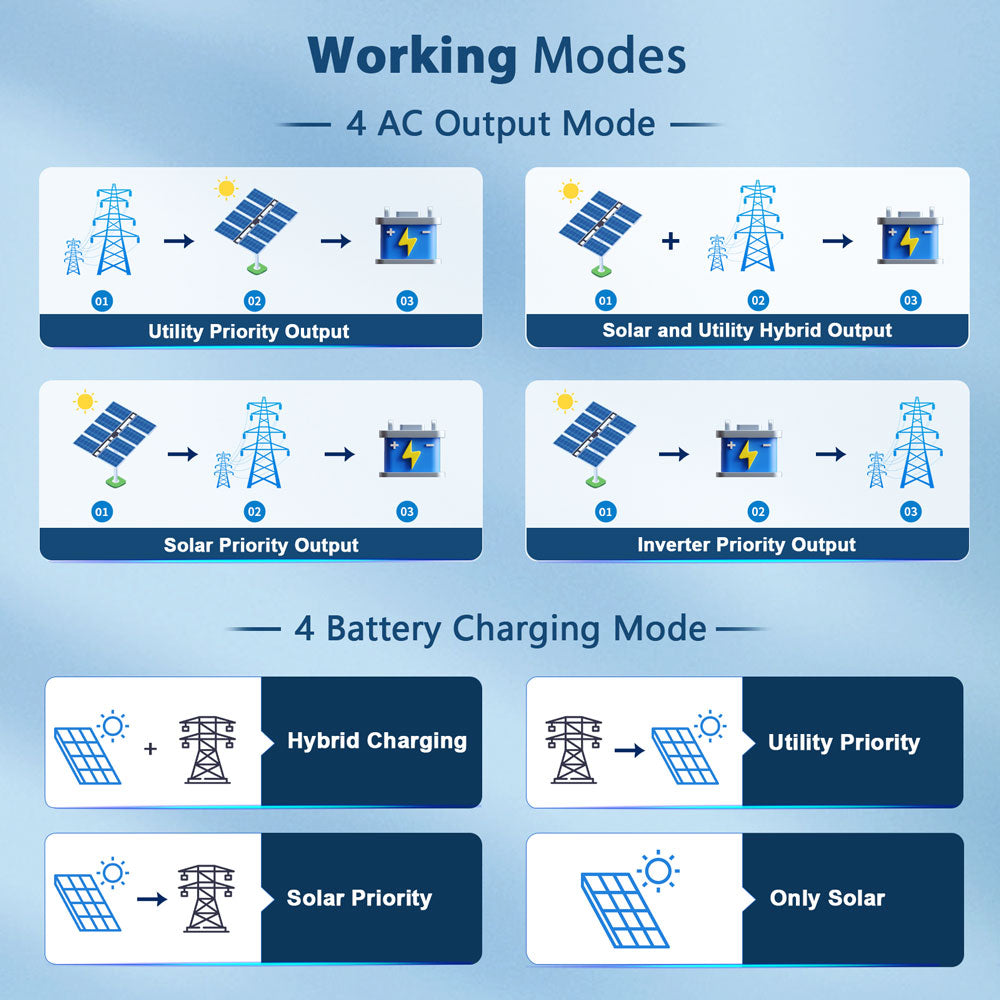

• Four Charging Modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging.

• Four Output Modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority.

• Adapts to your energy needs and preferences with ease.

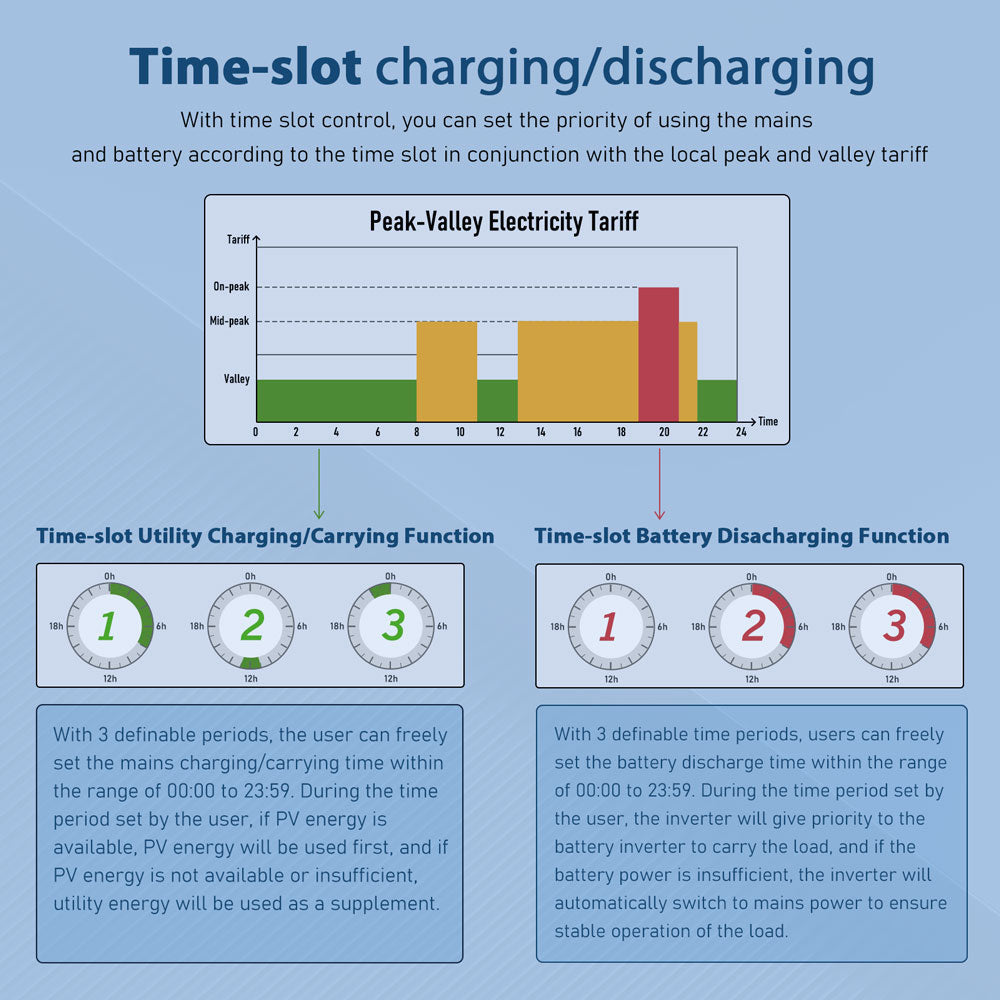

4. Time-Slot Charging/Discharging Function

• Allows users to set charging and discharging periods based on peak and valley tariffs.

• Optimizes the use of utility power and PV energy for cost savings.

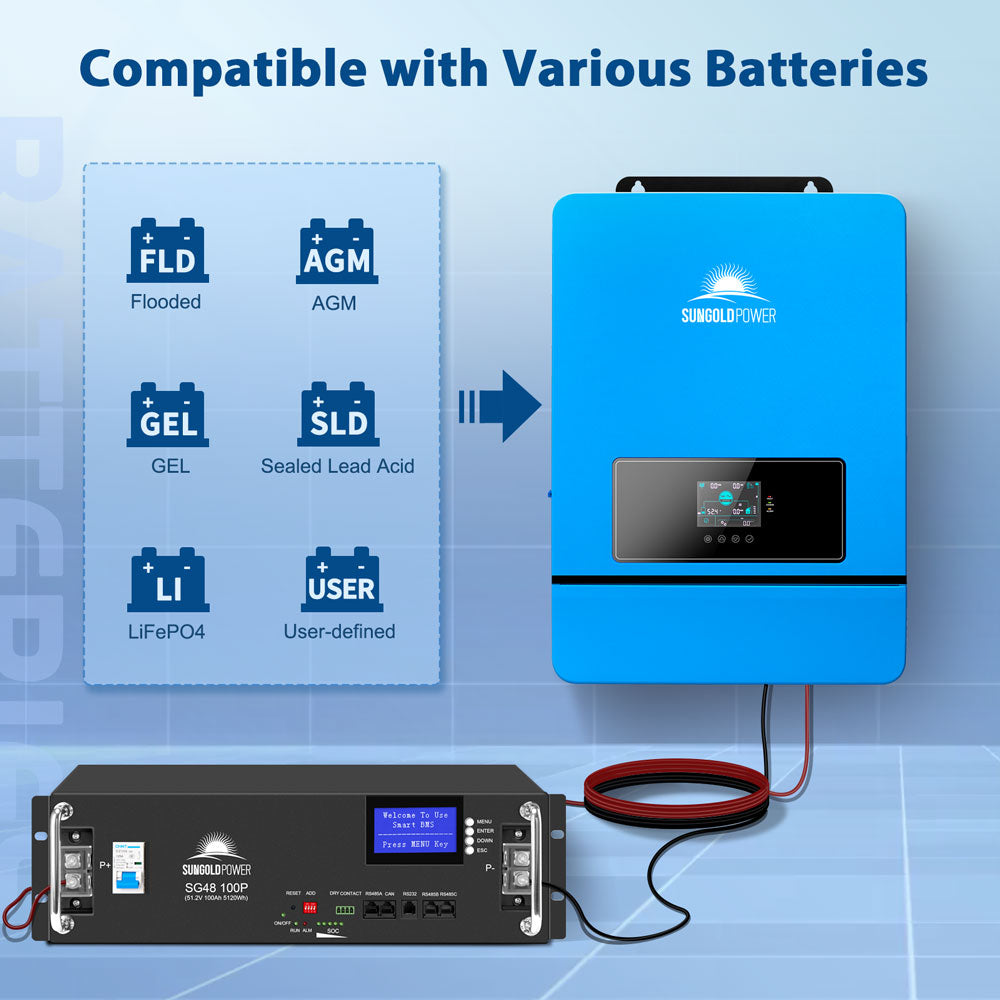

5. Wide Battery Compatibility

• Works with 48V AGM, Sealed, Gel, Flooded, and Lithium batteries.

• Includes a User Mode for custom battery settings.

• Supports battery-free operation and can activate dormant lithium batteries using mains power or photovoltaics.

• CAN, USB, and RS485 communication for seamless integration with Sungold Power batteries.

6. Parallel Capability

• Supports up to 6 units in parallel, delivering up to 48KW power output.

• Configurable for 120V single phase, 120V/240V split phase, or 208V 3-phase systems.

7. Grid-Tied Functionality

• Generates electricity, stores power in solar batteries, and operates independently from the power grid.

Sungold Power 8KW 48V Solar Inverter Charger Specifications

Inverter Output

• Rated Output Power: 8000W

• Max Peak Power: 16,000W

• Rated Output Voltage: 120/240Vac (split phase/single phase)

• Load Capacity of Motors: 5HP

• Rated AC Frequency: 50/60Hz

• Waveform: Pure Sine Wave

• Switch Time: 10ms (typical)

Battery

• Battery Type: Li-ion / Lead-Acid / User Defined

• Rated Battery Voltage: 48Vdc

• Voltage Range: 40€“60Vdc

• Max MPPT Charging Current: 200A

• Max Mains/Generator Charging Current: 100A

• Max Hybrid Charging Current: 180A

PV Input

• Number of MPP Trackers: 2

• Max PV Array Power: 11,000W

• Max Input Current: 22/22A

• Max Voltage of Open Circuit: 500Vdc

• MPPT Voltage Range: 125€“425Vdc

Mains/Generator Input

• Input Voltage Range: 90€“140V (single phase), 180€“260V (split phase)

• Frequency Range: 50/60Hz

• Bypass Overload Current: 63A

Efficiency

• MPPT Tracking Efficiency: 99.9%

• Max Battery Inverter Efficiency: 92%

General Specifications

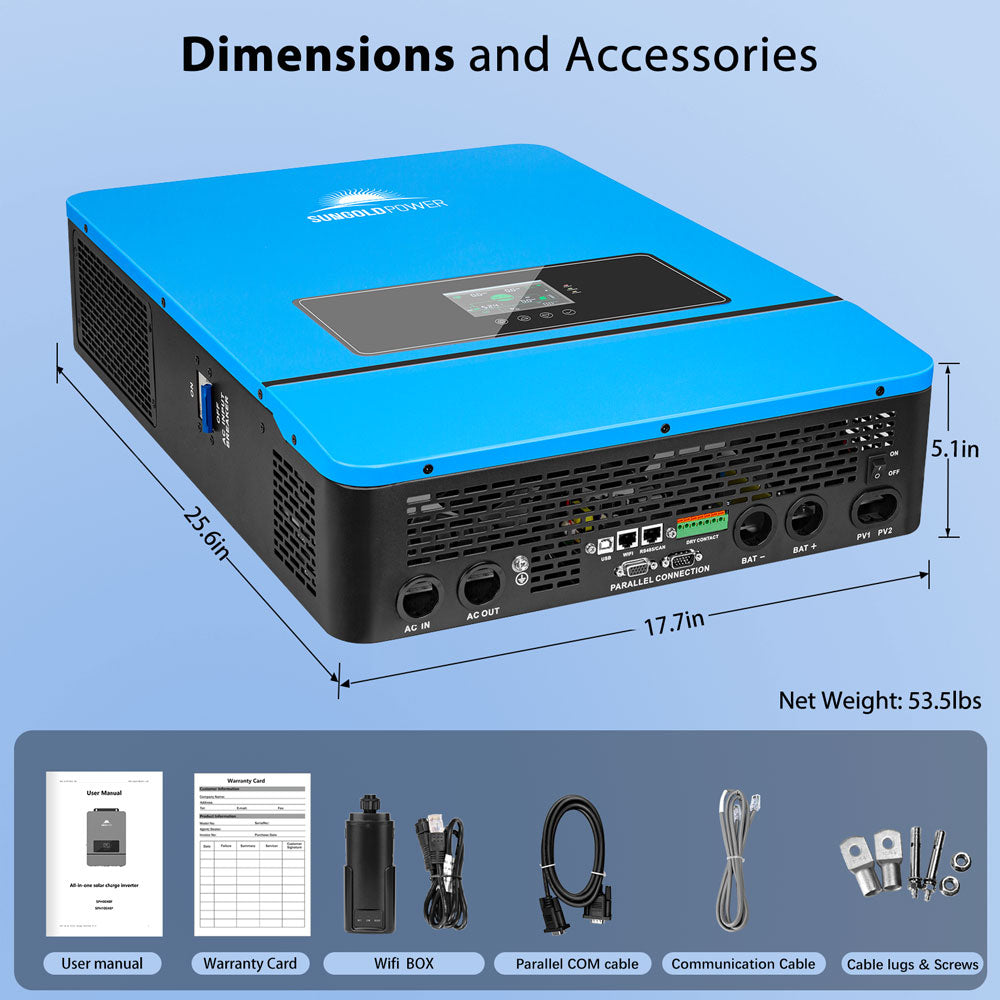

• Dimensions: 17.7 x 25.6 x 5.1 inches

• Weight: 53.5 lbs

• Protection Degree: IP20 (indoor only)

• Operating Temperature Range: 14°F€“131°F (-10°C€“55°C), derated above 113°F (45°C)

• Noise: <60dB

• Cooling Method: Internal fan

• No-Load Consumption: 95W/100W

• Warranty: 2 years

Communication

• Embedded Interfaces: RS485 / CAN / USB / Dry contact

• External Modules (Optional): Wi-Fi / GPRS

Certifications

• Safety: IEC62109-1, IEC62109-2, UL1741

• EMC: EN61000-6-1, EN61000-6-3, FCC15 Class B

• ROHS: Yes

User Manual

Sungold Power 8KW 48V Solar Inverter Charger User Manual
