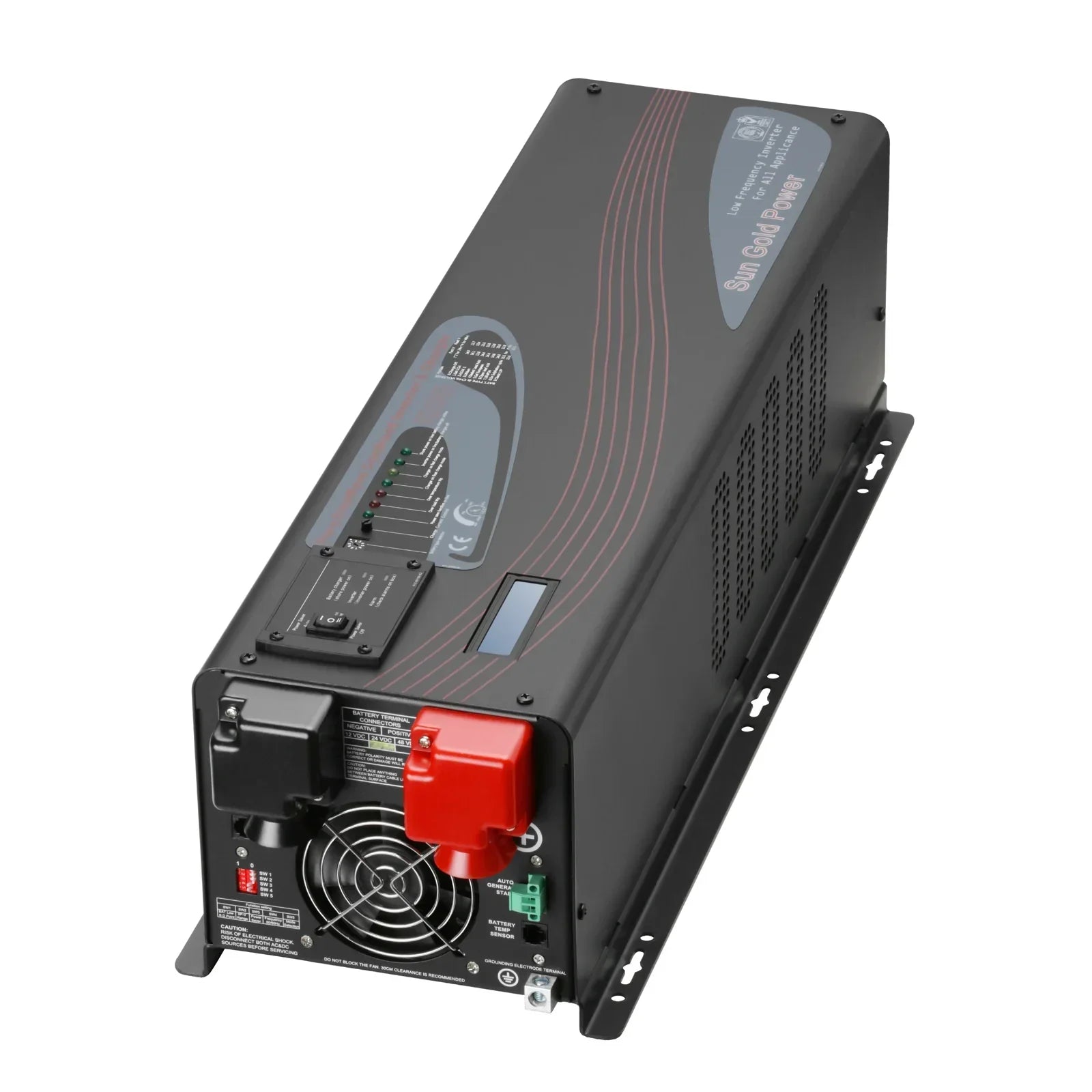

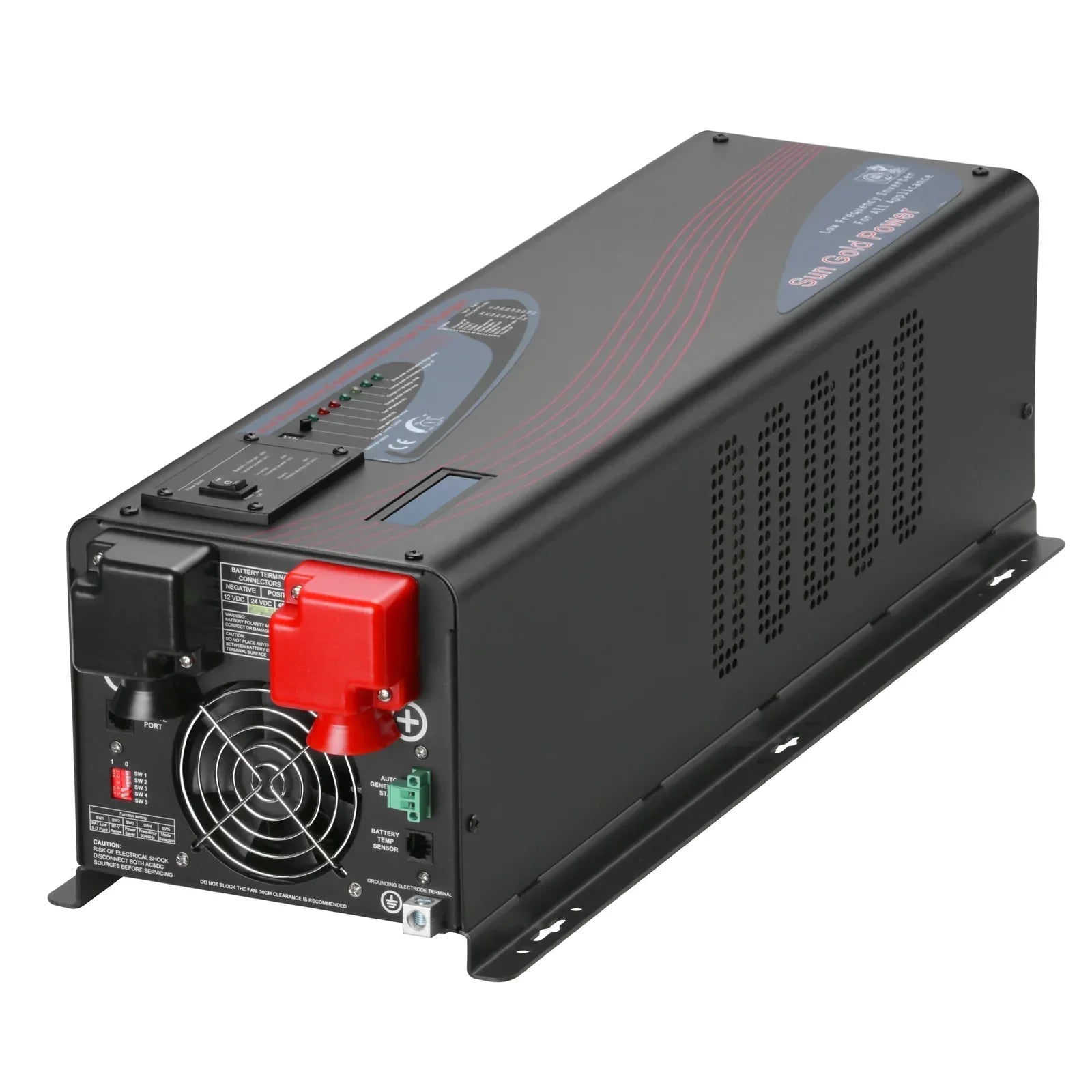

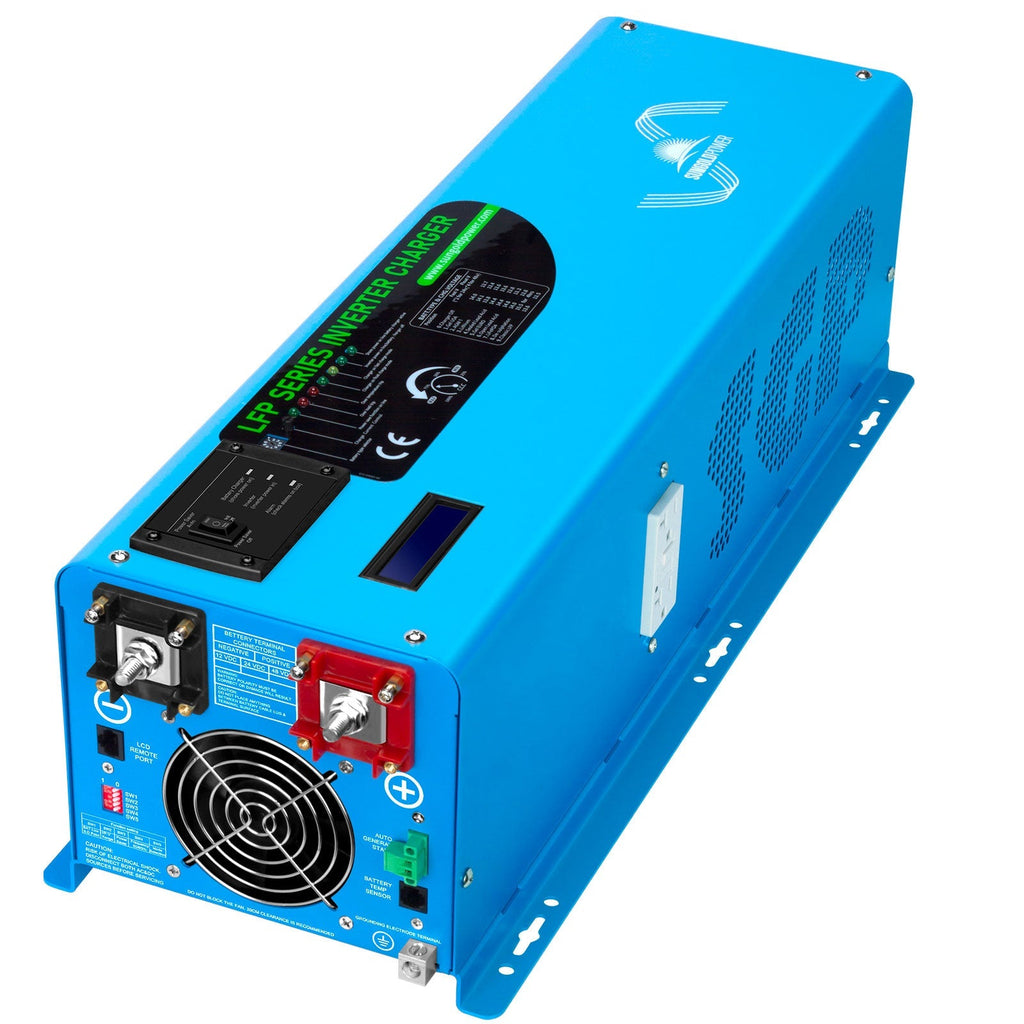

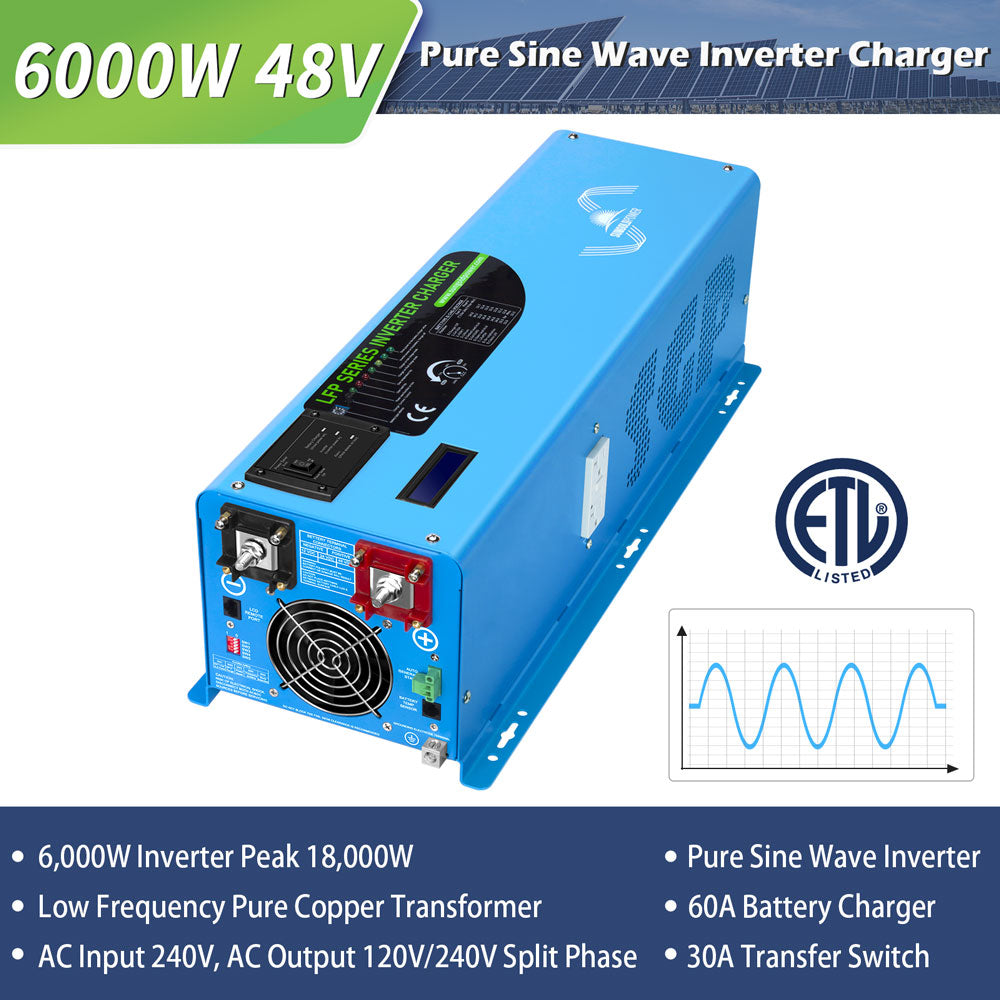

Sungold Power 6000W DC 48V Split Phase Pure Sine Wave Inverter with Charger (UL1741 Standard)

The Sungold Power 6000W DC 48V Split Phase Pure Sine Wave Inverter with Charger is a high-quality, low-frequency power inverter designed for whole-house, business, RV, trailer, or boat applications. Perfect for off-grid systems or emergency backup power, this inverter charger combines a 6000W pure sine wave inverter, a 60A battery charger, and an 80A auto-transfer switch into one powerful unit. It supports 120V and 240V split-phase output, making it ideal for homes and businesses with 220V panels. Certified to UL1741 standards, it ensures safety and reliability.

Key Features of Sungold Power 6000W Inverter with Charger

1. Three-in-One Functionality

• Inverter: Converts 48V DC power from batteries to 120V/240V AC power for appliances and tools.

• Battery Charger: Built-in 60A charger recharges batteries using grid or generator power.

• Auto-Transfer Switch: Automatically switches between shore power and battery power within 10 milliseconds.

2. Split-Phase Output

• Supports 120V and 240V split-phase output, ideal for homes and businesses with 220V panels.

• Can output 50Hz or 60Hz via the SW4 switch.

3. AC/Battery Priority Selector

• Default AC priority mode can be switched to battery priority mode using the SW5 switch.

4. Adjustable Charging Current

• Charging current can be adjusted from 0% to 100% via a linear switch.

5. Auto Generator Start

• Automatically starts a generator when battery voltage is low and turns it off after charging is complete.

6. Advanced Safety and Convenience

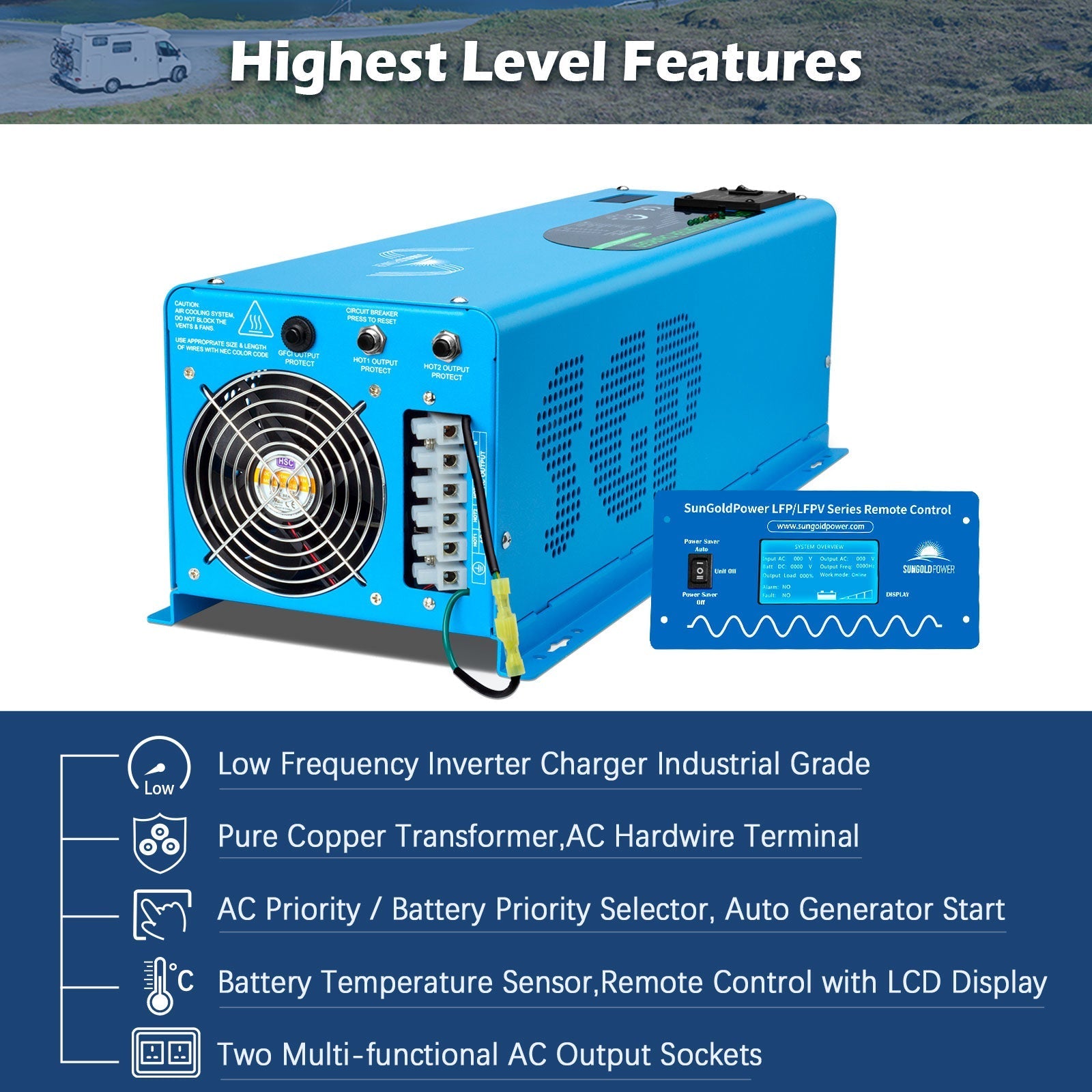

• LCD display and remote control for easy monitoring and operation.

• Low idle consumption (81W) and power saver mode (30W) for energy efficiency.

• 9 battery type settings for compatibility with various battery chemistries, including lithium (LiFePO4).

• UL1741 certified for safety and reliability.

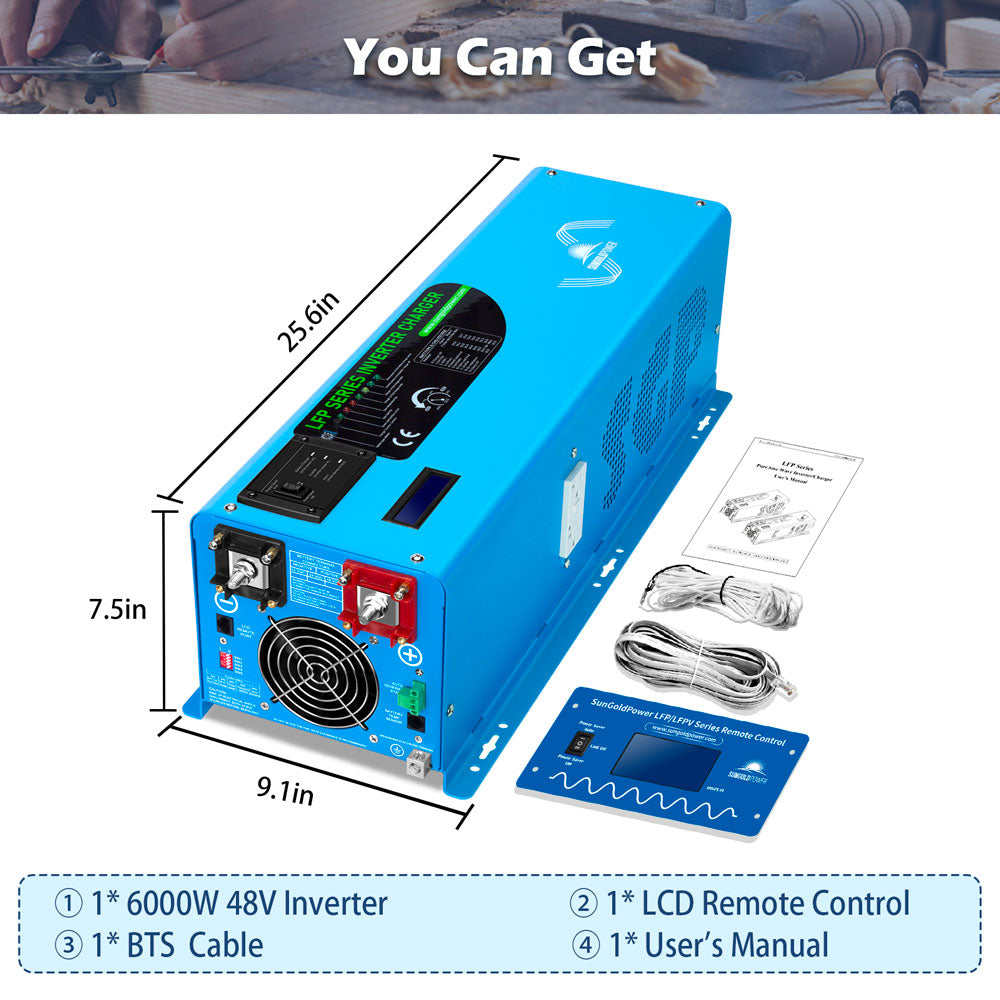

Whats Included in the Box?

• 1 x 6000W 48V Low Frequency Pure Sine Inverter

• 1 x English Manual

• 1 x Remote Control

• 1 x BTS Cable

Sungold Power 6000W DC 48V Split Phase Inverter Specifications

Inverter Output

• Continuous Output Power: 6000W

• Surge Rating: 18000W (20 seconds)

• AC Output: 120V and 240V split-phase

• AC Input: 240V

• Output Waveform: Pure Sine Wave (bypass mode)

• Typical Transfer Time: 10ms (max)

• Nominal Efficiency: >88%

DC Input

• Nominal Input Voltage: 48.0Vdc

• Minimum Start Voltage: 40.0Vdc

• Low Battery Alarm: 42.0Vdc€“44.0Vdc

• Low Battery Trip: 40.0Vdc€“42.0Vdc (selectable via SW1)

• High Voltage Alarm: 64.0Vdc

• Low Battery Voltage Restart: 52Vdc

• Idle Consumption: 81W

• Power Saver Mode Idle Consumption: 30W

AC Charger

• Charger Rate: 60±5A

• AC Input Range (Grid/Generator): 140V€“270VAC / 184V€“253VAC (selectable via SW2)

• Overcharge Protection Shutdown: 62.8V

• Adjustable Charge Current: 0%€“100%

• 3-Step Intelligent Battery Charger

Package Specifications

• Unit Weight: 76.7 lbs

• Unit Size: 25.6 x 9.1 x 7.5 inches

• Shipping Weight: 85.5 lbs

• Shipping Size: 30.3 x 13.4 x 12.8 inches

Why Choose Sungold Power 6000W DC 48V Inverter?

• High Efficiency: Pure sine wave output ensures optimal performance for all appliances.

• Versatile Applications: Ideal for homes, businesses, RVs, trailers, and boats.

• Advanced Safety: UL1741 certification guarantees compliance with safety standards.

• Flexible Charging: Adjustable charging current and multiple battery type settings.

• Remote Monitoring: LCD display and remote control for easy operation.

User Manual

Sungold Power 6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard User Manual
