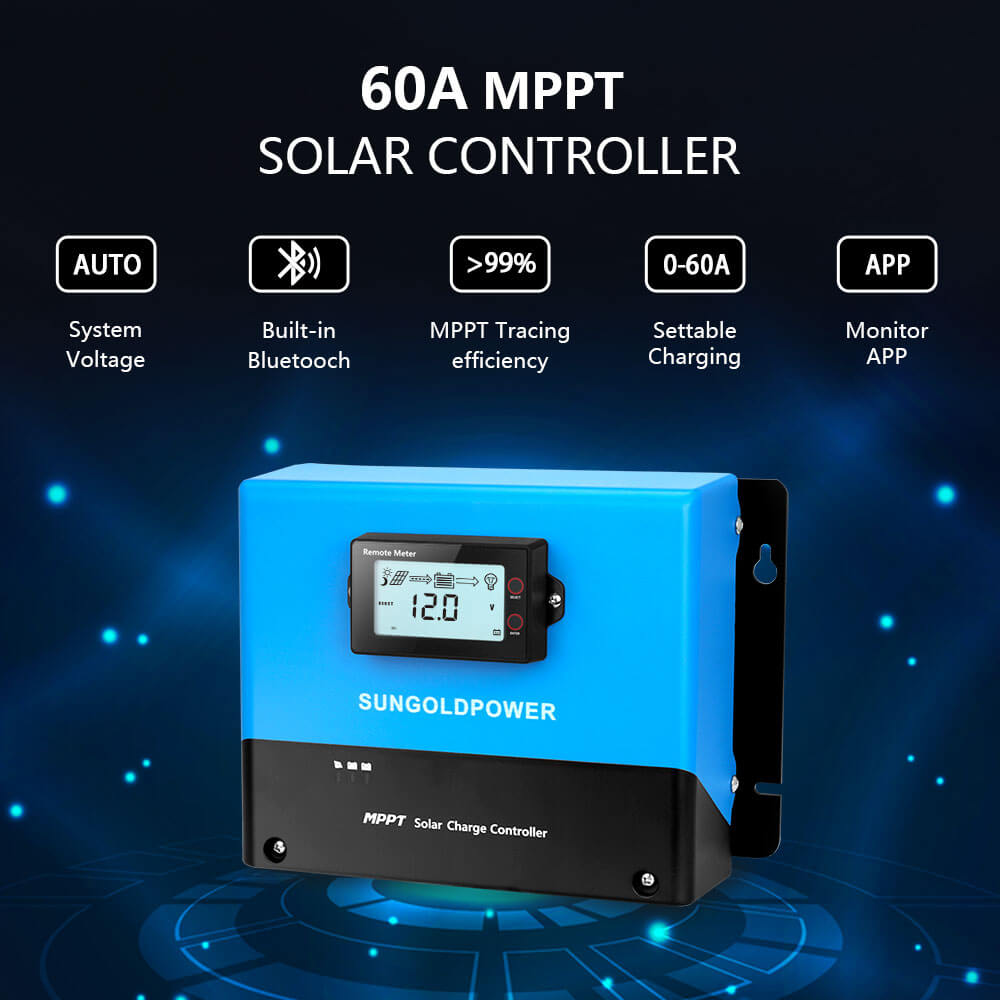

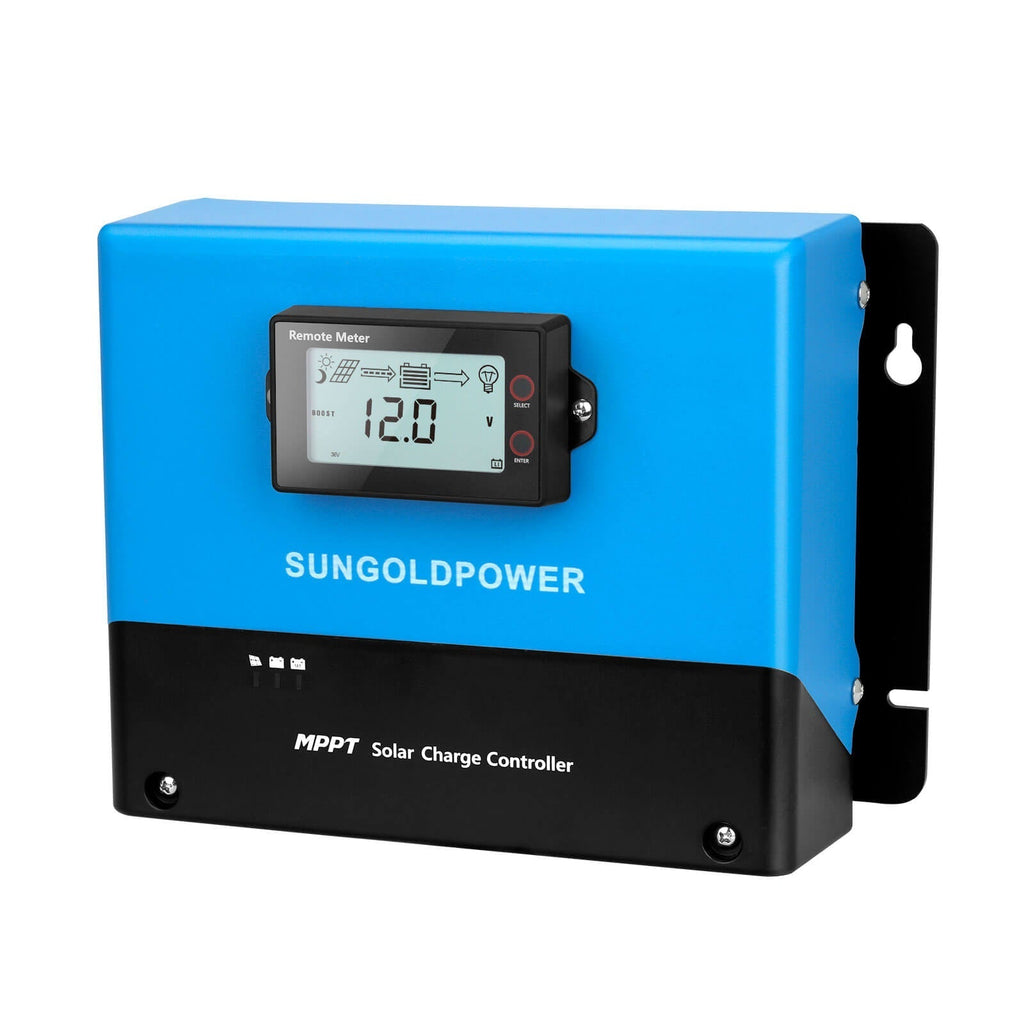

Sungold Power 60 Amp MPPT Solar Charge Controller

The Sungold Power 60 Amp MPPT Solar Charge Controller is a high-efficiency, advanced charge controller designed to maximize solar energy harvesting. With up to 99.9% tracking efficiency, it ensures optimal power point solar charging, delivering more energy to your battery bank. It features auto-detection for 12V/24V/48V battery systems and real-time performance monitoring via built-in Bluetooth.

Key Features of Sungold Power 60 Amp MPPT Solar Charge Controller

1. High Efficiency and Auto-Detection

• MPPT tracking efficiency of up to 99.9% for maximum energy harvesting.

• Automatically detects 12V, 24V, and 48V DC system voltages.

2. Wide Battery Compatibility

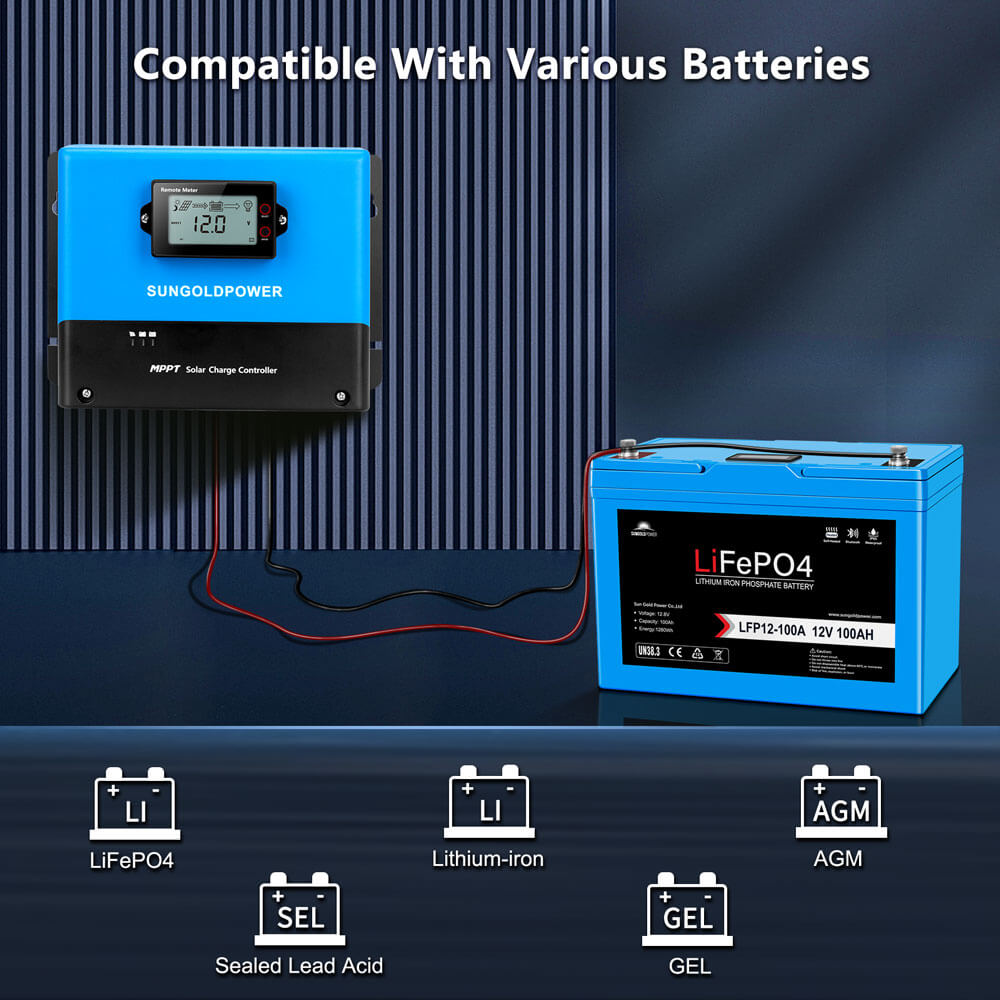

• Supports lithium batteries, sealed batteries, AGM batteries, and user-defined battery types.

• Ensures flexibility for various energy storage systems.

3. Advanced Protection and Monitoring

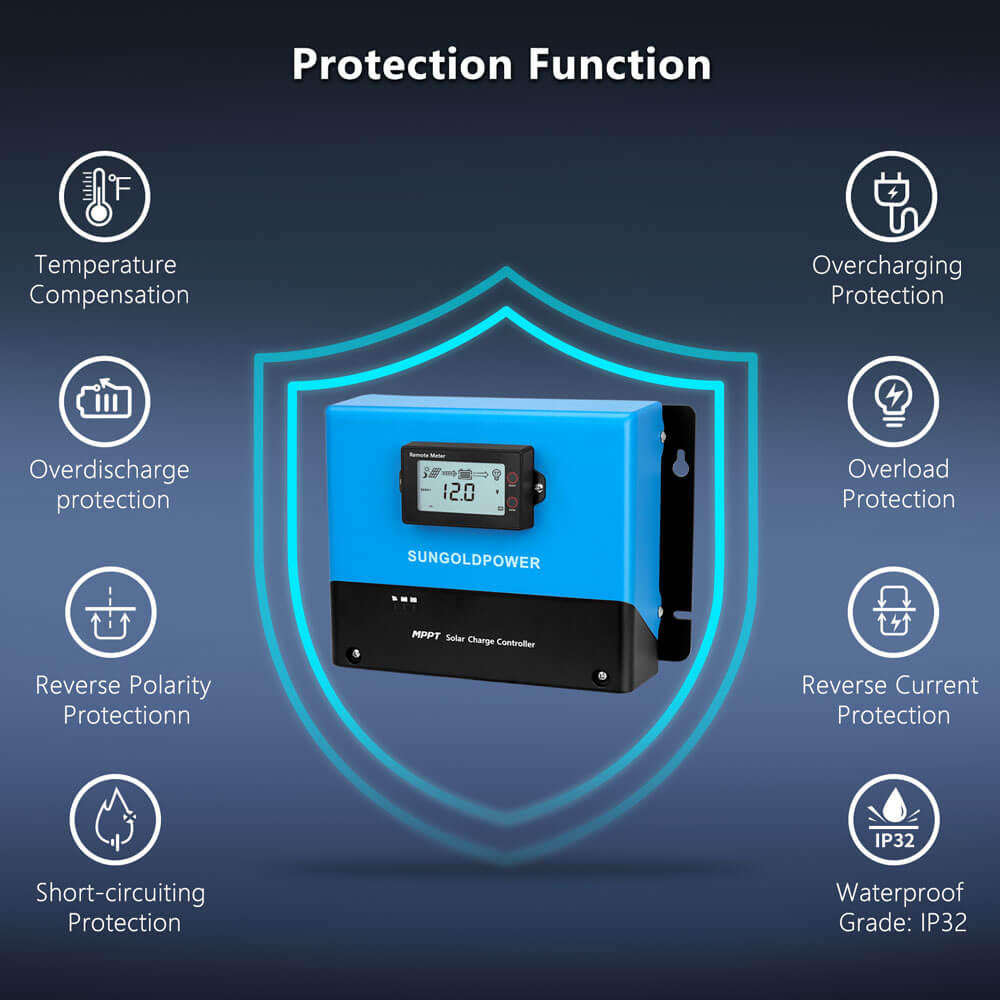

• Built-in over-temperature protection and current-limited charging for safe operation.

• LCD screen displays system operation information, customizable parameters, and error codes.

4. Bluetooth Connectivity

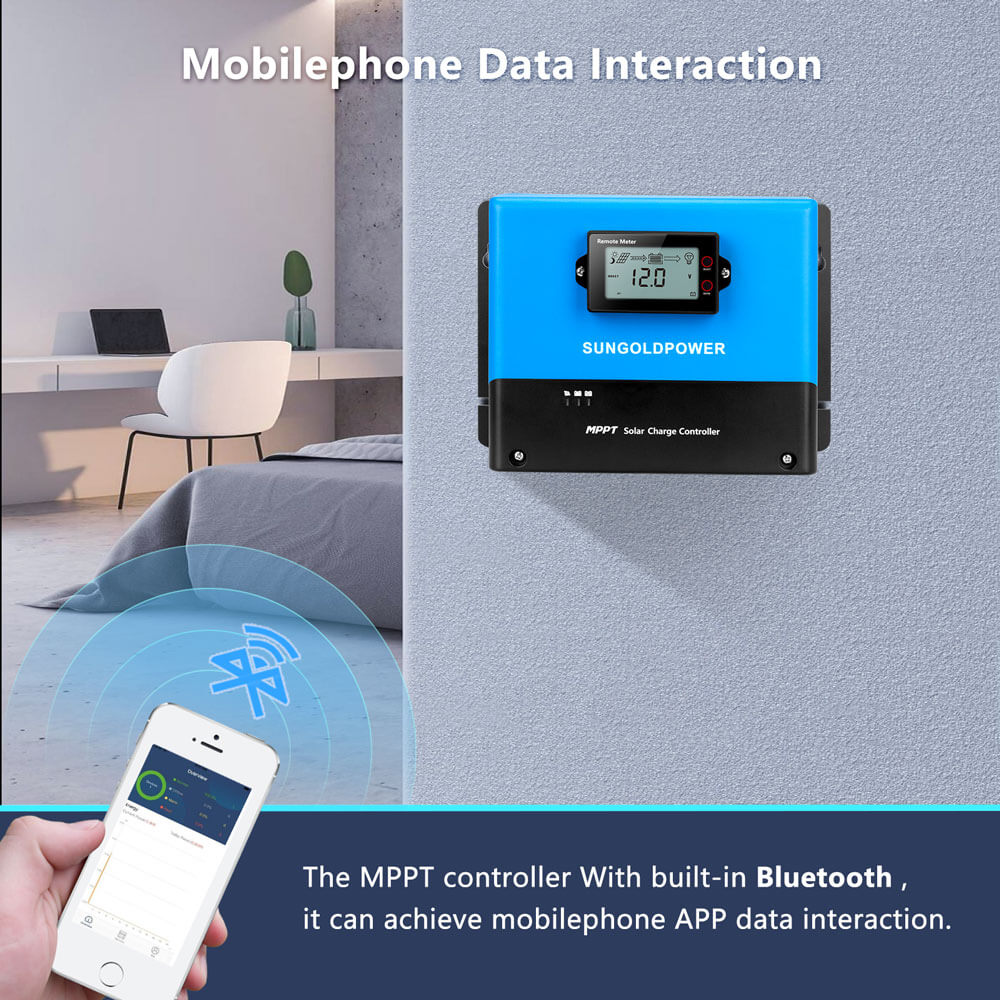

• Built-in Bluetooth 4.0 BLE module for real-time monitoring via a mobile app.

• Enables easy data interaction and system performance tracking.

5. Scalable and Parallel Functionality

• Supports parallel function, allowing multiple units to work together and break through single-unit power limits.

• Ideal for expanding system capacity as energy needs grow.

Sungold Power 60 Amp MPPT Solar Charge Controller Specifications

General Specifications

• Model: SGC482560A

• System Voltage: 12V/24V/36V

• Maximum PV Open-Circuit Voltage: 250V

• Max PV Input Power:

  • 800W (12V)

  • 1600W (24V)

  • 3200W (36V)

• Self-Consumption: 0.54W

• Battery Voltage Range: 9V€“64V

Performance and Efficiency

• Rated Charge Current: 60A

• MPPT Tracking Efficiency: >99%

• Temperature Compensation: -3mV/°C/2V (default)

Operating Conditions

• Operation Temperature: -35°C to +65°C

• Protection Grade: IP32

Communication and Connectivity

• Bluetooth: Built-in Bluetooth 4.0 BLE module

• Communication Interface: TTL/Isolated RS485

Physical Specifications

• Weight: 7.9 lbs

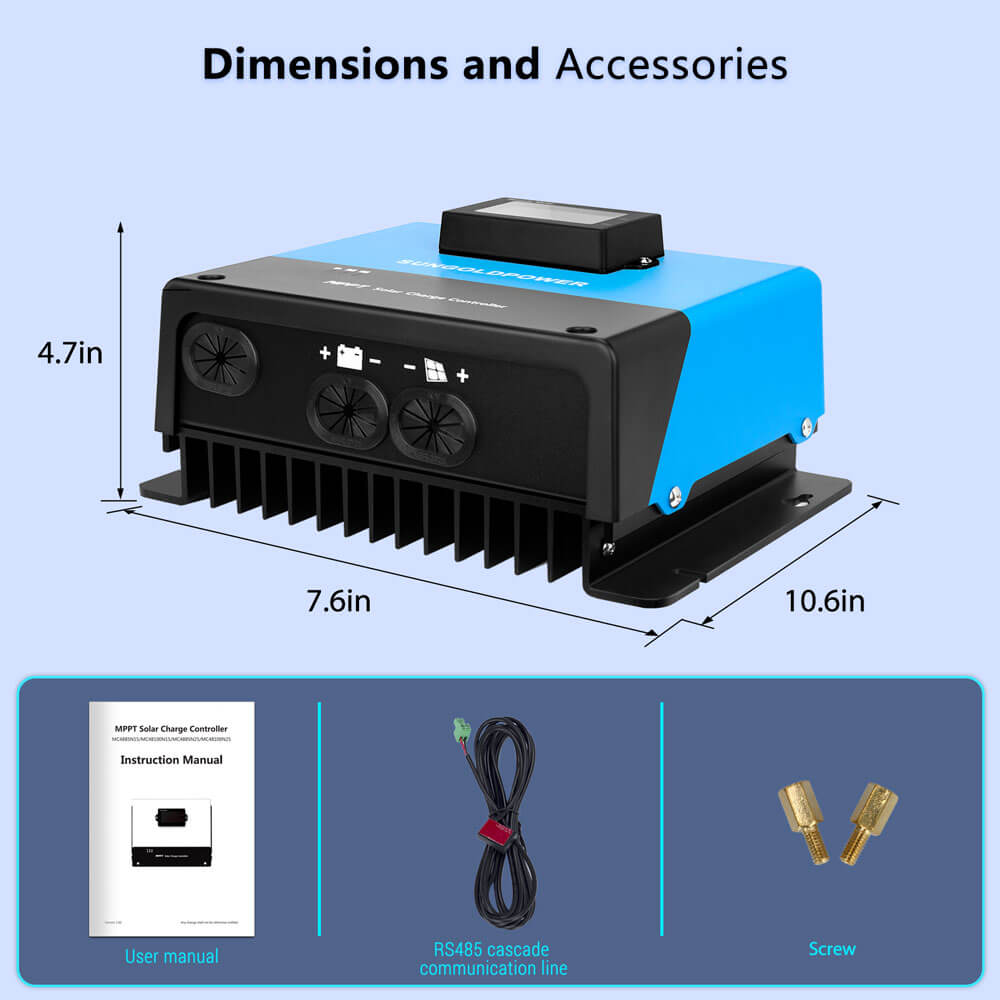

• Product Dimensions: 10.5 x 7.6 x 4.7 inches
