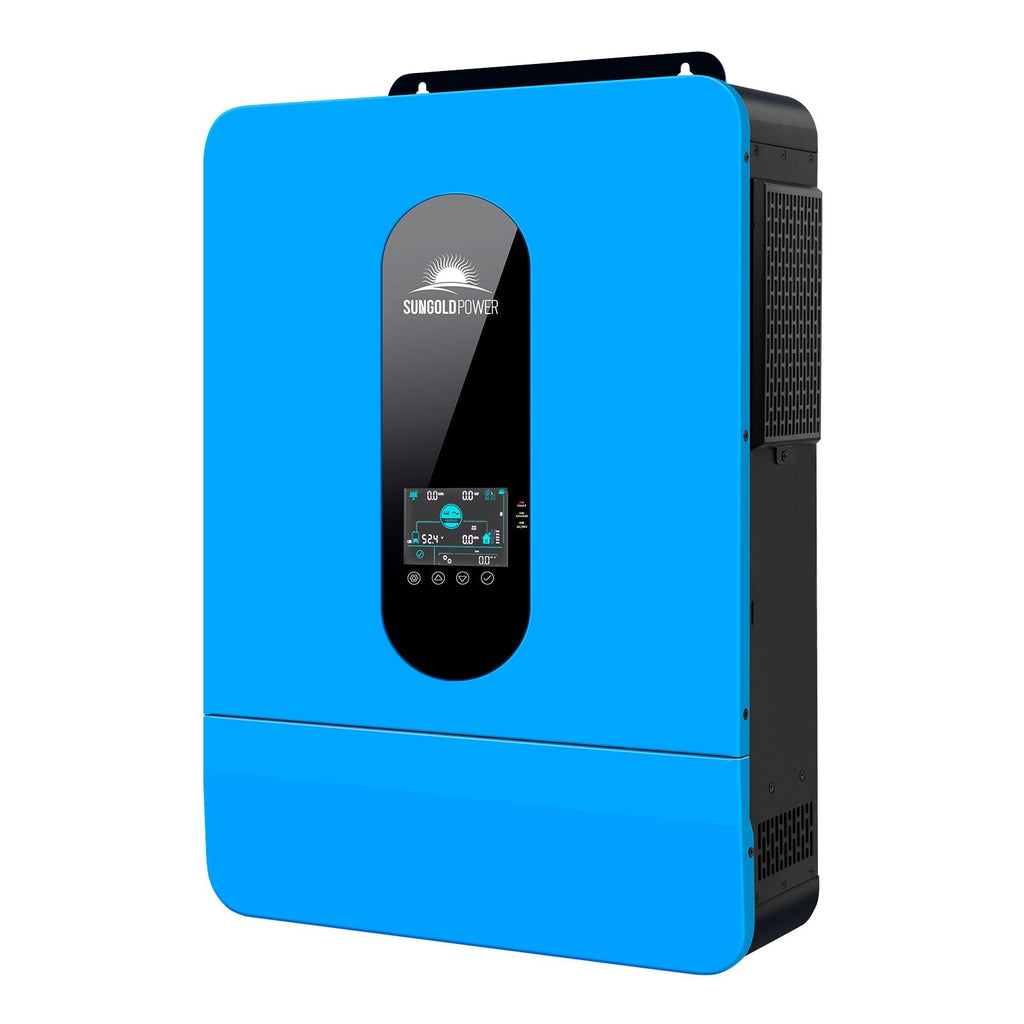

Sungold Power 6.5KW Hybrid Solar Inverter: All-in-One Energy Solution

The Sungold Power 6.5KW Hybrid Solar Inverter is a versatile, all-in-one unit designed for seamless energy management in residential, commercial, and industrial applications. Combining a 6.5KW pure sine wave inverter, 140A battery charging, and dual MPPT solar controllers, this inverter delivers exceptional performance, flexibility, and reliability. With split-phase (120V/240V) or single-phase (120V) output, and an included Wi-Fi module for remote monitoring, its the ultimate solution for modern energy needs.

Key Features of Sungold Power 6.5KW Hybrid Solar Inverter

1. All-in-One Design

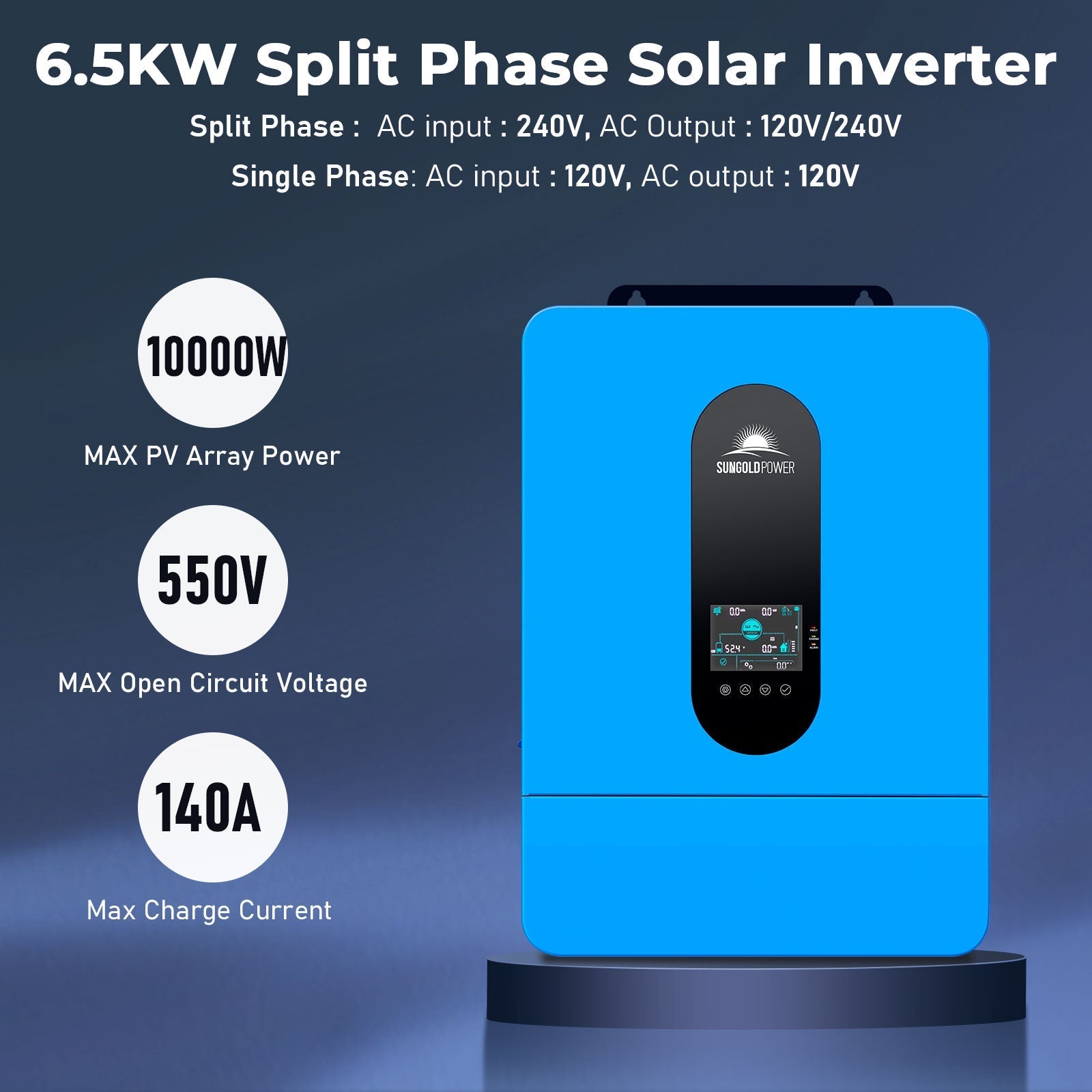

• 6.5KW pure sine wave inverter with 140A battery charging capability.

• Dual MPPT solar controllers with a maximum open-circuit voltage of 550VDC.

• Supports split-phase (120V/240V) or single-phase (120V) output.

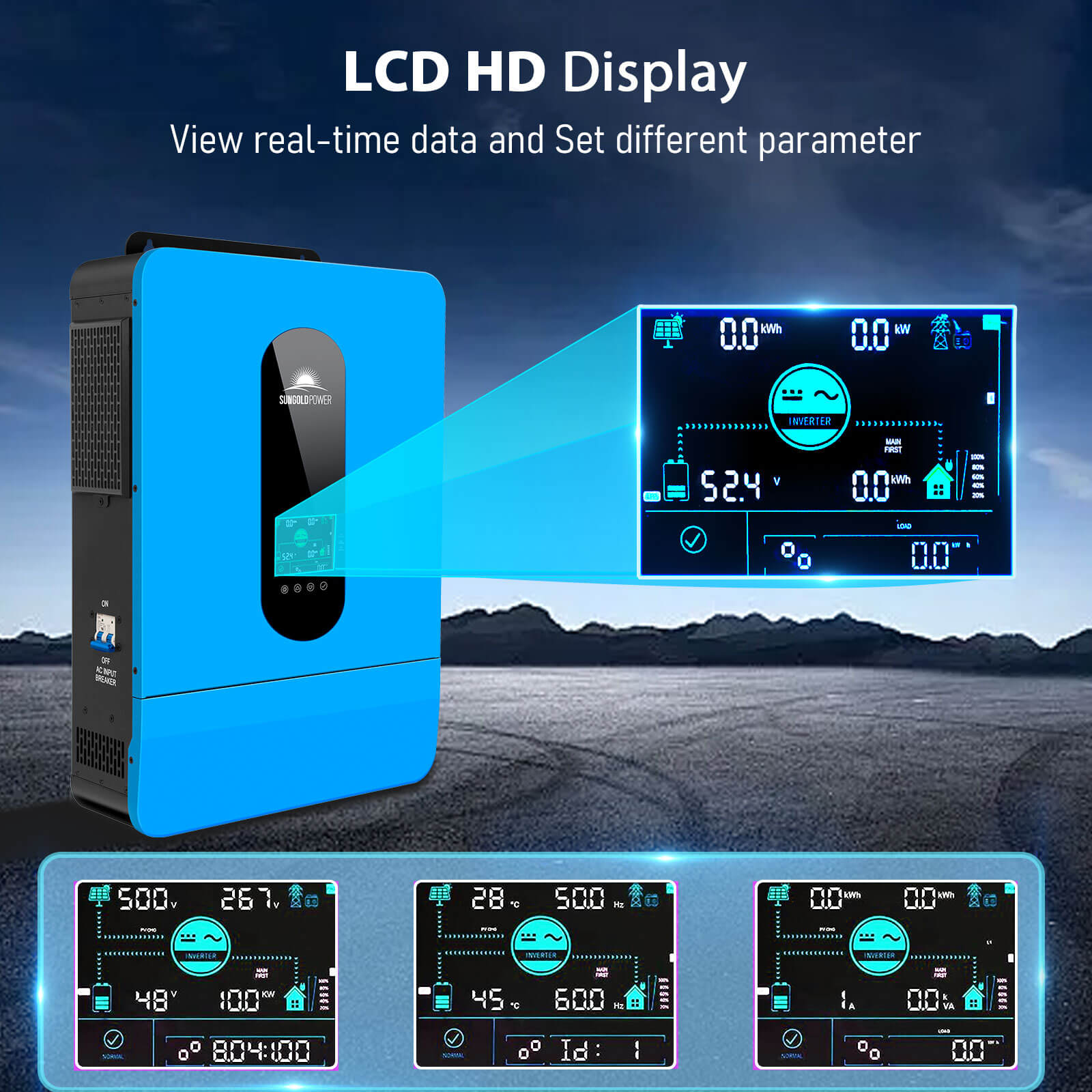

• Includes a Wi-Fi module for real-time monitoring via a mobile app.

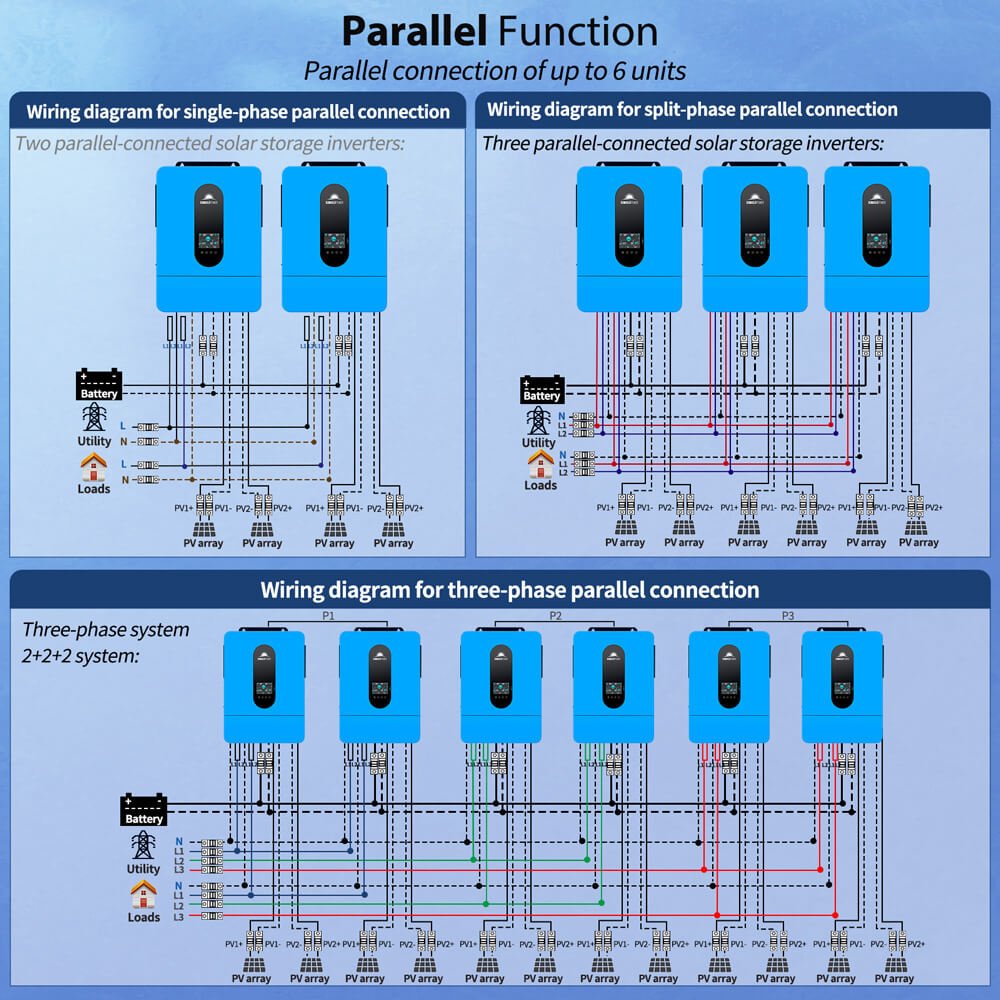

2. Parallel Capability

• Supports up to 6 units in parallel, delivering up to 39KW power output.

• Configurable for 120V single phase, 120V/240V split phase, or 208V 3-phase systems.

• Increases inverter power and surge capacity for larger energy demands.

3. Stable AC Output and Smart Protection

• Rated Output Power: 6500W, with a maximum peak power of 13,000VA.

• Advanced protection features include:

  • PV input over-voltage/current protection.

  • AC input over-voltage protection.

  • Battery over-voltage protection.

  • Overload protection.

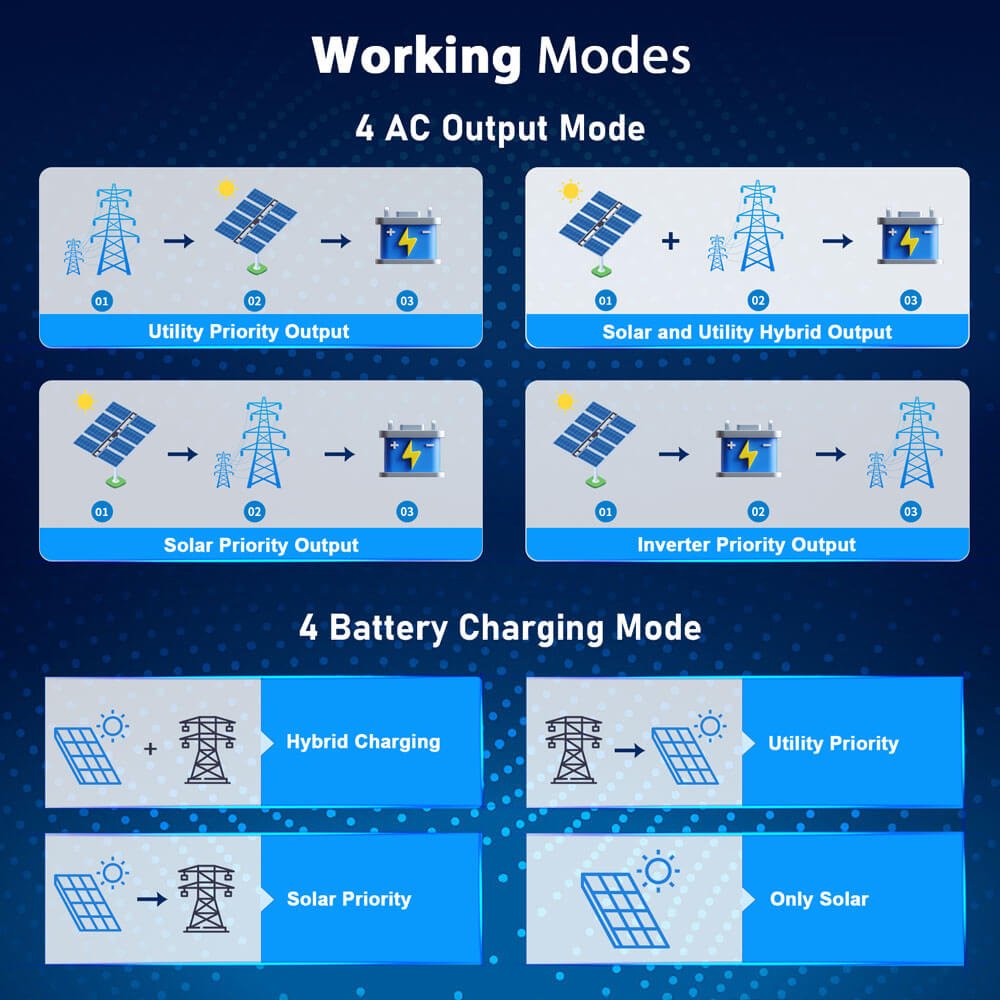

4. Flexible Charging and Output Modes

• Four Charging Modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging.

• Four Output Modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority.

• Adapts to your energy needs and preferences with ease.

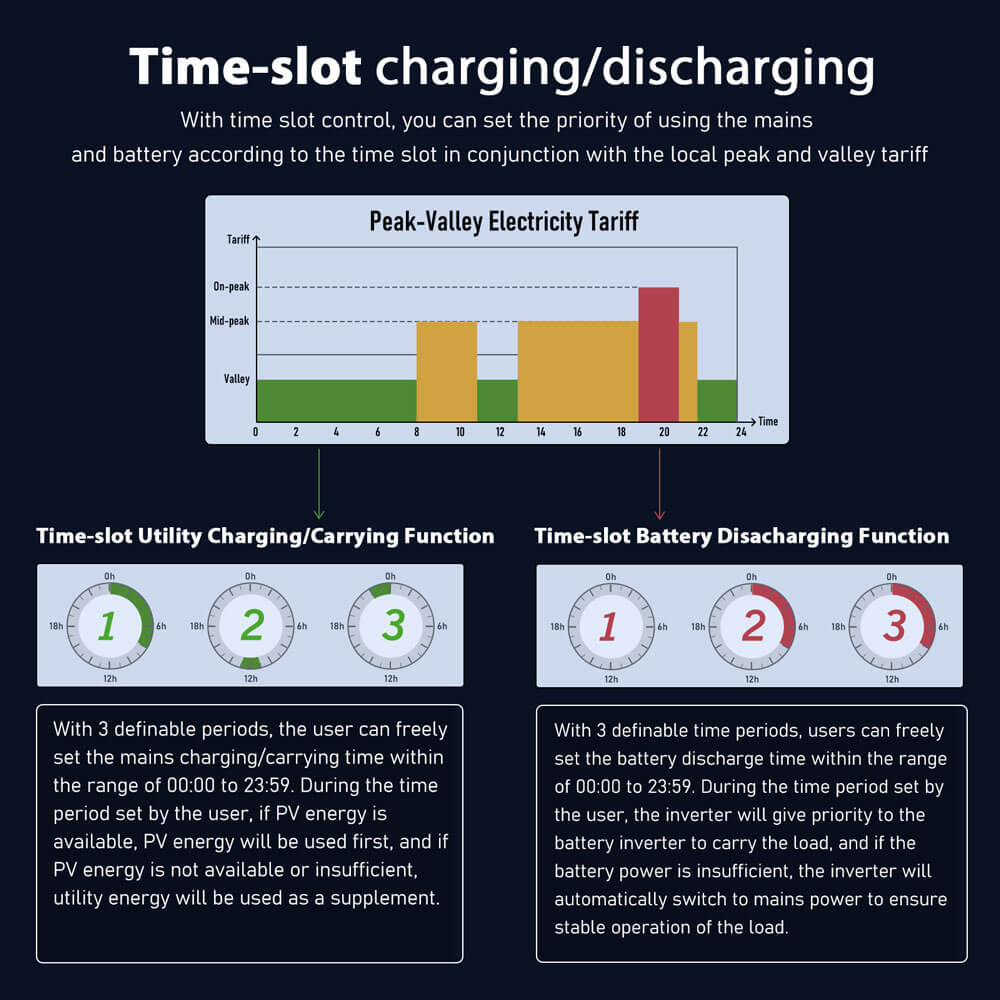

5. Time-Slot Charging/Discharging Function

• Allows users to set charging and discharging periods based on peak and valley tariffs.

• Optimizes the use of utility power and PV energy for cost savings.

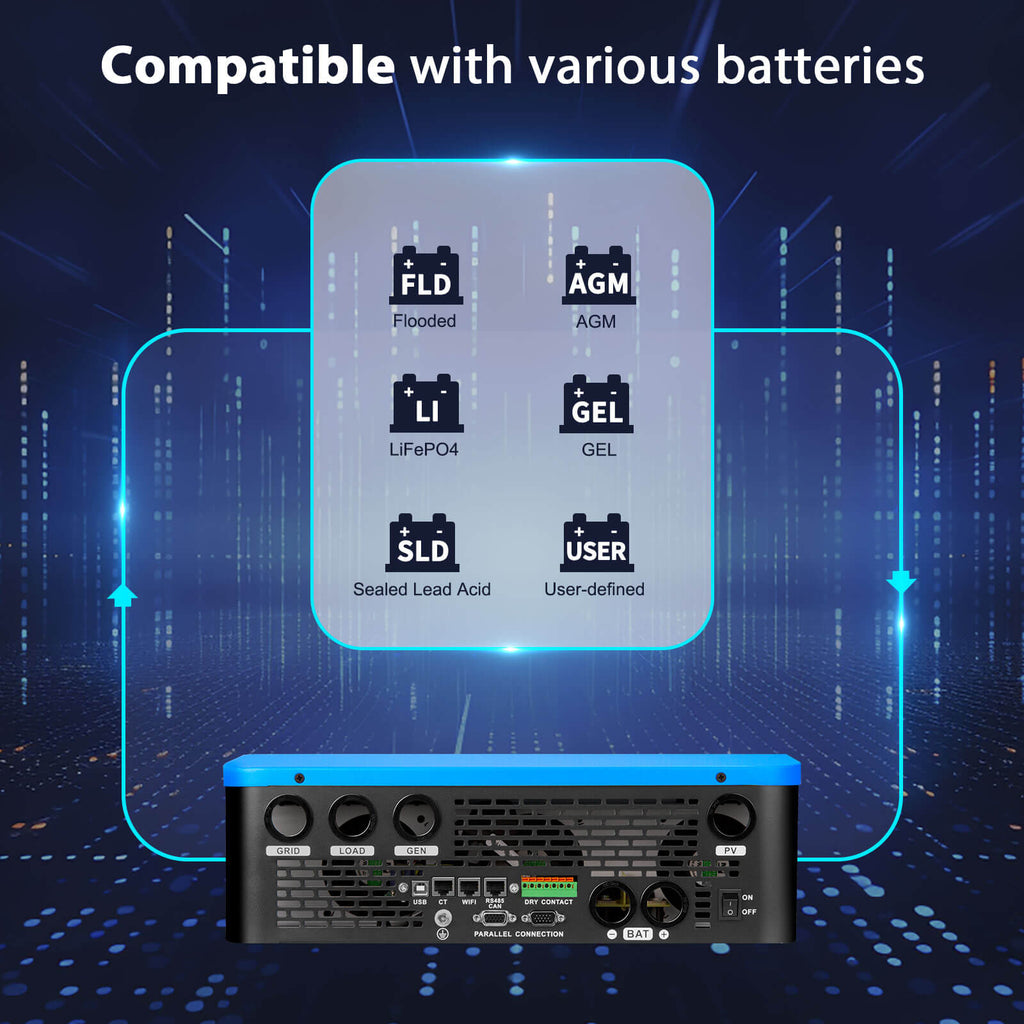

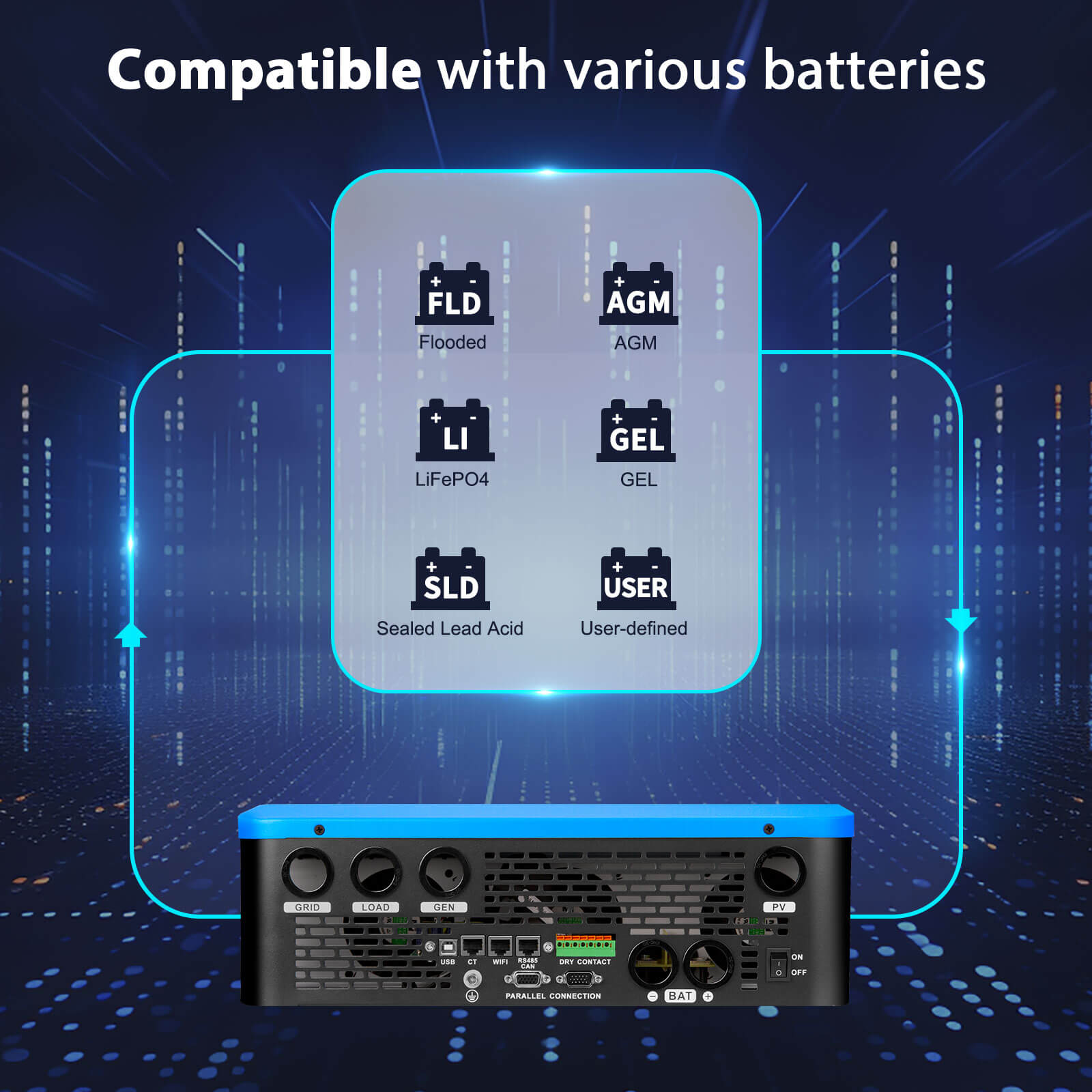

6. Wide Battery Compatibility

• Works with 48V AGM, Sealed, Gel, Flooded, and Lithium batteries.

• Includes a User Mode for custom battery settings.

• Supports battery-free operation and can activate dormant lithium batteries using mains power or photovoltaics.

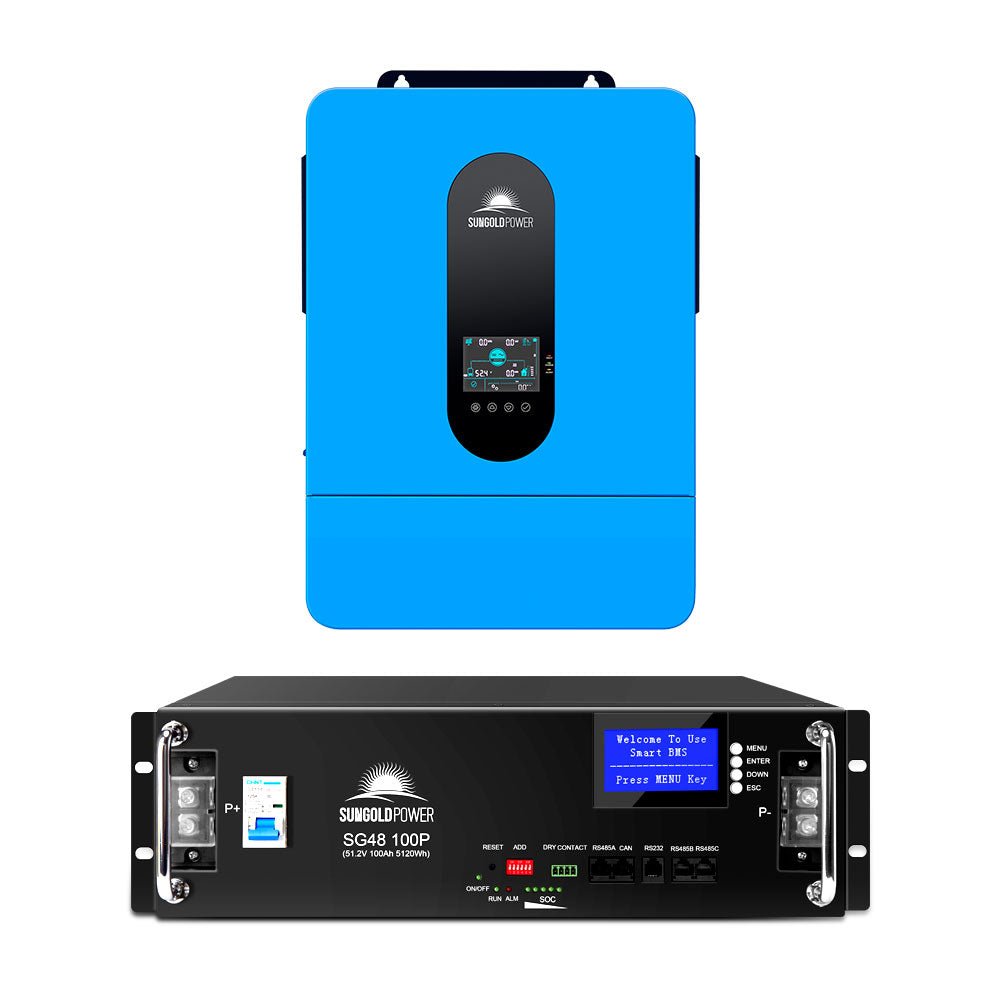

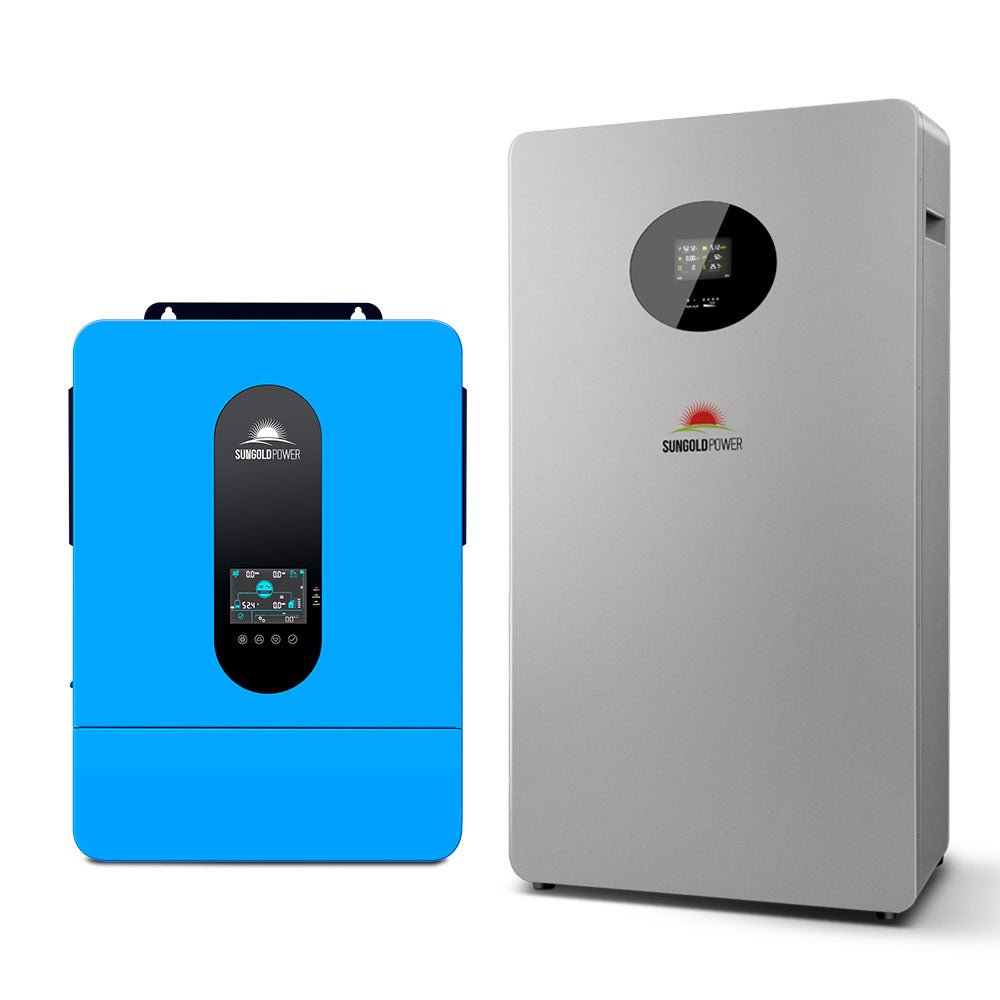

• CAN and RS485 communication for seamless integration with Sungold Power batteries.

Why Choose Sungold Power 6.5KW Hybrid Solar Inverter?

• High Efficiency: Dual MPPT controllers and pure sine wave output ensure optimal energy conversion.

• Scalability: Parallel capability supports up to 39KW power output.

• Advanced Protection: Multiple safety features for reliable operation.

• Flexible Modes: Customizable charging and output modes to meet diverse energy needs.

• Remote Monitoring: Wi-Fi module enables real-time monitoring via mobile app.
