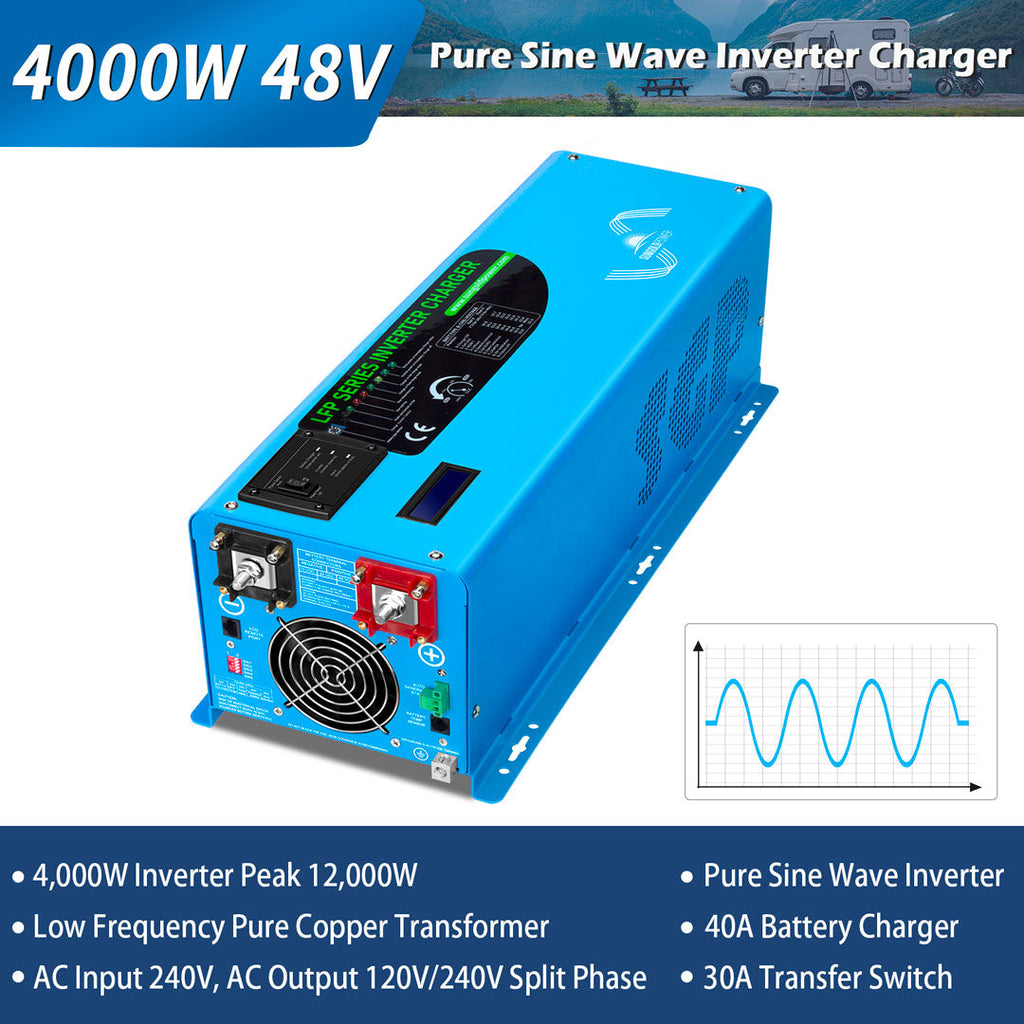

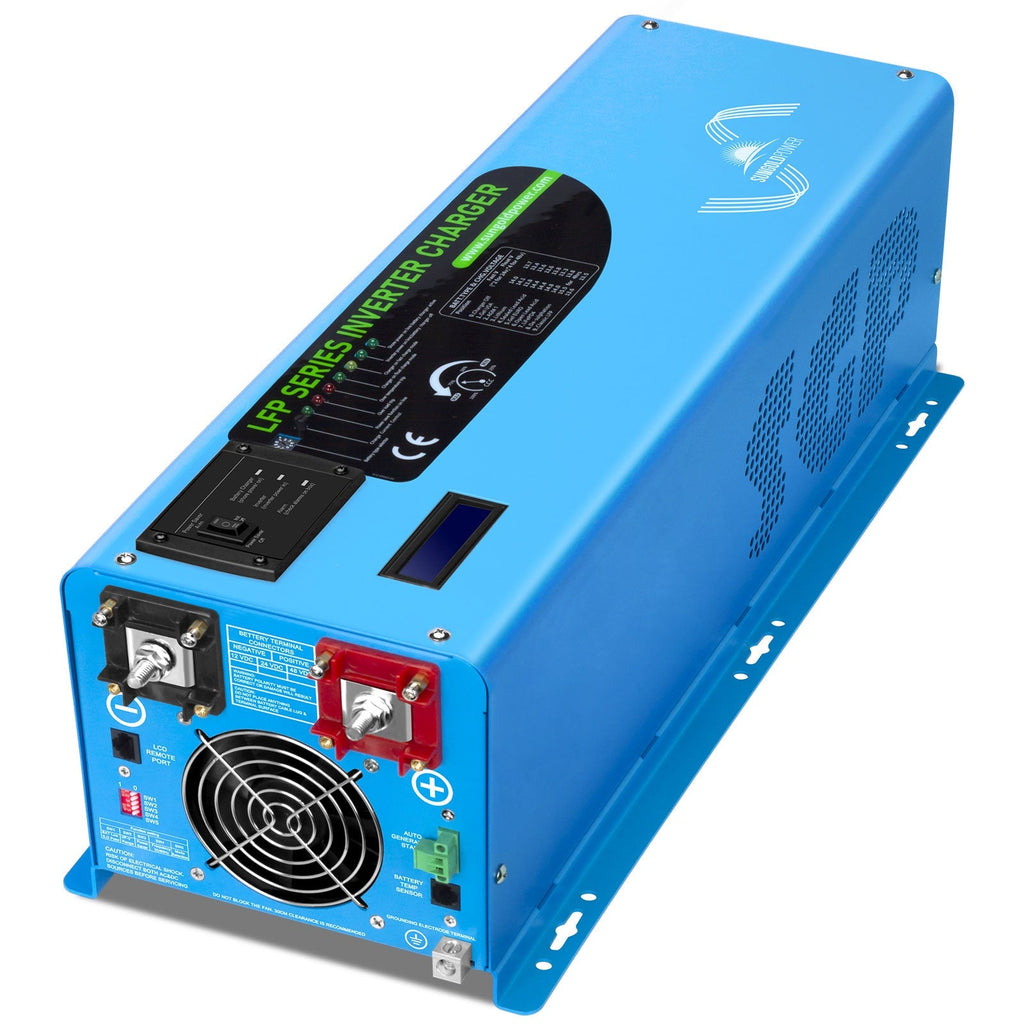

Sungold Power 4000W DC 48V Split Phase Pure Sine Wave Inverter with Charger (UL1741 Standard)

The Sungold Power 4000W DC 48V Split Phase Pure Sine Wave Inverter with Charger is a high-capacity, all-in-one power solution designed for whole-house backup, off-grid systems, and large-scale applications. Combining a 4000-watt pure sine wave inverter, 40A battery charger, and automatic transfer switch, this inverter ensures clean and stable power for your appliances. With split-phase (120V/240V) and single-phase (120V) outputs, it supports a wide range of appliances and systems. Its low-frequency design, low idle consumption, and UL1741 certification make it a reliable and safe choice for backup or off-grid power needs.

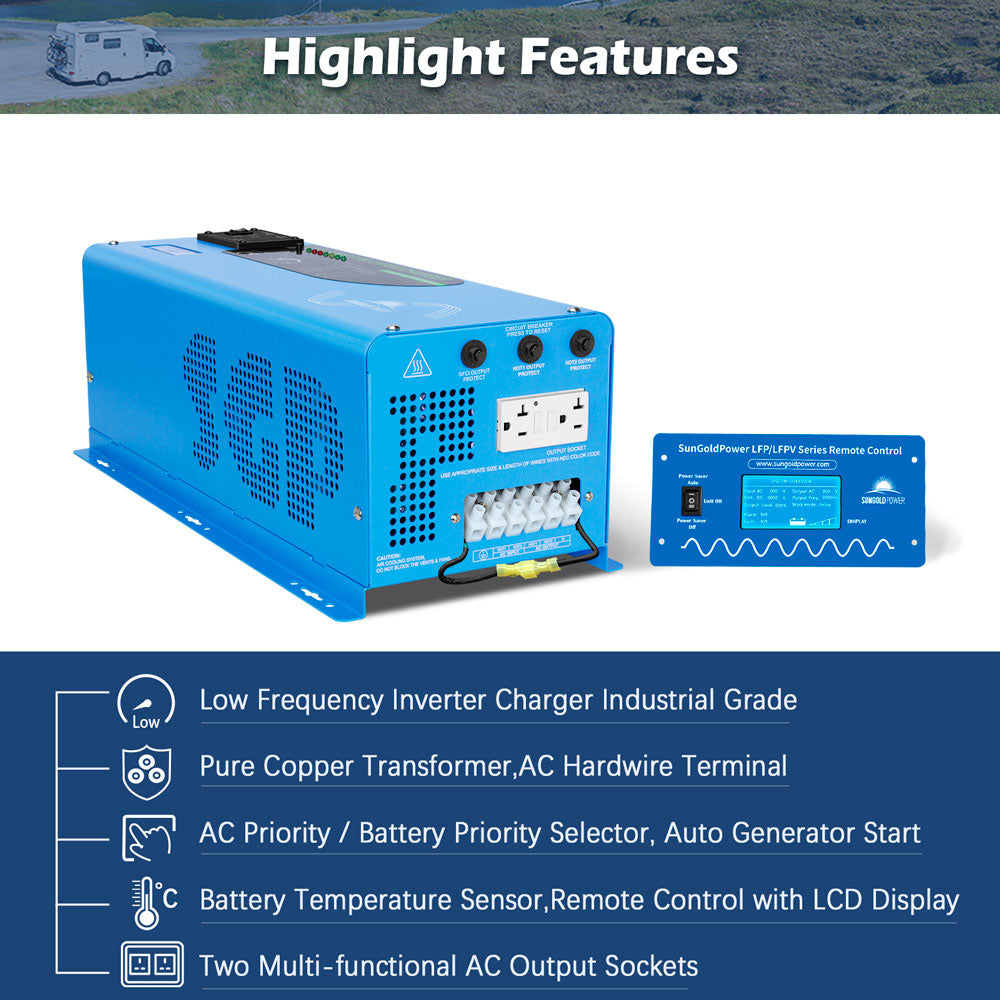

Key Features

All-in-One Power Solution

• 4000W Pure Sine Wave Inverter: Provides clean and stable power for sensitive electronics.

• 40A Battery Charger: Efficiently charges batteries with a 3-step intelligent charging process.

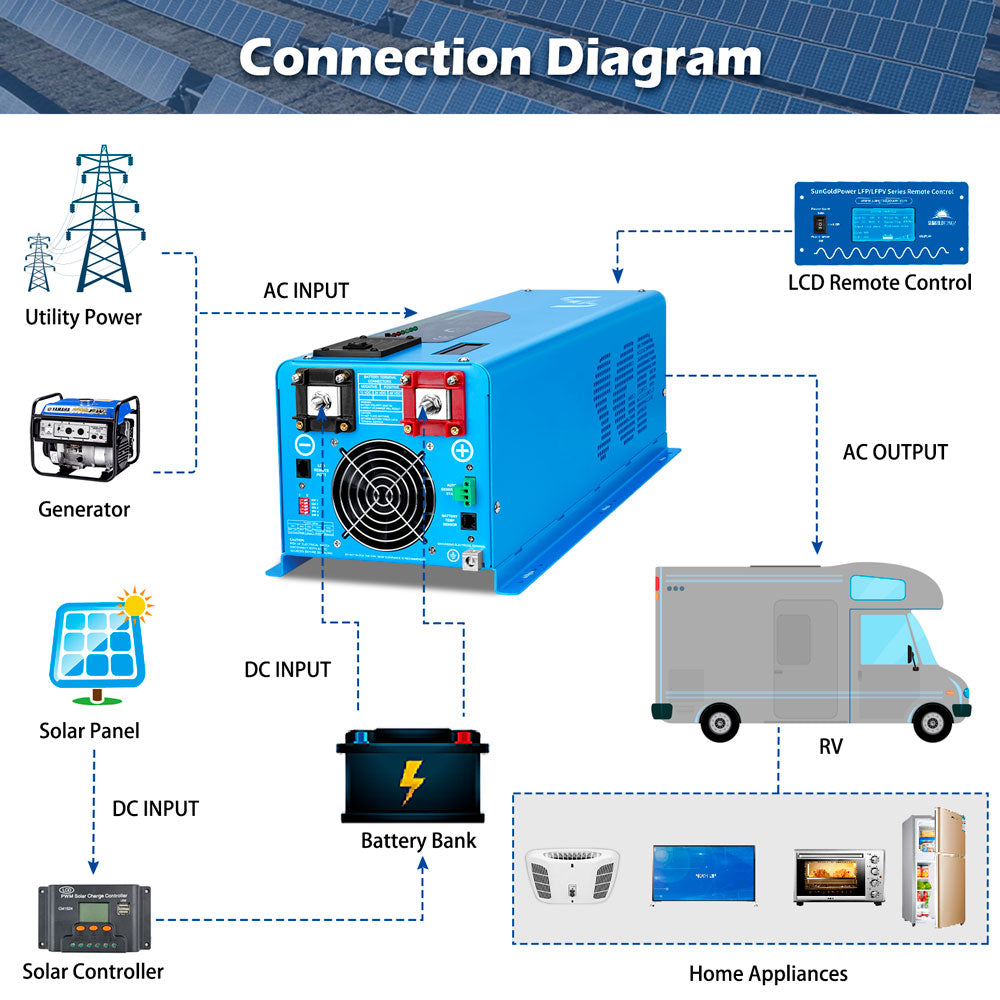

• Automatic Transfer Switch: Seamlessly switches between battery and AC power during outages.

High Surge Capacity

• Surge Power: 12,000W for 20 seconds, ideal for starting heavy-duty tools and appliances.

Flexible Charging and Output Modes

• AC/Battery Priority: Defaults to AC priority but can be switched to battery priority via SW5.

• Adjustable Charging Current: Charge current can be adjusted from 0% to 100% using a linear switch.

• Auto Generator Start: Automatically starts a generator when the battery voltage is low and turns it off after charging.

User-Friendly Features

• LCD Display: Provides real-time system information for easy monitoring.

• Remote Control: Includes a remote for convenient operation.

• Battery Temperature Sensor (BTS): Protects batteries from overheating.

• Safety Features: Includes overload protection, short circuit protection, and over-temperature protection.

Wide Compatibility

• Battery Types: Supports 9 battery types, including AGM, Gel, Flooded, and Lithium.

• Frequency Options: Outputs 50Hz or 60Hz (selectable via SW4).

Certifications

• UL1741 Standard: Ensures safety and compliance with industry standards.

Specifications

Inverter Output

• Continuous Output Power: 4000W

• Surge Power: 12,000W (20 seconds)

• Output Voltage: 120V and 240V AC

• Input Voltage: 240V AC

• Waveform: Pure Sine Wave

• Transfer Time: 10ms (max)

• Efficiency: >88%

DC Input

• Nominal Input Voltage: 48V

• Voltage Range: 40€“64V

• Low Battery Alarm: 42V€“44V

• Low Battery Trip: 40V€“42V

• High Voltage Alarm: 64V

• Idle Consumption: 48W (19W in power saver mode)

AC Charger

• Charging Current: 40A (±5A)

• AC Input Range: 140V€“270V AC (selectable via SW2)

• Overcharge Protection: 62.8V

• Charging Stages: Bulk, Absorption, Float

Physical Dimensions

• Unit Weight: 55 lbs

• Unit Size: 22 x 9.1 x 7.5 inches

• Shipping Weight: 64 lbs

• Shipping Size: 27 x 13.4 x 13 inches

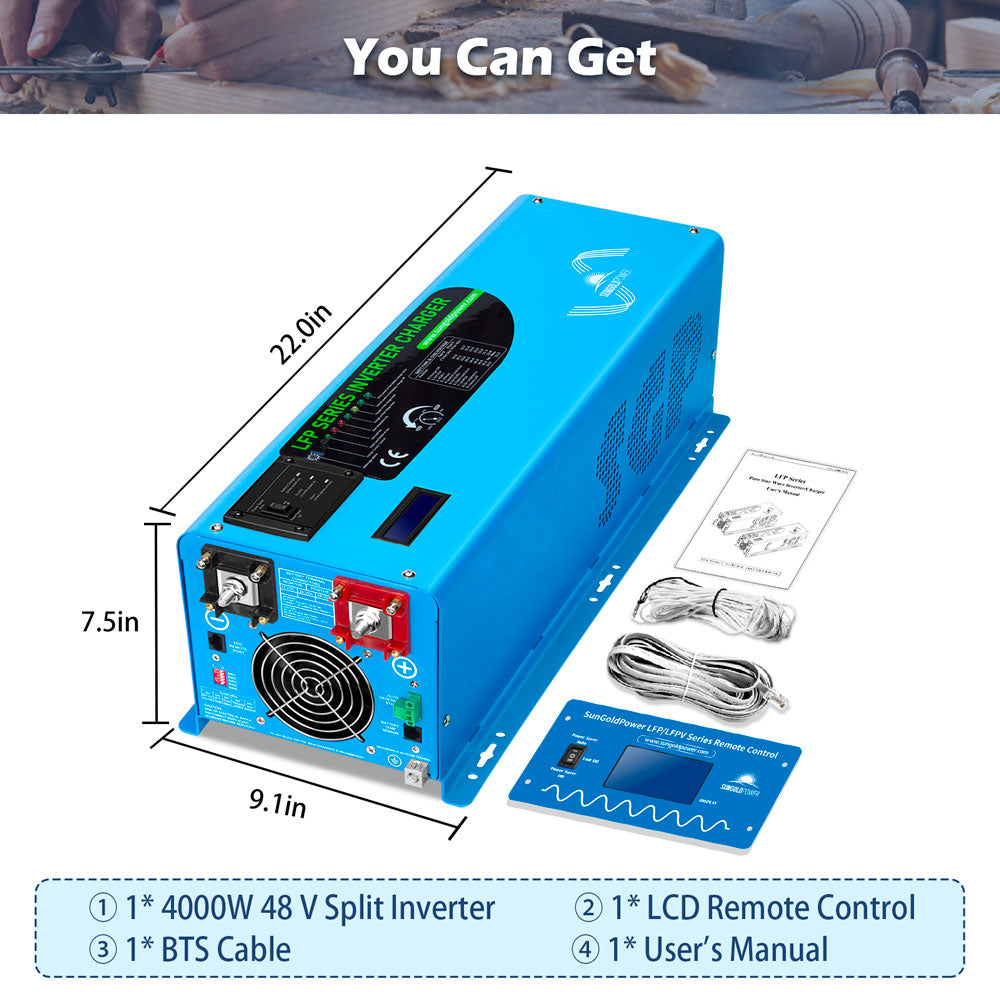

Whats in the Box

• 1 x 4000W 48V Low-Frequency Pure Sine Inverter

• 1 x English User Manual

• 1 x Remote Control

• 1 x BTS Cable

Frequently Asked Questions (FAQ)

Q1: What is the AC output amperage?

A: The output amperage is 16A. For 240V AC load, the maximum power is 4000W. For 120V AC load, the maximum power is 2000W (split into 2 x 2000W).

Q2: What is the maximum charging voltage?

A: The maximum charging voltage is 62.8V. Overcharge protection will activate if this limit is exceeded.

Q3: Can it charge 7 modules of Nissan Leaf batteries (56V, 66Ah)?

A: No, the battery voltage must not exceed 48V. Refer to the battery type selector in the manual for proper configuration.

User Manual

Sungold Power 4000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard User Manual
