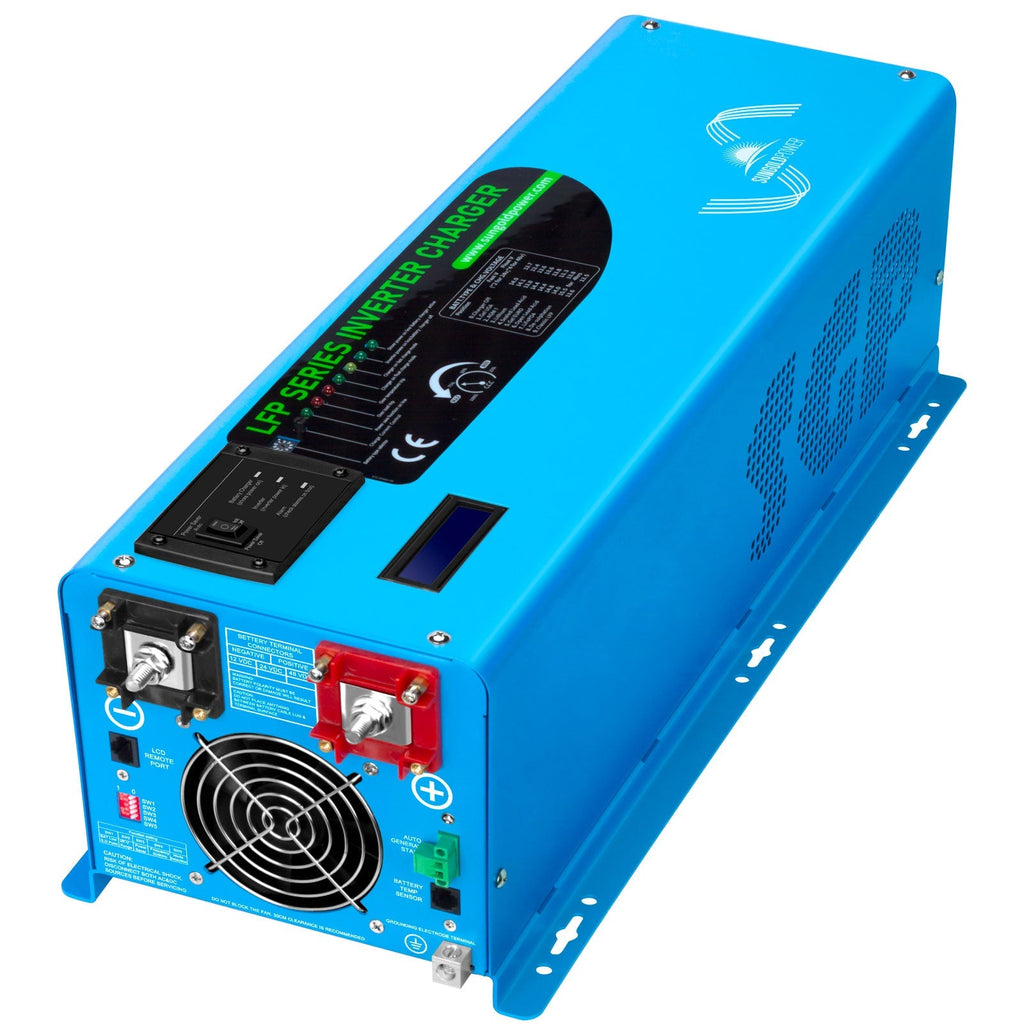

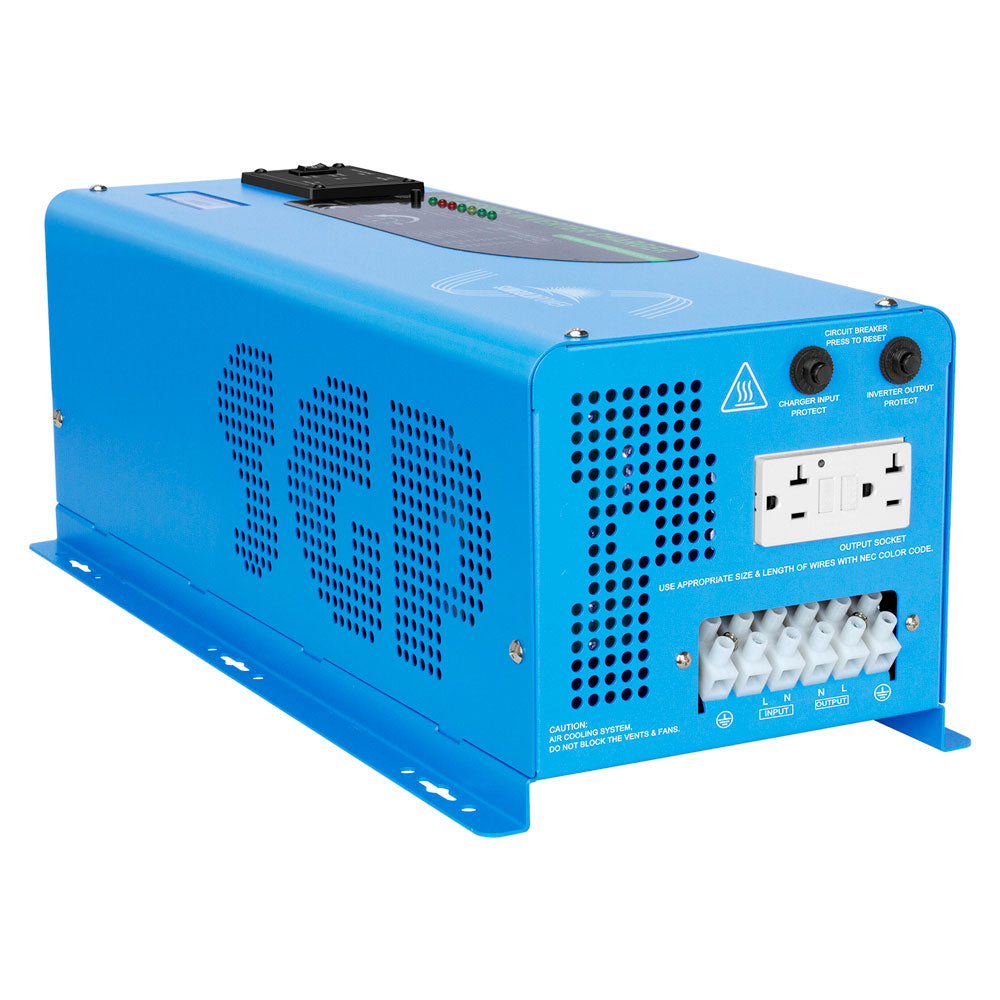

Sungold Power 4000W DC 24V Pure Sine Wave Inverter with Charger

The Sungold Power 4000W DC 24V Pure Sine Wave Inverter with Charger is a versatile and reliable power solution designed for RVs, trailers, motorhomes, truck campers, and off-grid systems. Combining a 4000-watt pure sine wave inverter, 65A battery charger, and automatic transfer switch, this inverter ensures clean and stable power for your appliances. With a 300% surge capacity (12,000W for 20 seconds), it can handle heavy-duty tools and equipment. Its low-frequency design and low idle consumption make it an energy-efficient choice for backup or off-grid power needs.

Key Features

All-in-One Power Solution

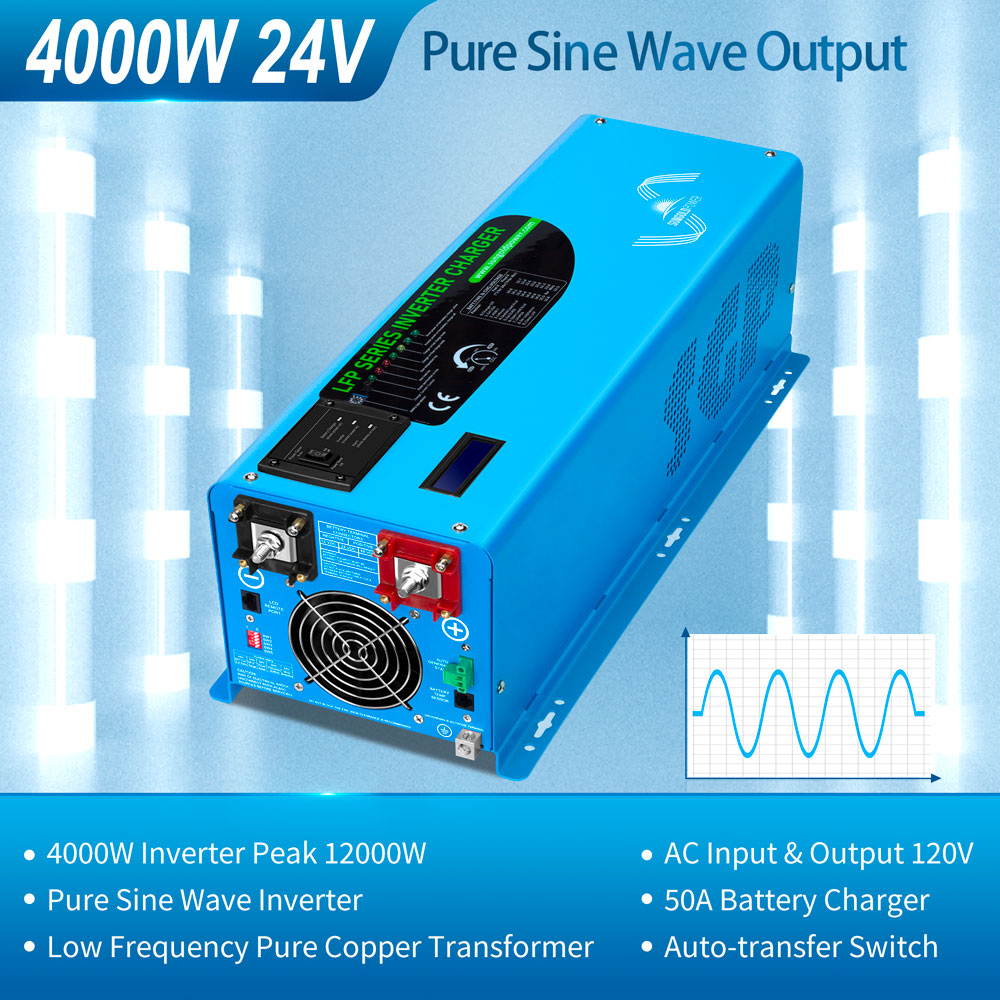

• 4000W Pure Sine Wave Inverter: Provides clean and stable power for sensitive electronics.

• 65A Battery Charger: Efficiently charges batteries with a 3-step intelligent charging process.

• Automatic Transfer Switch: Seamlessly switches between battery and AC power during outages.

High Surge Capacity

• Surge Power: 12,000W for 20 seconds, ideal for starting heavy-duty tools and appliances.

Flexible Charging and Output Modes

• AC/Battery Priority: Defaults to AC priority but can be switched to battery priority via SW5.

• Adjustable Charging Current: Charge current can be adjusted from 0% to 100% using a linear switch.

• Auto Generator Start: Automatically starts a generator when the battery voltage is low and turns it off after charging.

User-Friendly Features

• LCD Display: Provides real-time system information for easy monitoring.

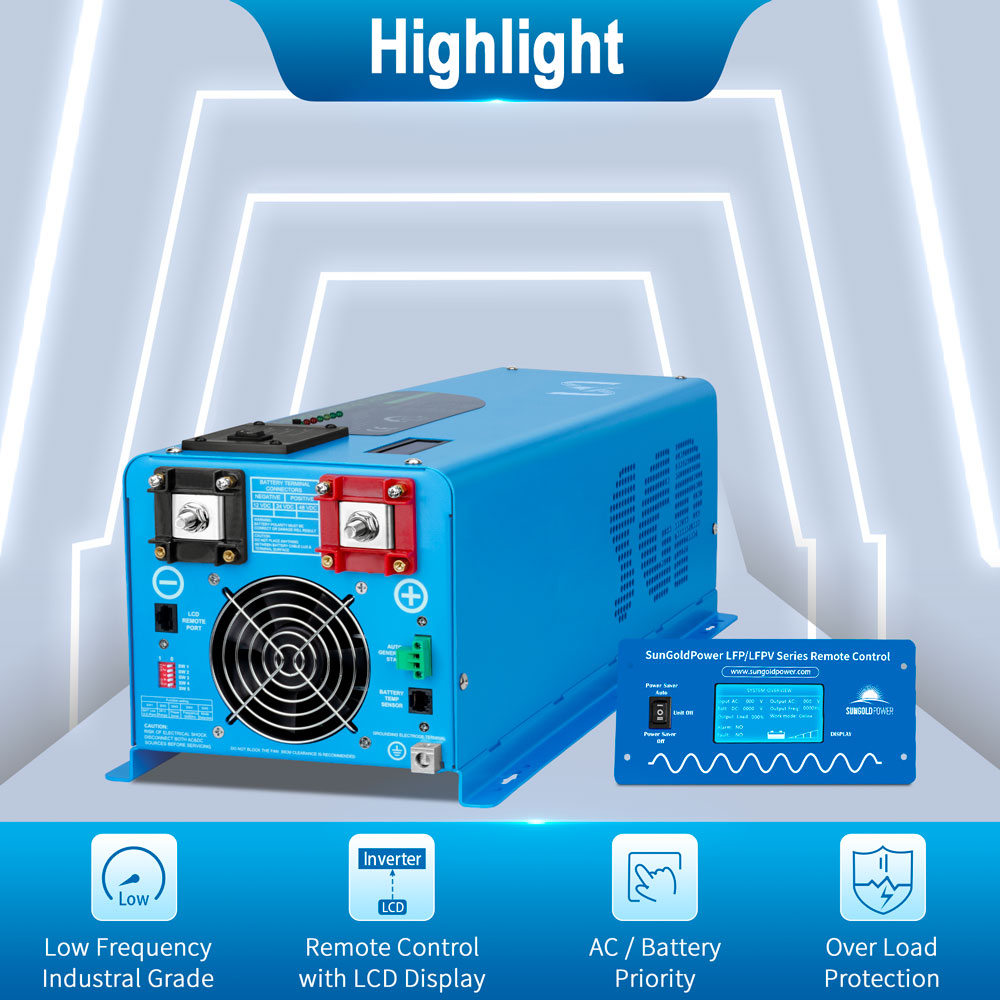

• Remote Control: Includes a remote for convenient operation.

• Battery Temperature Sensor (BTS): Protects batteries from overheating.

• Safety Features: Includes overload protection, short circuit protection, and over-temperature protection.

Wide Compatibility

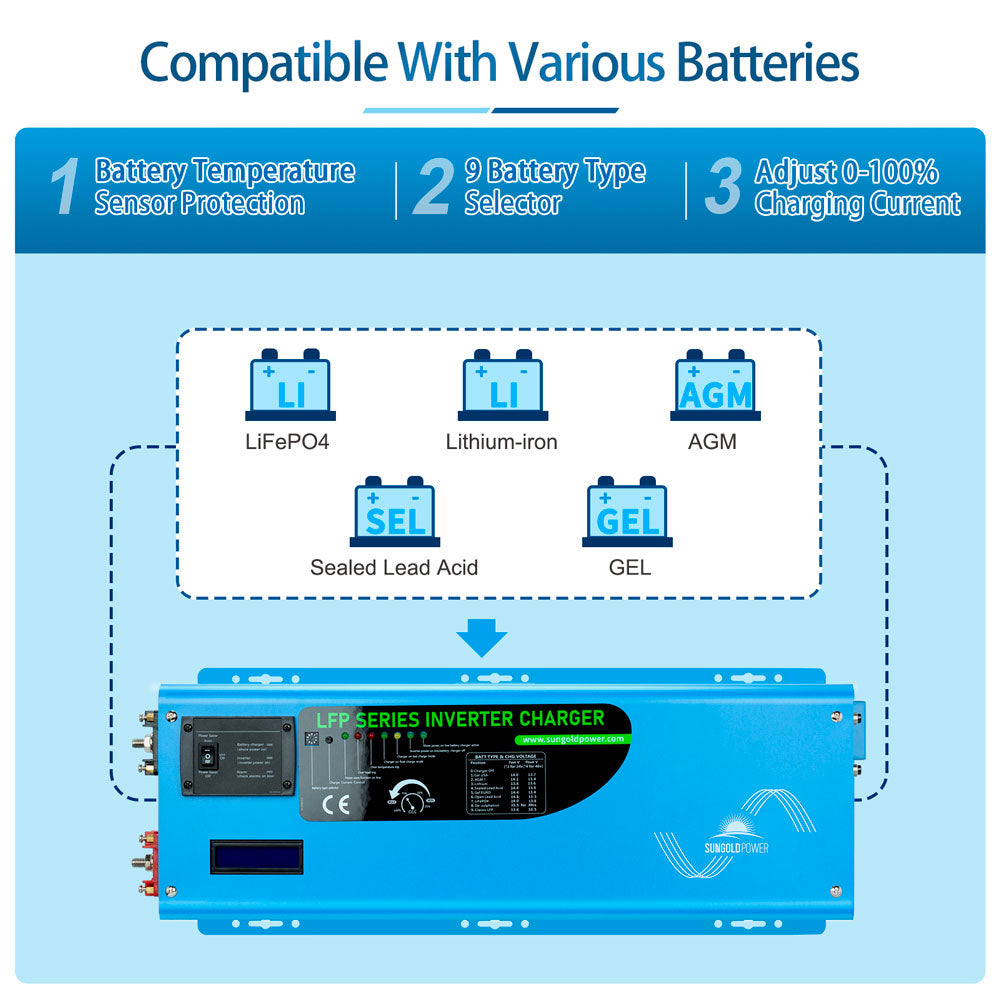

• Battery Types: Supports 7 battery types, including AGM, Gel, Flooded, and Lithium.

• Frequency Options: Outputs 50Hz or 60Hz (selectable via SW4).

Specifications

Inverter Output

• Continuous Output Power: 4000W

• Surge Power: 12,000W (20 seconds)

• Output Voltage: 120V AC

• Input Voltage: 120V AC

• Waveform: Pure Sine Wave

• Transfer Time: 10ms (max)

• Efficiency: >88%

DC Input

• Nominal Input Voltage: 24V

• Voltage Range: 20€“32V

• Low Battery Alarm: 21V€“22V

• Low Battery Trip: 20V€“21V

• High Voltage Alarm: 32V

• Idle Consumption: 48W (19W in power saver mode)

AC Charger

• Charging Current: 65A (±5A)

• AC Input Range: 90V€“135V AC (selectable via SW2)

• Overcharge Protection: 31.4V

• Charging Stages: Bulk, Absorption, Float

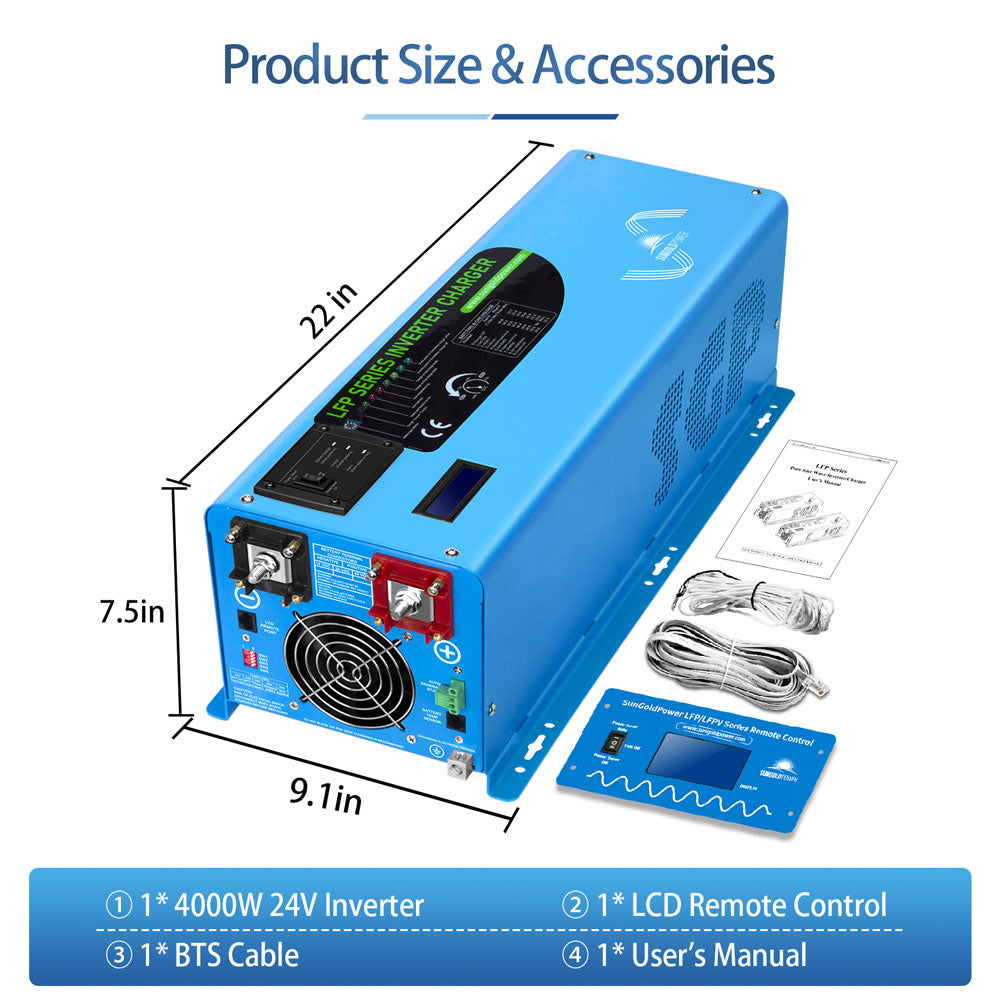

Physical Dimensions

• Unit Weight: 54 lbs

• Unit Size: 22 x 9.1 x 7.5 inches

• Shipping Weight: 62.8 lbs

• Shipping Size: 27 x 13.4 x 13 inches

Whats in the Box

• 1 x 4000W 24V Low-Frequency Pure Sine Inverter

• 1 x English User Manual

• 1 x Remote Control

• 1 x BTS Cable

Frequently Asked Questions (FAQ)

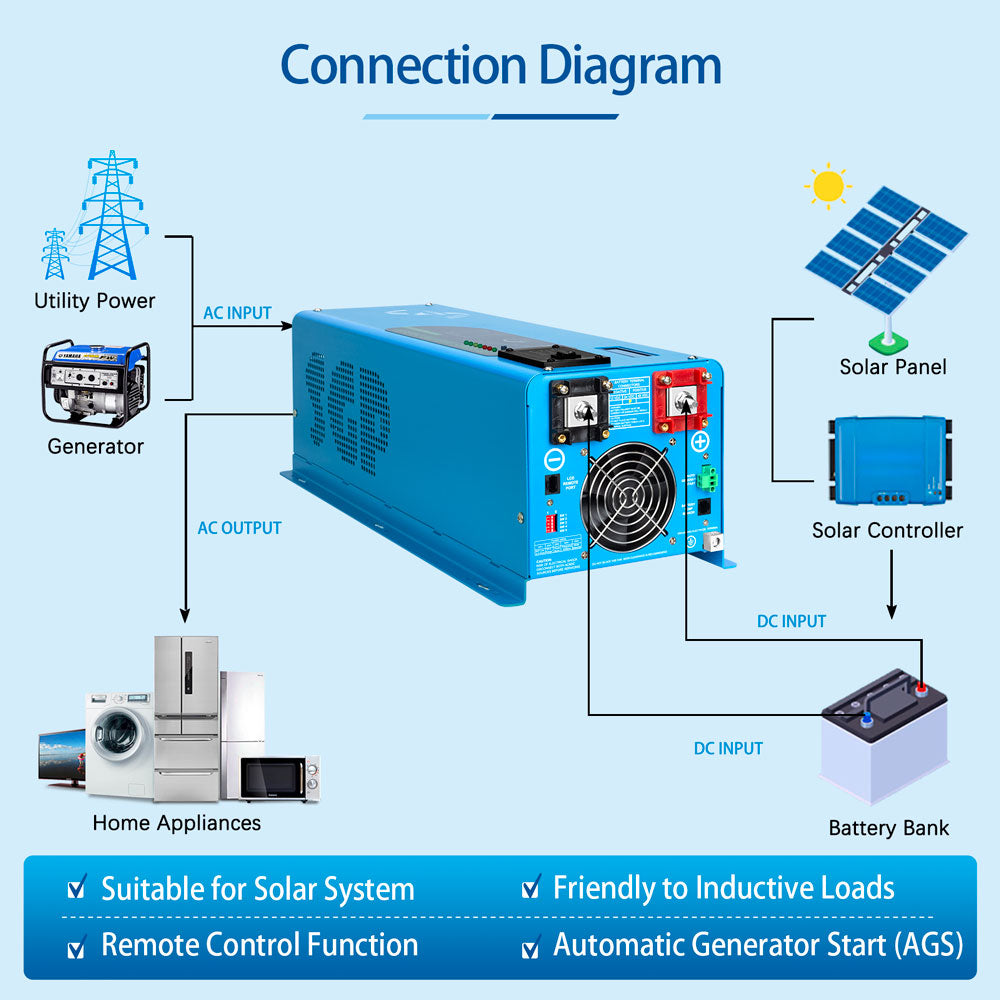

Q1: Can I directly connect a 24V solar panel to this inverter?

A: No, this inverter does not have a built-in solar charge controller. You will need an external solar charge controller to connect solar panels.

Q2: What is the idle wattage?

A: The idle power is 19W in power saver mode and 48W in standard mode.

User Manual

Sungold Power 4000W DC 24V Pure Sine Wave Inverter With Charger User Manual
