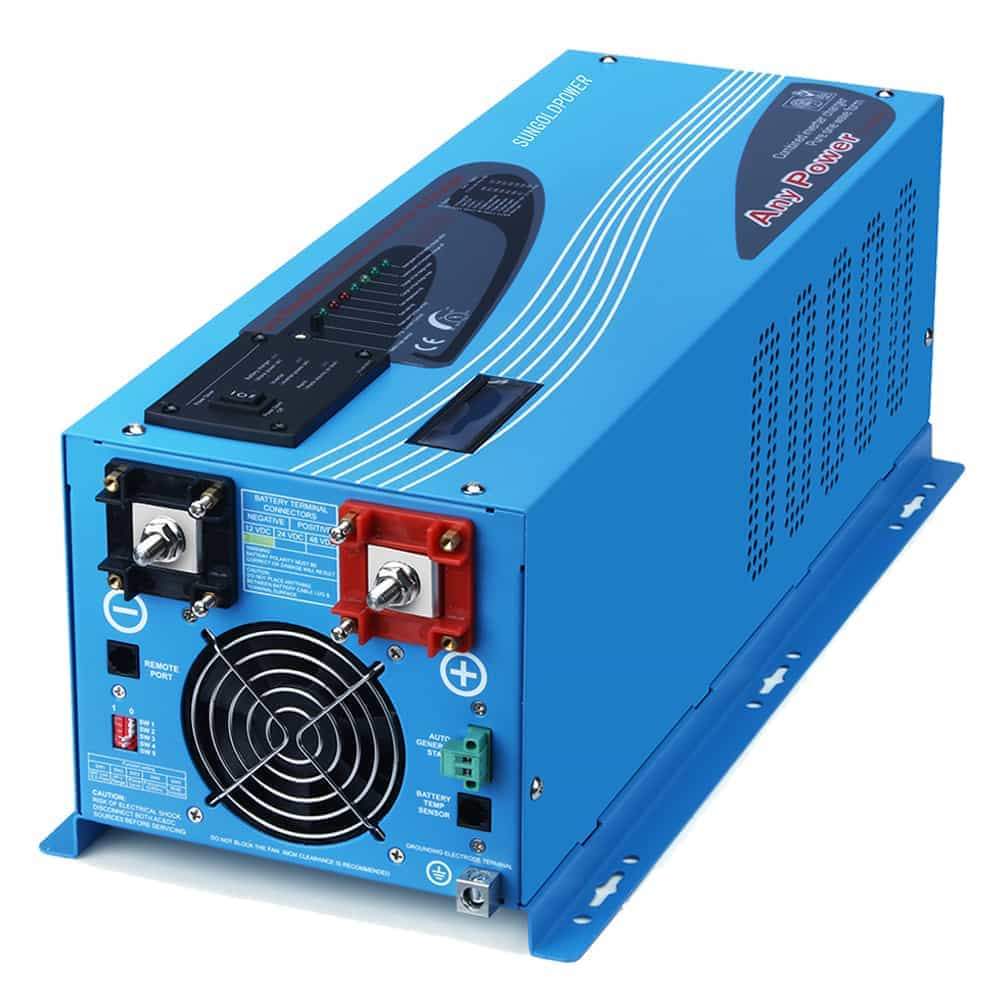

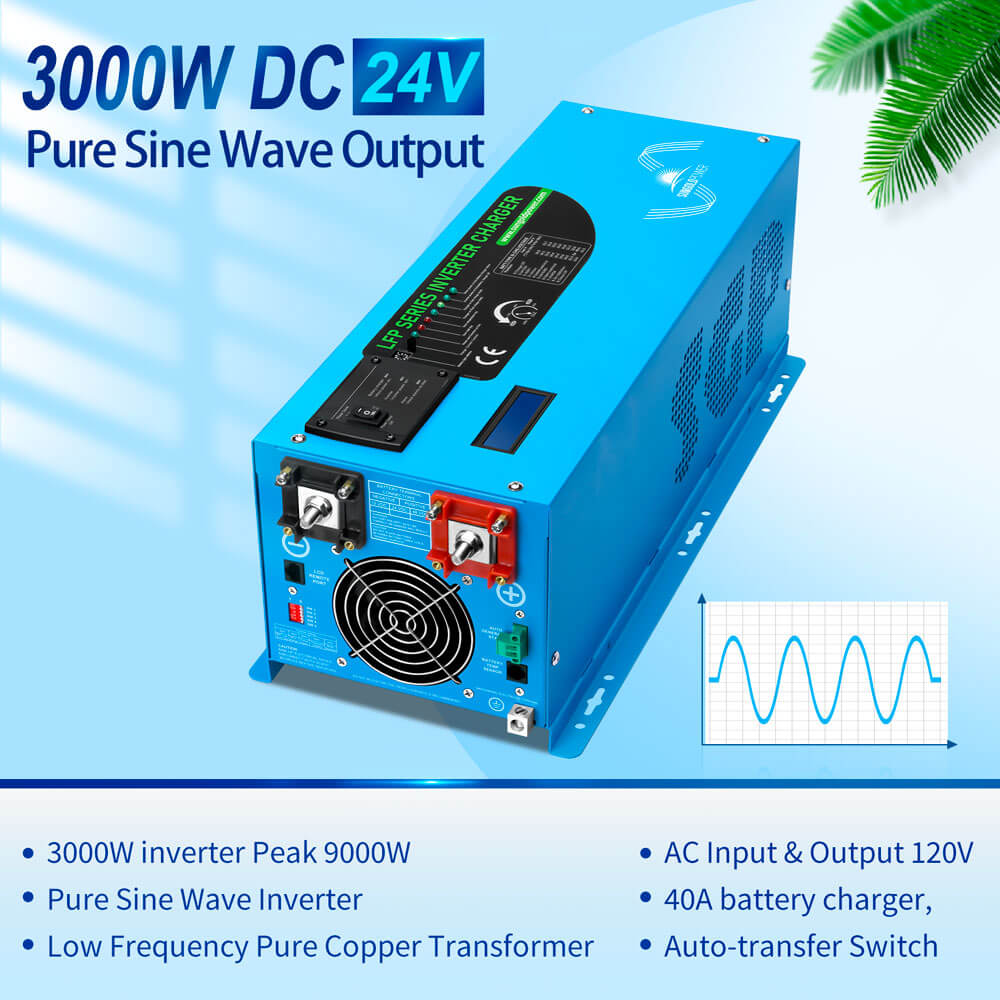

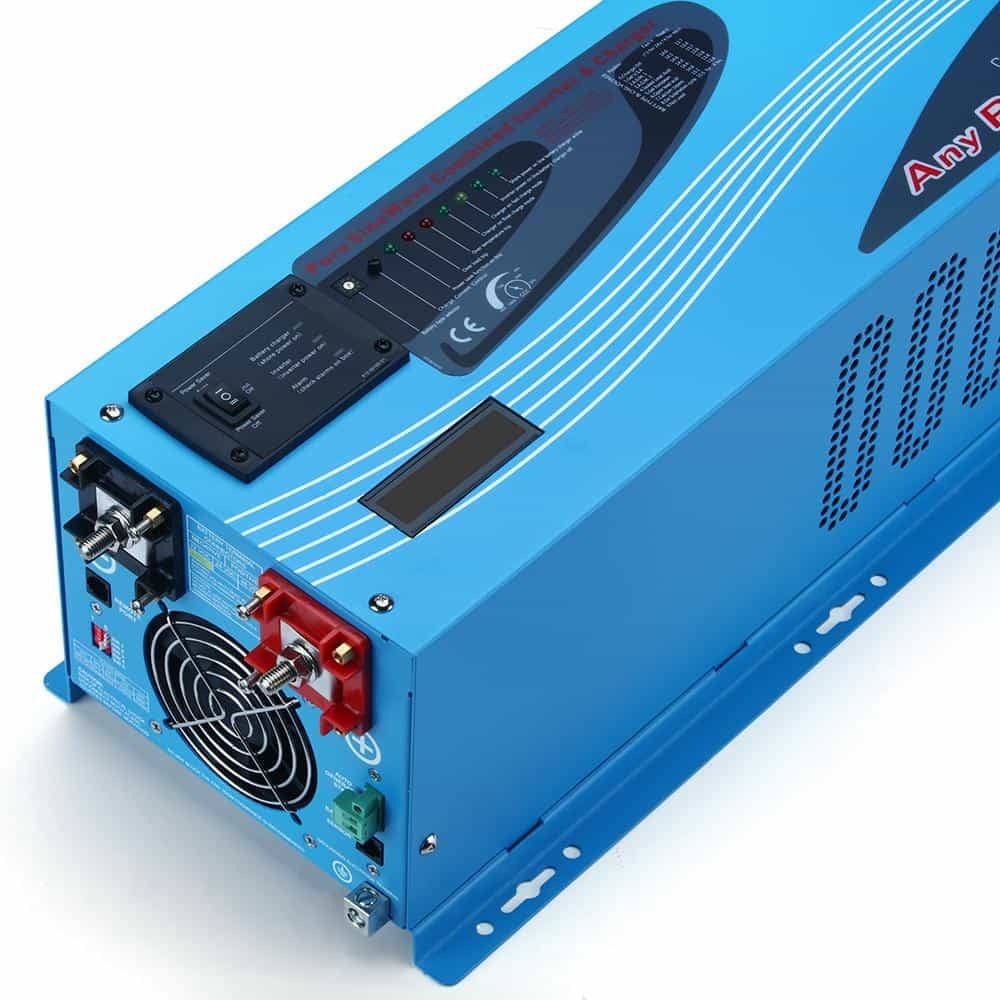

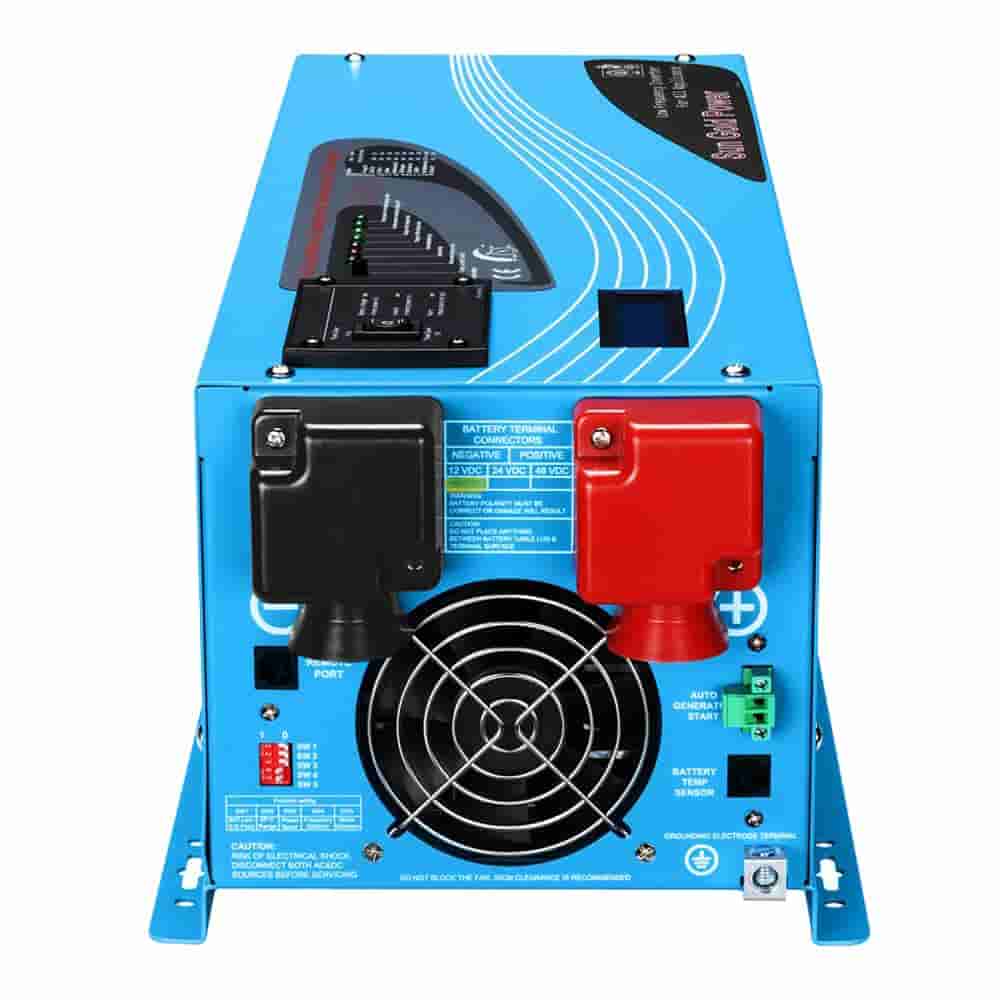

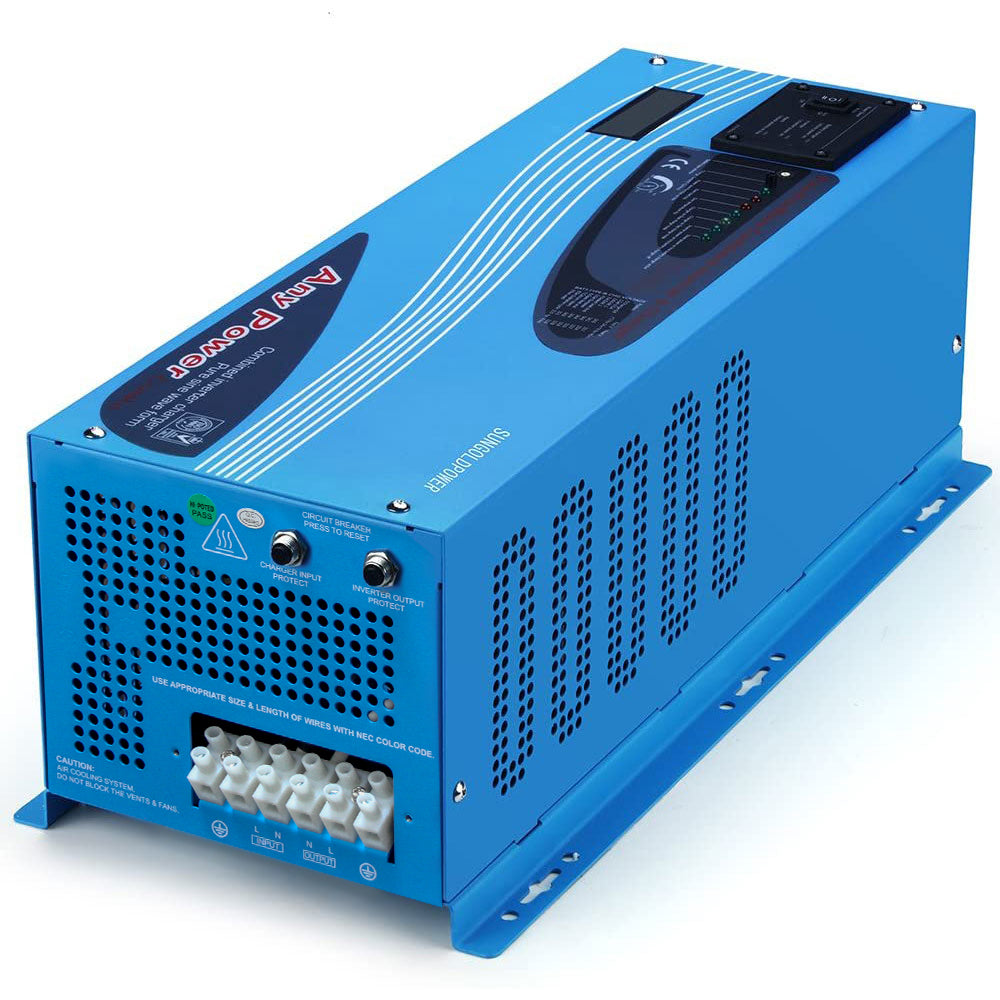

Sungold Power 3000W DC 24V Pure Sine Wave Inverter with Charger:

The Sungold Power 3000W DC 24V Pure Sine Wave Inverter with Charger is a versatile and reliable power solution designed for RVs, trailers, motorhomes, truck campers, and off-grid systems. Combining a 3000-watt pure sine wave inverter, 40A battery charger, and automatic transfer switch, this inverter ensures clean and stable power for your appliances. With a 300% surge capacity (9000W for 20 seconds), it can handle heavy-duty tools and equipment. Its low-frequency design and low idle consumption make it an energy-efficient choice for backup or off-grid power needs.

Key Features

All-in-One Power Solution

• 3000W Pure Sine Wave Inverter: Provides clean and stable power for sensitive electronics.

• 40A Battery Charger: Efficiently charges batteries with a 3-step intelligent charging process.

• Automatic Transfer Switch: Seamlessly switches between battery and AC power during outages.

High Surge Capacity

• Surge Power: 9000W for 20 seconds, ideal for starting heavy-duty tools and appliances.

Flexible Charging and Output Modes

• AC/Battery Priority: Defaults to AC priority but can be switched to battery priority via SW5.

• Adjustable Charging Current: Charge current can be adjusted from 0% to 100% using a linear switch.

• Auto Generator Start: Automatically starts a generator when the battery voltage is low and turns it off after charging.

User-Friendly Features

• LCD Display: Provides real-time system information for easy monitoring.

• Remote Control: Includes a remote for convenient operation.

• Battery Temperature Sensor (BTS): Protects batteries from overheating.

• GFCI Socket: Ensures safety and convenience for connected devices.

Wide Compatibility

• Battery Types: Supports 9 battery types, including AGM, Gel, Flooded, and Lithium.

• Frequency Options: Outputs 50Hz or 60Hz (selectable via SW4).

Specifications

Inverter Output

• Continuous Output Power: 3000W

• Surge Power: 9000W (20 seconds)

• Output Voltage: 120V AC

• Input Voltage: 120V AC

• Waveform: Pure Sine Wave

• Transfer Time: 10ms (max)

• Efficiency: >88%

DC Input

• Nominal Input Voltage: 24V

• Voltage Range: 20€“32V

• Low Battery Alarm: 21V€“22V

• Low Battery Trip: 20V€“21V

• High Voltage Alarm: 32V

• Idle Consumption: 39W (16W in power saver mode)

AC Charger

• Charging Current: 40A

• AC Input Range: 90V€“135V AC (selectable via SW2)

• Overcharge Protection: 31.4V

• Charging Stages: Bulk, Absorption, Float

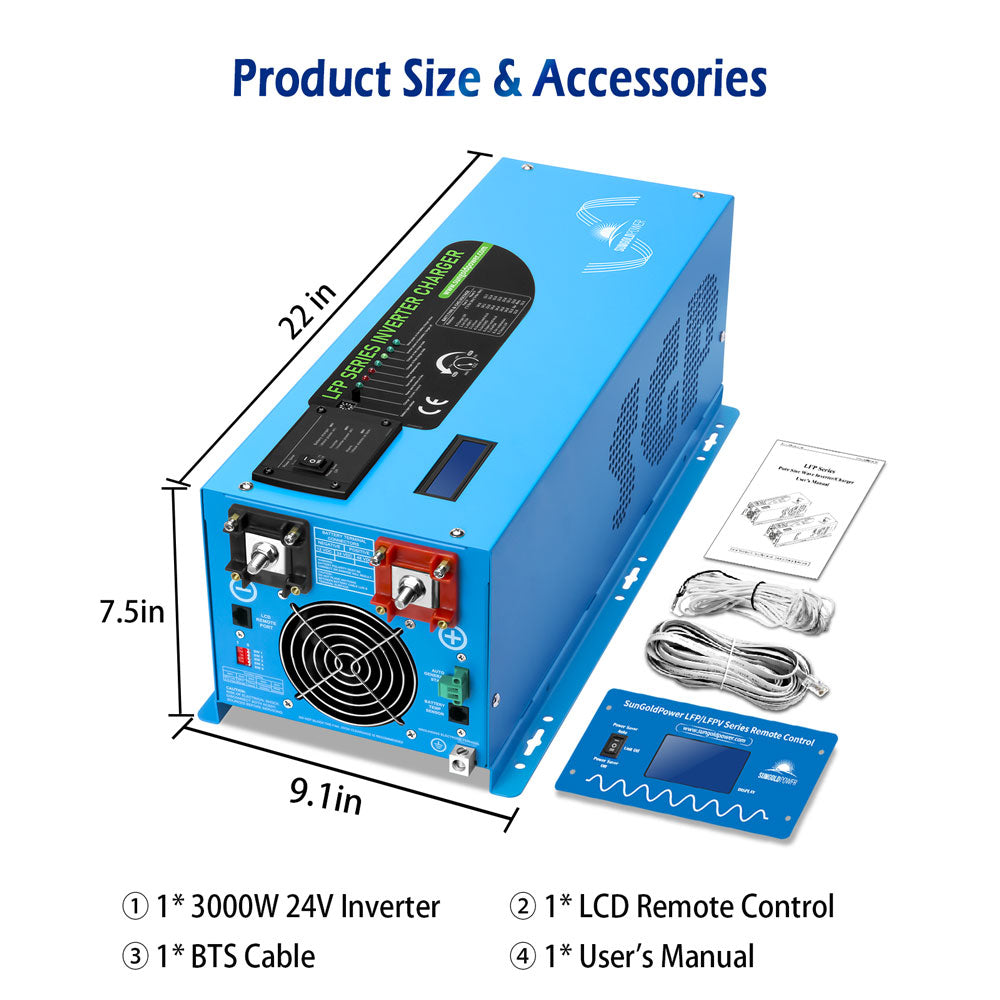

Physical Dimensions

• Unit Weight: 48.5 lbs

• Unit Size: 22.05 x 9.1 x 7.5 inches

• Shipping Weight: 57 lbs

• Shipping Size: 26.8 x 13.4 x 13 inches

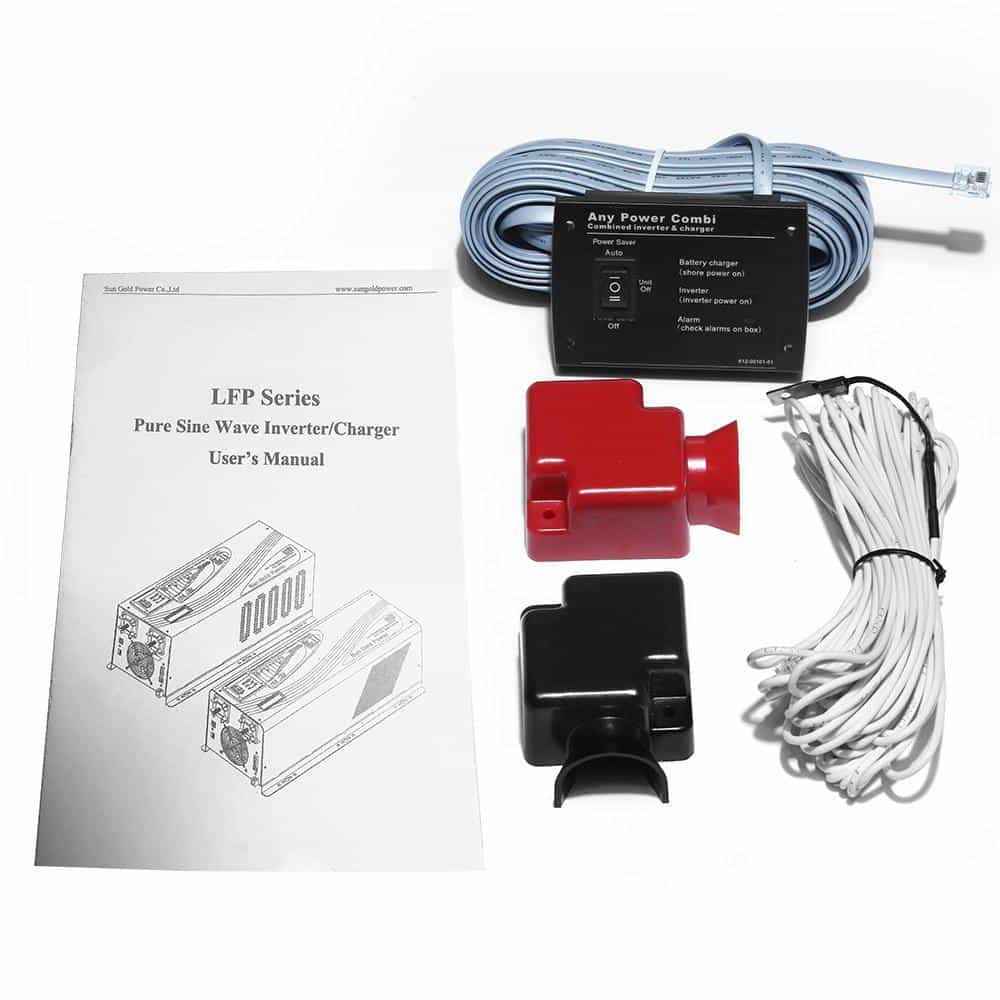

Whats in the Box

• 1 x 3000W 24V Low-Frequency Pure Sine Inverter

• 1 x English User Manual

• 1 x Remote Control

• 1 x BTS Cable

Frequently Asked Questions (FAQ)

Q1: Does the inverter turn off when the low battery warning is triggered?

A: If connected to AC input, the inverter will charge the battery when the low battery alarm is triggered. If not connected to AC input, the inverter will shut down when the battery voltage drops to 20V.

Q2: Will it work with lithium batteries?

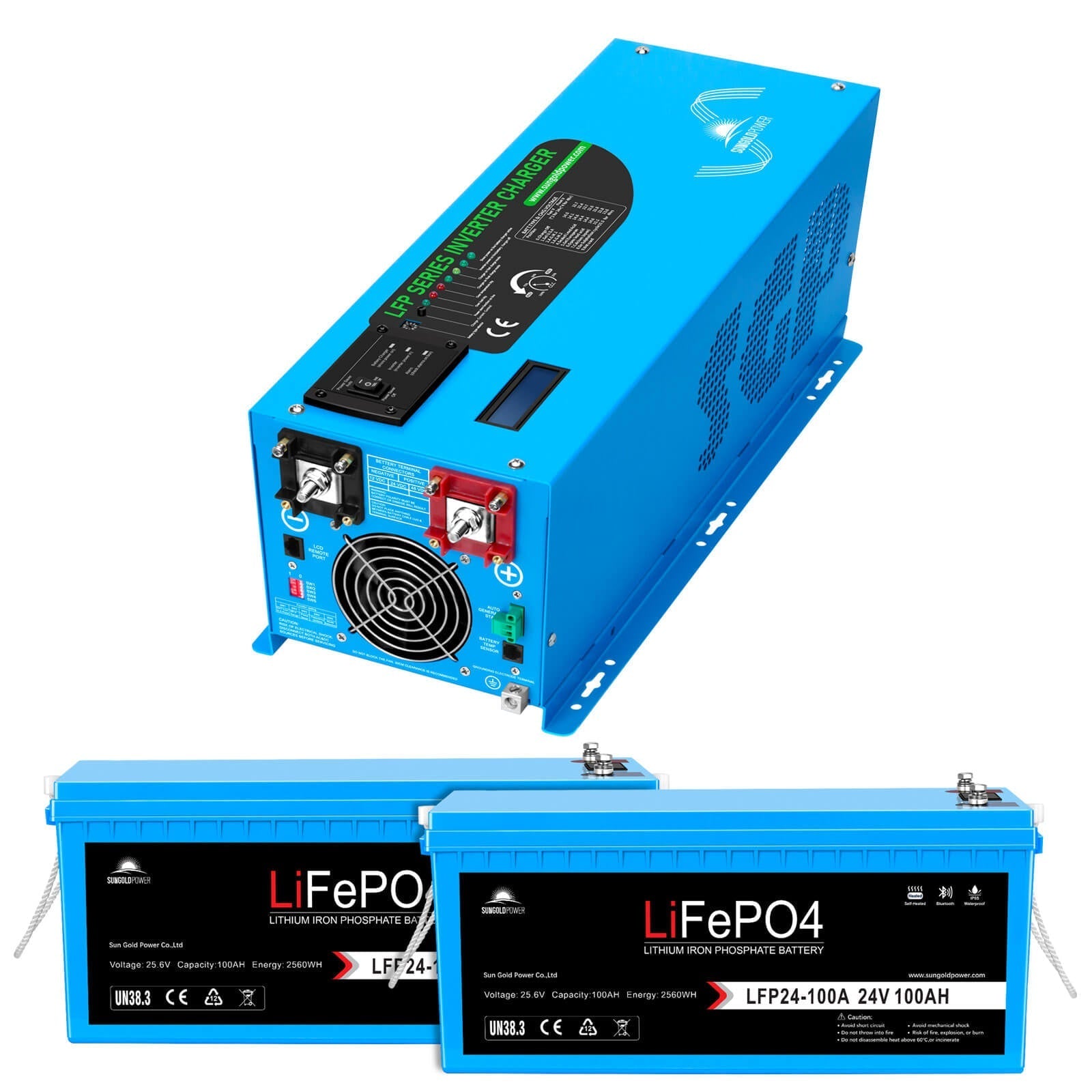

A: Yes, it is compatible with 24V lithium batteries.

Q3: Should I have a BMS (Battery Management System) on my LiFePO4 batteries with this charger?

A: Most LiFePO4 batteries come with a built-in BMS, so an additional BMS is not required.
