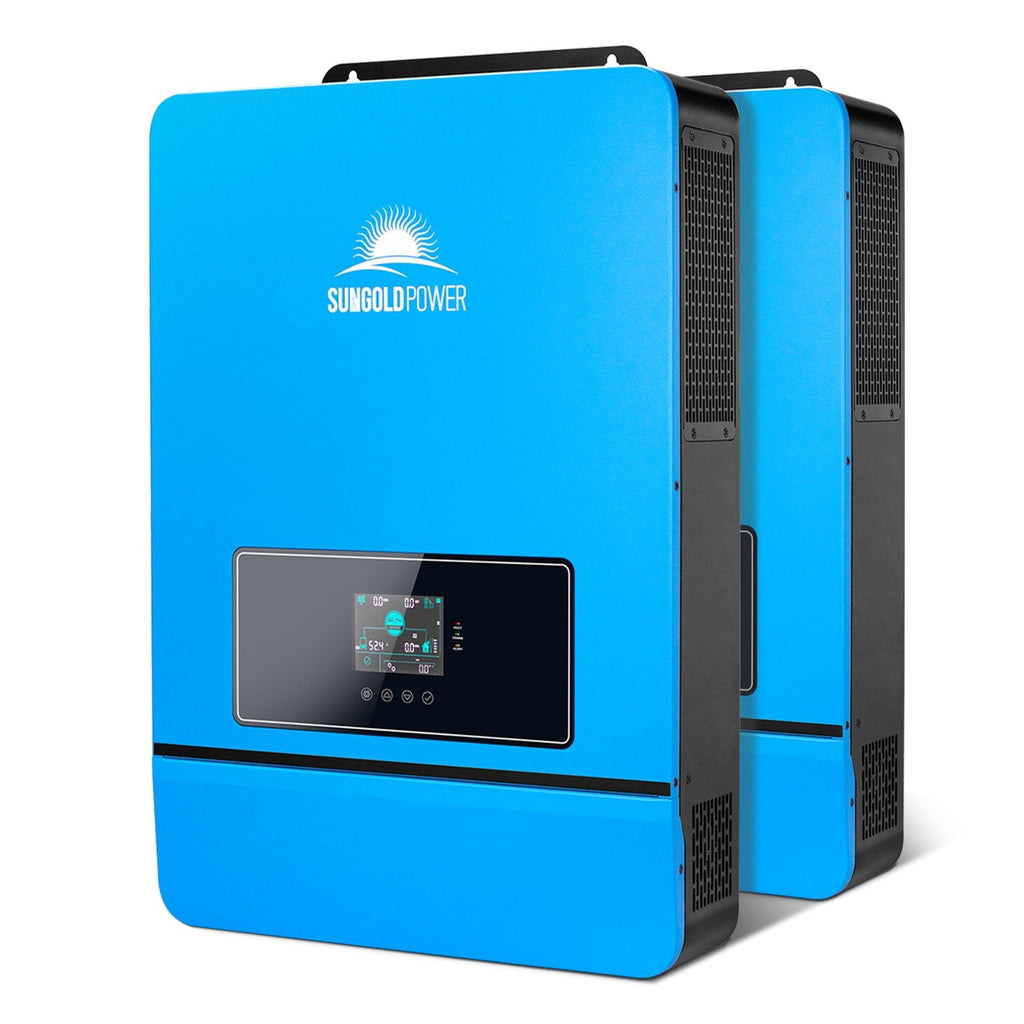

Sungold Power 8KW 48V Split Phase Solar Inverter:

The Sungold Power 8KW 48V Split Phase Solar Inverter is an all-in-one, high-performance solution designed for off-grid, hybrid, and backup power systems. Combining an 8,000-watt pure sine wave inverter, 200A battery charger, and dual MPPT solar charge controllers, this inverter delivers reliable and efficient power for residential and commercial applications. With split phase (120V/240V) and single phase (120V) outputs, it supports a wide range of appliances and systems. The included Wi-Fi module enables remote monitoring and control via a mobile app, making it a smart and versatile choice for modern energy needs.

Key Features

All-in-One Power Solution

• 8,000W Pure Sine Wave Inverter: Provides clean and stable power for sensitive electronics.

• 200A Battery Charger: Supports fast and efficient battery charging.

• Dual MPPT Charge Controllers: Maximizes solar energy harvesting with a 500VDC max PV input voltage.

• Split Phase and Single Phase Outputs: Supports 120V/240V split phase and 120V single phase configurations.

• Wi-Fi Monitoring: Monitor and control the inverter remotely via a mobile app.

• Certified Safety: UL1741 Listed by ETL for reliable and secure operation.

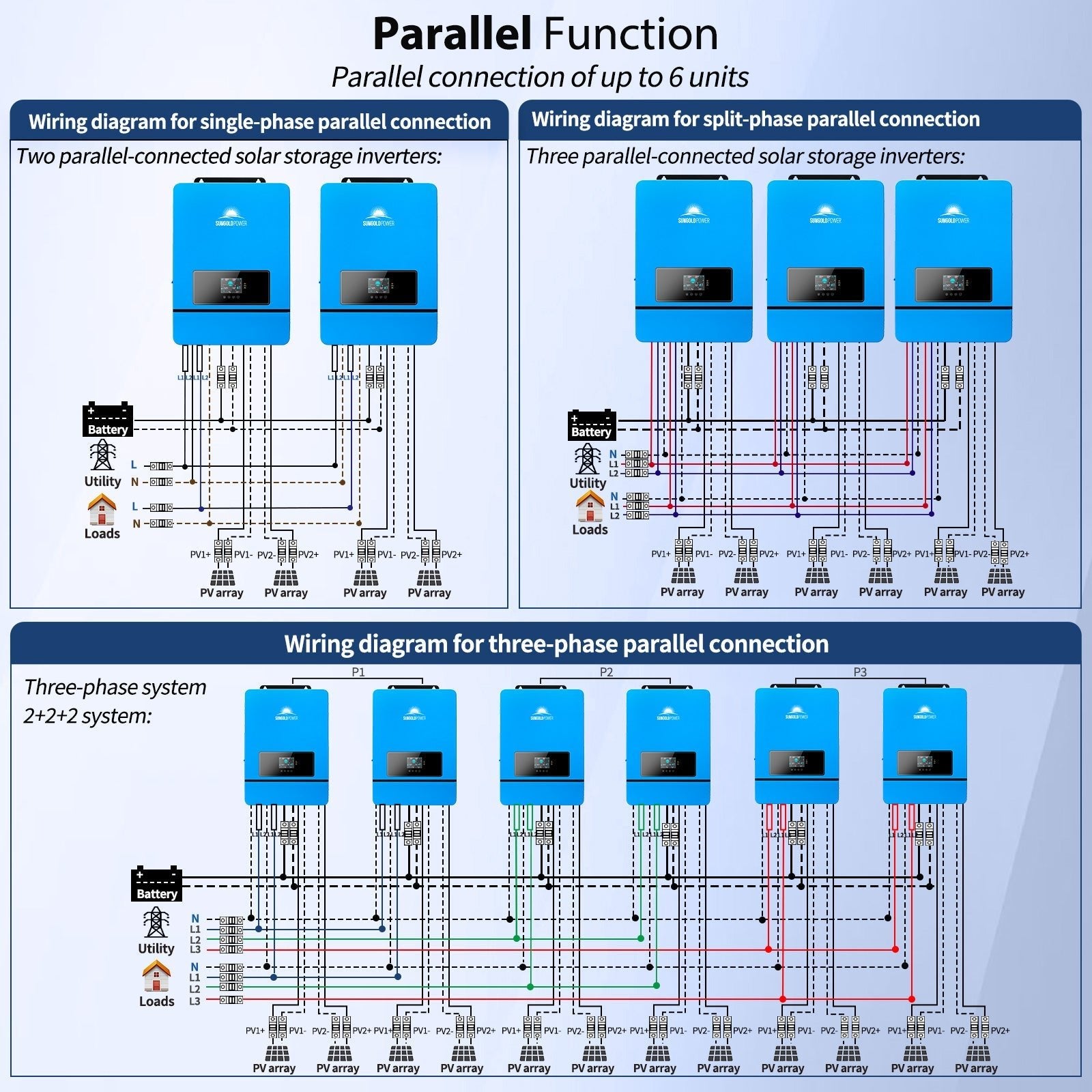

Scalable and Parallel Ready

• Parallel Functionality: Connect up to 6 units for a total output of 48KW.

• Multi-Phase Support: Enables 120V single phase, 120V/240V split phase, and 208V 3-phase configurations (requires 3+ units).

Stable AC Output and Smart Protection

• Rated Output Power: 8,000W

• Peak Power: 16,000W

• Motor Load Capacity: Supports up to 6HP motors.

• Comprehensive Protection: Includes PV input over-voltage/current protection, AC input over-voltage protection, battery over-voltage protection, and overload protection.

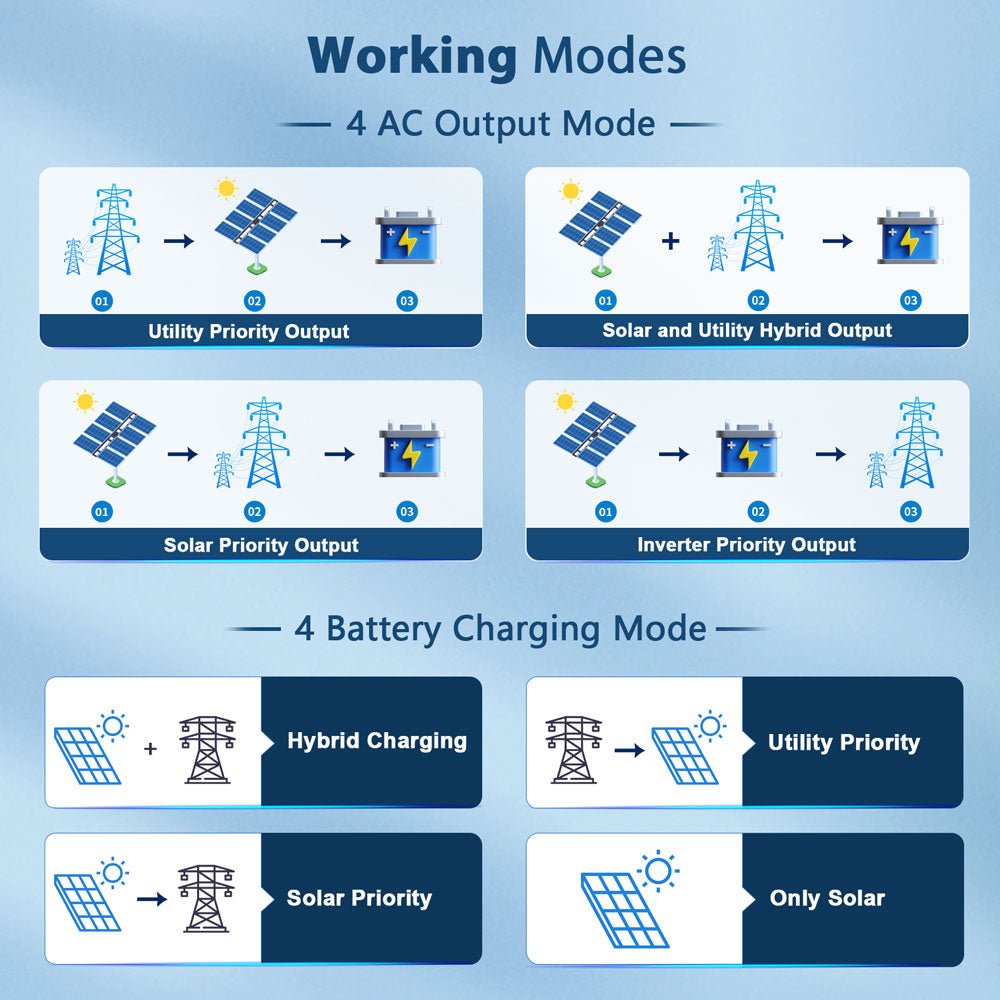

Flexible Charging and Output Modes

• 4 Charging Modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging.

• 4 Output Modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority.

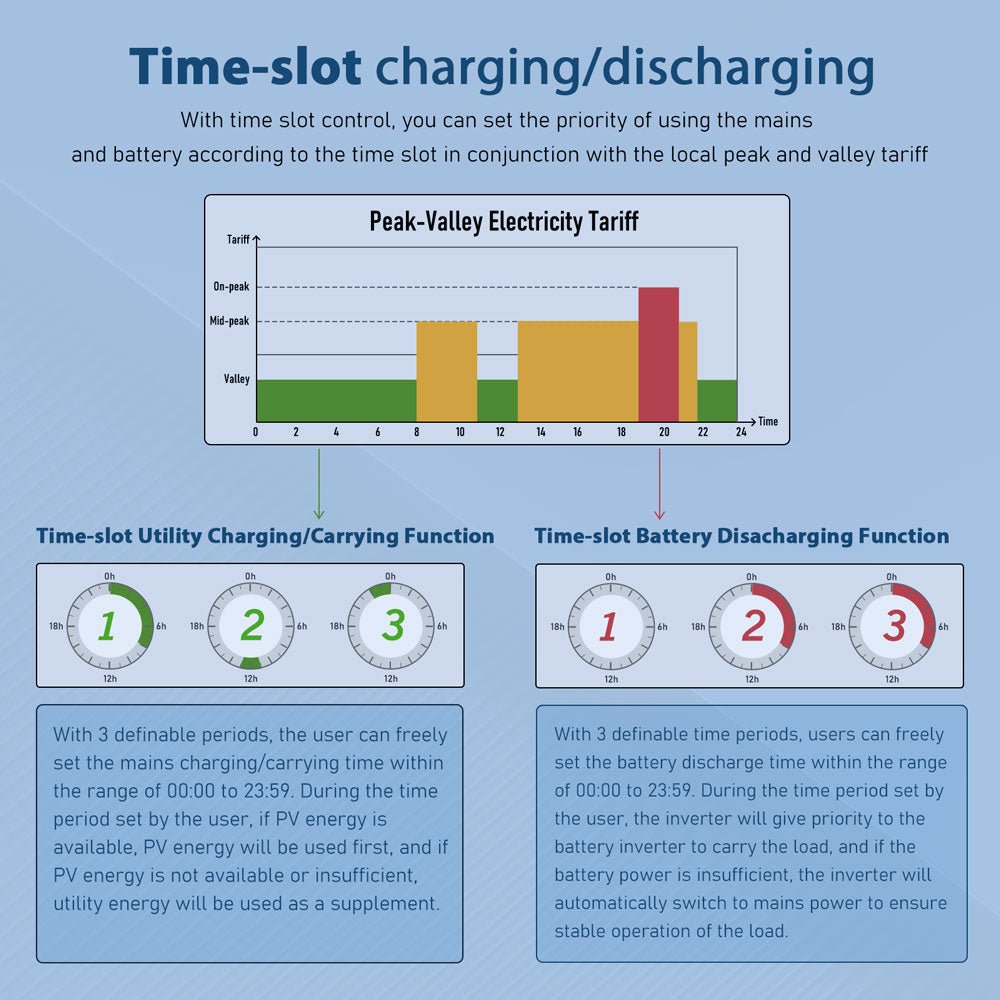

• Time-Slot Charging/Discharging: Optimizes energy usage based on peak and off-peak tariffs.

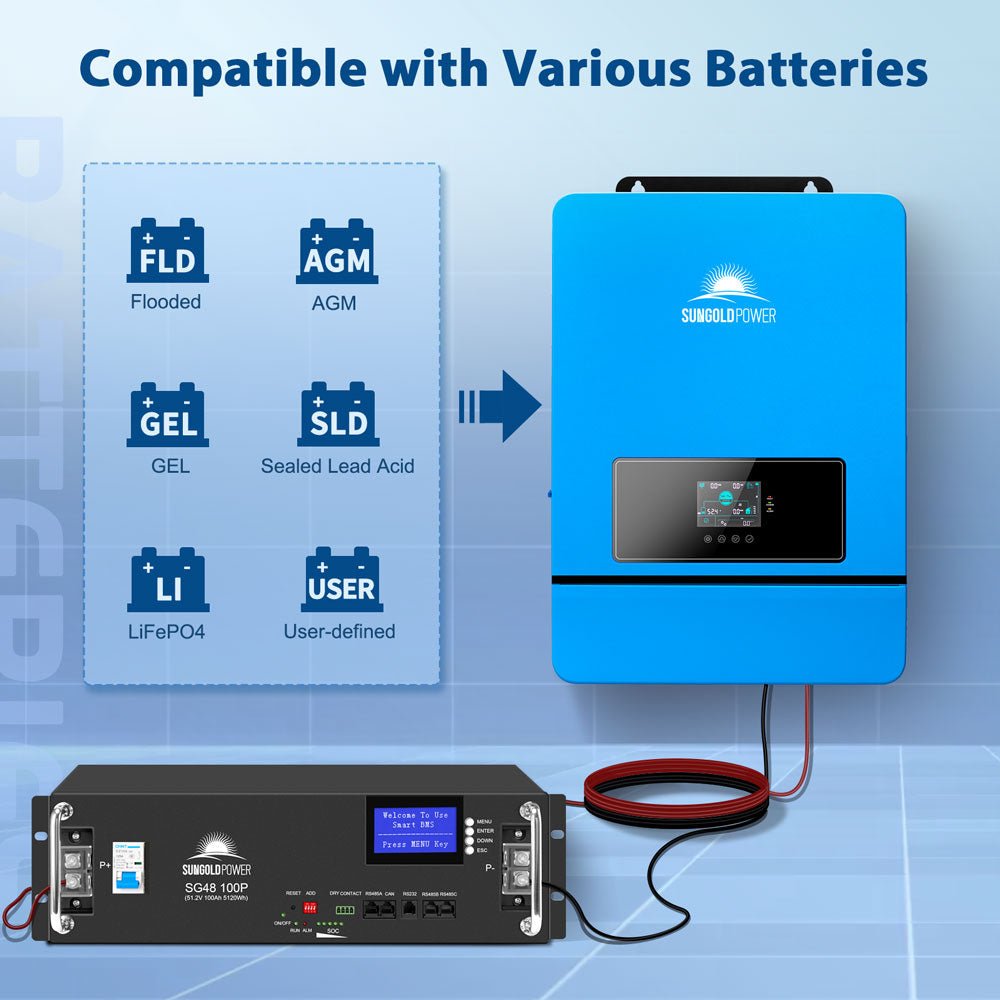

Wide Battery Compatibility

• Supports Multiple Battery Types: Works with 48V AGM, Sealed, Gel, Flooded, and Lithium batteries.

• User-Defined Mode: Customizable settings for unique battery requirements.

• Battery-Free Operation: Can operate without a battery, using grid or PV power directly.

• Communication Support: Includes CAN, USB, and RS485 for seamless integration with Sungold Power batteries.

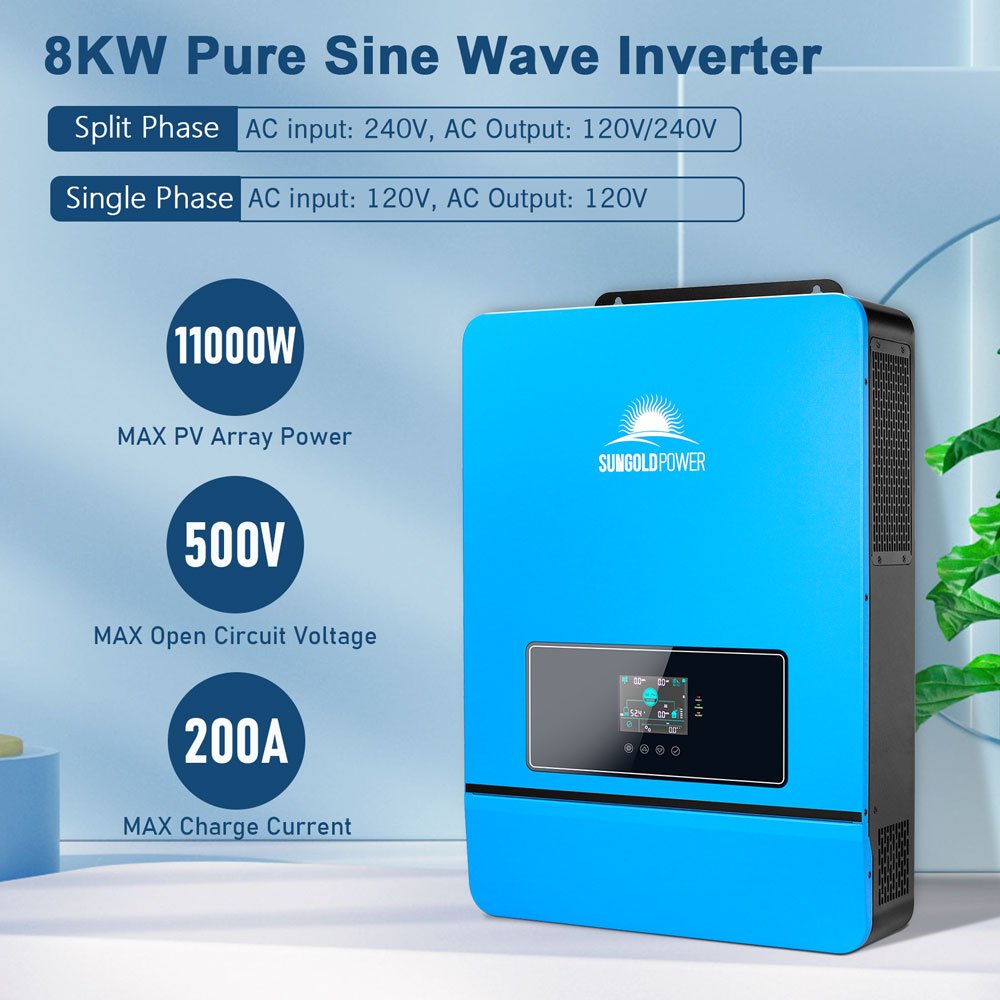

Specifications

Inverter Output

• Rated Output Power: 8,000W

• Peak Power: 16,000W

• Output Voltage: 120V/240V (split phase) or 120V (single phase)

• Waveform: Pure Sine Wave

Battery

• Battery Voltage: 48V

• Max Charging Current: 200A

• Battery Types Supported: AGM, Sealed, Gel, Flooded, Lithium, and User-Defined

PV Input

• MPP Trackers: 2

• Max PV Array Power: 11,000W

• Max Input Voltage: 500VDC

• MPPT Voltage Range: 125€“425V

General

• Dimensions: Standard size (exact dimensions provided in the user manual)

• Weight: Standard weight (exact weight provided in the user manual)

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Protection Rating: IP20 (Indoor Use Only)

• Warranty: 2 Years

Applications

• Residential Backup Power: Ideal for running refrigerators, air conditioners, and other household appliances.

• Off-Grid Systems: Perfect for cabins, RVs, and remote locations.

• Commercial Use: Suitable for offices, workshops, and small businesses.
