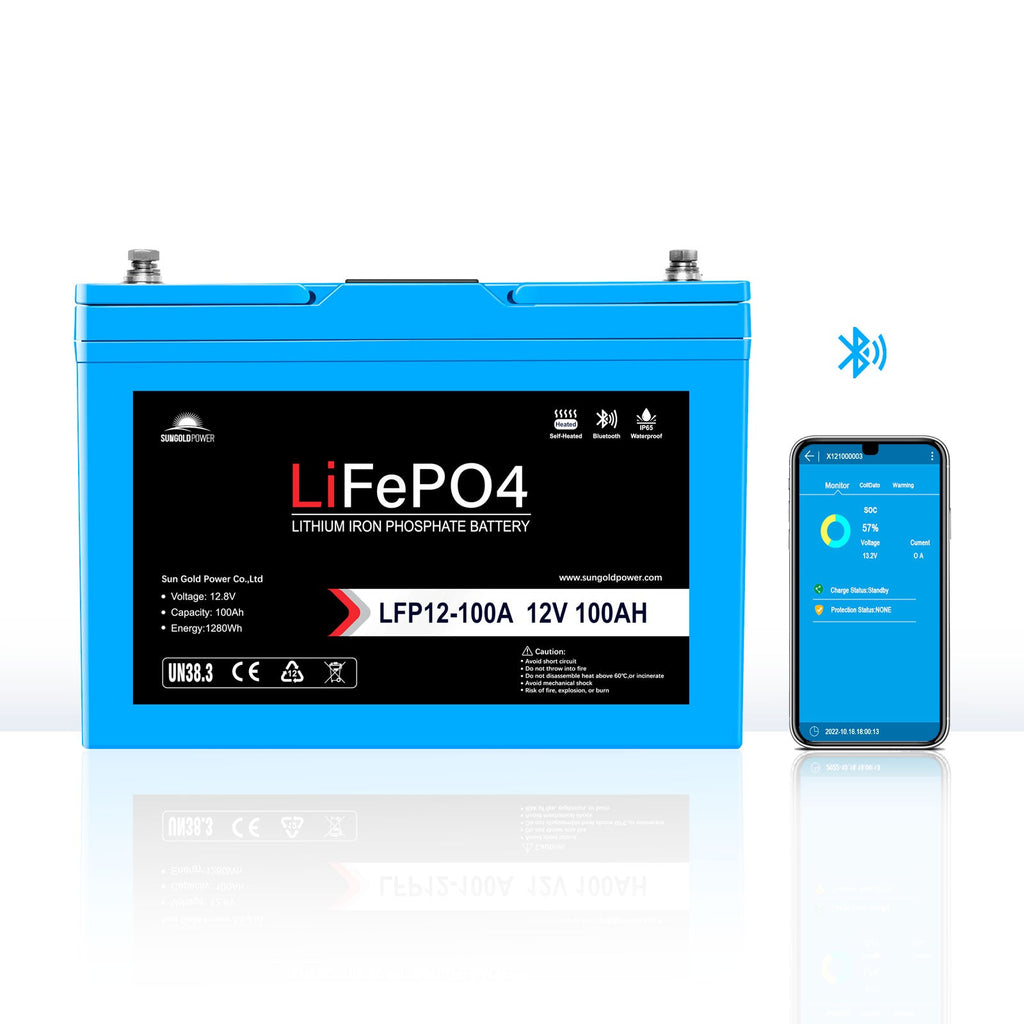

Sungold Power 12V 100AH LiFePO4 Deep Cycle Lithium Battery:

The Sungold Power 12V 100AH LiFePO4 Deep Cycle Lithium Battery is a high-performance, long-lasting energy storage solution designed for solar systems, RVs, marine applications, and off-grid setups. Featuring Grade A battery cells, an advanced BMS, Bluetooth monitoring, and a self-heating function, this battery delivers exceptional performance, safety, and reliability. With an IP65 rating, it is built to withstand harsh environments, making it the perfect choice for demanding applications.

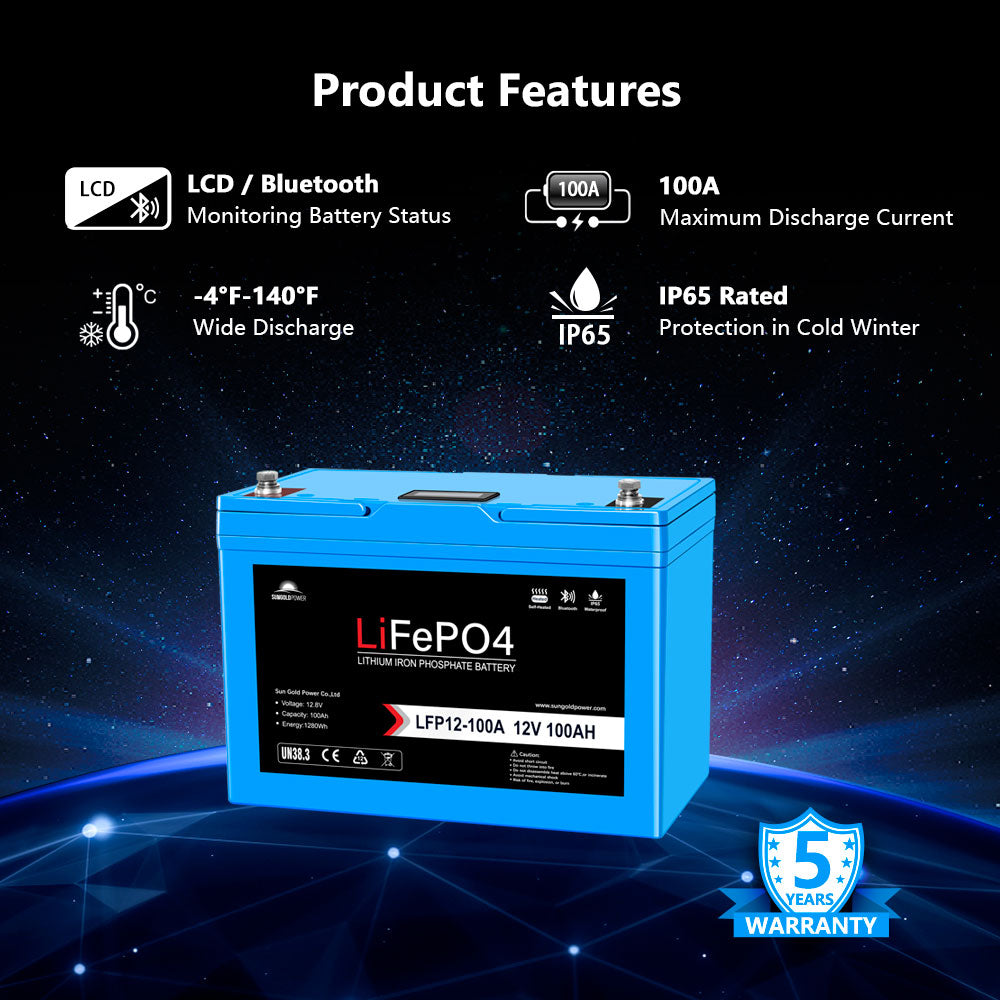

Key Features

Grade A Battery Cells

• High-Quality Construction: Manufactured with automotive-grade LiFePO4 cells certified to UL1973.

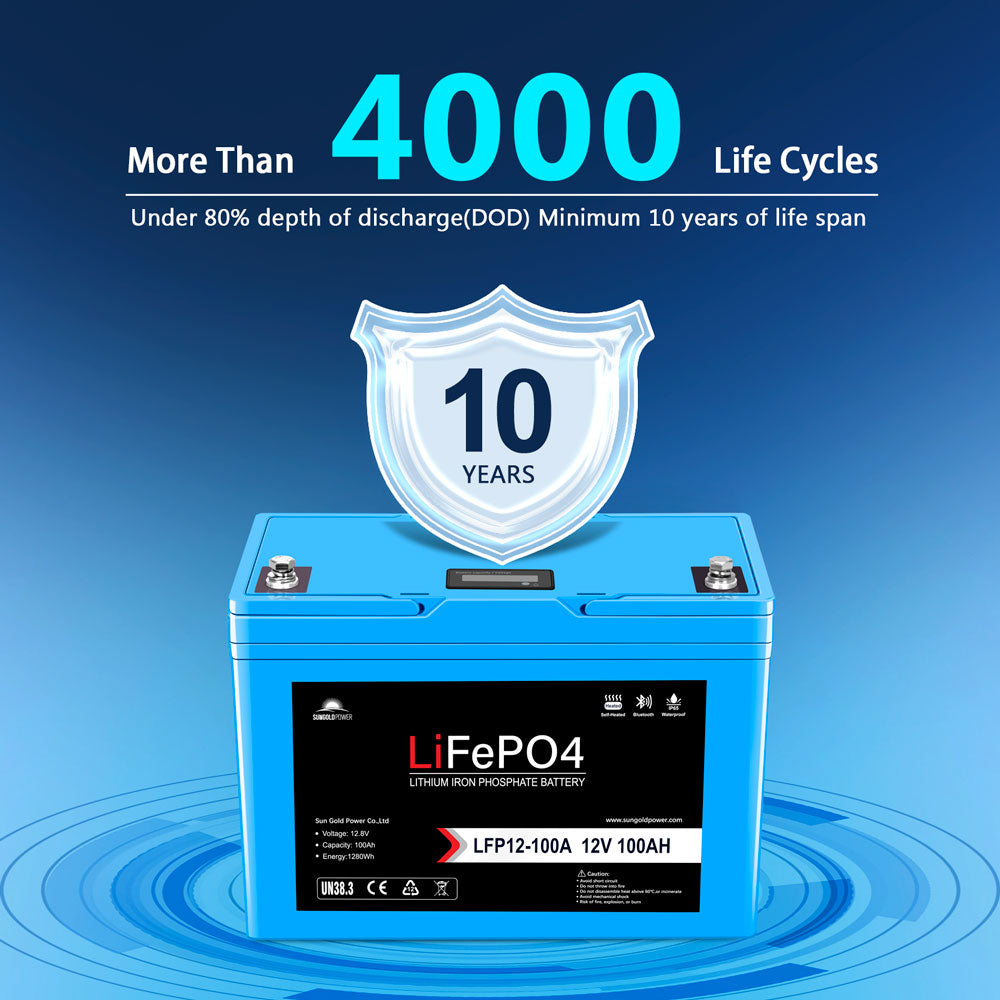

• Long Cycle Life: Provides 4,000+ deep cycles and a lifespan of over 10 years.

• 5-Year Warranty: Backed by a comprehensive warranty for peace of mind.

Advanced Battery Management System (BMS)

• Comprehensive Protection: Protects against overcharging, over-discharging, over-current, short circuits, and high-temperature cut-off.

• 100A Continuous Discharge: Supports high-power applications with ease.

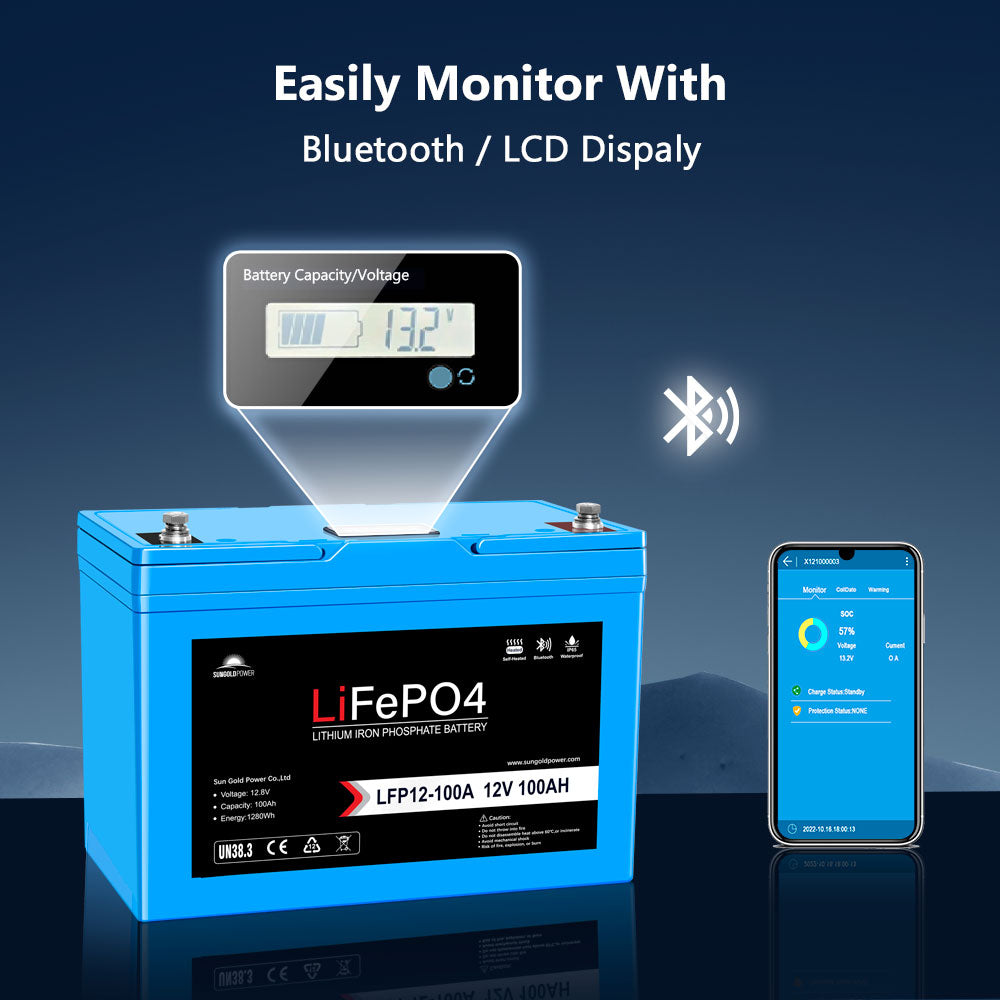

Bluetooth Monitoring and LCD Display

• Real-Time Monitoring: Check battery voltage, state of charge (SOC), and other parameters via the Bluetooth app or LCD display.

• User-Friendly Interface: Easily monitor and manage your batterys performance from your mobile device.

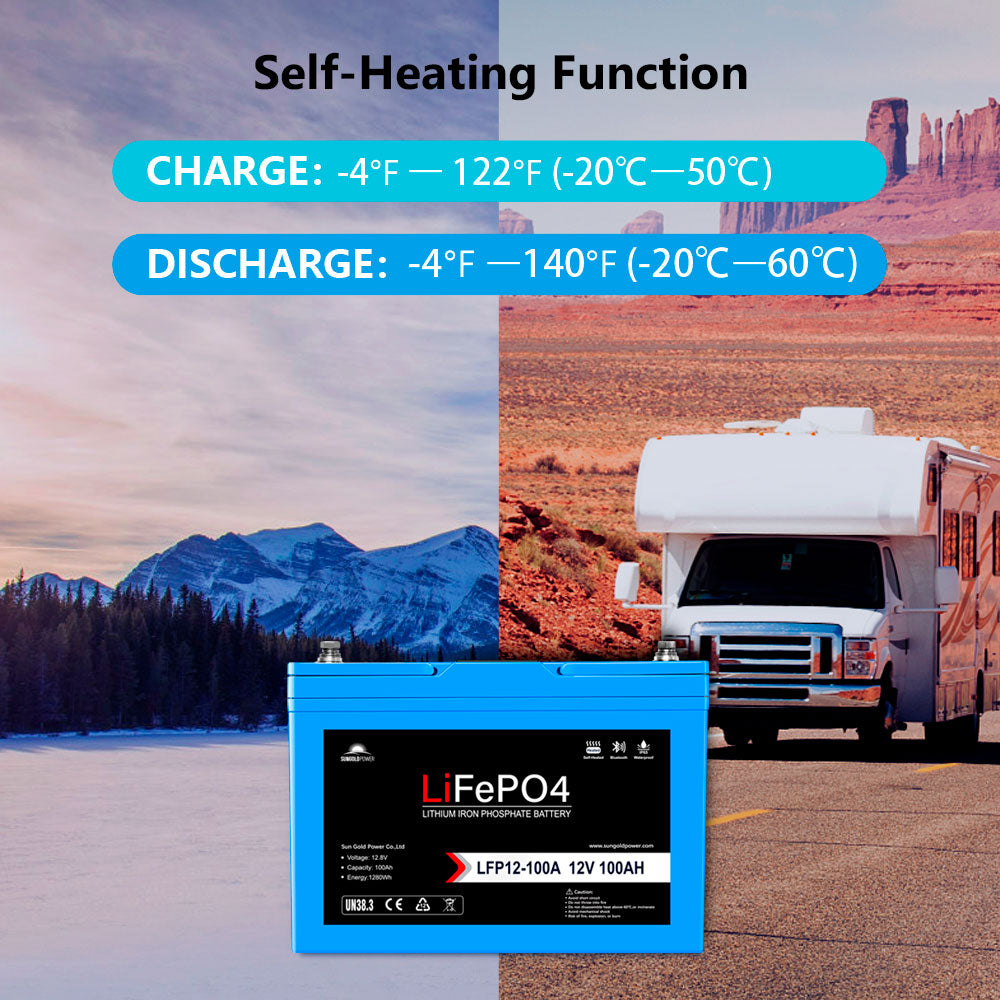

Self-Heating Function

• Cold Weather Operation: Automatically activates when the batterys core temperature drops below 33.8°F (1°C) and stops at 42.8°F (6°C).

• Year-Round Reliability: Ensures optimal charging and performance even in freezing conditions.

Scalable Energy Storage

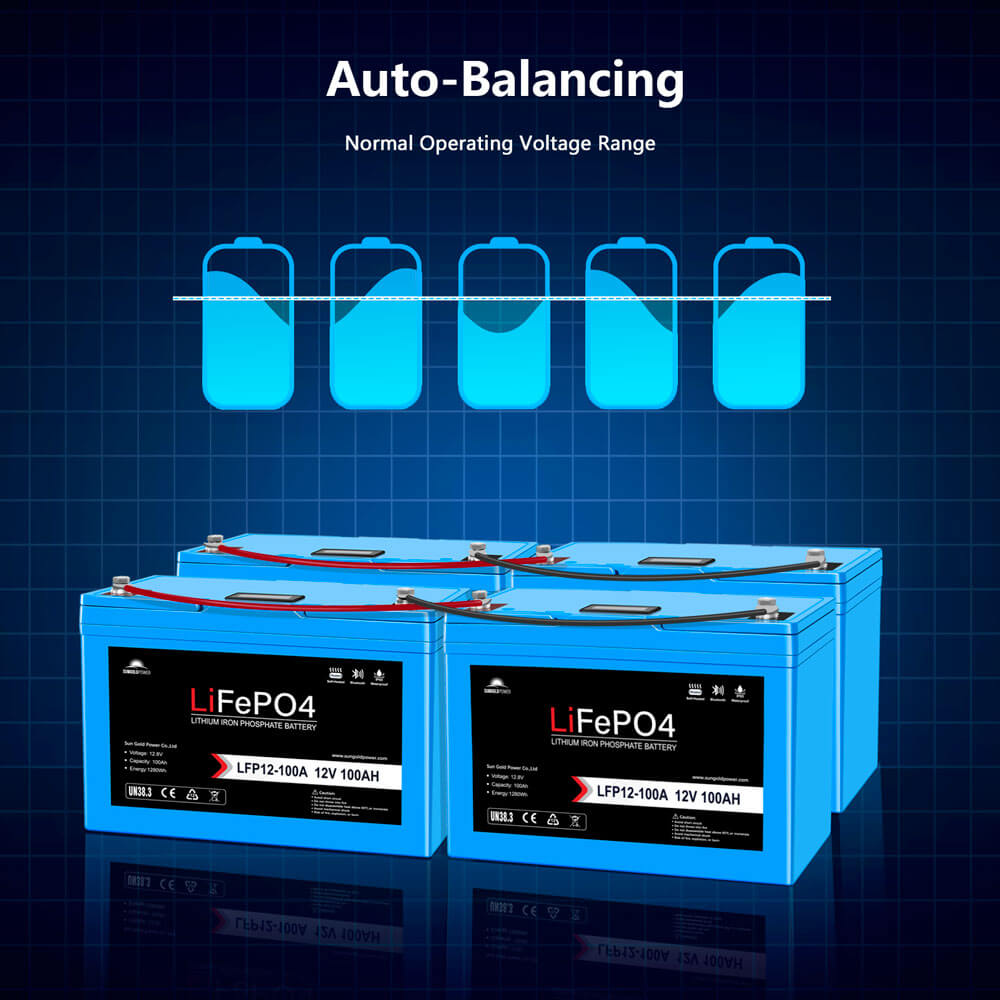

• Flexible Configurations: Connect up to 4 batteries in series or parallel for 12V, 24V, or 48V systems.

• Expandable Capacity: Ideal for RVs, solar systems, camping, and marine use.

Durable and Weatherproof Design

• IP65 Rating: Protects against dust and water ingress, making it suitable for outdoor and marine environments.

• Lightweight and Compact: Weighs only 22.7 lbs with dimensions of 12 x 6.6 x 8.9 inches.

Specifications

Nominal Characteristics

• Nominal Voltage: 12.8V

• Nominal Capacity: 100Ah

• Energy: 1280Wh

• Efficiency: ‰¥99.5%

• Maximum Modules in Connection: 4 in parallel or 4 in series

Charge & Discharge Characteristics

• Voltage Window: 10.8V€“14.6V

• Max Continuous Charge Current: 100A

• Peak Discharge Current: 200A (for 15 seconds)

• Recommended Charge/Discharge Current: 50A

Operating Conditions

• Cycle Life: ‰¥4,000 cycles at 80% DOD (0.2C, 77°F)

• Charge Temperature Range: -4°F to 113°F (-20°C to 45°C)

• Discharge Temperature Range: -4°F to 131°F (-20°C to 55°C)

Mechanical Characteristics

• Case Material: ABS

• Dimensions (L x W x H): 12 x 6.6 x 8.9 inches

• Weight: 22.7 lbs

• Terminal Type: M8

• IP Rating: IP65

BMS Characteristics

• Communication: Bluetooth

• Monitoring: LCD display

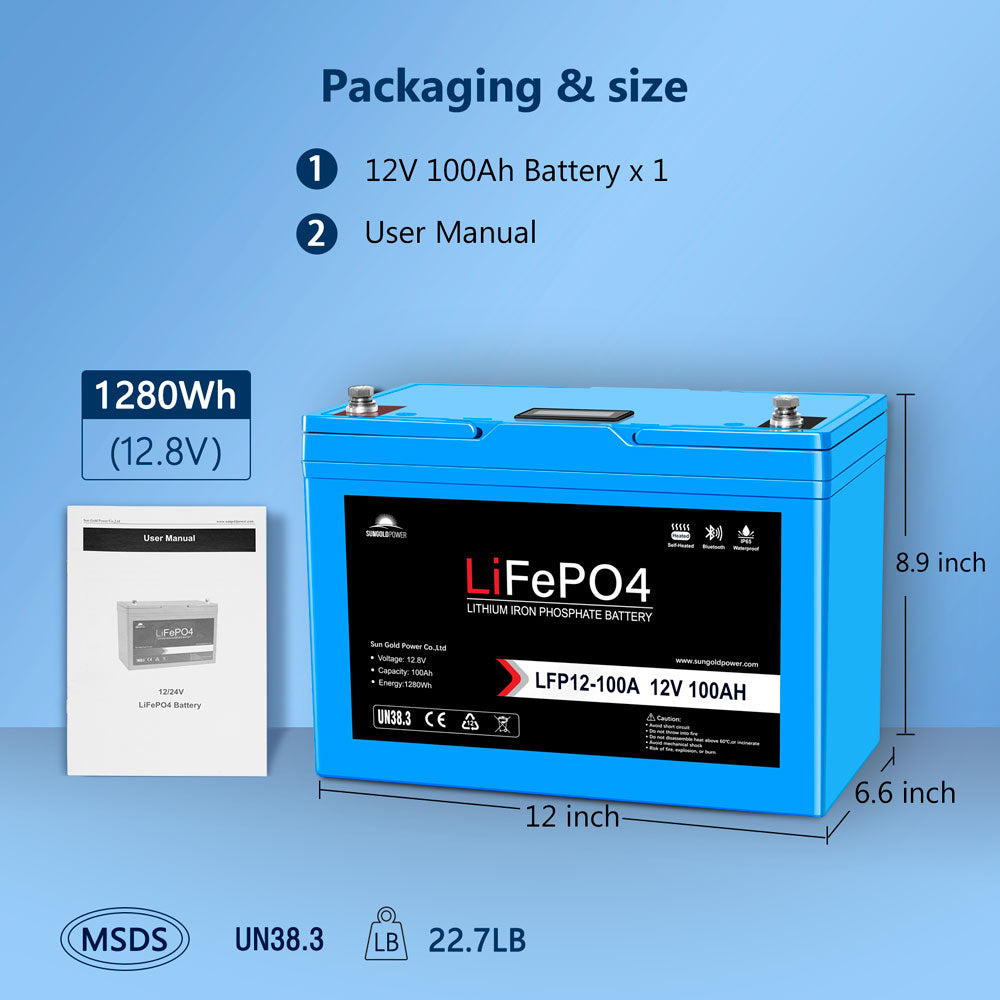

Whats in the Box

• 1 x 12V 100AH LiFePO4 Battery

• 1 x User Manual

• 1 x Bluetooth Monitoring Module

Applications

• Solar Energy Storage: Perfect for off-grid and hybrid solar systems.

• RV and Marine Use: Provides reliable power for RVs, boats, and yachts.

• Camping and Outdoor Adventures: Lightweight and portable for outdoor energy needs.

• Backup Power: Ensures uninterrupted power for critical loads during outages.

User Manual

Sungold Power 12V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65 User Manual
