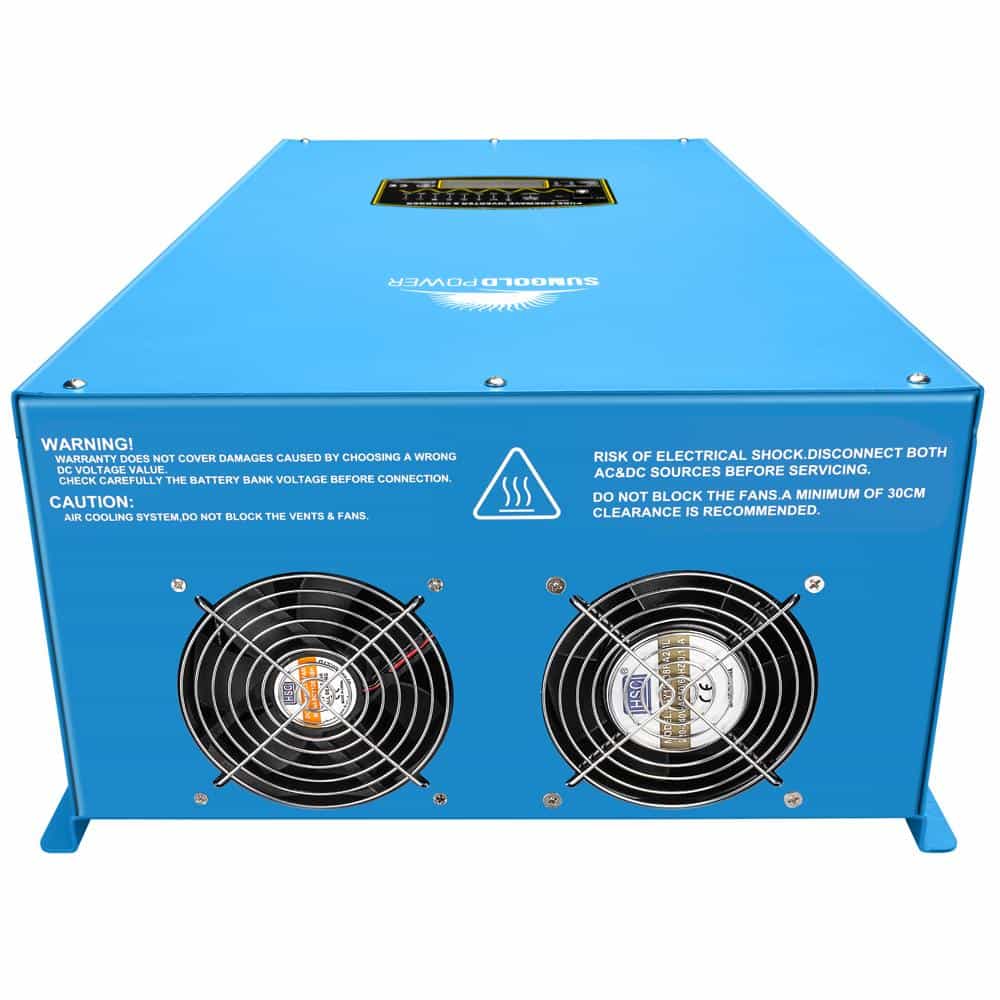

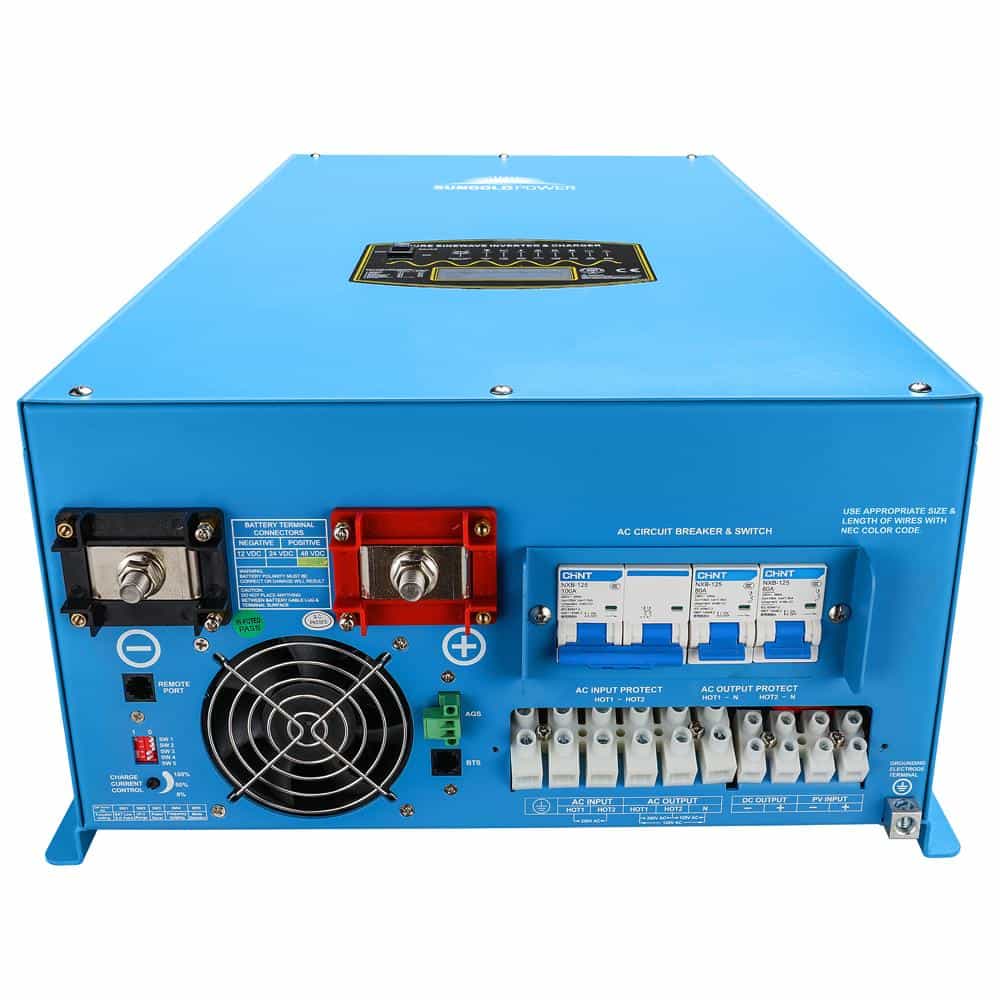

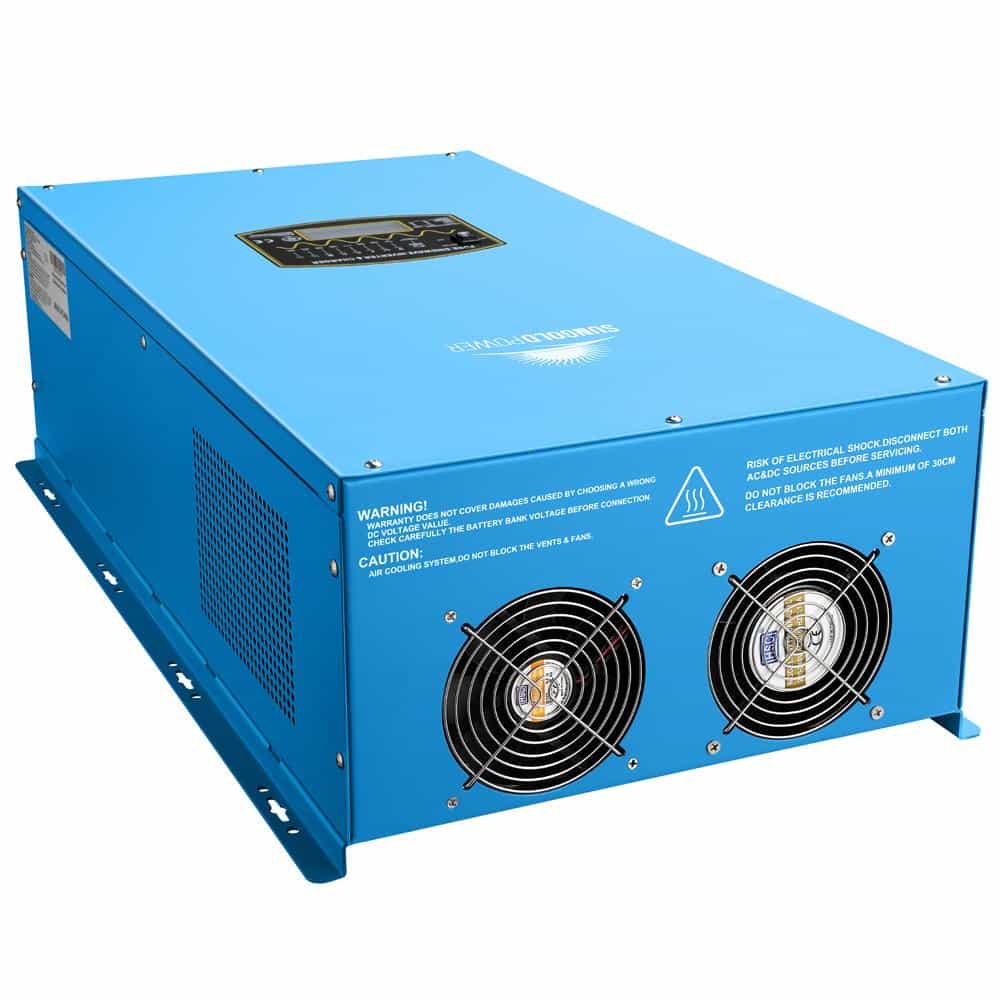

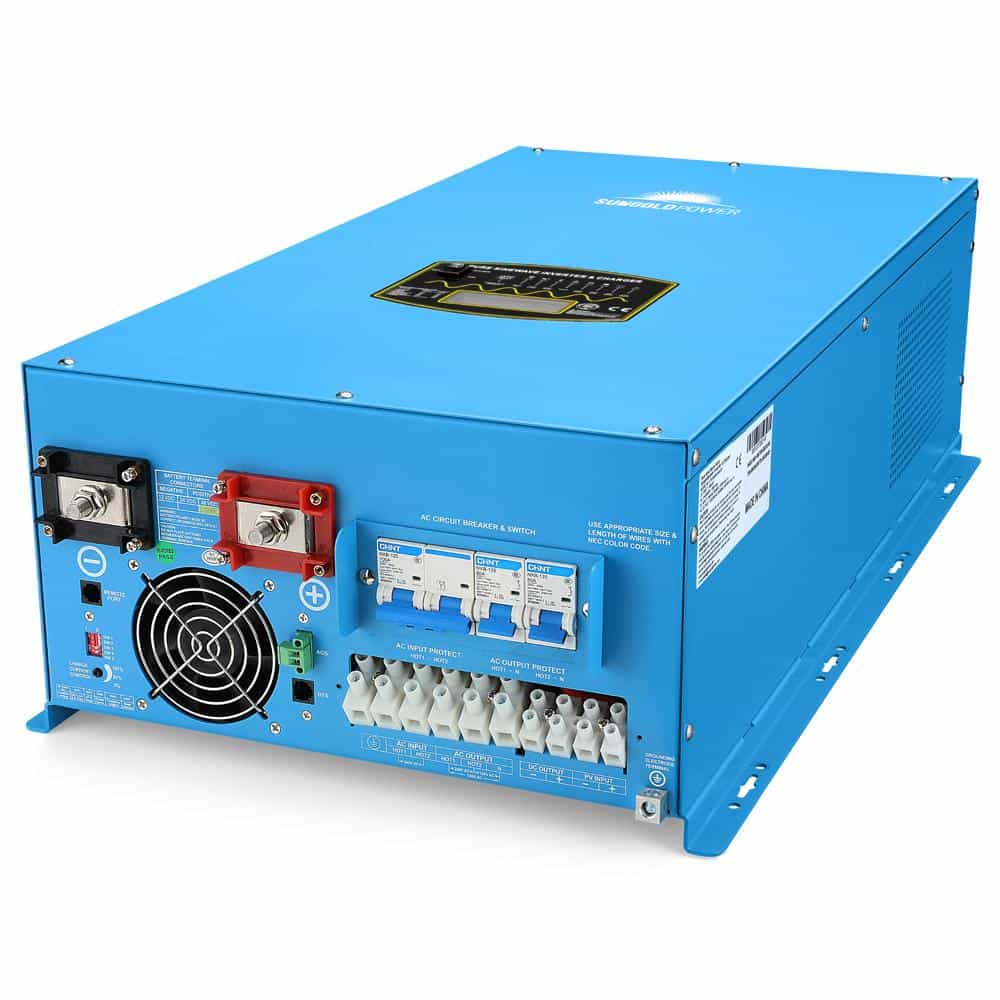

Sungold Power 12000W 48V Split Phase Pure Sine Wave Inverter Charger:

The Sungold Power 12000W 48V Split Phase Pure Sine Wave Inverter Charger is a robust, high-capacity inverter designed for whole-house power, large off-grid systems, and commercial applications. Built to deliver 12,000 watts of continuous power with a 36,000-watt surge capacity, this inverter ensures reliable performance for running heavy-duty appliances and critical loads. Its split-phase design provides 120V and 240V output, making it compatible with a wide range of devices and systems. With built-in UPS functionality, automatic transfer switching, and a 120A battery charger, this inverter is perfect for solar systems, emergency backup, and off-grid living.

Key Features

High Power Output and Surge Capacity

• Continuous Power: 12,000W

• Surge Power: 36,000W (for 20 seconds)

• Pure Sine Wave Output: Ensures clean and stable power for sensitive electronics.

Split-Phase Design

• Input Voltage: 240V AC

• Output Voltage: 120V and 240V AC

• Frequency Options: 50Hz or 60Hz (selectable via SW4 switch).

Built-In UPS Functionality

• Automatic Transfer Switch: Seamlessly switches to battery power during grid outages.

• Uninterrupted Power Supply: Keeps critical loads running without interruption.

Advanced Battery Charging

• 120A Battery Charger: Fast and efficient charging for battery banks.

• Battery Compatibility: Works with LiFePO4, Gel, AGM, and Lead-Acid batteries.

• 4-Step Charging: Includes bulk, absorption, float, and equalization stages for optimal battery health.

Durable and Reliable Design

• Low-Frequency Inverter: Built for long-term durability and high efficiency.

• Efficiency: Up to 90% DC-to-AC conversion efficiency.

• Idle Consumption: 40W (power saver mode) or 180W (standard mode).

User-Friendly Features

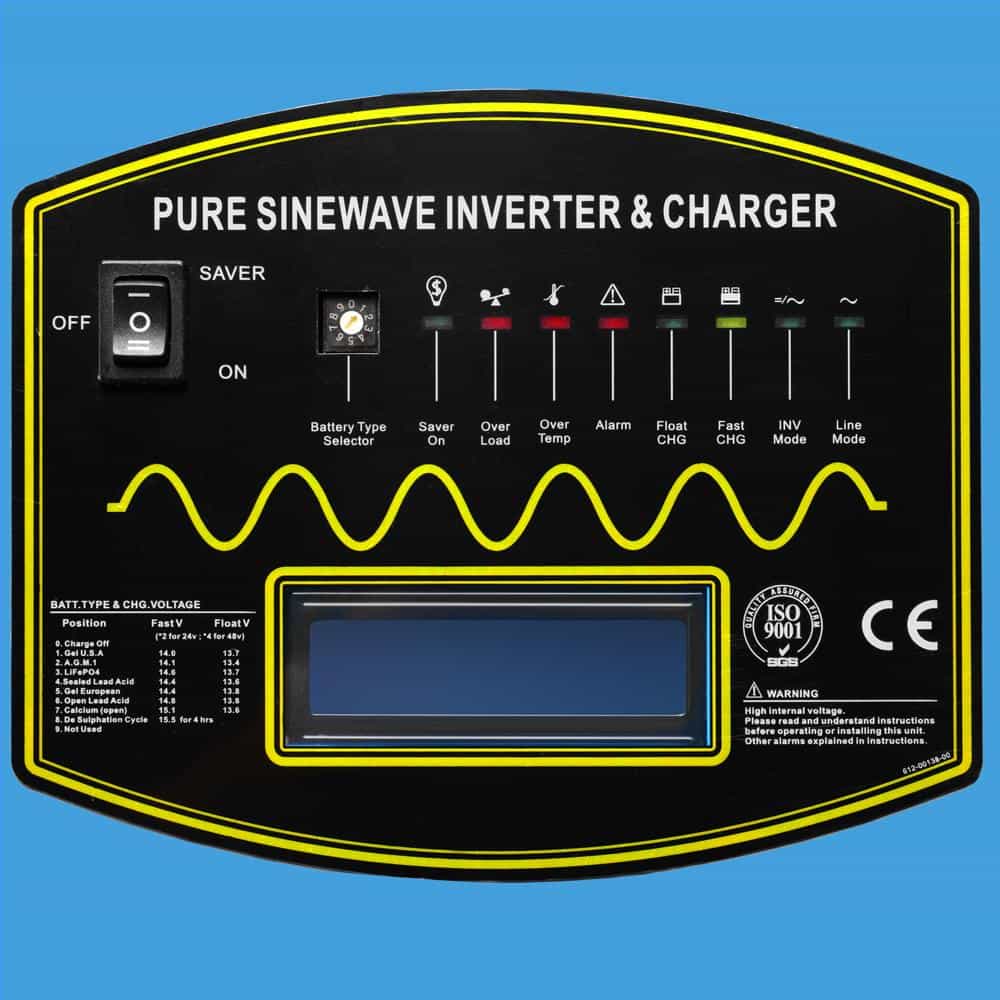

• Remote Control: Includes a smart remote for easy monitoring and control.

• Battery Temperature Sensor (BTS): Protects batteries from overheating.

• Auto Generator Start (AGS): Automatically starts a generator when needed.

Versatile Applications

• Home Backup Power: Ideal for running refrigerators, air conditioners, pumps, and other heavy-duty appliances.

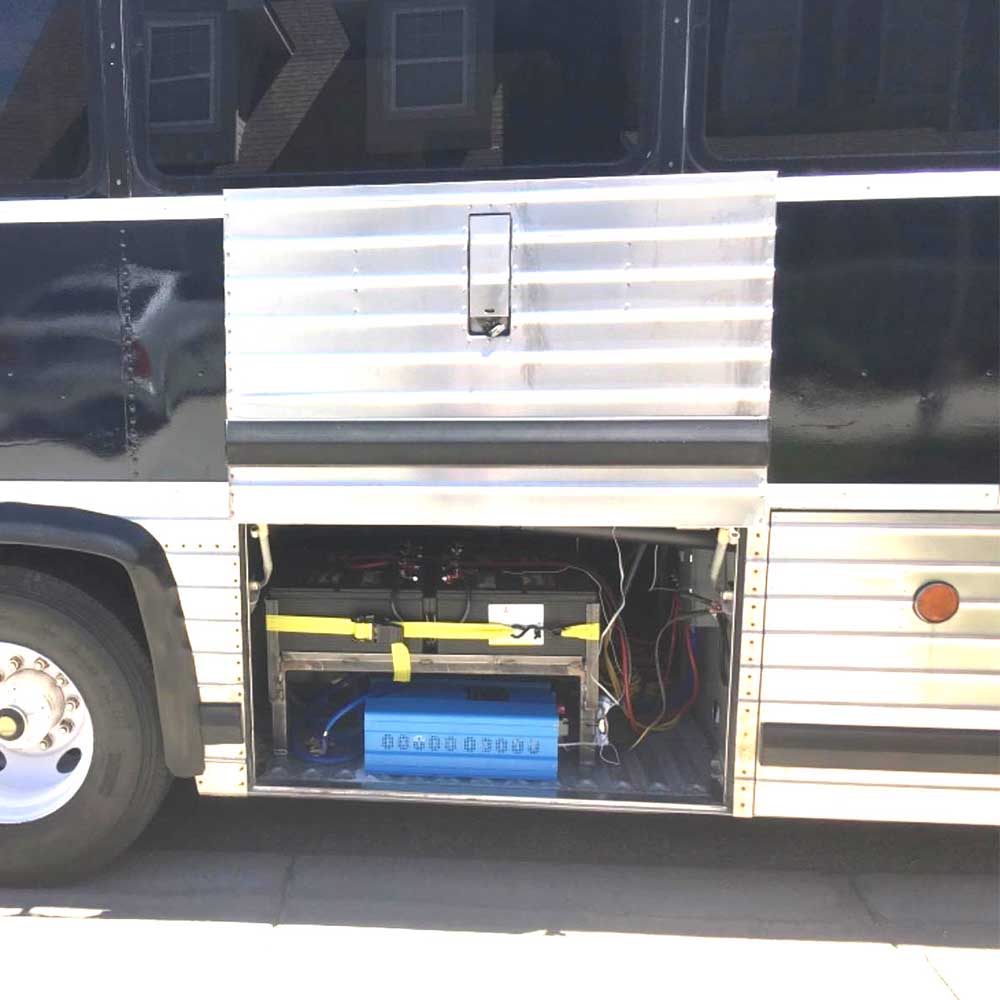

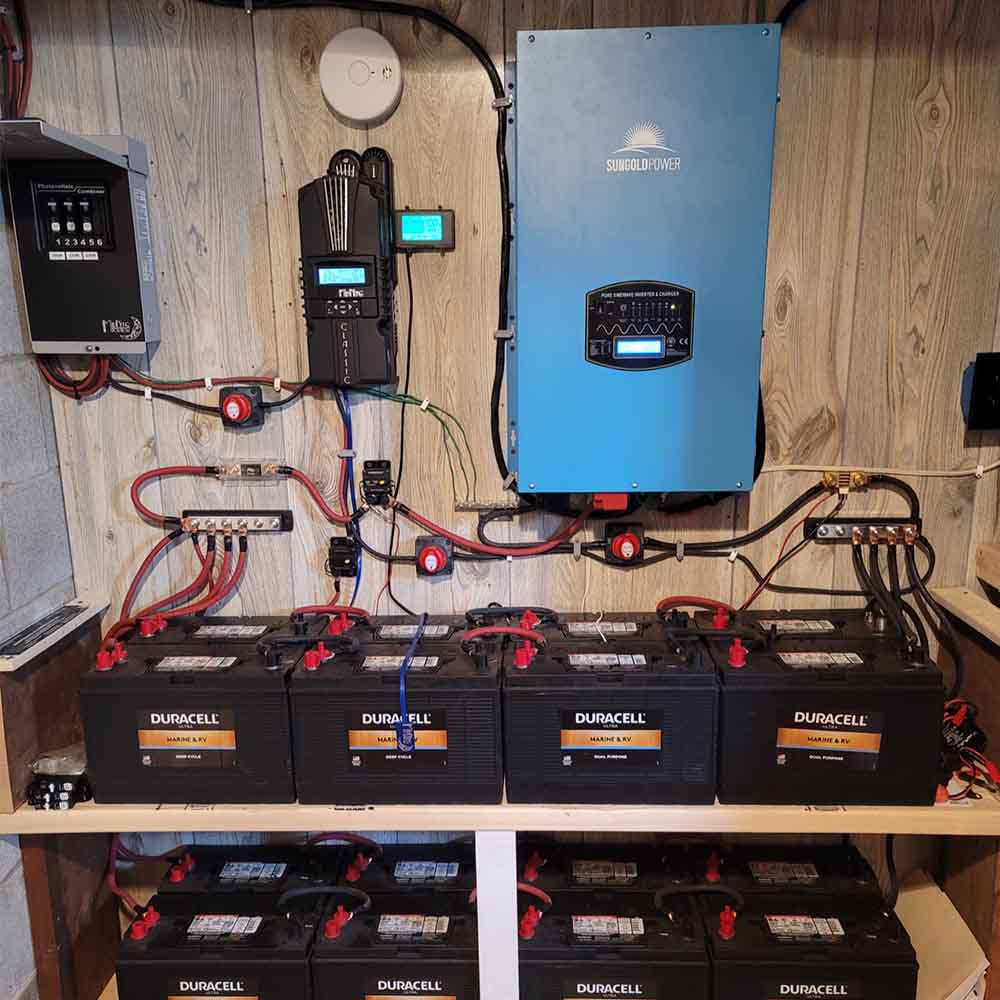

• Off-Grid Systems: Perfect for cabins, RVs, and remote locations.

• Commercial Use: Suitable for offices, workshops, and mobile businesses.

Specifications

Main Specifications

• Continuous Output Power: 12,000W

• Surge Power: 36,000W (20 seconds)

• Output Waveform: Pure Sine Wave

• AC Output Voltage: 120V and 240V

• AC Input Voltage: 240V (not compatible with 120V input)

• DC Battery Voltage: 48V

• Battery Charger Current: 120A

• Output Frequency: 50Hz / 60Hz (selectable)

• Transfer Time: 10ms (max)

DC Input

• Nominal Input Voltage: 48V

• Voltage Range: 40€“64V

• Low Battery Alarm: 42V / 44V

• Low Battery Trip: 40V / 42V

• High Voltage Alarm: 64V

Charger

• Charging Voltage: Adjustable based on battery type

• Overcharge Protection: 62.8V

• Charger Breaker: 80A

Physical Dimensions

• Unit Weight: 160 lbs

• Unit Size: 27.6 x 16.5 x 8 inches

• Shipping Weight: 185 lbs

• Shipping Size: 29.2 x 23 x 16.5 inches

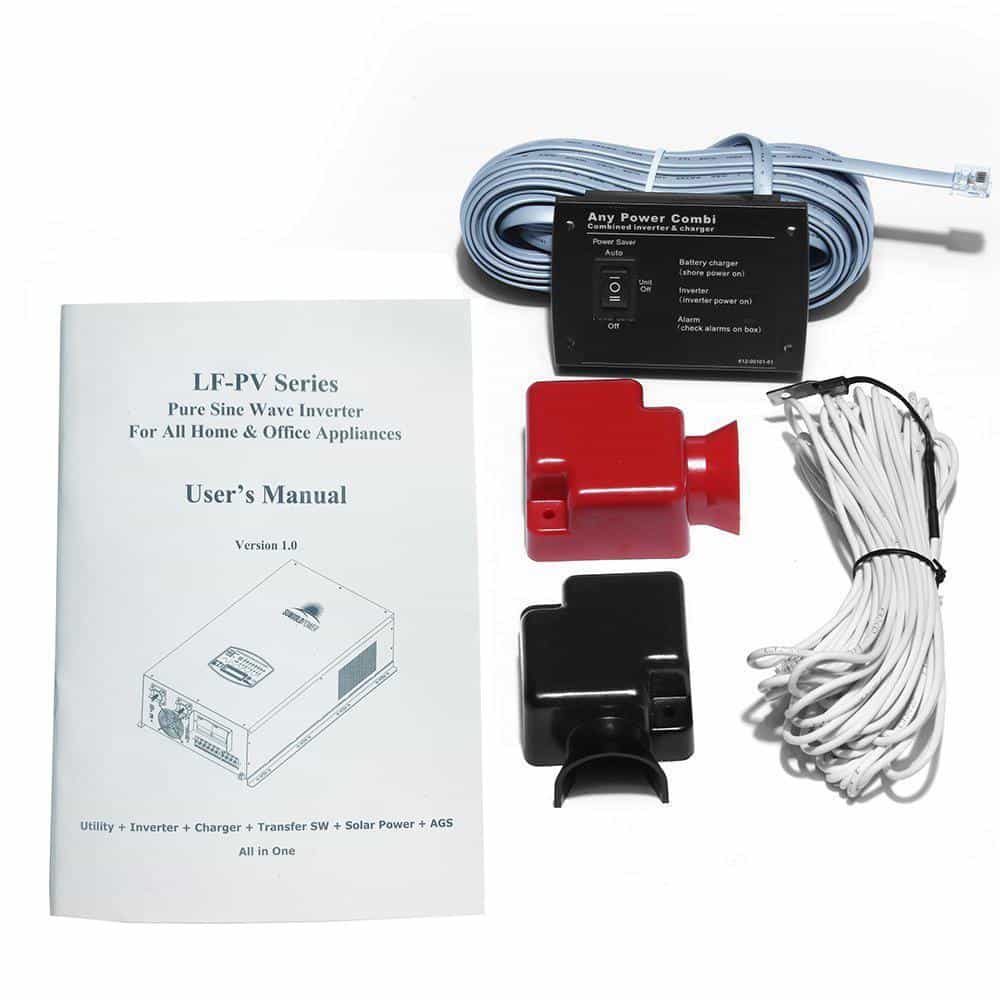

Whats in the Box

• 1 x 12000W 48V Split Phase Pure Sine Wave Inverter

• 1 x English User Manual

• 1 x Remote Control

• 1 x BTS Cable

Frequently Asked Questions (FAQ)

Q1: Can this inverter work with a multiple-phase system?

A: No, this inverter only supports split-phase output (120V and 240V) and is not compatible with multiple-phase systems.

Q2: Can I use 120V and 240V simultaneously?

A: Yes, but the 120V load cannot exceed 50% of the inverters capacity (6,000W).

Q3: What is the idle power consumption?

A: The inverter consumes 40W in power saver mode and 180W in standard mode when idle.
