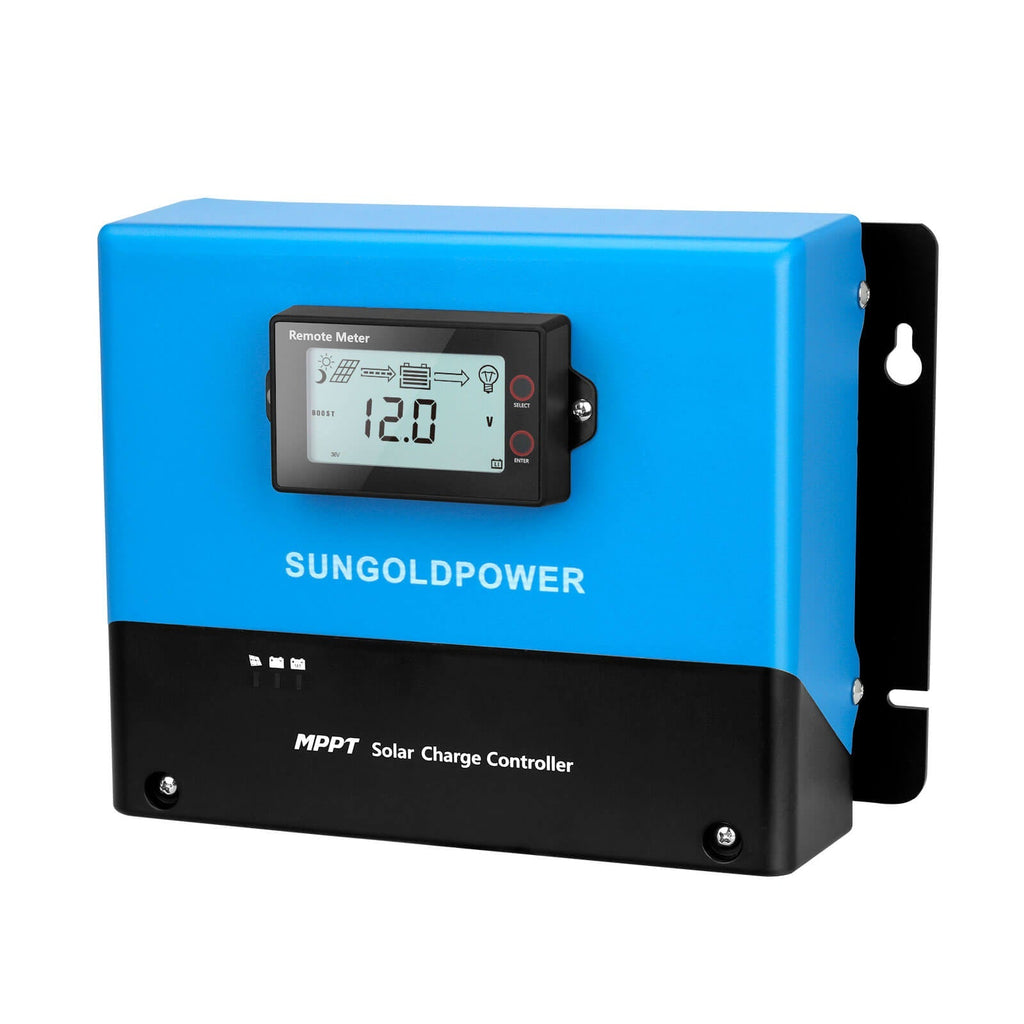

Sungold Power 100 Amp MPPT Solar Charge Controller:

The Sungold Power 100A MPPT Charge Controller is a high-efficiency solar charge controller designed to maximize energy harvesting and optimize battery charging. With an impressive 99.9% tracking efficiency, it ensures your solar system operates at its peak performance, delivering more power to your battery bank. This controller is compatible with 12V, 24V, 36V, and 48V battery systems and features real-time system monitoring via Bluetooth for seamless control and optimization.

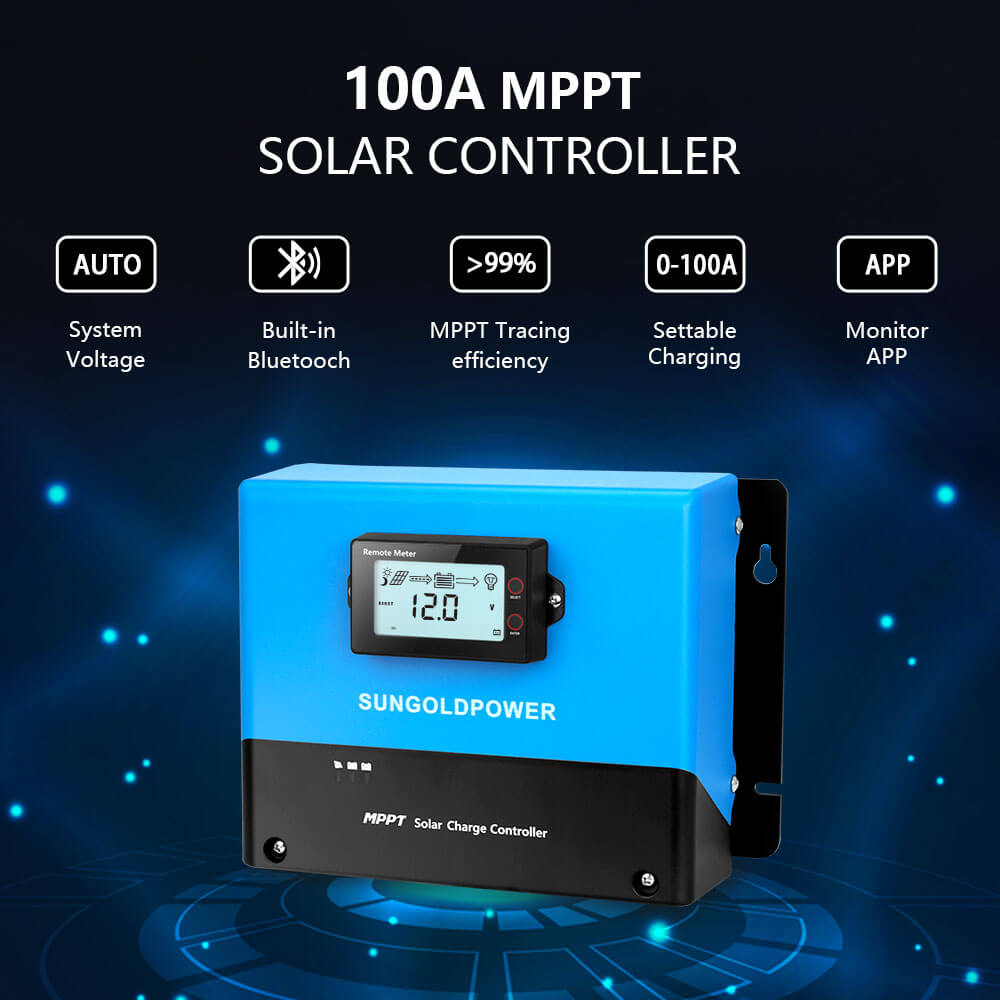

Key Features of the Sungold Power 100A MPPT Charge Controller

Advanced MPPT Technology

• 99.9% Tracking Efficiency: Ensures maximum power point tracking for optimal solar energy harvesting.

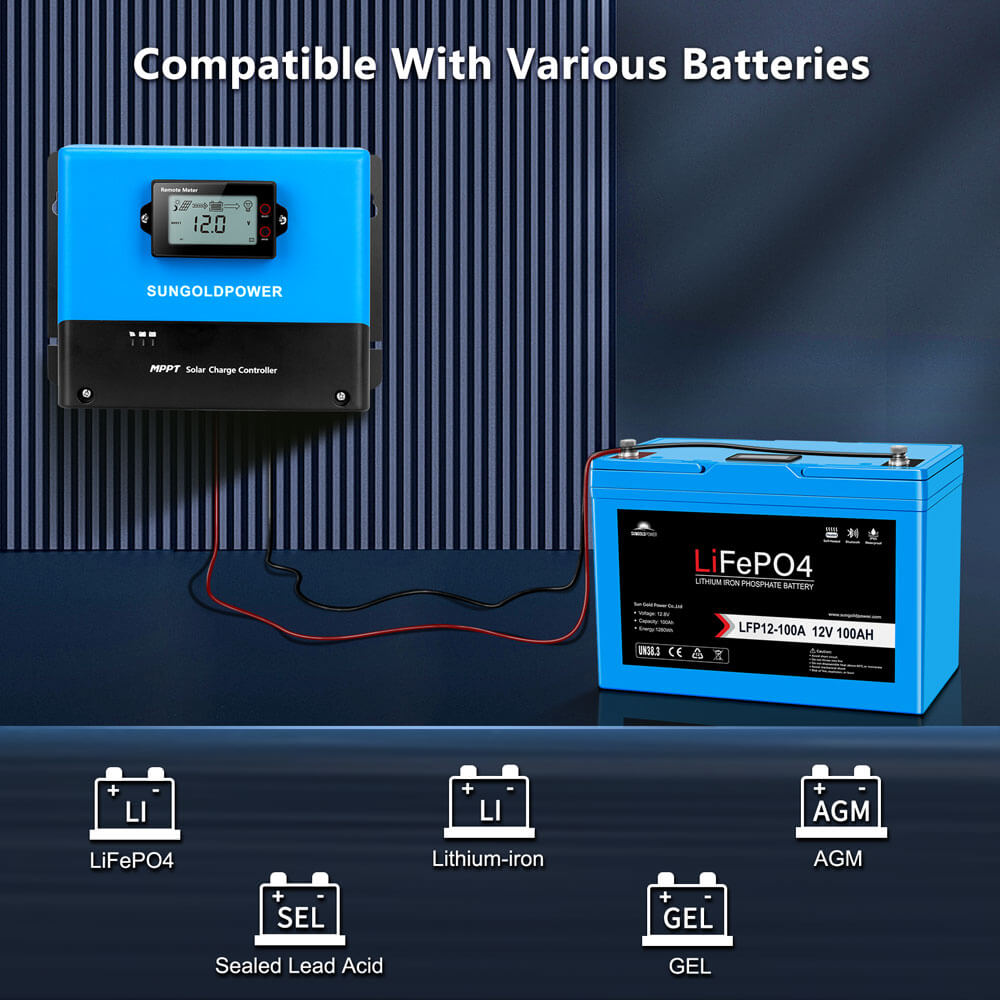

• Wide Battery Compatibility: Supports lithium, sealed, AGM, and user-defined battery types.

Smart and User-Friendly Design

• Auto-Detection: Automatically detects 12V, 24V, 36V, and 48V DC system voltages.

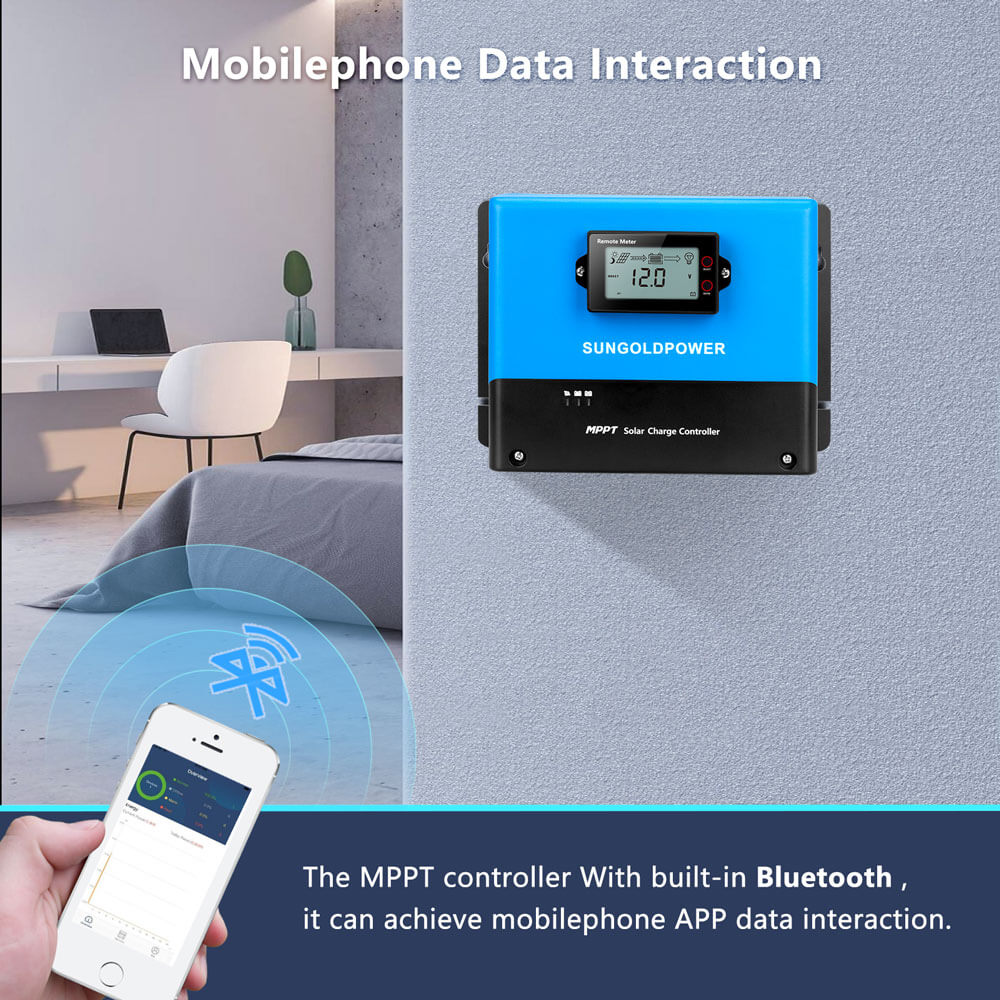

• Bluetooth Connectivity: Built-in Bluetooth 4.0 BLE module for real-time monitoring and control via a mobile app.

• LCD Display: Shows system operation information, customizable parameters, and error codes for easy troubleshooting.

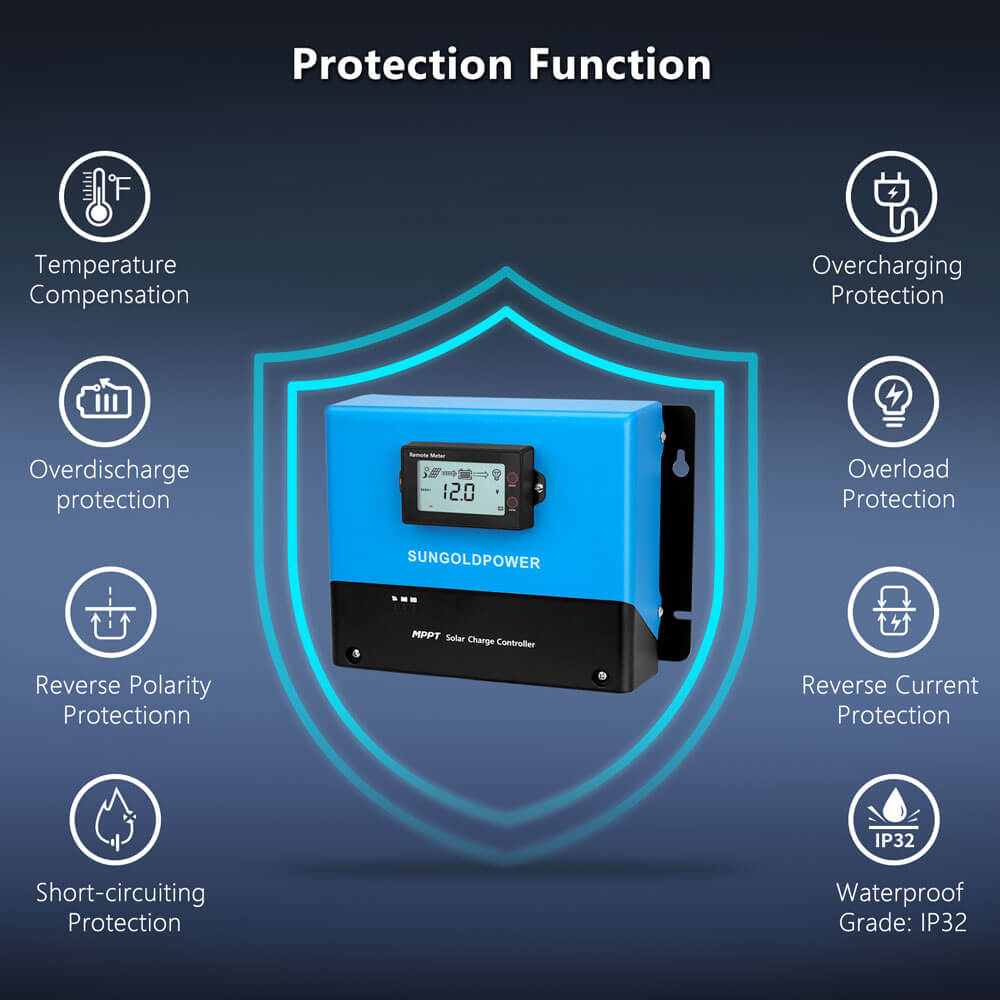

Robust Protection and Scalability

• Over-Temperature Protection: Built-in safeguards to prevent overheating.

• Current-Limited Charging: Protects your batteries from overcharging.

• Parallel Function: Supports parallel operation to break through the power limits of a single unit.

Sungold Power 100A MPPT Charge Controller Specifications

General Specifications

• Model: SGC4825100A

• System Voltage: 12V/24V/36V/48V

• Maximum PV Open-Circuit Voltage: 250V

• Max PV Input Power:

  • 1320W (12V)

  • 2640W (24V)

  • 3960W (36V)

  • 5280W (48V)

• Battery Voltage Range: 9V€“64V

• Rated Charge Current: 100A

Performance and Efficiency

• MPPT Tracking Efficiency: >99%

• Self-Consumption: 0.54W

• Temperature Compensation: -3mV/°C/2V (default)

Durability and Connectivity

• Operation Temperature Range: -35°C to +65°C

• Protection Grade: IP32

• Communication: TTL/Isolated RS485

• Bluetooth: Built-in Bluetooth 4.0 BLE module

Physical Dimensions

• Weight: 12.5 lb

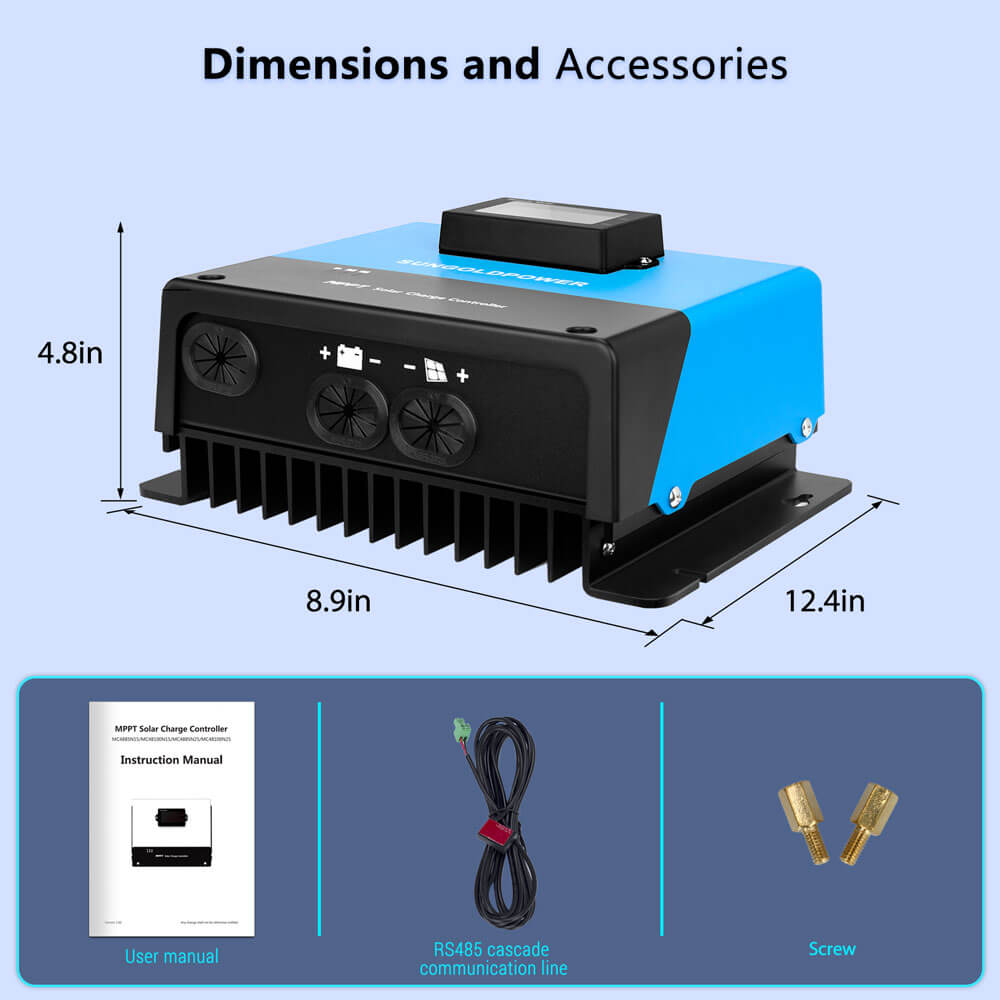

• Product Size: 12.4 x 8.9 x 4.8 inches

User Manual

Sungold Power 100 Amp MPPT Solar Charge Controller User Manual
