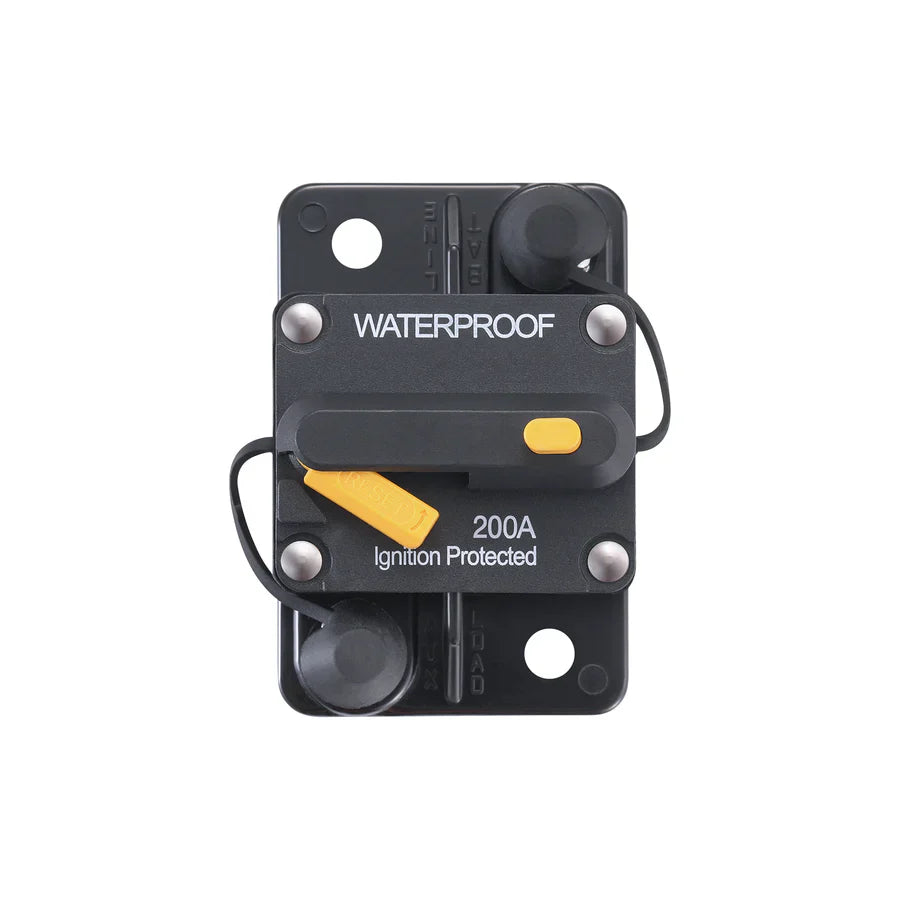

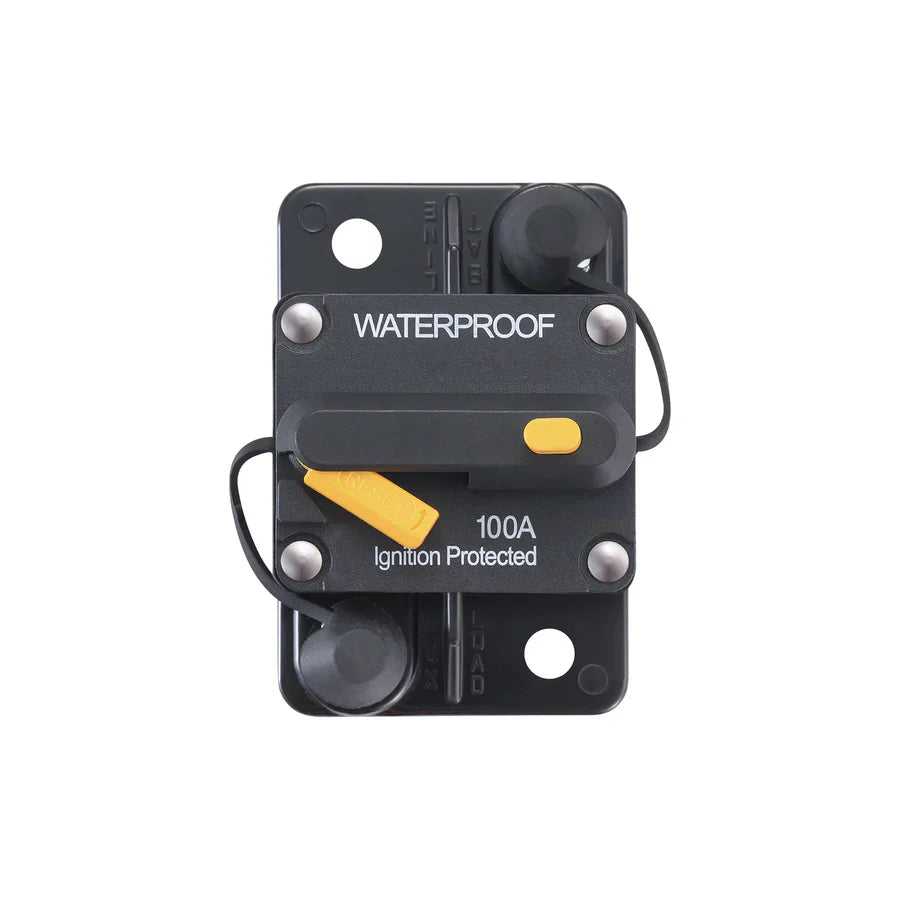

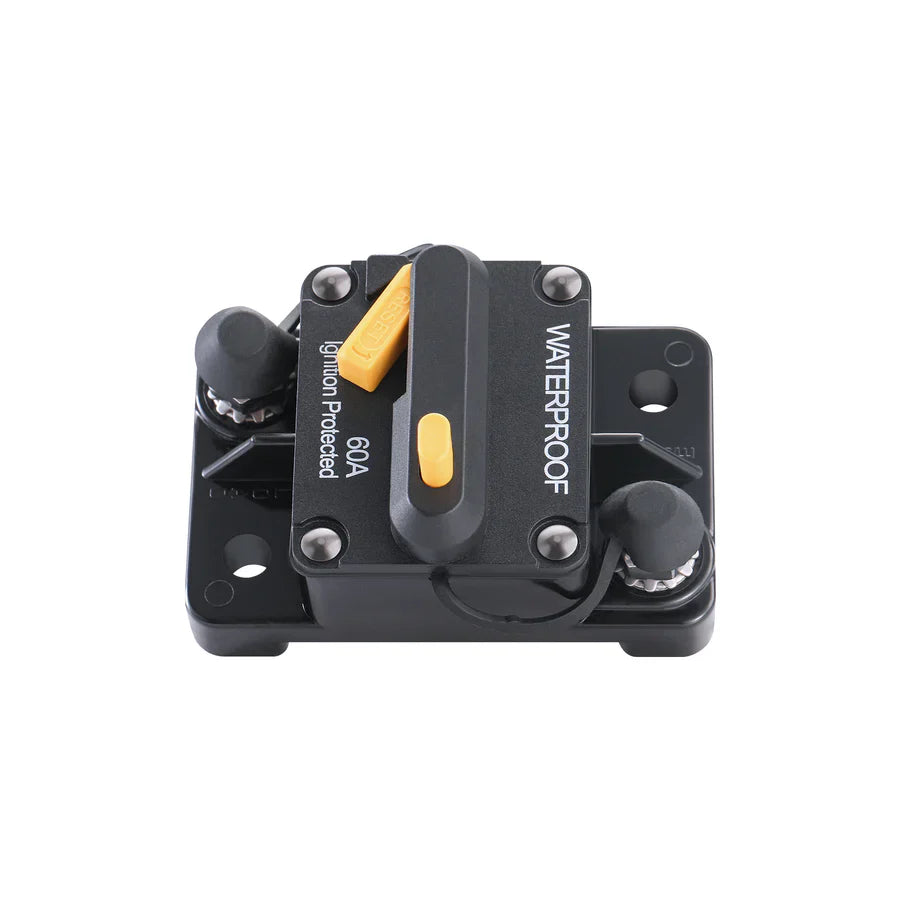

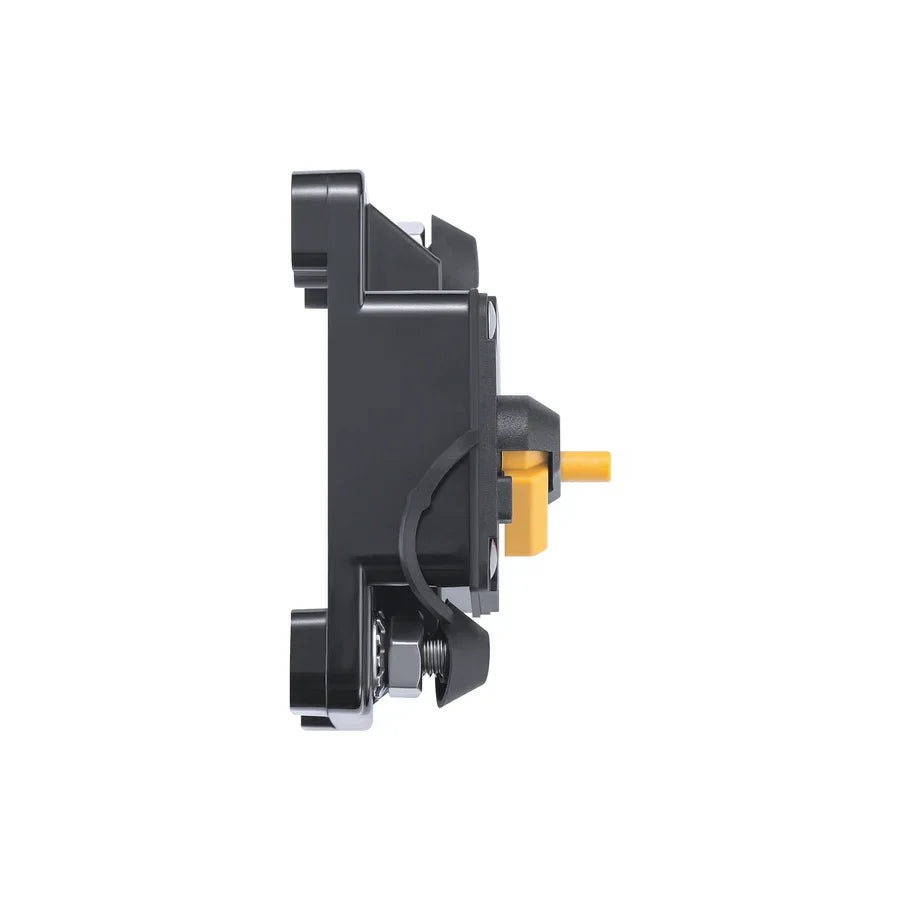

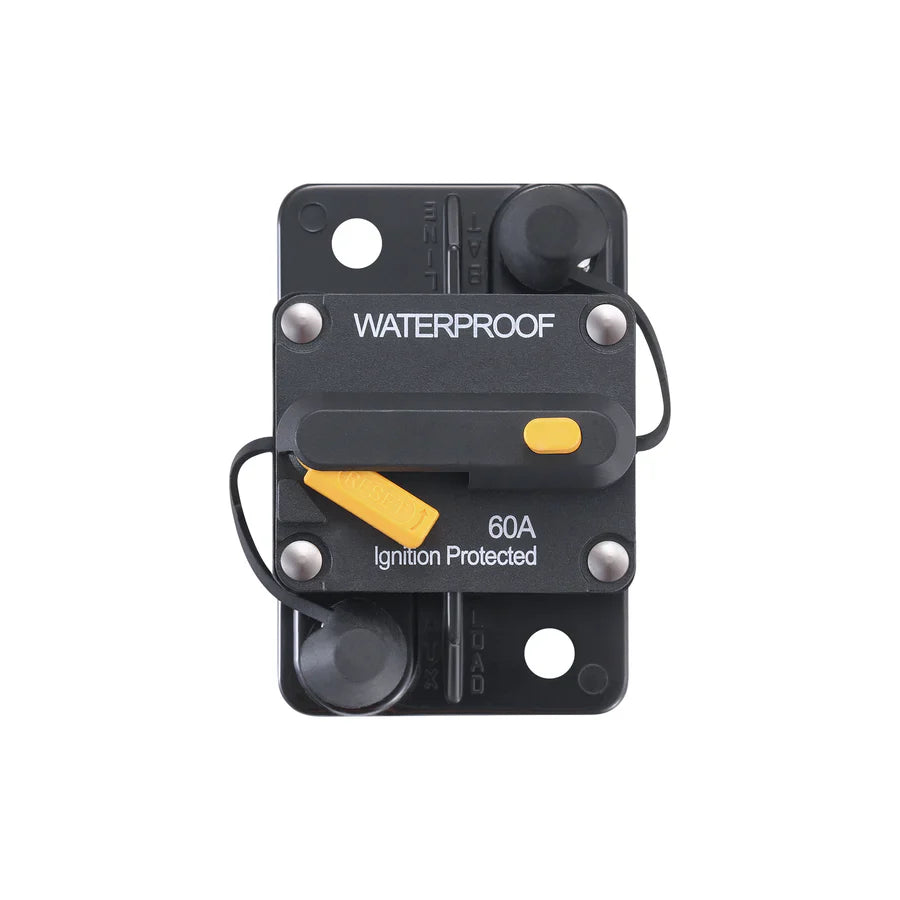

Rich Solar Single Pole Thermal Type Waterproof Circuit Breakers 30A-250A

Protect your electrical systems with this heavy-duty manual reset circuit breaker, engineered for both performance and reliability in demanding environments. Offering advanced overload and short-circuit protection, this breaker features IP67-rated sealing, flame-retardant housing, and is built for versatile mounting in automotive, marine, and off-grid applications. Whether you’re working with RVs, boats, or DC chargers, this breaker ensures safety, durability, and ease of use.

Features

1. Advanced Electrical Protection

• Instantly cuts power during overloads or short circuits to protect connected electronics

• High interrupt rating: Safely handles up to 3,000A at 30VDC

2. Manual Reset Convenience

• Push-to-trip button for manual testing or circuit disconnection

• Reset lever allows for fast and secure restart after trip

3. Built for Harsh Environments

• IP67 waterproof and dustproof—fully sealed for outdoor use

• Rugged, flame-retardant UL 94V-0 thermoset plastic housing with insulated terminals

4. Versatile Installation Options

• Panel or surface mount with threaded studs (1/4"-28 or 3/8"-16), 50 in-lbs torque max

• Compatible with a wide range of applications: RVs, trucks, boats, ATVs, winches, solar systems, and more

5. Certified Safety Standards

• Complies with SAE J553 / J1171 (ignition protected)

• Meets ABYC E-11 for marine electrical systems

• Operates in extreme temperatures: –25°F to 180°F; storage from –34°F to 300°F

Specifications

• Type: Manual reset circuit breaker with push-to-trip

• Voltage Rating: 30VDC

• Interrupt Capacity: Up to 3,000A

• Operating Temperature: –25°F to 180°F (–32°C to 82°C)

• Storage Temperature: –34°F to 300°F (–37°C to 149°C)

• Housing Material: UL 94V-0 flame-retardant thermoset plastic

• Waterproof Rating: IP67

• Mounting: Panel or surface mount with threaded studs

• Certifications: SAE J553, SAE J1171, ABYC E-11
