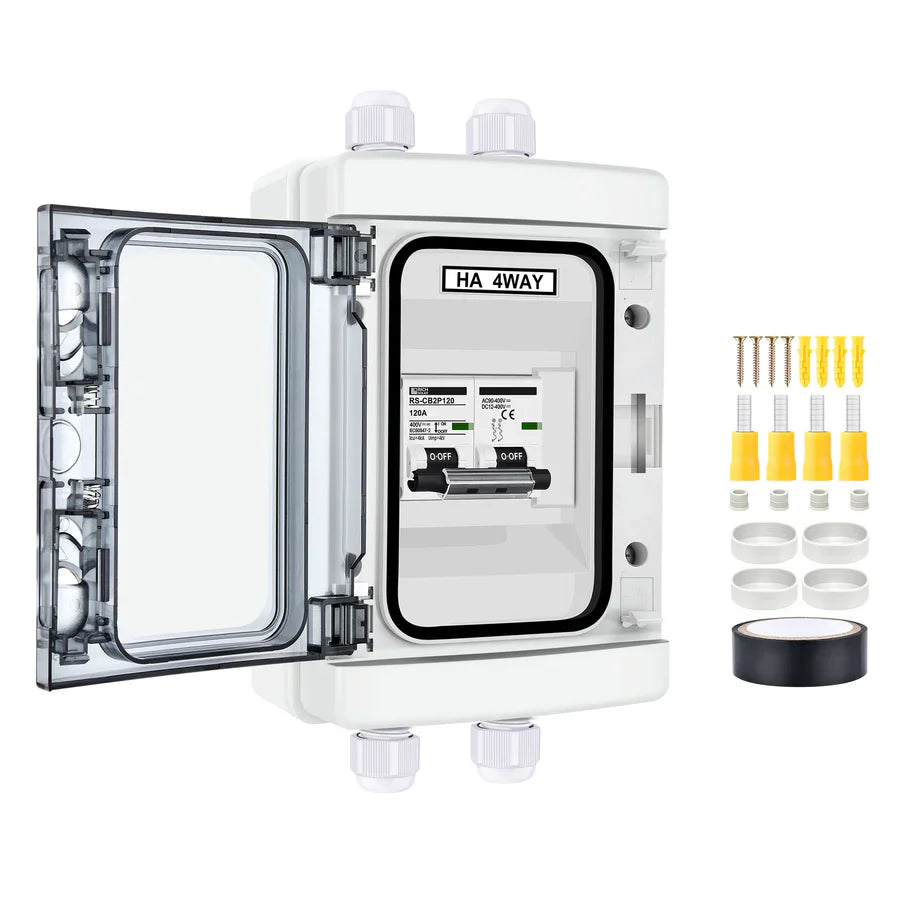

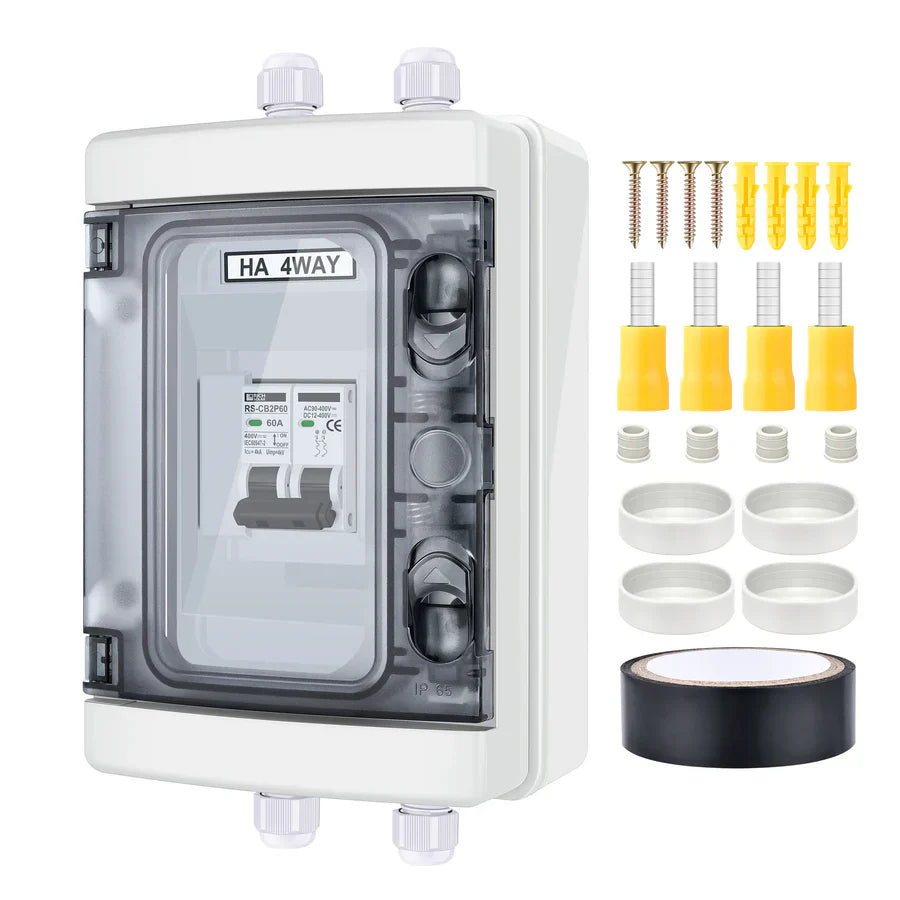

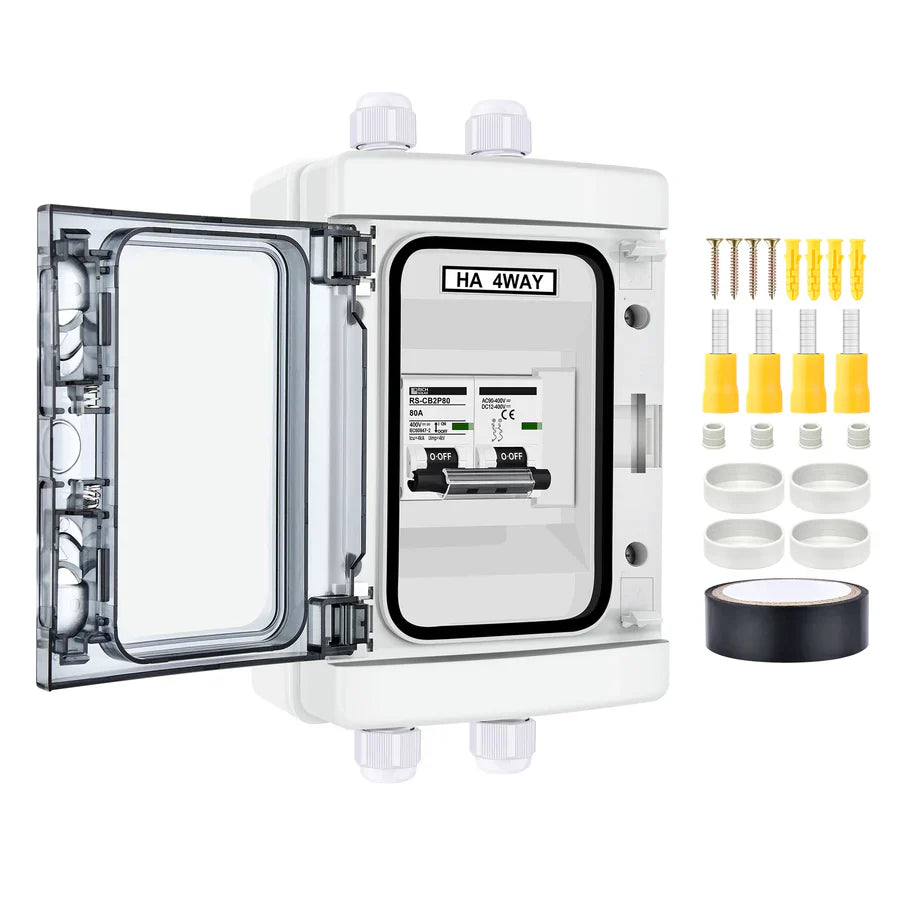

Designed specifically for solar applications, this 2-pole circuit breaker box offers reliable protection for both grid-tied and off-grid photovoltaic systems. Whether you're outfitting a solar panel array for an RV or a residential solar power setup, this breaker ensures safe energy control with dependable performance and long-lasting durability.
Features
-
Dual-pole design for enhanced electrical safety in solar systems
-
Wide current options (30A to 120A) to match various solar configurations
-
Compatible with AC and DC systems ranging from 90V to 400V
-
Built to endure frequent operation with 4,000+ electrical cycles
-
Ideal for PV arrays in grid-tied or off-grid solar power systems
-
Compact and easy to install in solar power generation setups
Specifications
-
Number of Poles: 2P
-
Rated Current Options: 30A, 40A, 60A, 80A, 120A
-
Breaking Capacity: 4000A
-
Rated Voltage: AC 90–400V / DC 12–400V
-
Rated Frequency: 50/60 Hz
-
Electrical Endurance: ≥ 4,000 operations
-
Mechanical Life: ≥ 10,000 operations
-
Operating Temperature: 23°F to 104°F (–5°C to 40°C)
-
Protection Rating: IP20
-
Application: Grid-connected and off-grid solar systems, PV arrays, RV solar
