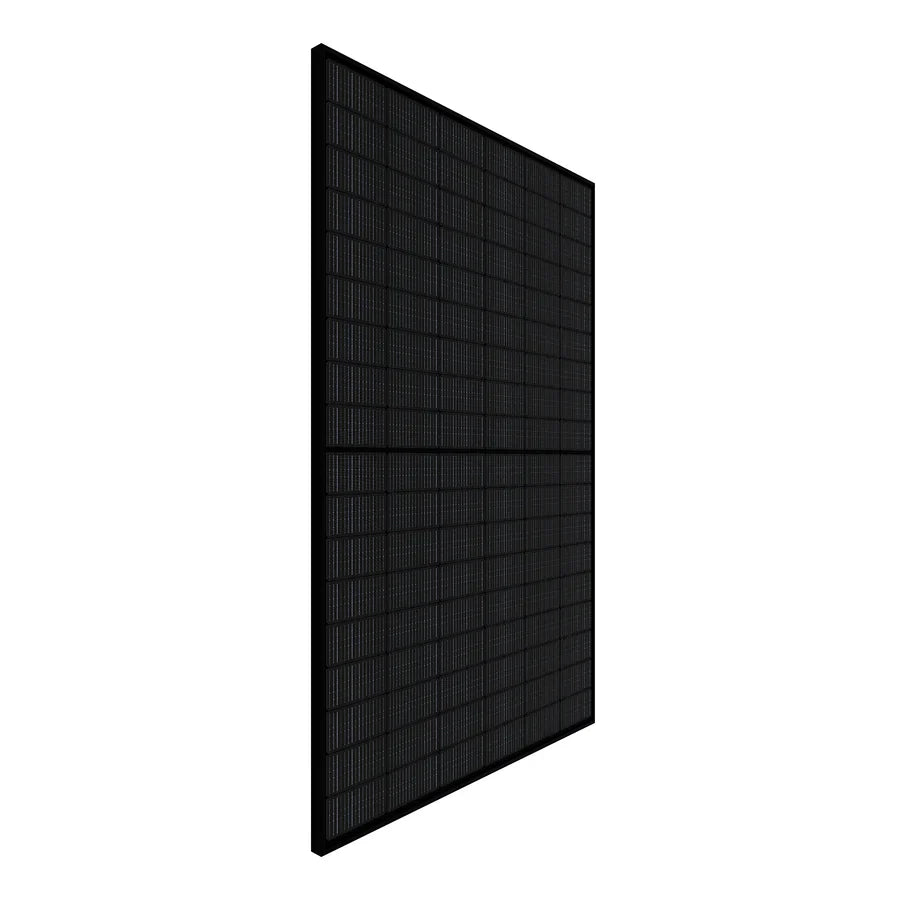

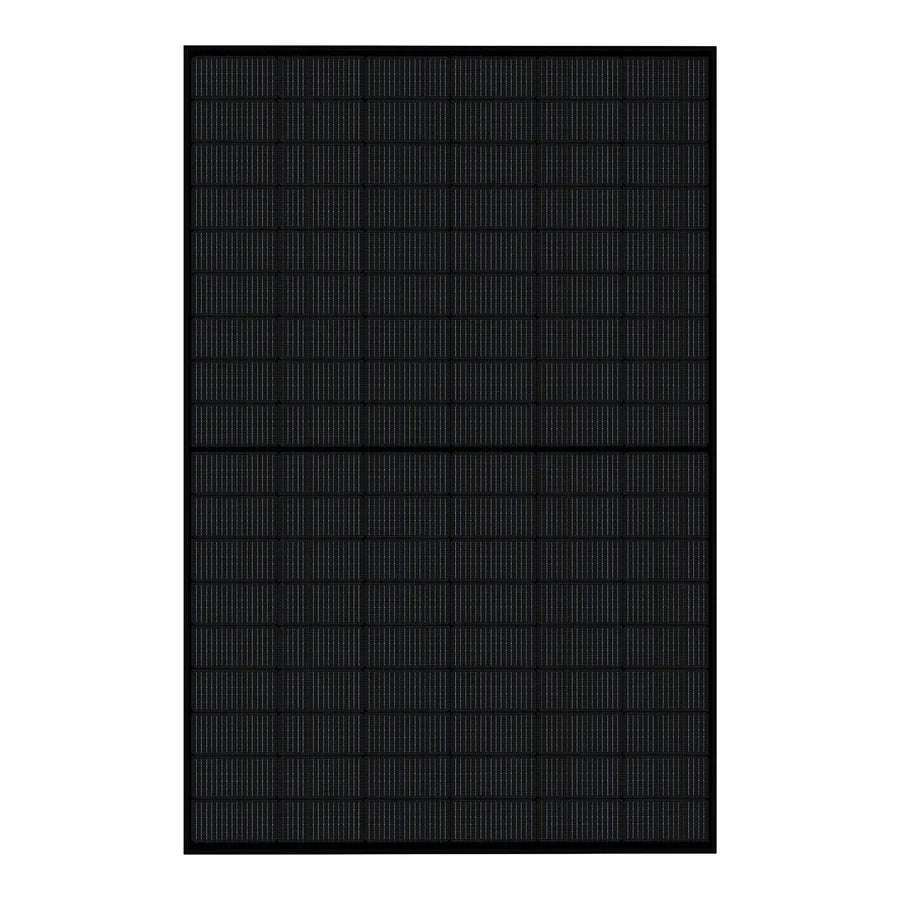

The RICH SOLAR 430W Bifacial N-TOPCon Solar Panel delivers exceptional efficiency and power in any environment. Built with advanced N-TOPCon technology and dual-glass construction, this panel achieves a remarkable 22.0% module efficiency and up to 25% additional energy yield from rear-side bifacial generation. Whether you're powering large-scale commercial systems or seeking top-tier performance in harsh climates, this panel offers unmatched durability and intelligent design integration.
Features
Unmatched Performance
-
22.0% Module Efficiency: Delivers high energy conversion with +5W positive output tolerance
-
430W Max Power Output: Higher power density reduces BOS (Balance of System) installation costs
-
-0.30%/°C Pmax Coefficient: Maintains stable output even in extreme desert temperatures (up to 185°F)
Breakthrough Cell Technology
-
N-TOPCon Cells: 10–30% more yield than traditional P-type modules
-
Zero LID (Light-Induced Degradation): Minimal 1% performance loss in the first year
-
Passivated Contact Design: Minimizes long-term power degradation for greater reliability
Advanced Bifacial Design
-
80%+ Bifaciality Factor: Increases rear-side energy collection
-
15–25% Additional Yield: Especially effective in standard ground-mounted systems
-
Dual-Glass Panel: 94% light transmittance ensures optimal albedo utilization
Military-Grade Durability
-
5400Pa Snow Load Rating: Ideal for regions with heavy snowfall
-
2400Pa Wind Load Rating: Built to withstand hurricane-strength wind conditions
-
IP68 Rated Junction Box: Fully waterproof and submersible for maximum protection
Versatile Applications
-
Ideal for BIPV, vertical installations, and extreme environments including coastal, desert, and arctic conditions (as low as -40°F)
Intelligent Integration
-
1500V System Voltage Ready: Lowers overall wiring and installation costs
-
MC4-Compatible Connectors: Simplifies setup with plug-and-play compatibility
-
30A Fuse Rating: Complies with global safety and installation standards
Specifications
-
Panel Type: Bifacial N-TOPCon Monocrystalline
-
Rated Power Output: 430W
-
Module Efficiency: 22.0%
-
Positive Power Tolerance: 0~+5W
-
Pmax Temperature Coefficient: -0.30%/°C
-
Front Load Capacity: 5400Pa
-
Wind Load Capacity: 2400Pa
-
Junction Box: IP68 rated (submersible)
-
Bifaciality Factor: 80%+
-
Rear-Side Yield Gain: 15–25% (typical in ground-mount systems)
-
Glass Type: Dual-glass, 94% transmittance
-
Operating Temperature Range: -40°F to 185°F
-
System Voltage: 1500V
-
Connector Type: MC4-compatible
-
Fuse Rating: 30A
-
Applications: BIPV, vertical mounting, coastal/desert/arctic climates
