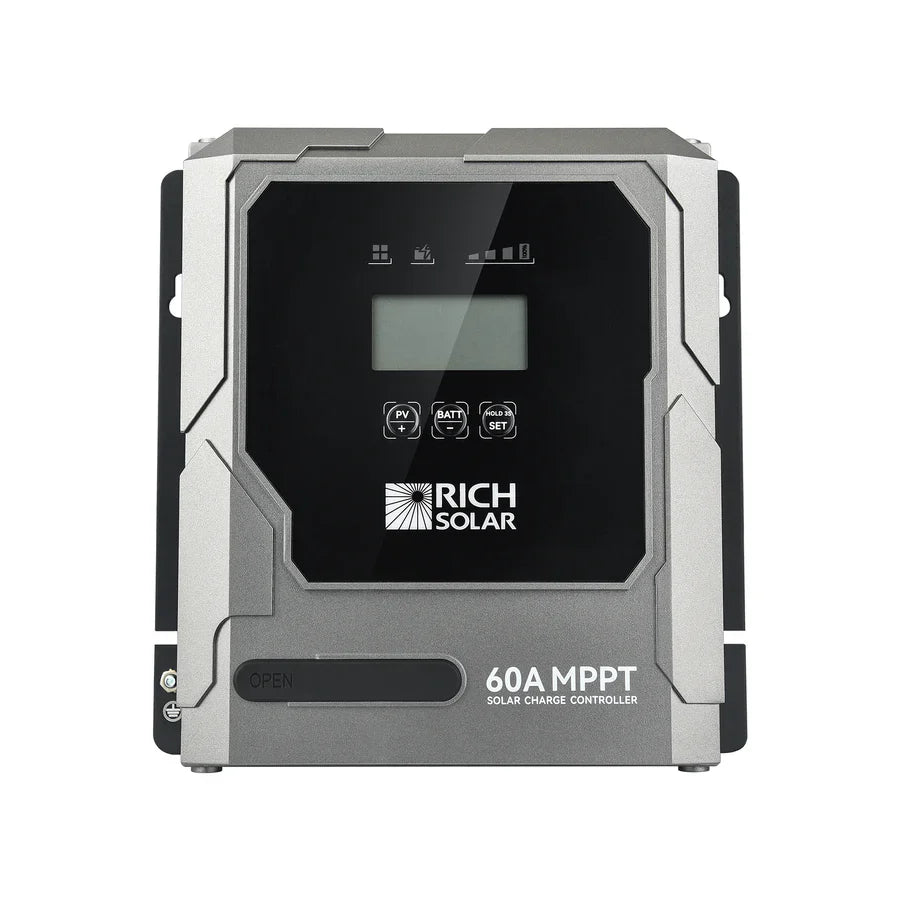

Rich Solar BRAVO 60A MPPT Solar Charge Controller

RICH SOLAR MPPT Charge Controller – Ultra-Efficient Solar Charging with Custom Battery Support

Overview
Maximize the output of your solar setup with the RICH SOLAR True MPPT Charge Controller. Engineered for accuracy and ultra-high efficiency, this smart controller features real-time tracking, self-adaptive 12V/24V system support, and broad battery compatibility—including both lithium and lead-acid chemistries. With an optional Bluetooth module, digital remote display, and temperature sensor, you gain full control over your solar power system. Designed to meet UL1741 and IEC safety standards, it’s a reliable choice for off-grid homes, RVs, marine setups, and more.

Features

High-Efficiency True MPPT Technology

• Latest MPPT Algorithm: Real-time solar tracking with over 99.5% tracking efficiency

• Max Conversion Efficiency: Charge conversion rates up to 98%

• 12V/24V DC Auto-Adaptation: Seamlessly adjusts to your system voltage

Advanced Battery Management

• Accurate Custom Settings: Fine-tune voltage parameters for optimized charging

• Multi-Chemistry Support:

  • Lead-Acid: Gel, AGM, Wet, Crystal, Calcium

  • Lithium: LiFePO4, LTO, LCO

• Reverse Discharge Protection: Prevents power loss when panels aren't producing

• Overvoltage Protection: Protects batteries and internal circuits

• Charging Data Storage: Keeps key performance data even during downtime

Optional Upgrades & Safety

• Bluetooth Monitoring: Add-on internal Bluetooth module for wireless access

• Temperature Compensation: Optional external battery temp sensor for precise charging

• External Remote Display: View system performance on a digital screen (sold separately)

• Conformal Coating: Protects internal circuitry from dust and moisture

• Safety Engineered: Designed to UL1741 and EN/IEC 62109-1 standards

Specifications

• Technology: True MPPT (Maximum Power Point Tracking)

• Tracking Efficiency: >99.5%

• Charge Efficiency: Up to 98%

• System Voltage: 12V / 24V DC (auto-detect)

• Battery Compatibility:

  • Lead-Acid: Gel, AGM, Wet, Crystal, Calcium

  • Lithium: LiFePO4, LTO, LCO

• Connections: Common Negative

• Protections:

  • Reverse discharge

  • Overvoltage

  • In-circuit protections

• Optional Features:

  • Internal Bluetooth module

  • External digital remote display

  • External battery temperature sensor

• Certifications: UL1741, EN/IEC 62109-1

• Design: In-house engineering and manufacturing

• Durability: Conformal coated circuit board for internal protection
