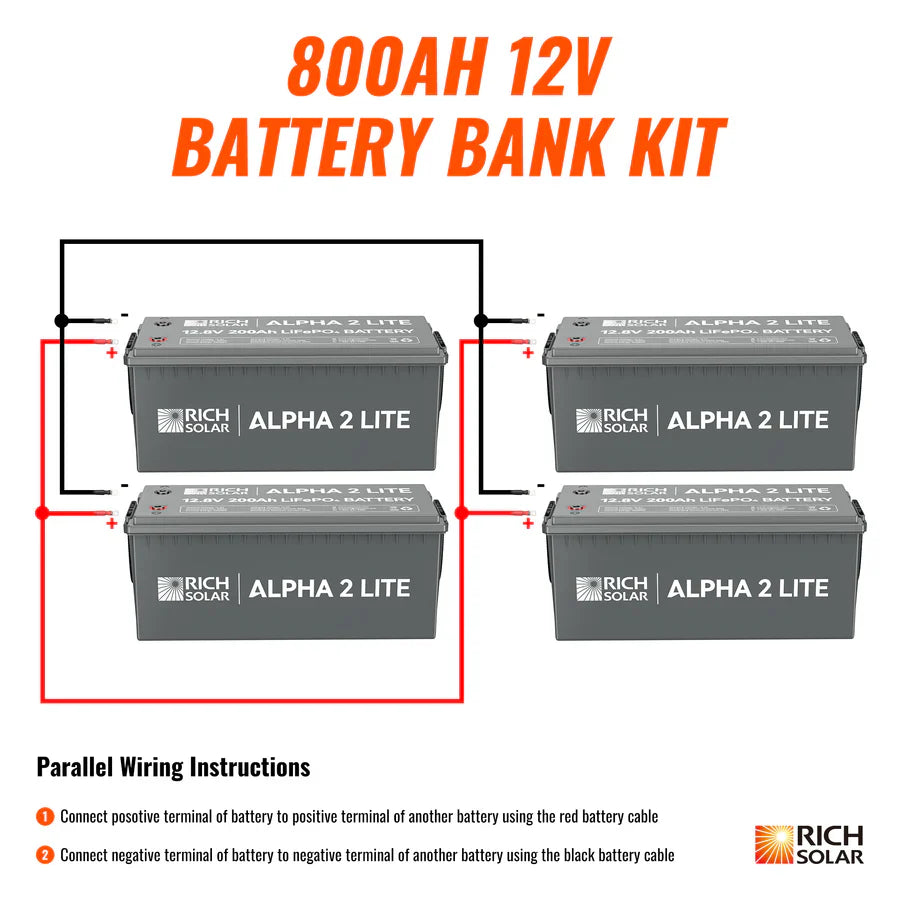

Power your off-grid system, RV, or solar setup with confidence using the 800Ah 12V 10.2kWh Lithium Battery Bank, featuring four ALPHA 2 LITE 12V 200Ah LiFePO4 batteries and six heavy-duty 2 AWG battery cables. Designed for durability and efficiency, each battery is constructed with premium lithium iron phosphate cells and equipped with a built-in Battery Management System (BMS) for advanced safety and optimal performance. Lightweight, low-maintenance, and built to last over 10 years, this battery bank is ideal for users who demand reliable, high-capacity energy storage without compromise.
Features
-
Complete Battery Bank Kit: Includes 4x 12V 200Ah LiFePO4 batteries and 6x 1ft 2 AWG interconnect cables.
-
Premium LiFePO4 Cells: Provides superior energy efficiency, thermal stability, and lifespan.
-
Over 10-Year Lifespan: Engineered for longevity with proper maintenance.
-
Built-in BMS: Includes protection against overcharging, over-discharging, short circuits, overcurrent, and temperature extremes.
-
Fused Cell Protection: Each individual cell is fused to prevent chain reaction damage and ensure continued operation if one cell fails.
-
Stable Output Voltage: Maintains consistent power delivery across the full cycle.
-
High Amp Capacity: Supports demanding power needs with 200A charge/discharge ratings.
-
Low Self-Discharge: Retains energy when not in use—ideal for backup applications.
-
Convenient Design: Lightweight build with removable carry handles for easy transport and installation.
-
Minimal Maintenance: Hassle-free performance with no need for regular servicing.
-
Optimized for High-Temperature Use: Performs reliably even in hot conditions.
Specifications
-
Total Capacity: 800Ah (10.2kWh at 12V)
-
Battery Configuration: 4x 12V 200Ah ALPHA 2 LITE LiFePO4 batteries
-
Included Cables: 6x 1ft 2 AWG battery interconnect cables
-
Charge Voltage: 14.4V
-
Max Charge Current: 200A
-
Max Discharge Current: 200A
-
Battery Dimensions (each): 20.9 x 8.1 x 8.5 inches
-
Battery Weight (each): 52.9 lbs
-
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
-
Cycle Life: 4,000+ cycles @ 80% DoD
-
Operating Temperature Range: High-temperature performance supported
-
BMS Protections: Overcharge, over-discharge, short circuit, overcurrent, high/low temp disconnects
-
Additional Features: Removable handles, low self-discharge, lightweight design
