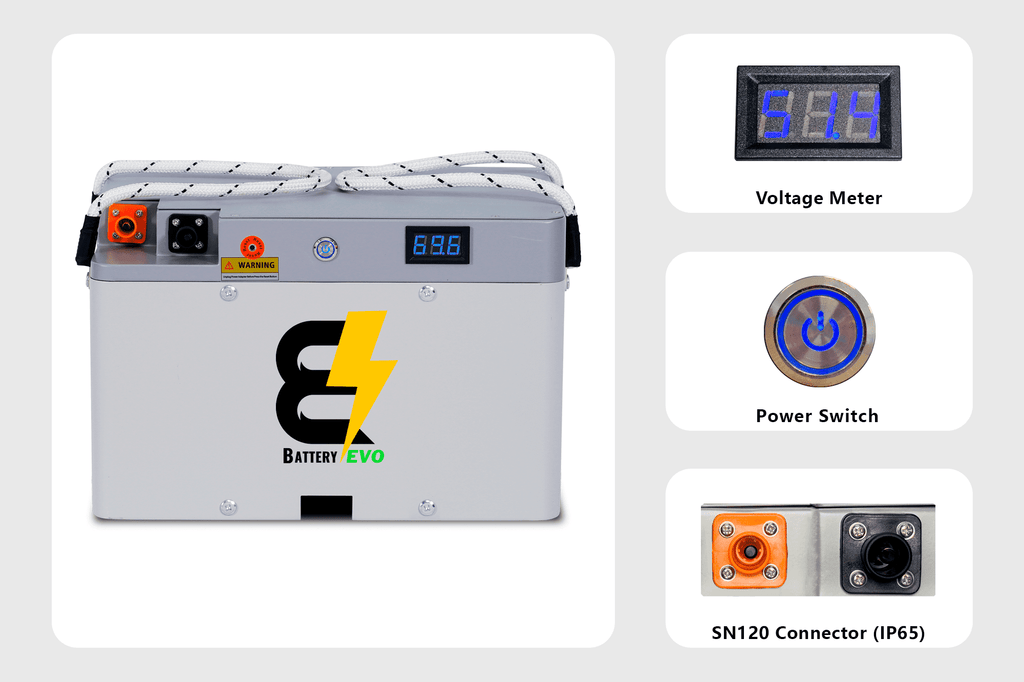

BatteryEVO 72V FALCON Battery (27Ah - 2.1 kWh)
Are you looking for a reliable lithium upgrade for your work or transport cart? Look no further than the FALCON! It offers long-lasting performance, increased range, and faster speeds—a big change from the old lead-acid batteries that might be slowing down your cart.
What’s more, the FALCON fits perfectly into your battery tray. It’s about the same size as two T-105 lead-acid batteries side by side, so you don’t have to change your tray. If there’s a divider causing issues, don’t worry! The FALCON has a raised base that solves that problem. It comes with top-notch LiFePO4 cells and our special Triple Safety Redundancy System. Upgrade your cart today and experience the power of the FALCON!
Please Note: One FALCON battery isn’t enough to power a whole golf cart. The individual FALCON battery is designed for different power upgrades provided by the FALCON Kit. To ensure you get the right battery kit, compare the Continuous Power specifications of the FALCON kits with your motor and controller. Going against the battery specs will void the warranty.

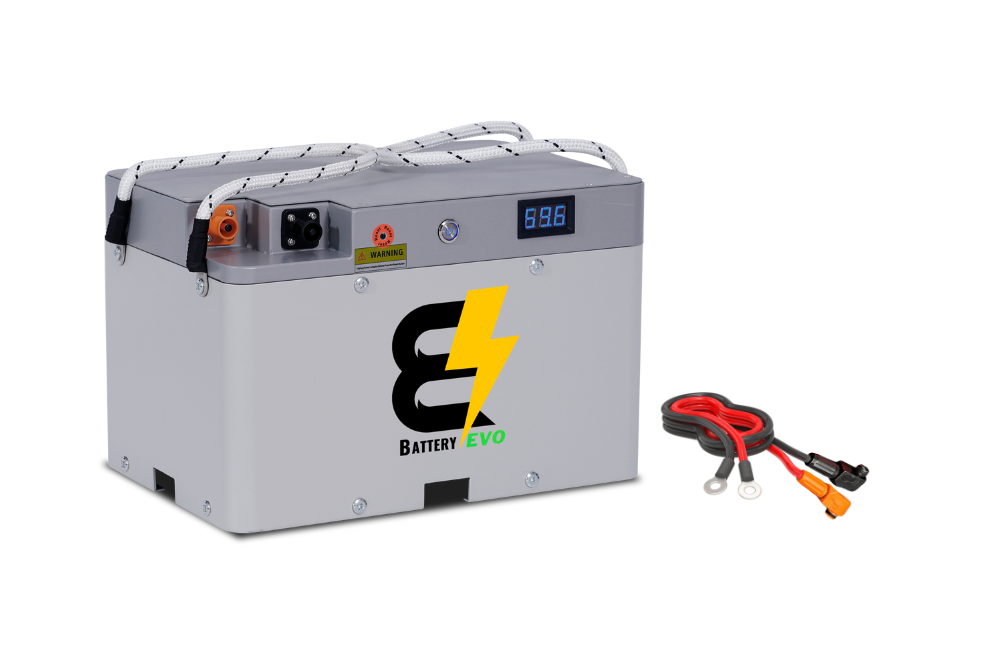

Package Inclusions
-
72V FALCON-S - 1 unit
-
6AWG NE120 to Ring Terminal Cable - 1 unit
Product Specifications
-
SKU: EVO-FLCN-72021-G2
-
Name: 72V FALCON
-
System Voltage: 72V
-
Nominal Voltage: 76.8V
-
Chemistry: LFP
-
kWh Capacity: 2.1 kWh
-
Ah Capacity: 27Ah
-
Charging Voltage: 84V - 87.6V
-
Max Charge Voltage: 88.8V
-
Operating Voltage Range: 66.5V - 87.6V
-
Suggested Low Voltage Cutoff: 66.5V - 72V
-
Cell Configuration: 24S1P
-
Max Continuous Discharge Current: 80 A
-
Max Continuous Power: 6000 W
-
Max Discharge Peak Current: 160 A (5 seconds)
-
Max Charge Current: 80 A
-
Charge Temperature Range: 0°C (32°F) - 55°C (131°F)
-
Discharge Temperature Range: -20°C (-4°F) - 55°C (131°F)
-
Optimal Discharge Temperature Range: 15°C (59°F) - 35°C (95°F)
-
Storage Temperature Range: -5°C (23°F) - 35°C (95°F) (Max 6 Months)
-
Weight: 63 lbs (28.6 kg)
-

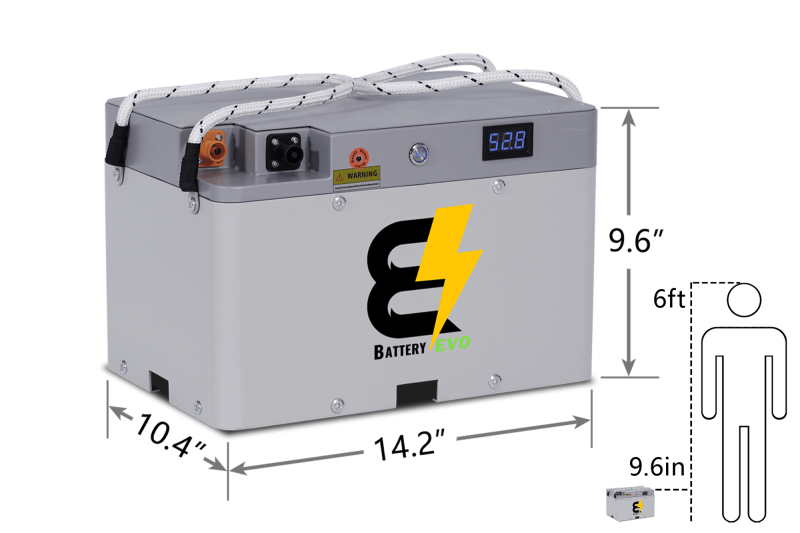

Depth: 10.4 in (264.2 mm)
-
Width: 14.2 in (360.7 mm)
-

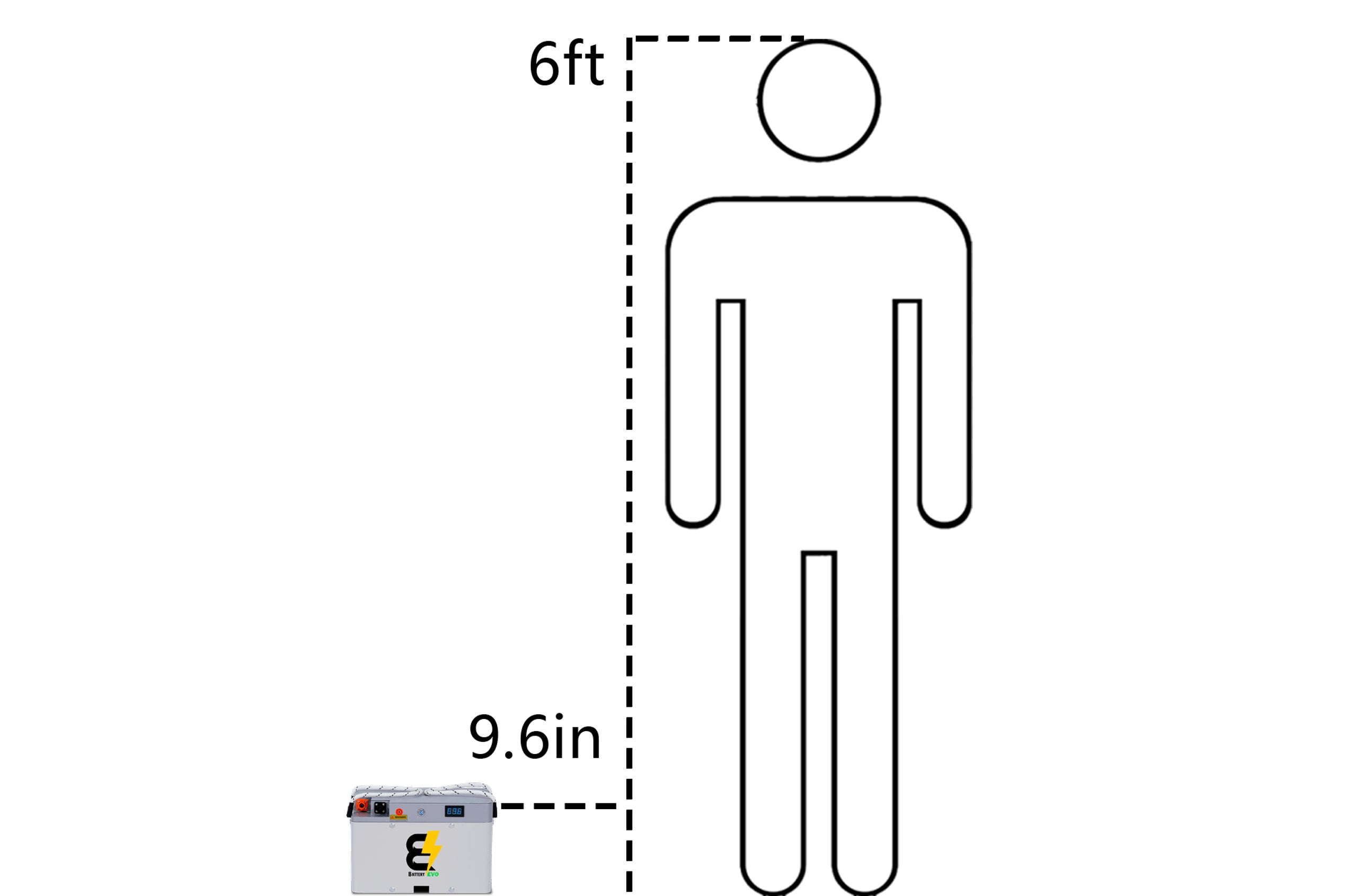

Height: 9.6 in (243.8 mm)
-
Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
-
Max Connections: Up to 8 parallel
Warranty & Returns
BatteryEVO Warranty
At BatteryEVO, we stand behind the quality and durability of our batteries with our 10-Year Warranty. We ensure that every BatteryEVO battery is free from defects in material and workmanship for a period of 10 years from the date of purchase.
What’s Included:
-
Lifetime Tech Support & Customer Service: We provide free lifetime technical support and troubleshooting for all BatteryEVO batteries. You can reach us at +1 (818) 337-0929 between 9 AM and 5 PM, Monday to Friday, or email Support@batteryevo.com.
-
Free Repair & Replacement: If any component fails due to a manufacturing defect within 10 years, we will repair or replace your battery free of charge. For the first year, we cover all shipping costs within the continental US.
-
Top-Quality Components: We use Tier 1 cells to ensure high-performance lithium battery packs. Our batteries are designed to last between 3,500 and 8,000 cycles, depending on usage and environmental factors.
-
Covered Products: All BatteryEVO battery packs are covered for 10 years, and included accessories are covered for 30 days.
-
Automatic Warranty Registration: No need to register separately—your warranty is automatically recorded using the serial number and QR code.
