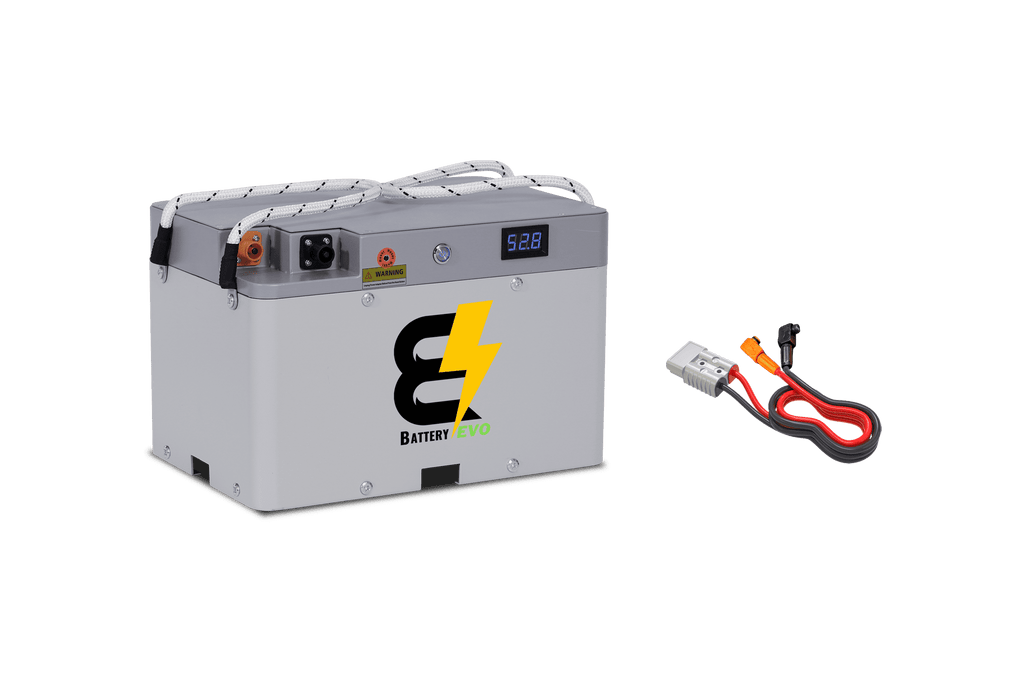

BatteryEVO 48V FALCON Elite Battery (67Ah - 3.3 kWh)
High-Performance Lithium Upgrade for 48V Golf & Utility Carts
The 48V FALCON Elite is a powerful lithium battery upgrade designed for high-performance golf and utility carts. Inspired by the robust 72V FALCON model, this battery delivers the same strength in a 48V setup. Engineered with Tier 1 LFP cells, an advanced Battery Management System (BMS), and a 300A safety fuse, the FALCON Elite ensures superior safety, efficiency, and reliability.
Its built-in cutouts at the base eliminate the need for plastic dividers in your battery tray, simplifying installation. With this upgrade, expect higher speeds, improved performance, and extended range while saving space and reducing weight.
Important Compatibility Note:
A single 48V FALCON Elite is suitable for a standard stock golf cart. However, high-power motors or controllers may require multiple units. Always compare the battery's Continuous Power specifications with your motor and controller requirements. Exceeding specifications voids the warranty.
Package Inclusions:
Product Specifications:
-
SKU: EVO-FLCN-48033-G2
-
System Voltage: 48V
-
Nominal Voltage: 51.2V
-
Chemistry: Lithium Iron Phosphate (LFP)
-
Capacity: 67Ah (3.3kWh)
-
Charging Voltage: 55.2V - 58.4V
-
Max Charge Voltage: 58.8V
-
Operating Voltage Range: 44.8V - 58.4V
-
Suggested Low Voltage Cutoff: 44.8V - 50.8V
-
Cell Configuration: 16S1P
-
Max Continuous Discharge Current: 80A
-
Max Continuous Power: 4000W
-
Max Discharge Peak Current: 160A (5 seconds)
-
Max Charge Current: 60A
-
Temperature Ranges:
-
Charge: 0°C (32°F) - 55°C (131°F)
-
Discharge: -20°C (-4°F) - 55°C (131°F)
-
Optimal Discharge: 15°C (59°F) - 35°C (95°F)
-
Storage: -5°C (23°F) - 35°C (95°F) (Max 6 Months)
-
Weight: 68 lbs (30.8 kg)
-

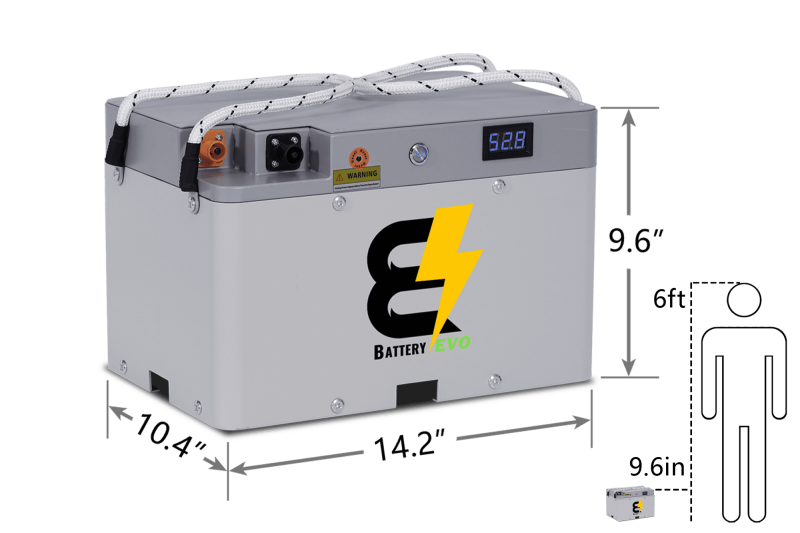

Dimensions:
-
Depth: 10.4 in (264.2 mm)
-
Width: 14.2 in (360.68 mm)
-
Height: 9.6 in (243.8 mm)
-
Safety Features:
-
Parallel Connections: Up to 8 units
