BatteryEVO 48V CHIHUAHUA Battery (40Ah - 2 kWh)
Compact Powerhouse for Your Golf Cart
Meet the BatteryEVO 48V CHIHUAHUA Battery, a cutting-edge LiFePO4 battery designed to redefine performance in golf carts. Small but mighty, this 2.0 kWh battery delivers superior efficiency, reliability, and longevity—all in a lightweight package.
Why Choose the CHIHUAHUA Battery?
-
Advanced Lithium Power – Equipped with premium lithium-ion cells, outperforming traditional 48V lead-acid batteries.
-

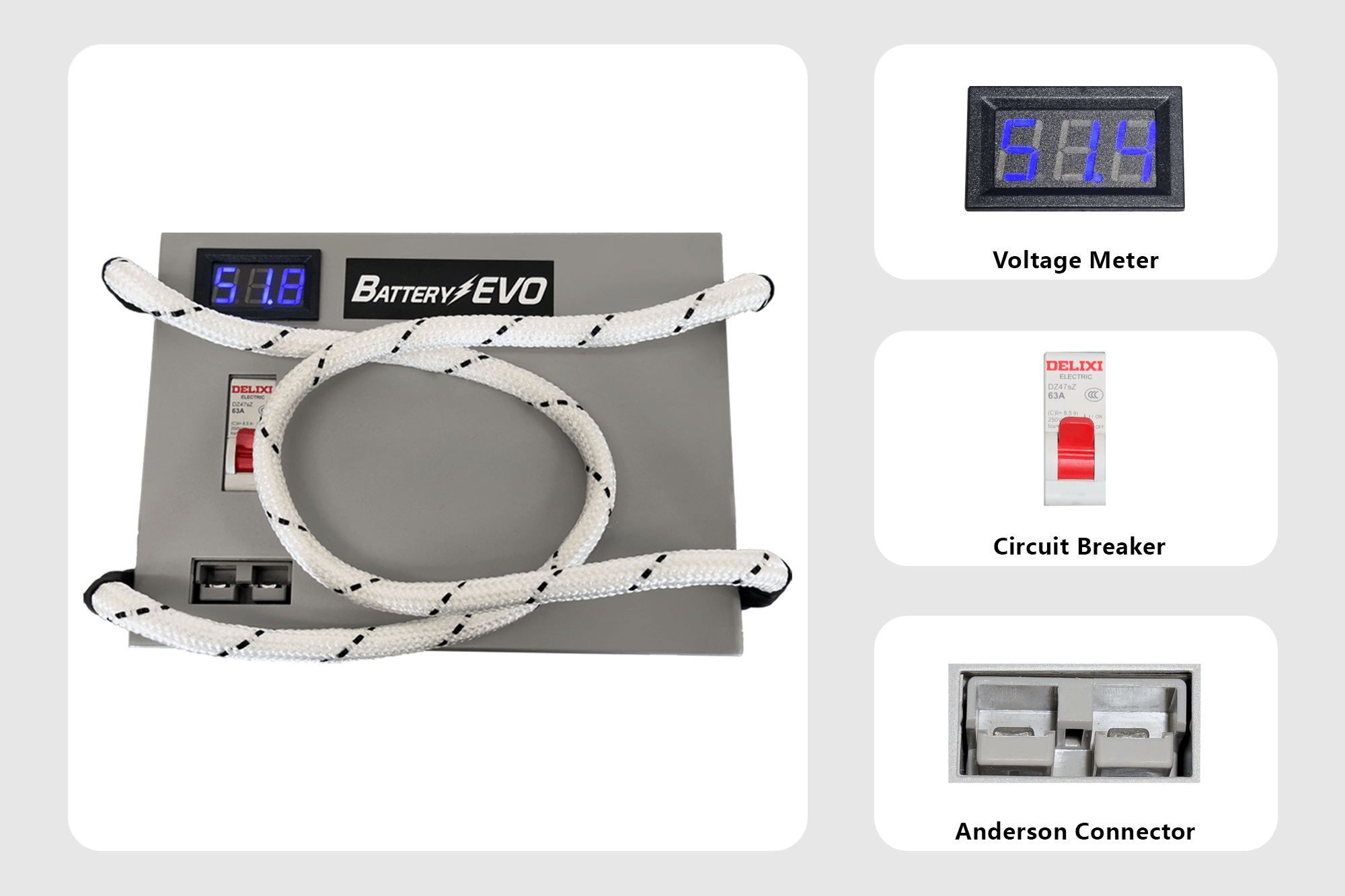

Robust Safety Features – Includes a 63A Safety Breaker and an intelligent Battery Management System (BMS) with thermal management and protective mechanisms.
-
Lightweight & Compact – Weighs just 57 lbs (28.5 lbs per kWh), making installation easier than ever.
-
High-Performance Output – Features a 2C discharge rate and handles high discharge currents, maximizing your golf cart’s power.
-
Cost-Effective Solution – The most budget-friendly 48V lithium battery available, offering unbeatable value.
Important Considerations
-
Not a standalone power source – A single CHIHUAHUA battery cannot independently power a golf cart; it must be part of a CHIHUAHUA Kit.
-
Limited fitment – No more than two CHIHUAHUA batteries can fit in a standard golf cart.
-
Warranty Compliance – Exceeding recommended power thresholds will void the warranty. Be sure to match the Continuous Power specifications of your CHIHUAHUA kit to your motor and controller needs.
Package Inclusions
-

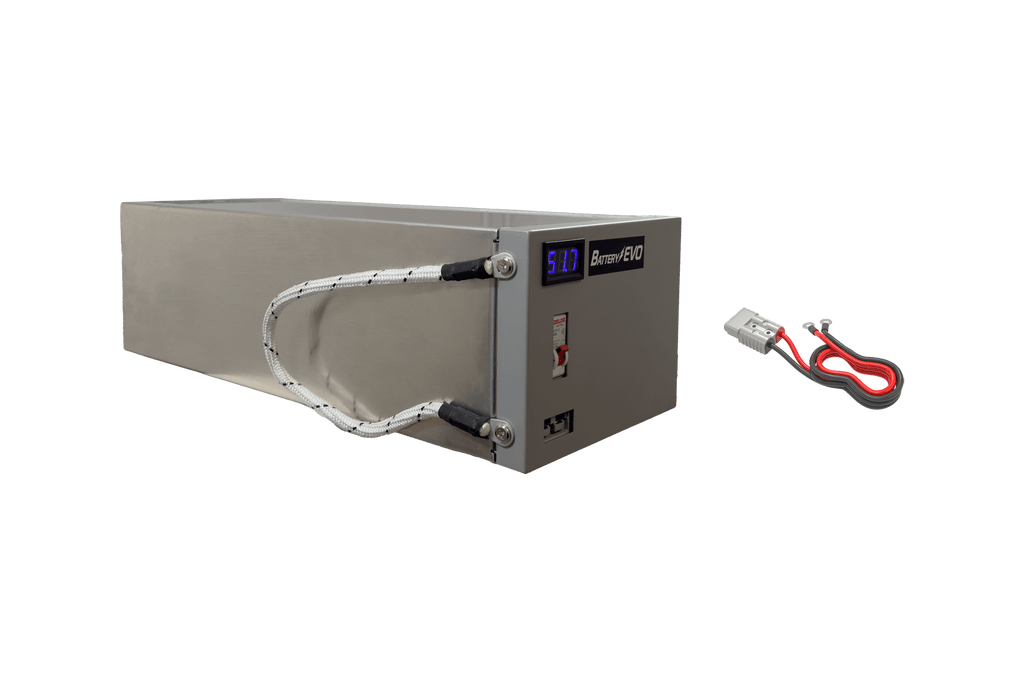

48V Chihuahua Lithium Battery Golf Cart Drop-In Replacement (Model: 48V CHIHUAHUA-S)
- 8AWG 4FT BE50 to Ring Terminal Cable
Product Specifications
-
SKU: EVO-CHUA-48020-G1
-
Name: CHIHUAHUA
-
System Voltage: 48V
-
Nominal Voltage: 51.2V
-
Chemistry: LFP (Lithium Iron Phosphate)
-
Capacity: 2 kWh / 40Ah
-
Charging Voltage: 55.2V - 58.4V
-
Max Charge Voltage: 58.4V
-
Operating Voltage Range: 44.8V - 58.4V
-
Suggested Low Voltage Cutoff: 44.8V - 50.8V
-
Cell Configuration: 16S
-
Max Continuous Discharge Current: 60A
-
Max Continuous Power: 3000W
-
Max Discharge Peak Current: 120A (5 seconds)
-
Max Charge Current: 50A
-
Charge Temperature Range: 0°C (32°F) to 60°C (140°F)
-
Discharge Temperature Range: -20°C (-4°F) to 55°C (131°F)
-
Optimal Discharge Temperature Range: 15°C (59°F) to 35°C (95°F)
-
Storage Temperature Range: -5°C (23°F) to 35°C (95°F) (Max 6 months)
-
Weight: 57 lbs (25.85 kg)
-
Dimensions:
- Depth: 20.5 in (520.7 mm)
- Width: 8.5 in (215.9 mm)
- Height: 6.5 in (165.1 mm)
-
Safety Features:
- 300A Fuse
- Battery Management System (BMS) with Over/Under Voltage, Over Current, and Over/Under Temperature Protections
-
Max Parallel Connections: Up to 8
