BatteryEVO 48V CHIHUAHUA 4x Battery Kit (160Ah - 8 kWh)
High-Powered Lithium Battery Kit for Golf Carts
Upgrade your golf cart with the BatteryEVO 48V CHIHUAHUA 4x Battery Kit, a next-generation LiFePO4 lithium battery system designed for superior performance, efficiency, and reliability. With an 8 kWh capacity and 160Ah total power, this compact yet powerful battery kit outperforms traditional lead-acid batteries while offering lightweight convenience and long-term cost savings.
Why Choose the CHIHUAHUA Battery Kit?
-
Powerful & Efficient – Delivers 3000W max continuous power with a 2C discharge rate for high-performance applications.
-
Lightweight & Compact – Weighing just 57 lbs per unit, it's significantly lighter than lead-acid alternatives.
-

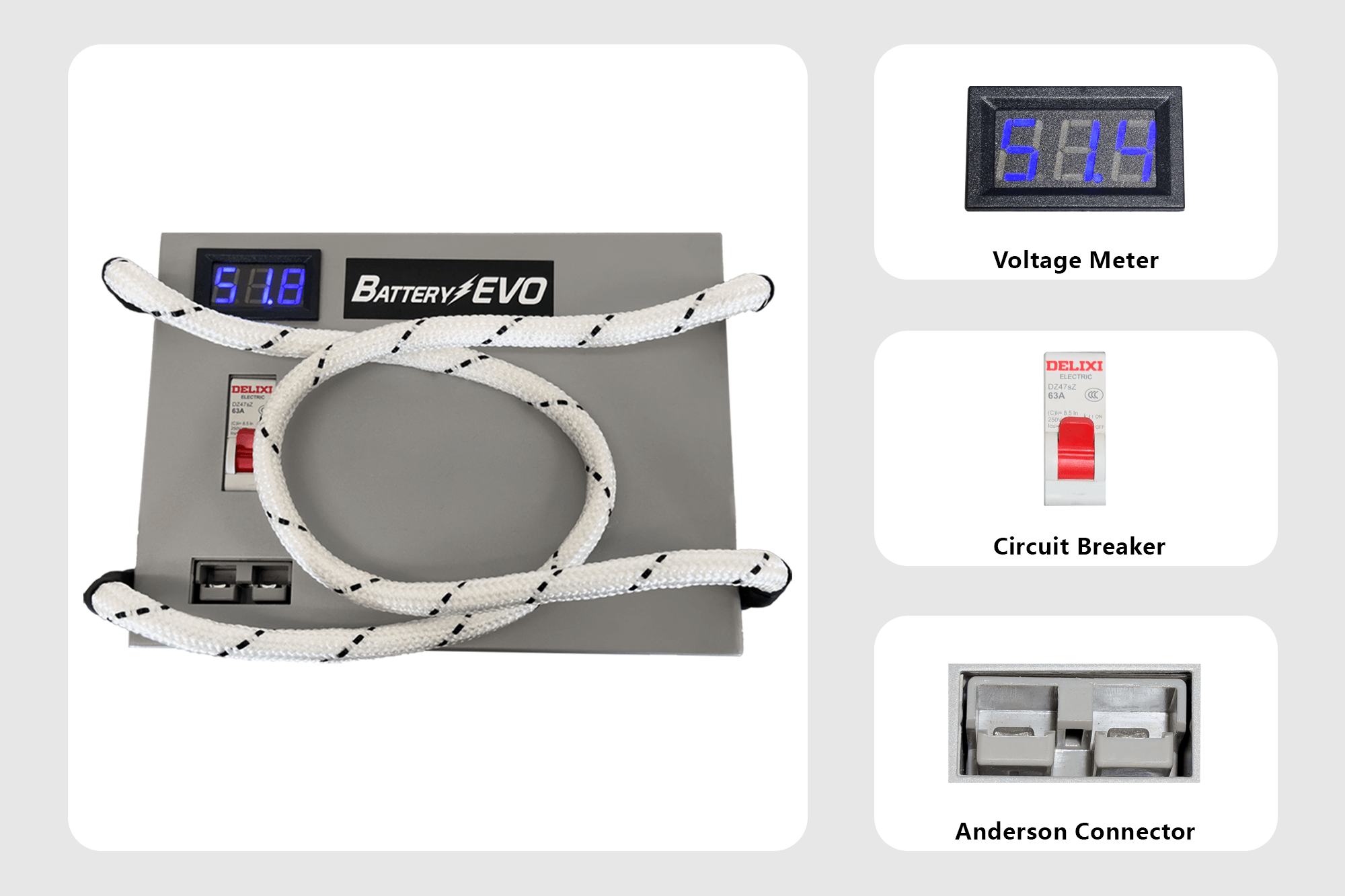

Advanced Battery Management System (BMS) – Features thermal regulation and comprehensive protection against over-voltage, under-voltage, and overheating.
-
Long-Lasting Performance – Designed to last 3,500 to 8,000 cycles, ensuring years of reliable use.
-
Fast & Safe Charging – Charges at 58.4V max with a 50A max charge current, reducing downtime.
-
Budget-Friendly Lithium Solution – A cost-effective way to upgrade your golf cart’s power system.

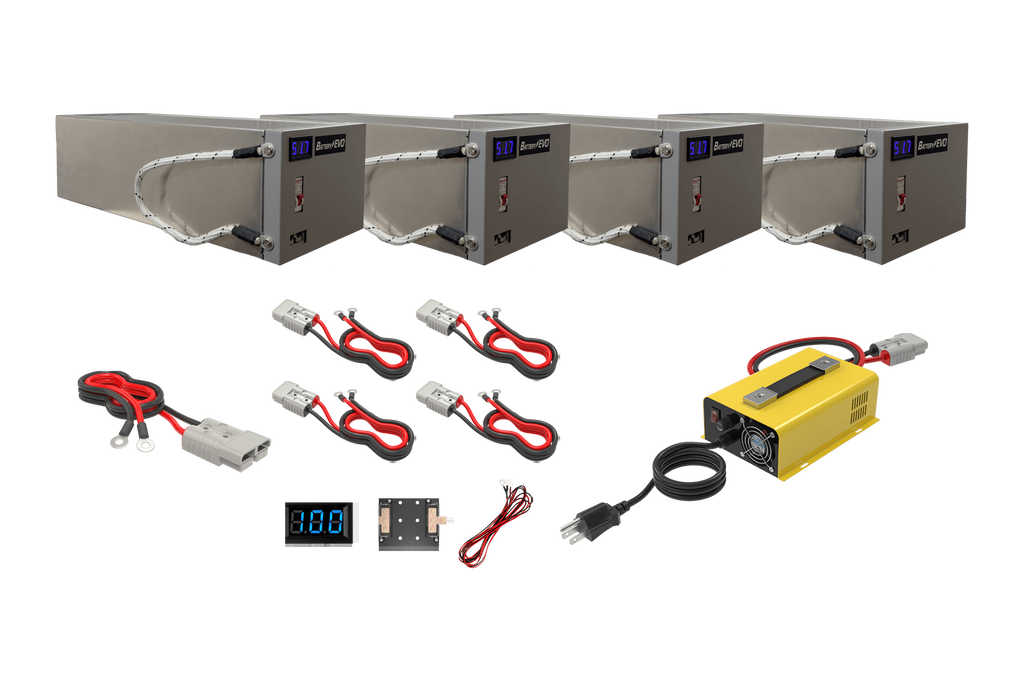

What's Included in the Kit?
-
(4) 48V CHIHUAHUA Lithium Batteries (LiFePO4)
- (1) 58.4V DC - 110 VAC - 17A Lithium Charger
- (4) 8AWG 4FT BE50 to Ring Terminal Cables
- (1) 6AWG 4FT BE175 to Ring Terminal Cable
- (1) 24AWG 10FT Meter to Ring Terminal Cable
- (1) LED Percentage Capacity Meter
- (1) Parallel Busbar
Technical Specifications
-
System Voltage: 48V
-
Nominal Voltage: 51.2V
-
Capacity: 160Ah (Total), 8 kWh
-
Max Continuous Discharge: 60A
-
Max Discharge Peak Current: 120A (5 seconds)
-
Charge Voltage Range: 55.2V - 58.4V
-
Operating Temperature: -4°F to 131°F (-20°C to 55°C)
-
Dimensions: 20.5” x 8.5” x 6.5” per unit
-
Weight: 57 lbs per unit
-
Max Parallel Connections: Up to 8 units
Industry-Leading 10-Year Warranty
BatteryEVO stands behind its products with a 10-year warranty, covering free repairs or replacements for manufacturing defects. Plus, enjoy lifetime technical support and hassle-free warranty claims for ultimate peace of mind.
? Important Note: A single CHIHUAHUA battery is not sufficient for independent golf cart operation. Ensure compatibility by comparing your motor and controller's power requirements with our CHIHUAHUA kits.
Upgrade your golf cart today with the BatteryEVO 48V CHIHUAHUA 4x Battery Kit—the most powerful and cost-effective lithium solution on the market!
