BatteryEVO 48V BIG CONDOR 4x Battery Kit (1288Ah - 66 kWh)
The Ultimate Off-Grid Power Solution
The BatteryEVO 48V 66 kWh Big CONDOR Battery is a game-changer in high-capacity battery storage. Designed to meet the needs of solar, off-grid, and emergency power systems, the Big CONDOR takes energy reliability to the next level.
Advanced Safety and Smart Monitoring
Equipped with an advanced Battery Management System (BMS) and a Triple Safety Redundancy System, the Big CONDOR ensures maximum security and efficiency. The LED Smart Display provides real-time data, including:
-
Voltage & amperage
-
Temperature monitoring
-
Cycle count
-
Individual cell voltages
Scalable and Versatile Power
Need more power? No problem. Multiple Big CONDOR units can be connected in parallel, making it ideal for building a robust off-grid power system or a reliable emergency backup.
Efficient and Cost-Effective Energy
With its high energy density and cost-efficiency per kWh, a single Big CONDOR unit can power a 2 to 4-bedroom home. Backed by a 10-Year Warranty, this battery is built for long-term performance and reliability.
Perfect for Various Applications
-
Lead Acid Replacement
-
Off-Grid Systems
-
Residential Backup
-
Emergency Power
-
Commercial Systems
-
Worksite Backup
What’s Included?
-
(3) 48V BIG CONDOR-S Batteries
-
(3) 6AWG 4FT BE175 to Ring Terminal Cables
-
(3) 4AWG 4FT BE175 to Ring Terminal Cables
Technical Specifications
-
System Voltage: 48V
-
Nominal Voltage: 51.2V
-
Chemistry: LFP (Lithium Iron Phosphate)
-
Capacity: 16.5 kWh per unit (Total: 66 kWh)
-
Max Continuous Discharge: 150A (7680W)
-
Max Discharge Peak Current: 300A (5 seconds)
-
Charging Voltage: 55.2V - 58.4V
-
Operating Temp Range: -20°C to 55°C (-4°F to 131°F)
-
Weight: 368 lbs (166.9 kg)
-

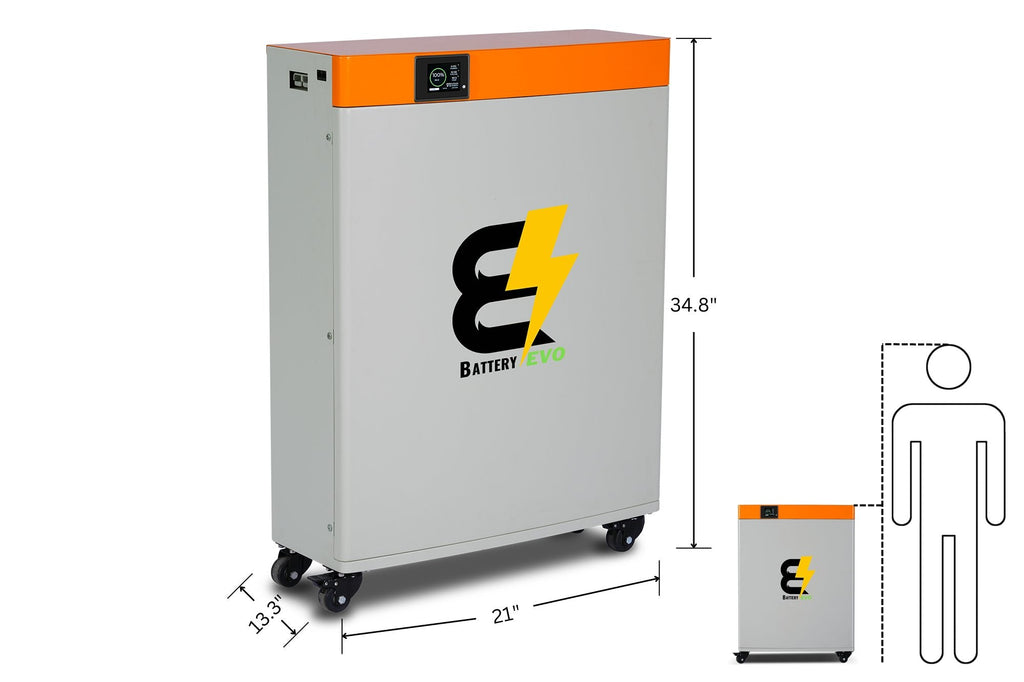

Dimensions: 13.3”D x 21”W x 34.8”H
-
Safety Features: 300A Fuse, Over/Under Voltage & Temperature Protections
-
Parallel Connections: Up to 8 units
10-Year Warranty & Lifetime Support
At BatteryEVO, we guarantee the highest quality and durability. Every Big CONDOR battery is backed by a 10-Year Warranty, with free repairs and replacements for defects. Plus, enjoy lifetime technical support to keep your power system running smoothly.
Ready to Power Your Future?
Upgrade your energy storage with the BatteryEVO Big CONDOR – the ultimate solution for reliable, long-lasting power. Whether for home, business, or off-grid living, this powerhouse battery ensures you stay powered no matter what!
