BatteryEVO 48V BADGER 4x Battery Kit (188Ah - 8.4 kWh)
Compact Power, Maximum Performance
Meet the BADGER 48V Lithium Battery Kit, the most compact and efficient power solution for your golf cart. Despite its small size, this kit delivers high reliability, impressive capacity, and unmatched efficiency. Engineered with premium lithium-ion cells, a 63A safety breaker, and an advanced Battery Management System (BMS) with Thermal Management, the BADGER is built to outperform traditional lead-acid alternatives.
Lightweight & Cost-Effective
Weighing just 36 lbs/kWh, the BADGER is the lightest and most cost-efficient 48V lithium battery system on the market. Its 2C Discharge Rate ensures optimal performance while handling high discharge currents with ease. Upgrade your golf cart with power you can trust.
Important Usage Information
A single BADGER battery is not sufficient to power a golf cart on its own. This battery is designed for use as part of the BADGER Kit, which enhances power capacity. To ensure compatibility, compare the Continuous Power specifications of BADGER kits with your motor and controller. Using the battery beyond its limits will void the warranty.

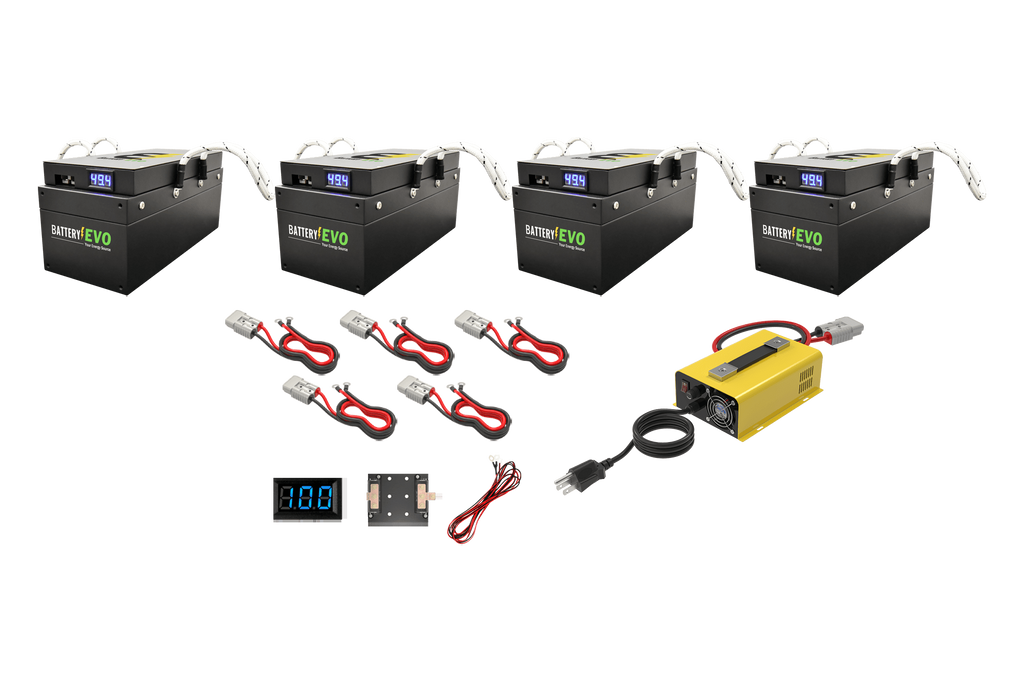

Package Inclusions
-
(4) 48V BADGER Lithium Rechargeable Batteries (High-Energy Density Lithium Iron Phosphate)
-
(4) 8AWG 4FT BE50 to Ring Terminal Cables
-
(1) 50.4V DC - 110 VAC - 17A Lithium Charger
-
(1) 6AWG 4FT BE175 to Ring Terminal Cable
-
(1) 24AWG 10FT Meter to Ring Terminal Cable
-
(1) LED Percentage Capacity Meter - 12S NMC
-
(1) Parallel Busbar
Product Specifications
-
System Voltage: 48V
-
Nominal Voltage: 44.2V
-
Battery Chemistry: NMC
-
Total Capacity: 8.4 kWh / 188Ah
-
Max Charge Voltage: 50.4V
-
Operating Voltage Range: 36V - 50.4V
-
Max Continuous Discharge Current: 60A
-
Max Discharge Peak Current: 120A (Over 6 seconds)
-
Charge Temperature Range: -20°C (-4°F) to 55°C (131°F)
-
Weight: 36 lbs per kWh
-

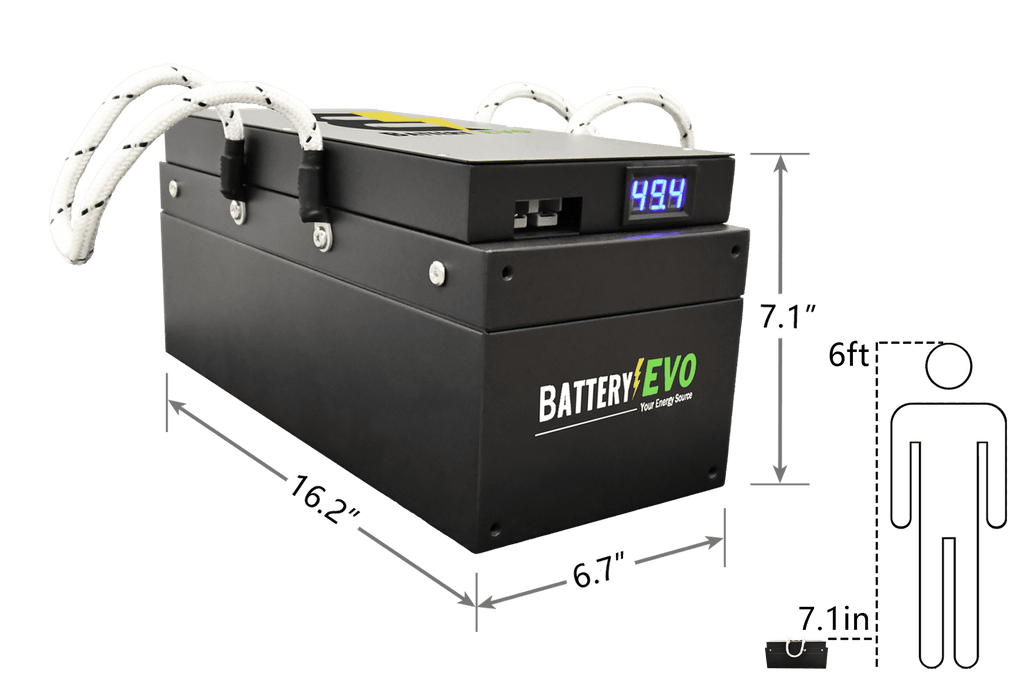

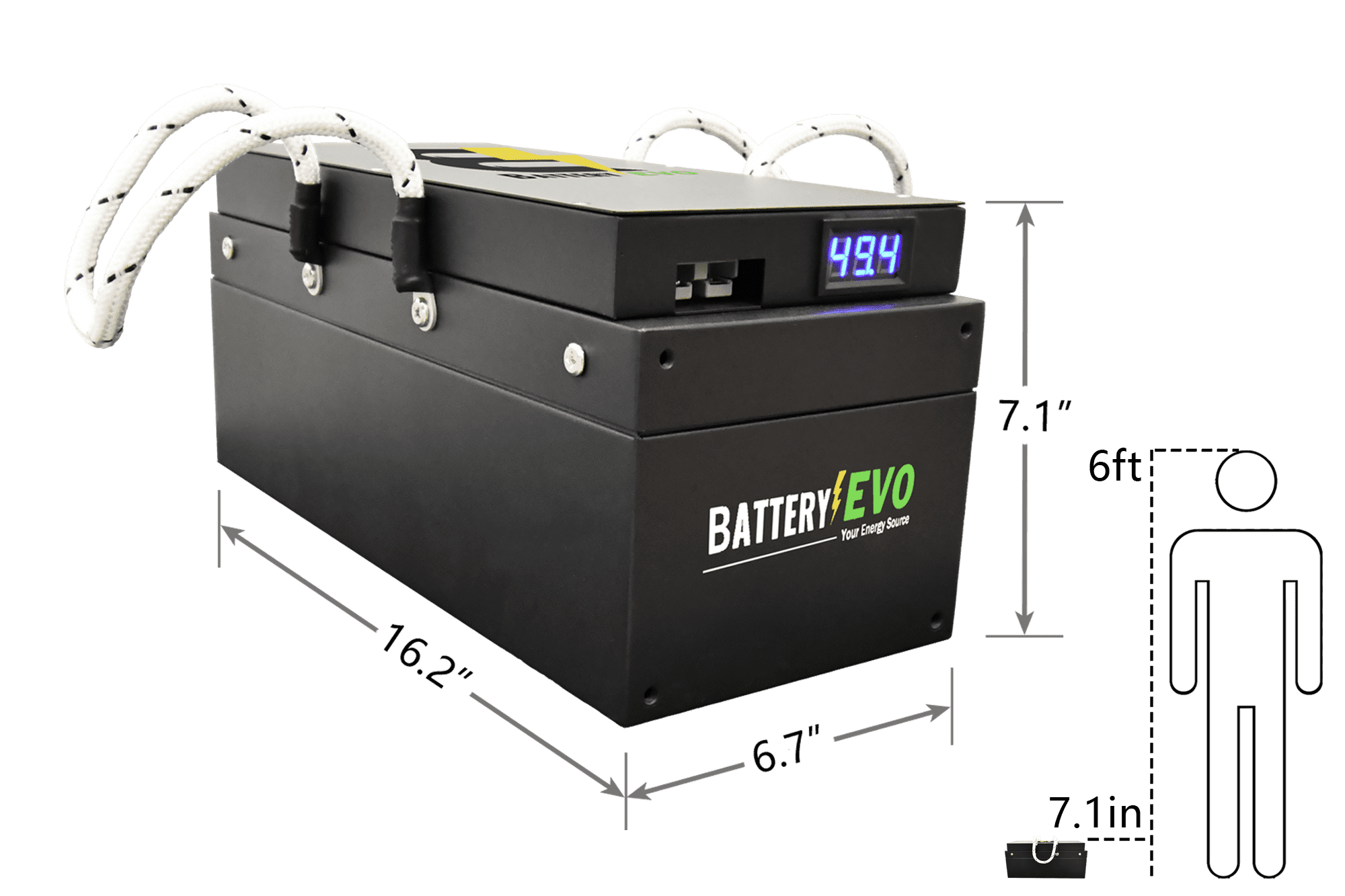

Dimensions: 16.2" x 6.7" x 7.1"
-

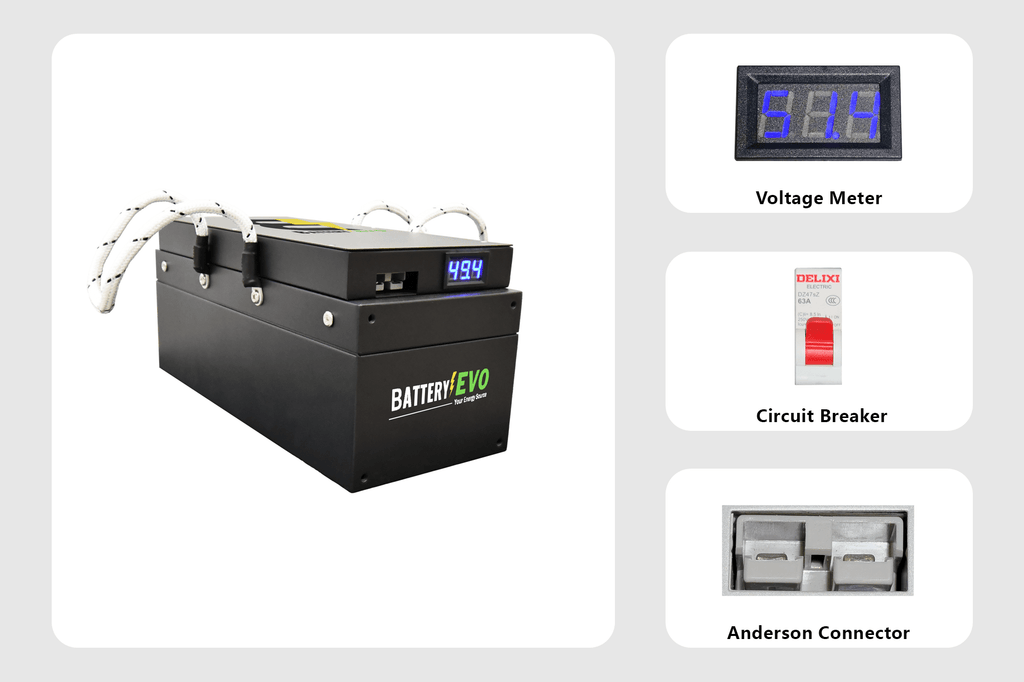

Safety Features: 63A Breaker & Advanced BMS (Over/Under Voltage, Over Current, Over/Under Temperature Protections)
-
Max Parallel Connections: Up to 8
