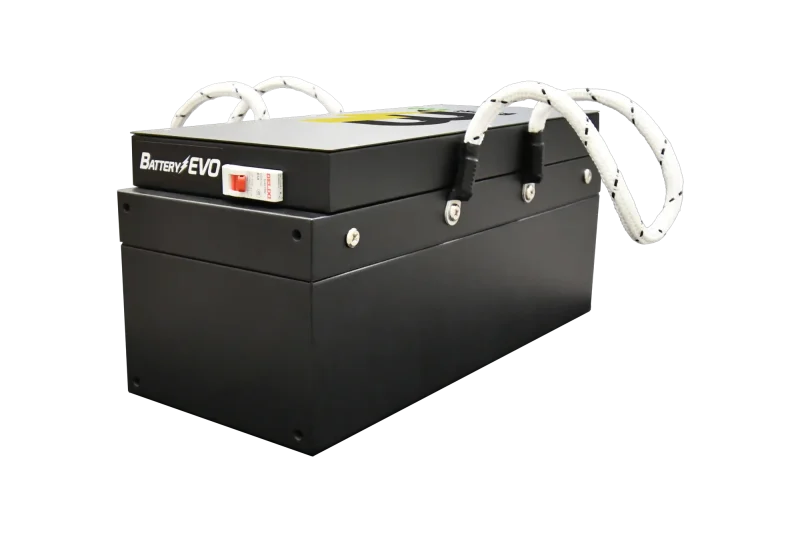

BatteryEVO 48V BADGER 2x Battery Kit (94Ah - 4.2 kWh)
Compact Powerhouse for Your Golf Cart
Meet the BADGER, the most compact and efficient 48V lithium battery solution for golf carts. Despite its small size, this battery kit delivers exceptional reliability, efficiency, and power. Engineered with high-performance lithium-ion cells, an advanced Battery Management System (BMS), and a 63A safety breaker, the BADGER outperforms traditional lead-acid batteries with ease.
Weighing just 36 lbs/kWh, the BADGER is one of the lightest and most cost-effective 48V lithium solutions available. With a 2C discharge rate, it efficiently handles high discharge currents, giving your golf cart the power boost it needs.
?? Important: A single BADGER battery cannot power a golf cart alone. To maximize performance, compare your motor and controller specs with the BADGER kit’s continuous power output. Exceeding limits voids the warranty.

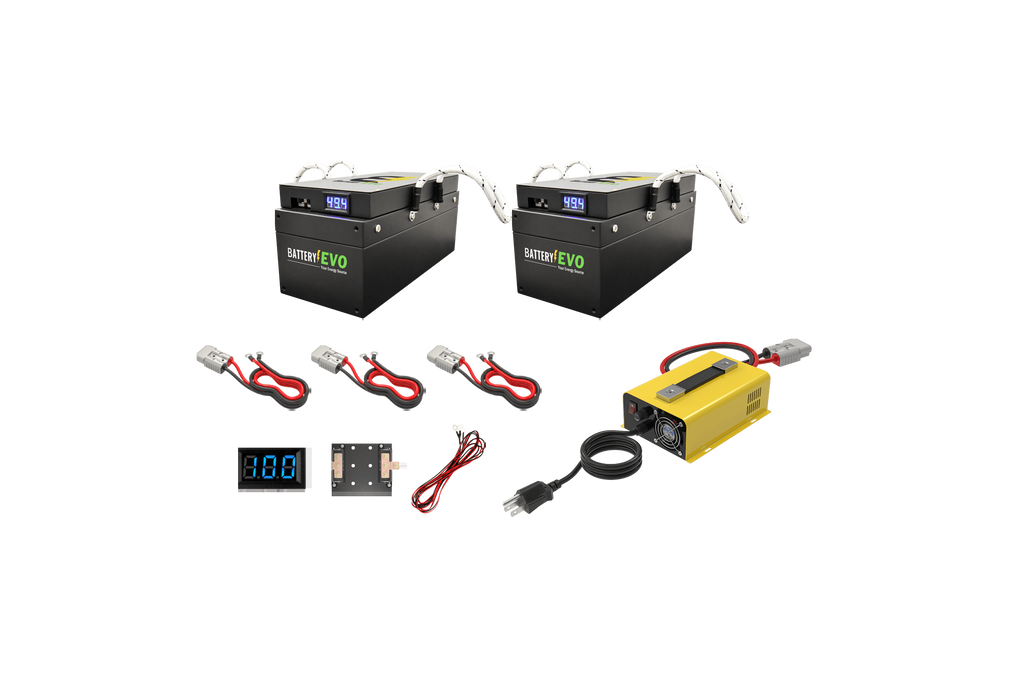

What’s Included in the BADGER 2x Battery Kit?
-
(2) 48V BADGER Lithium Batteries – High-energy density, lithium iron phosphate power source
- (2) 8AWG 4FT BE50 to Ring Terminal Cables
- (1) 6AWG 4FT BE175 to Ring Terminal Cable
- (1) 24AWG 10FT Meter to Ring Terminal Cable
- (1) DC LED Percentage Capacity Meter
- (1) Parallel Busbar
- (1) 50.4V DC - 110 VAC - 17A Lithium Charger
BADGER 2x Battery Kit Specifications
-
System Voltage: 48V
-
Nominal Voltage: 44.2V
-
Battery Chemistry: NMC (Nickel Manganese Cobalt)
-
Total Energy Capacity: 4.2 kWh (2.1 kWh per battery)
-
Amp-Hour Capacity: 47Ah per battery
-
Charging Voltage: 49.8V - 50.4V
-
Max Continuous Discharge Current: 60A
-
Max Discharge Power: 2650W
-
Peak Discharge Current: 120A (6 seconds)
-
Operating Temperature Range: -4°F to 131°F (-20°C to 55°C)
-
Storage Temperature: 23°F to 95°F (-5°C to 35°C)
-
Weight: 36 lbs (16.3 kg)
-

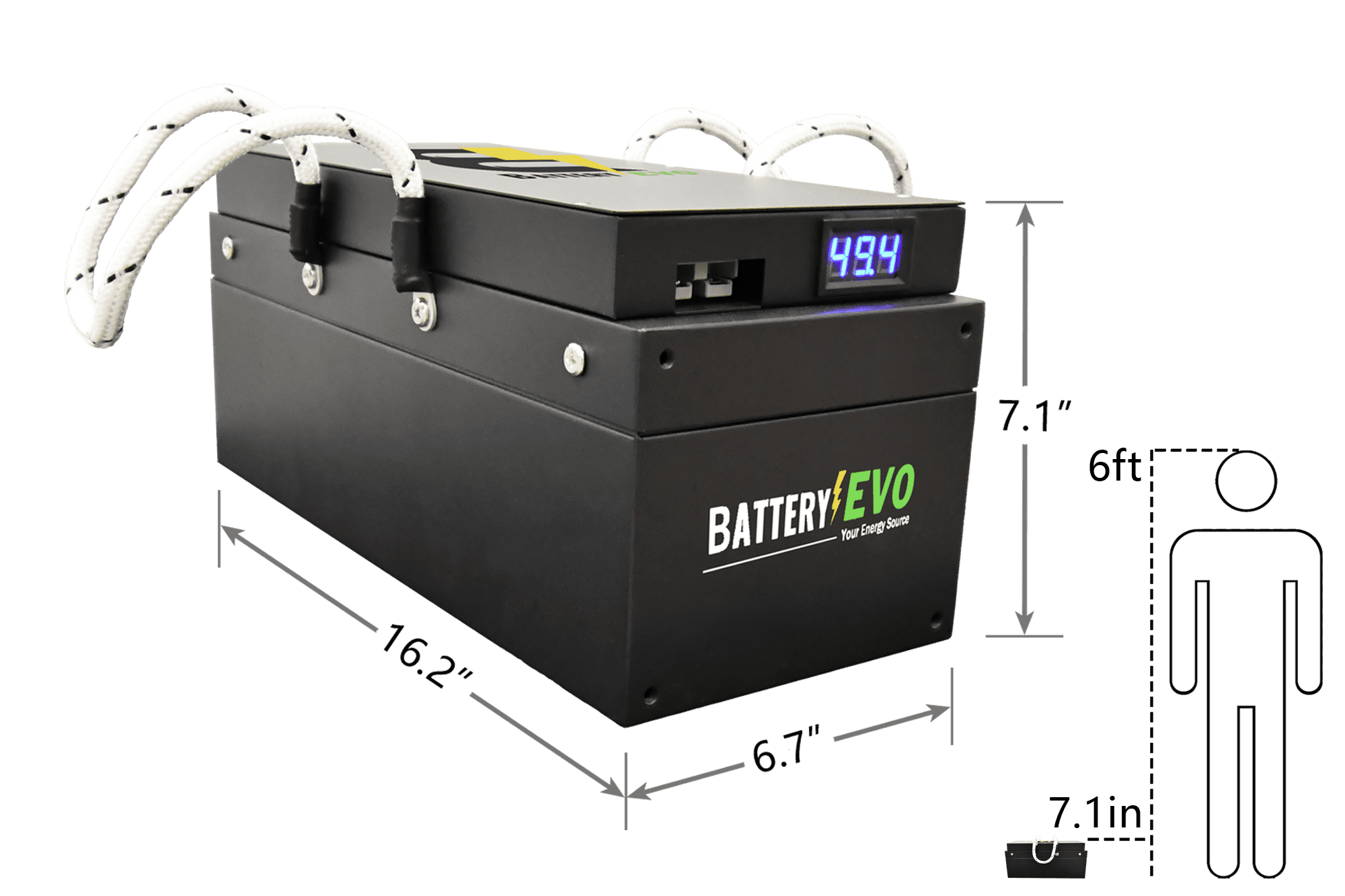

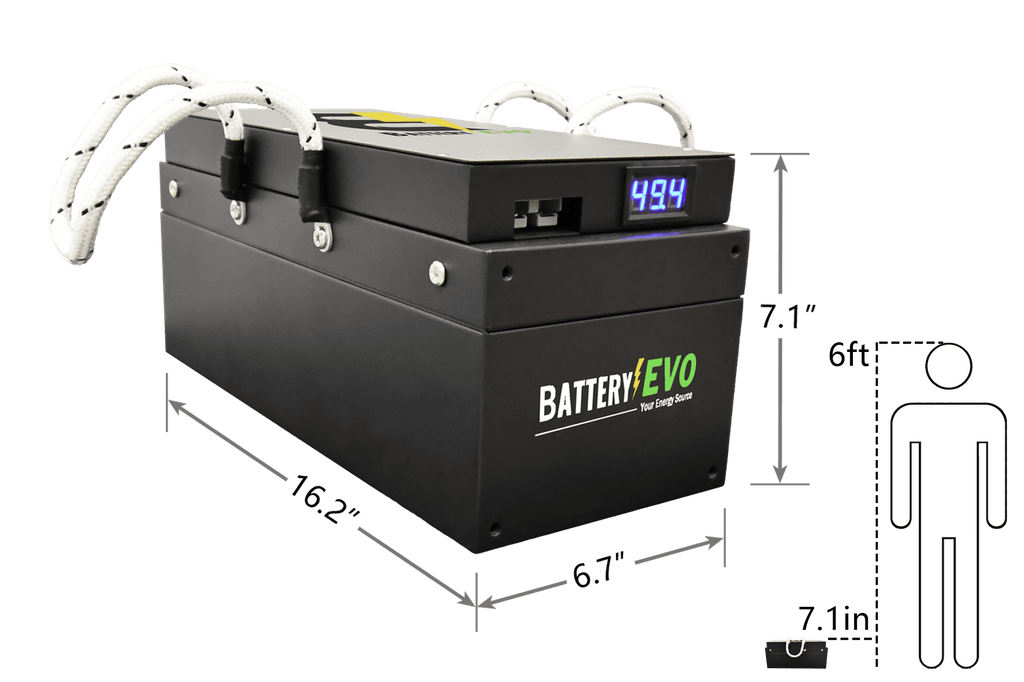

Dimensions: 16.2” x 6.7” x 7.1”
-

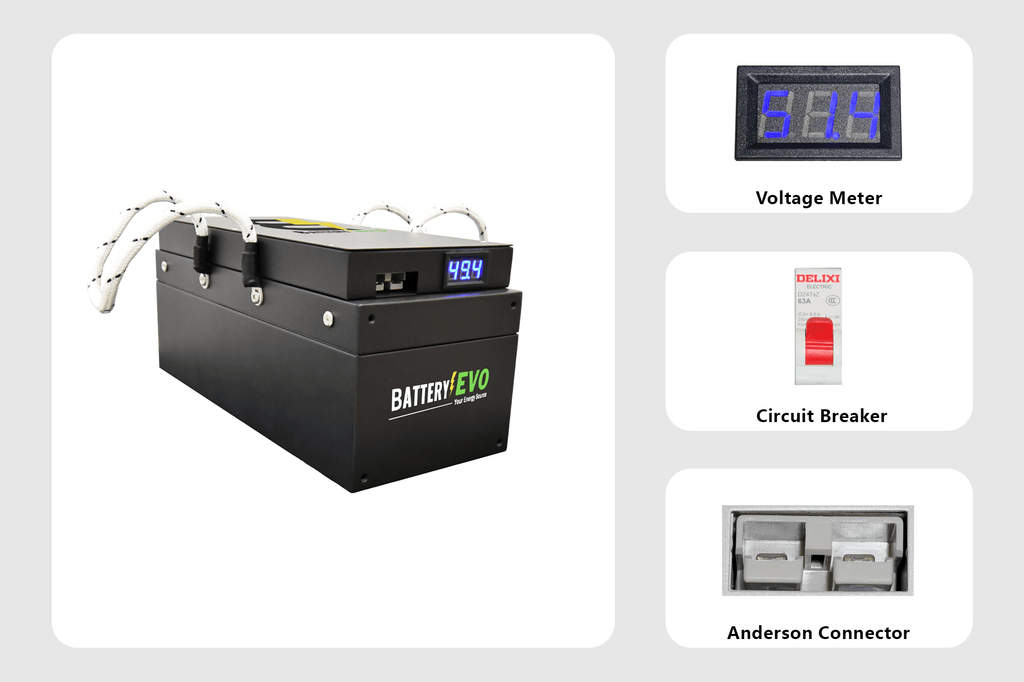

Safety Features: 63A breaker, BMS (over/under voltage, overcurrent, temperature protections)
-
Max Parallel Connections: Up to 8 batteries
Why Choose the BADGER 2x Battery Kit?
Lightweight & Compact – One of the lightest 48V lithium solutions at just 36 lbs/kWh
High Discharge Rate – Efficient 2C discharge rate for high power demand
Advanced Battery Protection – BMS safeguards against voltage, current, and temperature risks
Long-Lasting Performance – Up to 8,000 charge cycles, ensuring years of reliable use
Cost-Effective Solution – Superior performance at a competitive price
BatteryEVO 10-Year Warranty & Support
-
10-Year Warranty: Covers material and workmanship defects
-
Lifetime Tech Support: Free troubleshooting assistance
-
Free Repair & Replacement: Covers shipping for the first year (USA only)
-
Top-Quality Cells: Built with Tier 1 lithium-ion cells for longevity
