BatteryEVO 36V RAPTOR 3x 201Ah 7.5 kWh Battery Kit
High-Powered Lithium Upgrade for Your 36V Golf Cart
Upgrade your golf cart’s performance with the BatteryEVO 36V RAPTOR Battery Kit—a compact yet powerful lithium solution designed for maximum efficiency and speed. Engineered with Grade A LFP cells, an advanced Battery Management System (BMS), and a 300A safety fuse, this battery ensures superior energy output, extended runtime, and top-tier safety.
Why Choose the 36V RAPTOR?
-
Unmatched Power & Efficiency – Delivers 2.5 kWh per battery, enhancing speed, range, and reliability.
-
Lightweight & Compact – Space-saving design with precision cutouts for easy installation, even in divided battery trays.
-
Premium Lithium Performance – Built with high-quality LFP cells for long-lasting durability and energy efficiency.
-
Advanced Safety Features – Integrated BMS protection prevents overcharging, overheating, and voltage fluctuations.
-
Versatile Compatibility – Ideal for golf carts, utility vehicles, and other 36V applications.
?? Note: A minimum of two batteries may be required for certain golf carts.

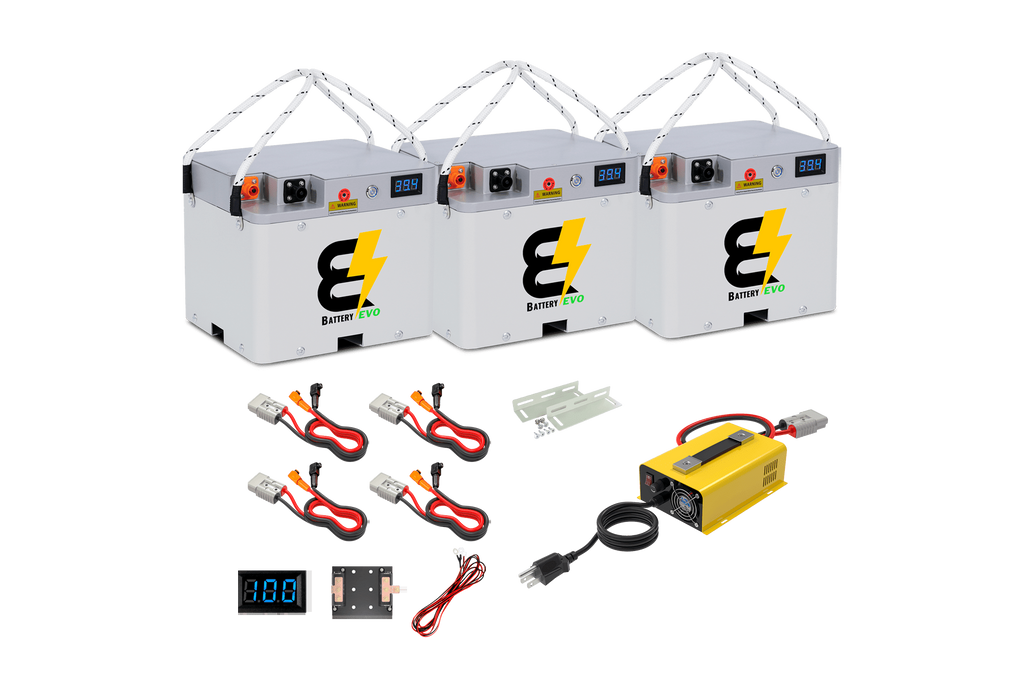

What’s in the Box?
- (3) 36V RAPTOR G2 Lithium Batteries
- (3) 6AWG NE120 to Ring Terminal Cables
- (1) 43.8V DC - 110V AC - 20A Lithium Charger
- (1) 6AWG 4FT BE175 to Ring Terminal Cable
- (1) 6AWG 18" BE175 to Ring Terminal Cable
- (1) 24AWG 10FT Meter to Ring Terminal Cable
- (1) LED Percentage Capacity Meter (12S LFP)
- (1) Parallel Busbar
Product Specifications
-
Voltage: 36V Nominal (38.4V)
-
Capacity: 201Ah (Total) / 7.5 kWh
-
Charging Voltage: 41.4V - 43.8V
-
Max Discharge Current: 300A (5 sec peak)
-
Operating Temperature: -4°F to 131°F (-20°C to 55°C)
-
Weight: 55 lbs (24.9 kg) per battery
-
Max Parallel Connections: Up to 8 batteries
10-Year Warranty & Lifetime Support
At BatteryEVO, we stand by our products with a 10-year warranty and free lifetime technical support. Our Tier 1 LFP cells guarantee a lifespan of 3,500 – 8,000 cycles, ensuring reliability for years to come.
